Top Hammer Drilling in Fractured Rock: Hole Deviation, Flushing, and Stuck-Tool Prevention

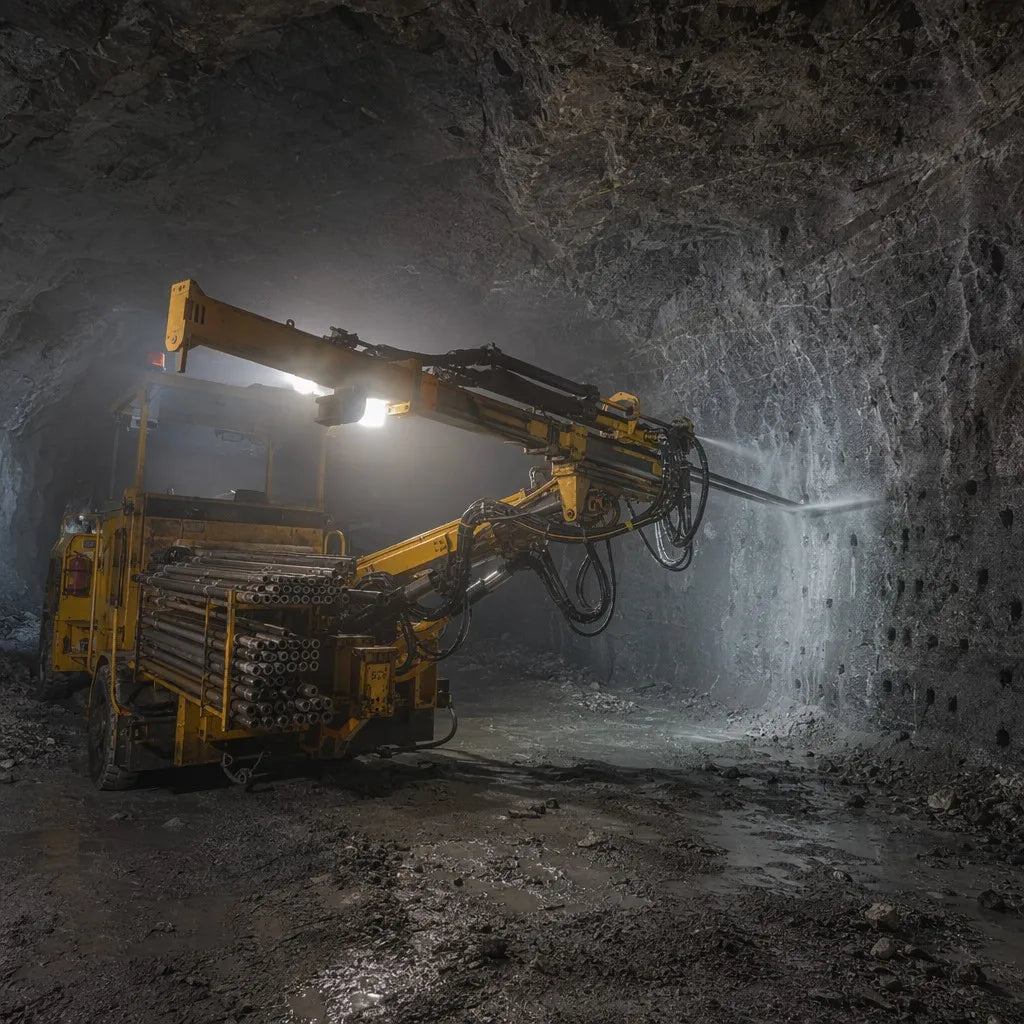

Direct answer: fractured rock changes top-hammer drilling because the bit is no longer working against one stable, continuous rock mass. Joints, open fractures, broken blocks and changing competent zones can deflect the bit, absorb or redirect flushing, allow cuttings to accumulate, and increase the risk of the bit or drill string becoming trapped. The correct response is not simply to add more feed, rotation or flushing. Start by protecting hole guidance, keeping the drill string aligned and in good condition, confirming that cuttings are actually returning from the hole, and tuning percussion, feed and rotation to the local ground response.

This guide is for quarry, construction and surface-drilling buyers and operators using threaded top-hammer systems in fractured, jointed or variable rock. It focuses on the application conditions that change setup and tool selection—not on one universal machine setting.

1. Why Fractured Rock Is Different from Massive Rock

In competent, relatively homogeneous rock, the bit face is supported more consistently and the drill string has a more predictable path. In fractured rock, the bit can repeatedly move between hard intact rock, open joints, soft infill and loose fragments. That creates four linked problems:

• Guidance becomes less stable. Natural discontinuities can push the bit away from the intended trajectory, especially after poor collaring or when the string is already bending.
• Flushing becomes less predictable. Air or water can escape into open fractures instead of carrying cuttings back to the collar.
• Loose material can move around the tool. Broken fragments can pack around the bit or rod, increasing rotational resistance and sticking risk.
• Reflected and side loads can rise. A wandering hole, worn bit, misaligned feed or stuck string can increase stress on rods, couplings and the shank adapter.

The operating objective therefore changes. In massive rock, the buyer may focus heavily on penetration rate and wear. In fractured rock, hole control, reliable cuttings return and avoiding trapped tools can become equally important to cost per meter.

2. Control Hole Direction Before Chasing Penetration Rate

Fractured formations can amplify a small setup error. If the feed is misaligned at the collar, the string begins drilling with a directional bias before it reaches the first joint. Once the bit meets a fracture plane or a softer zone, that bias can become larger.

Before changing consumables, verify the basics:

• boom and feed alignment are correct for the planned hole;
• collaring is controlled rather than rushed;
• centralizers, guides and feed wear parts are in serviceable condition;
• rods are straight and threads/couplings are not excessively worn;
• the bit gauge and skirt are not worn to the point that guidance is compromised;
• the drilling parameters are not forcing a flexible string to bend.

Sandvik’s current top-hammer failure analysis links thread and coupling failures with feed misalignment, hole deviation, stuck rods and excessive feed. Its guidance also points to retrac bits, guide tools and good collaring practices when straighter holes are required. Those recommendations are a reminder that hole straightness is created by alignment, tooling and operating practice together.

For larger T51/GT60 bench systems, Sandvik also offers a dedicated guide adapter and reports tests in fractured and variable rock formations with hole quality and straightness improvements of up to 50%. That figure belongs to Sandvik’s specific guide-adapter system; it should not be treated as a universal improvement that applies to every T38, T45 or other top-hammer setup.

3. Watch Cuttings Return—not Only Supply Pressure

In broken ground, a pressure gauge can look normal while hole cleaning is deteriorating. Open fractures may accept part of the flushing air or water, so the energy supplied to the flushing system is not necessarily the same as the cuttings-carrying flow returning up the hole.

A practical field check is to watch for changes in:

• volume and consistency of cuttings at the collar;
• changes in cuttings size or sudden loss of returns;
• rising rotation torque or a bit that feels increasingly restricted;
• longer cleaning time after each drilled interval;
• plugged or damaged bit flushing holes;
• water, mud or fractured material changing the annular return path.

Do not automatically respond to poor returns by applying the maximum possible flushing. Excessive flushing can create its own tool-wear or erosion problems in some conditions, while additional supply may still disappear into open fractures. The correct objective is sufficient, stable cuttings evacuation for the actual hole condition.

Robit has published a useful field example from cable-bolting work in broken rock at the Kittilä mine: flushing escaped into rock fractures and the bit became stuck. The solution involved changing the bit’s flushing design. That is a specific mine case rather than a universal recipe, but it demonstrates an important diagnostic principle—when returns disappear in fractured rock, the problem may be the flow path, not simply insufficient compressor or pump capacity.

4. Bit and Guidance Options: Match the Ground, Not the Thread Name

Thread family alone does not decide how a bit behaves in fractured ground. Sandvik’s current top-hammer range includes different button shapes and both regular and retrac skirt designs for different rock formations. In its failure guidance, Sandvik specifically recommends retrac bits and anti-jamming functions for some stuck-rod and broken-rock conditions.

For a buyer, the safe selection sequence is:

1. identify the exact rock drill and current thread family;
2. confirm the current rod architecture and bit connection;
3. describe the fractured-ground problem—deviation, caving, lost flushing, sticking or a combination;
4. ask the rig/tool supplier which bit, skirt or guide option is approved for that system;
5. verify the complete connection drawing before ordering.

Do not assume that a retrac bit, guide adapter or other specialized component exists in every thread size or is directly interchangeable with the current drill string. PerfoMax’s current online T38 and T45 pages are defined around male–male extension rods; specialized guide/retrac tooling should be confirmed separately in the RFQ rather than inferred from the rod thread.

5. Tune Feed, Rotation and Percussion to the Ground Response

Fractured rock does not support a single universal RPM, feed-pressure or percussion setting. The correct values depend on the rock drill, bit, hole diameter, thread system, depth, rig control logic and the specific ground structure.

What can be stated reliably is the direction of control:

• Feed: enough to maintain efficient bit-to-rock contact, but not so high that the string is forced to bend or the bit is driven aggressively across discontinuities.
• Rotation: sufficient to index the bit and maintain cutting action, while avoiding excessive torque when the bit is partially trapped by broken material.
• Percussion: balanced with feed and the actual contact condition. Continued percussion on a stuck string can damage threads, shanks and other components.
• Flushing: judged by cuttings evacuation and return behavior, not supply pressure alone.

If the rig has anti-jamming, automatic feed/rotation control or a power-extraction function, use the OEM operating procedure rather than improvising recovery forces. Sandvik’s failure guide repeatedly associates stuck rods in broken rock with high torque, excessive back hammering and component damage.

6. Drill-String Condition Becomes More Important in Variable Ground

A fractured formation already provides multiple opportunities for the hole to deviate. Adding bent rods, worn couplings, damaged threads or poor alignment increases those opportunities.

Before a difficult fractured-rock campaign, inspect:

• rod straightness and surface damage;
• pin and box/thread condition;
• coupling wear and evidence of loose joints;
• shank adapter thread and spline condition;
• thread lubrication practice;
• centralizers and rod guides;
• bit gauge wear and flushing holes.

For male–male T38 extension rods, use a compatible T38 coupling between rods. PerfoMax’s current T38 extension rod page is defined around 3,050, 3,660, 4,270 and 4,880 mm male–male rods. For larger T45 systems, see the current T45 extension rod range. Neither thread family by itself guarantees suitability for fractured ground; the rig, bit, guidance and operating envelope still control.

7. An 8-Step Fractured-Rock Setup Workflow

1. Describe the ground problem. Separate fractured/jointed rock from soft infill, open voids, water inflow and overburden; they do not create identical drilling behavior.
2. Verify rig alignment and collaring. Correct the starting geometry before changing consumables.
3. Inspect the complete drill string. Remove bent rods, worn couplings, damaged shanks and worn-out bits from the diagnosis.
4. Confirm the approved bit and guidance options. Ask whether retrac, guide tooling or another bit design is supported for the installed thread/rig.
5. Start with OEM baseline drilling settings. Do not import feed/rotation values from another rig just because the thread size is the same.
6. Watch actual cuttings return. Treat disappearing returns, increasing torque or repeated cleaning delays as early warning signals.
7. Respond before the string is trapped. Use the rig’s anti-jamming/retraction procedure rather than escalating rotation or percussion blindly.
8. Record the fractured zones. Compare depth, return loss, deviation, torque response, bit wear and stuck-tool events across holes so the setup can be improved systematically.

8. When Should You Reconsider the Drilling Method?

Top hammer remains widely used for quarry, construction and production drilling, including variable ground. But if fractured rock is producing unacceptable hole deviation, repeated stuck strings or poor hole quality at the required depth, the correct decision may be a system-level review rather than another parameter adjustment.

Questions to ask include:

• Is hole straightness more important than maximum penetration rate?
• Are the holes becoming long enough that string flexibility and accumulated deviation dominate the result?
• Would a guided top-hammer system, different drill-string architecture or DTH method better meet the hole-quality requirement?
• Is the current rig actually capable of the approved tool configuration required for the ground?

A method change should be justified by the required hole diameter, depth, straightness, rock structure, available rig/compressor package and economics. Do not switch methods from a single bad hole.

9. RFQ Checklist for Fractured-Rock Top Hammer Drilling

When asking PerfoMax or another tool supplier to review a fractured-rock application, send:

• rig make/model and rock drill model;
• current shank adapter and thread family;
• rod type, body size and length;
• coupling type;
• current bit thread, diameter, face/skirt style and button condition;
• hole diameter, typical and maximum depth, and drilling angle;
• description of the rock: joint spacing, open fractures, broken zones, soft infill or voids if known;
• whether water is present;
• air or water flushing arrangement;
• observed problem: deviation, lost returns, high torque, sticking, short tool life or low penetration;
• photos of failed/worn components and cuttings if available;
• current drilling settings from the rig, rather than estimates;
• required quantity, destination and inspection/packing requirements.

If the immediate problem is thread-family compatibility rather than ground response, see T38 vs T45 Top Hammer Threads: Compatibility and Selection Guide. For a broader drill-string failure diagnosis, see Top Hammer Drill Rod Failure Guide.

FAQ

Why does a top-hammer bit get stuck more often in fractured rock?

Broken material can move into the annulus or around the bit, while flushing can escape into open fractures instead of carrying cuttings to the collar. The risk increases if the hole is deviating, returns are poor or the operator continues forcing rotation/percussion after the tool begins to bind.

Should I increase flushing pressure when returns disappear?

Not automatically. First confirm whether the flushing path is blocked or whether air/water is being lost into fractures. More supply does not guarantee more cuttings return, and excessive flushing can create other wear problems in some conditions.

Are retrac bits always better in fractured rock?

No universal rule applies. OEM failure guidance often recommends retrac designs for some broken-ground and stuck-string conditions, but the bit must be available and approved for the exact thread, rod and rig configuration.

Can fractured rock cause top-hammer hole deviation?

Yes. Geological discontinuities are one contributor, but feed alignment, collaring, bit wear, rod straightness, coupling condition and drilling parameters also matter. Treat deviation as a system problem rather than geology alone.

When should I consider DTH instead of top hammer in fractured ground?

Consider a method-level review when the required depth and straightness cannot be achieved reliably with the current top-hammer system, or when repeated deviation and stuck-tool costs dominate performance. Final selection still depends on hole diameter, rig package, rock conditions and economics.

PerfoMax Support for Top Hammer Drill Strings

PerfoMax currently lists T38 male–male extension drill rods, T45 male–male extension drill rods and an R32–R32 coupling sleeve for compatible top-hammer systems. Fractured-rock suitability cannot be confirmed from those product names alone.

Send the rig, rock drill, current drill-string configuration and fractured-ground symptoms to PerfoMax for an RFQ review. Specialized bit, retrac or guide-tool requirements should be stated explicitly so compatibility can be checked before quotation.
