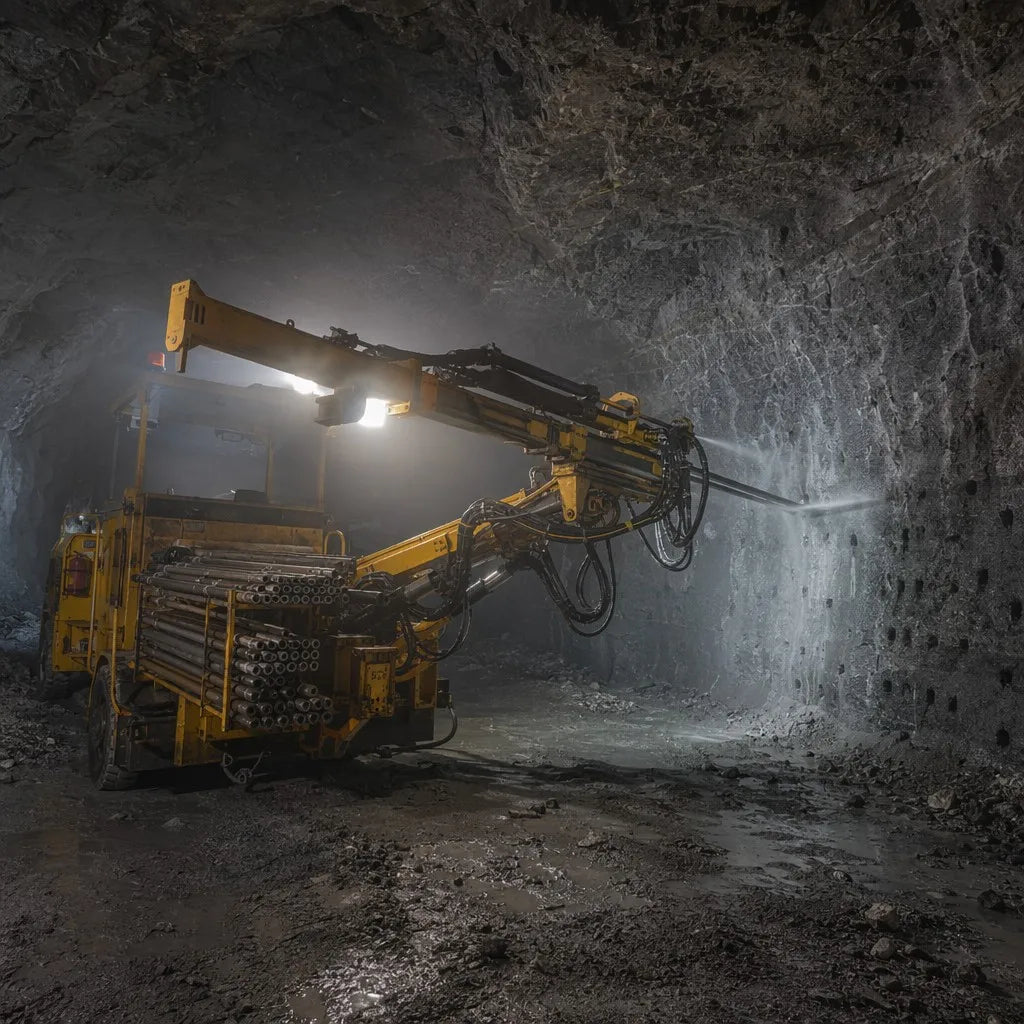

Quick answer: In hard abrasive rock, top hammer performance is controlled by the whole drilling system—not by one thread size or one bit feature. The practical priorities are to keep cuttings moving out of the hole, protect the bit gauge and carbide from unnecessary regrinding, keep the shank–rod–coupling–bit string straight and correctly matched, and tune feed, rotation, percussion and flushing inside the rig and tool manufacturer’s approved operating window. Rock strength and rock abrasiveness are related but not identical, so a “hard rock” label alone is not enough to choose a setup.
This guide is for quarry, mine, construction and drilling-service teams already using top hammer equipment in demanding formations. It is an application guide, not a universal parameter chart. Exact feed force, rotation speed, percussion setting and flushing pressure or flow must come from the installed rock drill, rig and tooling documentation, then be confirmed by controlled field observation.
1. Hard Rock and Abrasive Rock Are Not the Same Problem
Hardness or strength describes how difficult the rock is to fracture. Abrasiveness describes how aggressively the mineral grains and broken cuttings wear carbide, steel and gauge surfaces. Granite, quartz-rich formations and other competent rocks can be both strong and abrasive, but the two variables should still be evaluated separately.
That distinction matters because two sites with similar compressive strength can produce very different tool-life patterns. One may mainly limit penetration; another may consume gauge buttons and bit-body steel rapidly. Buyers should therefore combine any available geology or UCS data with real field evidence: bit-face photos, gauge wear, button wear, thread condition, penetration trend and cuttings return.
| Field signal | What it may indicate | Verify before changing tools |
|---|---|---|
| Penetration falls but bit wear looks normal | Stronger rock, operating mismatch, or reduced energy at the bit | Rock change, feed/rotation/percussion baseline, drill-string joints and flushing |
| Gauge and buttons wear rapidly | High abrasiveness, regrinding of cuttings, or unsuitable bit wear profile | Cuttings evacuation, bit condition, rock mineralogy and supplier bit recommendation |
| One side of the bit or string wears faster | Alignment, guide, rotation, bent rod or uneven ground condition | Rod straightness, guides/centralizers, thread seating and hole direction |
| Threads and couplings deteriorate repeatedly | String alignment or operating-load problem, not just rock hardness | Shank/rod/coupling fit, connection condition, feed behavior and rod handling |
2. Why Hard Abrasive Rock Raises the Cost of Poor Hole Cleaning
Top hammer drilling breaks rock at the bit while percussion energy travels through the drill string. The broken material then has to leave the hole. Robit describes top hammer cuttings as being flushed from the bottom by pressurized air or water. Epiroc likewise treats flushing-hole and groove design as a key part of bit performance.
In abrasive formations, poor cuttings evacuation is especially costly because already-broken hard particles can remain around the bit face. Instead of every impact being used mainly against fresh rock, the bit can spend more time crushing and rubbing material that should already have been removed. This can reduce effective penetration and add abrasive contact to the buttons, gauge and bit body.
Do not diagnose flushing from compressor or pump pressure alone. What matters is whether the complete path—from supply through shank, rods, couplings and bit passages—actually delivers enough clean air or water to move the cuttings being generated in that hole.
- Check that flushing passages are open and not damaged or blocked.
- Watch the material returning at the collar: a change in return behavior can be an early process signal.
- Compare flushing performance before and after a sudden ROP or wear change.
- Inspect the bit face and flushing holes whenever the bit is pulled.
- Use the rig/tool OEM requirement for air or water supply rather than a generic internet number.
Robit’s published Evolution-bit development work is a useful illustration of the mechanism: the company reports that more even flow paths and an added center flushing hole improved cutting clearance and reduced bit erosion in its tests, including very hard and abrasive formations. That is not a universal design prescription, but it shows why flushing geometry and cuttings transport belong in the same conversation as carbide wear.
3. Bit and Button Design: Use the Rock Condition, Not a One-Line Rule
Hard abrasive rock usually increases the importance of wear resistance, gauge retention and robust carbide support. However, buyers should avoid rules such as “hard rock always requires one button shape” or “a larger thread is automatically better.” Current OEM ranges show multiple button shapes and bit designs for hard and medium-hard rock because penetration, wear, hole diameter, rig energy and flushing all interact.
Epiroc’s current underground top-hammer bit range, for example, lists ballistic, spherical and Trubbnos button shapes across hard and medium-hard conditions, while its hard-rock Powerbit X range uses spherical buttons. Epiroc also emphasizes balancing diameter wear and penetration rather than maximizing one variable in isolation.
For a buyer, the useful question is therefore not “Which button shape is best?” but:
- What rock is actually being drilled, and how abrasive is it?
- Where is the current bit wearing—face, gauge, skirt, button or body?
- What hole diameter and thread family does the approved rig configuration use?
- What does the current supplier recommend for that rock and rock-drill energy level?
- Does the proposed bit still preserve correct flushing and full-string compatibility?
If you are requesting a different bit for abrasive ground, send clear photos of both new and worn bits. A wear pattern is often more useful than a generic rock name.
4. Feed, Rotation and Percussion Must Be Tuned Together
Top hammer drilling combines percussion, rotation, feed and flushing. A problem in one control can show up as wear somewhere else, so increasing one setting aggressively is rarely a reliable first response to hard rock.
Use the installed rig and rock-drill manual as the starting window, then adjust one variable at a time while recording penetration, hole behavior and tool wear. The following logic is safer than memorizing universal RPM or pressure values:
- Feed: keep the bit consistently engaged without forcing the string into unstable bending or excessive contact load.
- Rotation: index the buttons across fresh rock between impacts without turning the bit into a high-friction grinding tool.
- Percussion: apply energy that the approved drill string and bit are designed to carry; more percussion does not correct poor flushing or a worn bit.
- Flushing: remove the volume and size of cuttings being created so the bit is working mainly on fresh rock.
When a change improves ROP for a few holes but sharply shortens bit or thread life, it is not automatically a productivity gain. Track meters per bit, meters per rod/coupling set, downtime and cost per meter—not penetration rate alone.
5. Drill-String Condition Matters More as Loads and Wear Increase
A top hammer string is a chain: rock drill → shank adapter → rod → coupling (where used) → bit. Every connection must match the intended thread family and configuration. Hard abrasive rock does not override compatibility rules.
PerfoMax’s current T38 extension drill rod page, for example, describes male–male T38 rods used with a separate T38 coupling sleeve. MF speed rods are treated as a separate configuration. If a fleet is already standardized on T38, abrasive ground alone is not enough reason to switch to T45. A thread-family change affects the shank adapter, rods, couplings, bit and possibly rig-side handling.
Before blaming the rock for repeated rod or coupling damage, inspect:
- thread wear and visible deformation;
- coupling seating and connection condition;
- rod straightness and body damage;
- shank adapter condition;
- rod guides, centralizers and handling alignment;
- whether the actual rod, coupling and bit match the specified thread family.
For a deeper compatibility check, see the T38 vs T45 Top Hammer Threads guide.
6. Seven-Step Setup Workflow for Hard Abrasive Rock
- Document the ground. Record rock type, any UCS or geological data available, fracture condition and evidence of abrasiveness. Add photos of cuttings and worn tools.
- Map the installed system. Record rig, rock drill, shank adapter, rod thread/body/length, coupling, bit thread and bit diameter.
- Start from the approved setup. Use the rig/tool manufacturer’s operating window—not a generic chart—as the baseline.
- Confirm flushing first. Check supply, passages and collar return before raising percussion to chase lost penetration.
- Run a controlled trial. Keep the hole type and rock interval as consistent as practical and change one operating variable or one tool design at a time.
- Measure wear and output together. Record ROP, meters drilled, bit gauge/button wear, rod/coupling condition, regrind interval and downtime.
- Standardize only after evidence. Lock the chosen bit/string/setup into purchasing and operating documentation after the controlled comparison is repeatable.
7. Symptom-Based Checks Before You Change the Drill String
| Symptom | Check first | Do not assume |
|---|---|---|
| ROP suddenly drops | Bit wear, flushing return, blocked passages, rock change and operating baseline | That a bigger thread or higher percussion is automatically required |
| Gauge wear accelerates | Abrasiveness, bit design, cuttings evacuation and regrind condition | That UCS alone explains the wear |
| Uneven face or gauge wear | Rod straightness, alignment, guides, rotation behavior and ground structure | That the carbide grade alone is wrong |
| Repeated coupling/thread damage | Connection wear, matching, alignment, rod handling and feed behavior | That hard rock by itself is the root cause |
| Hole deviation increases | Bit gauge, rods, guides/centralizers and fracture pattern | That more feed will make the hole straighter |
8. When Should You Evaluate DTH Instead of Top Hammer?
Do not switch drilling method simply because the formation is described as hard or abrasive. Top hammer systems are used across hard-rock mining, quarrying and construction, and current OEM ranges explicitly support hard conditions.
A DTH comparison becomes more relevant when the complete job changes: deeper holes, larger diameter, stricter straightness requirements, a different production target, or a rig/air system that makes bottom-hole percussion more appropriate. Compare the full system rather than one component. A fair trial should include hole depth and diameter, ROP, deviation, bit/tool life, rod handling time, compressor demand, downtime and cost per meter.
If the current top hammer string performs well after flushing, bit condition and operating setup are controlled, changing methods may add cost without solving a real constraint.
9. What PerfoMax Buyers Should Send Before an RFQ
PerfoMax’s current T38 offering includes male–male extension rods in 3,050, 3,660, 4,270 and 4,880 mm inquiry lengths, with separate T38 coupling sleeves. For hard abrasive rock, the RFQ should describe the application rather than requesting “hard-rock rods” as an isolated specification.
- rig make/model and exact rock drill model;
- current shank adapter and thread family;
- rod type, length, body and coupling details;
- bit thread, diameter and current bit configuration;
- hole diameter, typical/max depth and drilling direction;
- rock type, UCS if available, fracture condition and any abrasiveness/mineral information;
- current penetration rate and meters per bit/rod set if tracked;
- photos of worn bit face, gauge, skirt, rod threads and couplings;
- air or water flushing arrangement and available supply;
- the specific problem to solve: wear, ROP, deviation, thread life, downtime or total cost per meter.
Browse current PerfoMax drill rods, or send the drilling-system and rock information for an RFQ review.
10. Common Mistakes in Hard Abrasive Top Hammer Drilling
- Using UCS as a complete wear index. Strength and abrasiveness need separate evidence.
- Increasing percussion before checking flushing. More energy does not remove trapped cuttings.
- Changing T38 to T45 only because the rock is hard. Thread selection is a full-system compatibility decision.
- Running a worn bit too long. Lost gauge or badly worn buttons can change hole quality and load the rest of the string.
- Changing several parameters at once. You lose the ability to identify what actually improved or worsened performance.
- Ignoring threads and guides while inspecting only the bit. Alignment and connection condition can create wear that looks like a rock problem.
- Judging suppliers by unit price only. Hard abrasive ground should be compared by meters, downtime and cost per meter.
For rod-specific failure patterns, see Top Hammer Drill Rod Failure: Breakage, Bending, and Thread Wear.
FAQ
Can top hammer drilling be used in hard abrasive rock?
Yes. Top hammer is widely used in hard-rock mining, quarrying and construction, provided the rig, drill string and bit are approved for the application. Hard abrasive ground usually increases the importance of flushing, wear monitoring and correct bit/string setup.
Should I change from T38 to T45 for harder rock?
Not based on rock hardness alone. Check the rock drill, shank adapter, hole diameter/depth, rod handling, bit program and OEM-approved drill-string configuration. A T38-to-T45 change is a system conversion, not a simple rod upgrade.
Does more flushing always improve performance?
No. The goal is effective cuttings evacuation within the rig and tooling limits. Excess supply cannot compensate for blocked passages, poor bit condition or another system mismatch. Use the OEM requirement and verify actual returns at the hole.
What wear photos should I send to a supplier?
Send the full bit face, gauge row, side/skirt, each abnormal button area, rod pin and box/thread ends, coupling interiors and any repeated damage location. Include a new or known-good component for comparison where practical.
When should I compare top hammer with DTH?
Compare methods when depth, diameter, straightness, production target or rig/air-system constraints suggest the current top hammer system is no longer the best whole-job solution. Do not make the decision from rock hardness alone.
