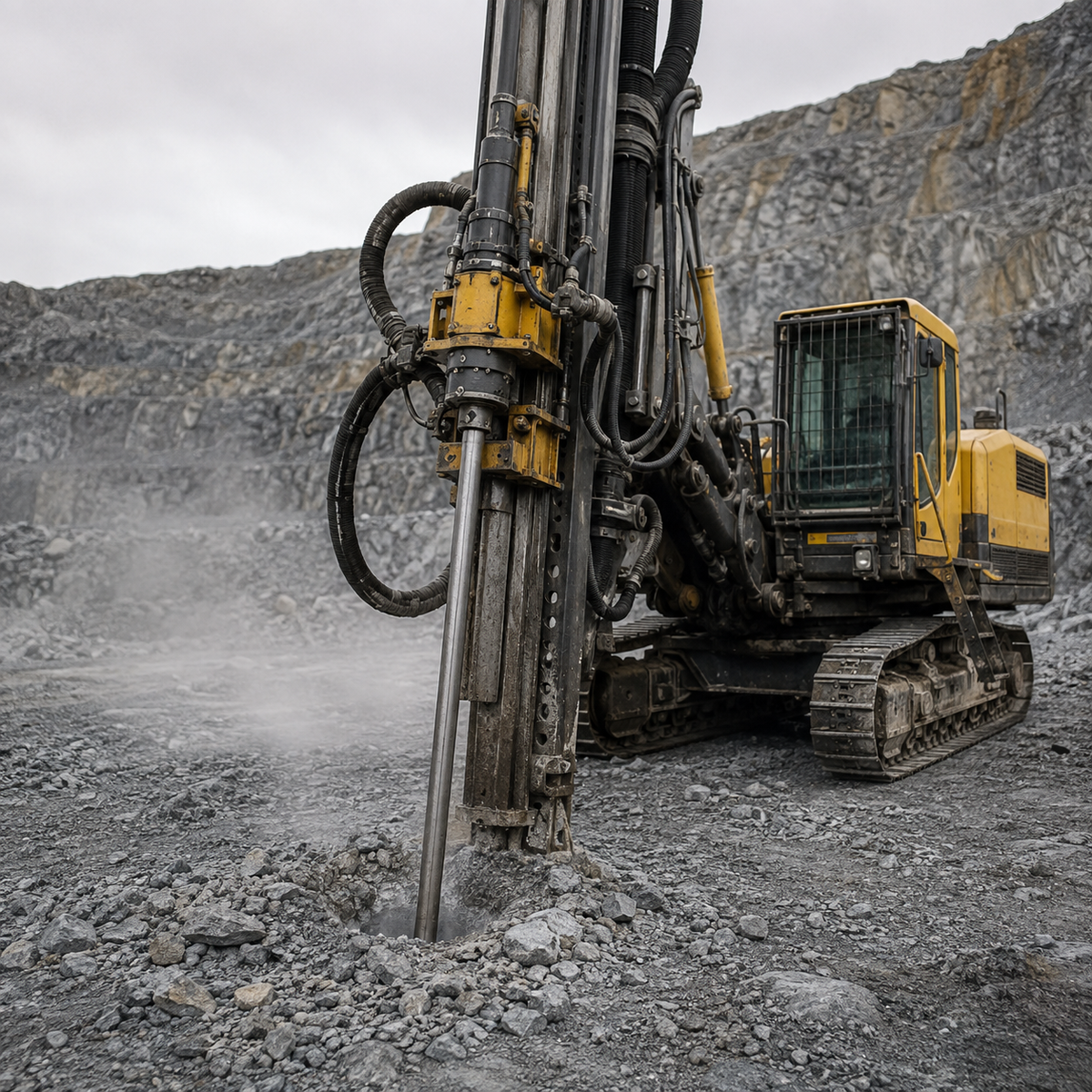

Top Hammer Drill Rod Flushing-Hole Diameter: Compatibility Checks for Air, Water, Shank, and Bit

The short answer: a top-hammer drill rod's thread designation does not, by itself, confirm the diameter or continuity of its internal flushing hole. A replacement rod can carry the expected R32, T38, T45, or other connection and still be wrong for the rock drill, shank adapter, flushing medium, bit, or complete drill string. Before ordering, verify the internal passage on the approved drawing and trace the flow path from the machine to the bit.

This matters because flushing is a system function. Air or water must travel through the rock drill and shank adapter, along the rod string, across every threaded joint, and through the bit's passages before it can carry cuttings away from the bottom of the hole. One restriction, offset passage, damaged seal, or blocked component can reduce delivered flow even when every thread screws together.

This guide explains how mines, quarries, contractors, distributors, and procurement teams can check top-hammer drill rod flushing-hole diameter and compatibility without relying on a universal bore value. It focuses on replacement and RFQ decisions, not on changing an OEM operating setting.

What does “drill rod flushing-hole diameter” mean?

The flushing hole, sometimes called the internal bore or flushing passage, is the longitudinal passage through a top-hammer rod. Its job is to convey the approved flushing medium toward the bit. The relevant compatibility question is not simply “What is the bore diameter?” It is “Does the complete passage provide the geometry and continuity required by this exact drilling system?”

Keep two different clearances separate:

• Internal passage: the bore through the shank adapter, rods, joints, and bit that delivers the flushing medium.
• External annulus: the space between the drill string and hole wall through which cuttings normally return toward the collar.

A larger internal passage cannot correct an undersized external return path, and a generous hole-to-rod clearance cannot correct a blocked or mismatched internal passage. For external clearance checks, see our guide to top-hammer rod diameter versus hole diameter.

Why thread size alone does not prove flushing compatibility

A thread family describes connection geometry, but suppliers may offer different rod constructions, body profiles, lengths, and internal passages within the same general connection family. A compatible connection must transmit percussion and rotation, remain mechanically suitable for the application, and maintain the intended flushing path. Passing only the thread check is therefore insufficient.

For example, identifying a rod as T38 helps establish the connection family, but it does not replace the need to confirm the shank adapter, rod drawing, bit, and machine configuration. If the thread itself is uncertain, first use our field guide to identify R32, T38, and T45 top-hammer threads.

Trace the complete flushing path before choosing a rod

Compatibility should be checked in flow order. Start at the machine rather than at the loose rod on the purchasing desk.

1. Rock drill and flushing supply: record the exact rig and rock-drill model, approved medium, and relevant OEM configuration. Surface top-hammer rigs commonly publish flushing-air capacity as a machine-specific parameter, while water flushing may be an option or a separately controlled system.
2. Shank adapter: confirm the part number, thread, and internal passage arrangement. The shank is the first tooling component in the flow path and must match both the rock drill and first rod.
3. Starter and extension rods: confirm each rod type, length, body profile, thread, and internal passage on drawings. Do not assume that an extension rod and a drifter rod with the same thread are interchangeable.
4. Couplings and transitions: ensure the joint leaves the passages concentrically aligned and free from burrs, scale, debris, or displaced components. A coupling may be mechanically correct yet conceal a restriction at the interface.
5. Bit: verify the bit shank and the number, position, and condition of its flushing passages. Bit-face flushing must distribute the medium where cuttings are created.
6. Hole return path: confirm that hole diameter, rod outside diameter, ground condition, and cuttings load leave a workable return route.

Which variables change the required flushing passage?

Flushing medium and machine configuration

Do not convert a drill string from air to water, or from water to air, solely because the rod has an open bore. The rock drill, seals, controls, dust-management arrangement, bit, and operating procedure must all support the medium. Use the rig maker's approved configuration and settings. Where optional water flushing exists, the option does not imply that every rod and bit combination is approved.

Delivered flow, pressure loss, and passage geometry

Flow through a real drill string is affected by more than the nominal diameter of one rod. Passage length, surface condition, local reductions, bends, joint misalignment, and bit orifice geometry all contribute to pressure loss. A long string with several interfaces can behave differently from a short single-rod setup. This is why copying one bore figure from an unrelated catalogue is risky.

Bit-face and return-path restrictions

The smallest or most restrictive section may be in the bit rather than the rod. Worn, plugged, or incorrectly configured bit flushing holes can starve the cutting face. Conversely, acceptable delivery through the bit does not guarantee cuttings will return if the external annulus is too restricted or the ground produces difficult chips and fines.

Rock and cuttings behavior

Dense chips, sticky fines, fractured zones, groundwater, and changing hole orientation can alter the flushing demand and the risk of regrinding cuttings. These conditions should be reported in an RFQ, but they do not justify improvising a larger bore or a higher setting outside the machine maker's limits.

How to compare a replacement rod without inventing a universal bore value

Use a controlled comparison against the approved existing system. The objective is functional and mechanical equivalence, supported by evidence.

1. Record the complete identification of the current rod, including markings, overall length, usable length, thread at both ends, body outside diameter or profile, and any wrench flats.
2. Identify the exact shank adapter and bit part numbers used with it.
3. Request a supplier drawing showing the internal passage and all relevant end geometry. A catalogue family label is not enough.
4. Compare the full flow path, not only the rod's minimum bore. Check whether any step, shoulder, transition, or joint creates a smaller effective opening.
5. Confirm that the proposed rod is approved for the intended flushing medium and machine configuration.
6. If data conflicts, stop the substitution and resolve the discrepancy with the rig/tooling technical owner before field use.

PerfoMax offers active T38 extension drill rods and T45 extension drill rods in several inquiry lengths. For both product families, body profile and flushing-passage details should be controlled by the quotation drawing for the intended drill string rather than assumed from the thread name.

Incoming and field inspection sequence

Inspection should be carried out with the machine isolated, pressure released, and components safely restrained. Never look into or place a hand over a passage that could become pressurized. Any functional test must follow the rig maker's procedure.

1. Clean before judging: remove loose dirt from external threads and entrances without damaging sealing or load-bearing surfaces.
2. Check identification: compare markings, packing list, purchase order, and drawing revision.
3. Inspect both entrances: look for burrs, dents, corrosion scale, coating buildup, or foreign material that reduces the opening.
4. Verify passage continuity: use an approved bore gauge or inspection method appropriate to the drawing. Do not force a sharp improvised rod through the bore.
5. Inspect joint alignment: assemble only clean, matched components and check that no shoulder or displaced feature obscures the passage.
6. Check the bit separately: inspect its central and face passages because a clean rod cannot compensate for a plugged bit.
7. Document results: retain photos, measured values, gauge identification, drawing revision, and disposition for nonconforming parts.

Symptoms that can indicate a flushing restriction

Symptoms are clues, not proof. Confirm them with safe inspection and machine diagnostics because several unrelated faults can look similar.

Also rule out compressor or pump performance, valves, hoses, water supply, leakage at the rock drill, incorrect operating settings, and a worn or unsuitable bit. Do not automatically blame the rod bore.

Common purchasing and troubleshooting mistakes

• Ordering by thread label alone: a thread family is necessary information, not a complete rod specification.
• Measuring only one entrance: local steps or restrictions can exist deeper in the rod or at the opposite end.
• Ignoring the bit: the bit's passages may be the controlling restriction or may be blocked in service.
• Mixing drawings from different revisions: similar part descriptions can hide dimensional changes.
• Treating more flow as automatically better: excessive or unapproved settings can create safety, wear, water-management, or equipment problems.
• Confusing internal and external clearance: both must work, but they solve different parts of cuttings removal.
• Accepting “fits T38” as complete evidence: require a dimensional drawing and exact application reference.

RFQ checklist for top-hammer rods with flushing requirements

A precise RFQ prevents a supplier from filling gaps with assumptions. Include:

• rig and rock-drill manufacturer, model, and configuration;
• shank adapter part number and verified thread;
• current rod manufacturer and part number, if available;
• thread family, end genders, body profile, and outside diameter;
• overall and usable rod length;
• required internal-passage dimensions from the approved drawing;
• bit part number, shank, diameter, and flushing layout;
• air or water as the OEM-approved flushing medium;
• typical hole diameter, depth, inclination, and number of rod joints;
• rock and cuttings conditions that affect return flow;
• inspection, marking, packing, and drawing-approval requirements.

If selecting among common T38 lengths, our T38 drill rod length guide explains how usable advance, handling space, joint count, and machine constraints should be considered. Length selection and flushing compatibility should be approved together because adding joints changes the complete system.

Frequently asked questions

Is the flushing-hole diameter standardized by T38 or T45 thread size?

No. The thread designation alone should not be treated as a complete definition of the rod's internal passage. Confirm the manufacturer drawing and the complete drill-string configuration.

Must the drill rod bore be exactly the same as the shank adapter bore?

Not necessarily as a simple one-number rule. Transitions may be designed into an approved system, but any change affects the flow path. Use matched component drawings or OEM-approved tooling data rather than assuming that equal nominal diameters are always required.

Can the same top-hammer rod be used for both air and water flushing?

Only when the rig, rock drill, seals, controls, rod, joints, and bit are approved for that medium and operating arrangement. An open passage by itself does not confirm system approval.

Does a larger flushing hole always improve drilling?

No. Passage geometry is balanced with rod strength, connection design, bit flow distribution, machine capacity, and the external return path. Changing one dimension without engineering approval can trade one problem for another.

How should a buyer verify a rod bore before shipment?

Approve a controlled drawing, define the measurement or gauge method and acceptance points, require traceable inspection records where appropriate, and compare markings and dimensions with the purchase order before dispatch.

Specify the flow path, not just the thread

A reliable top-hammer rod RFQ should connect the machine, shank adapter, rods, couplings, bit, flushing medium, and hole conditions in one controlled specification. That approach reduces the risk of buying a rod that threads together but does not support the intended cuttings-removal system.

For a quotation, send PerfoMax the rig and rock-drill model, shank and bit references, rod drawing or measured dimensions, length, thread, flushing medium, and application details. The team can then review the available top-hammer rod pathway against the information supplied instead of guessing from the thread name.

Technical references

• Epiroc T drill strings — official overview of T-thread drill-string families and rod options.
• Sandvik Dino DC410R surface top-hammer drill rig — official rig data illustrating machine-specific flushing-air capacity and optional water flushing.
• Sandvik Ranger DX800R surface top-hammer drill rig — official rig specification showing that flushing capacity and rod range are configuration data.
• Epiroc Powerbit Underground flushing — official discussion of bit flushing-hole layout and cuttings removal.
