Top Hammer Rod Diameter vs Hole Diameter: Clearance, Flushing, and Coupling Checks

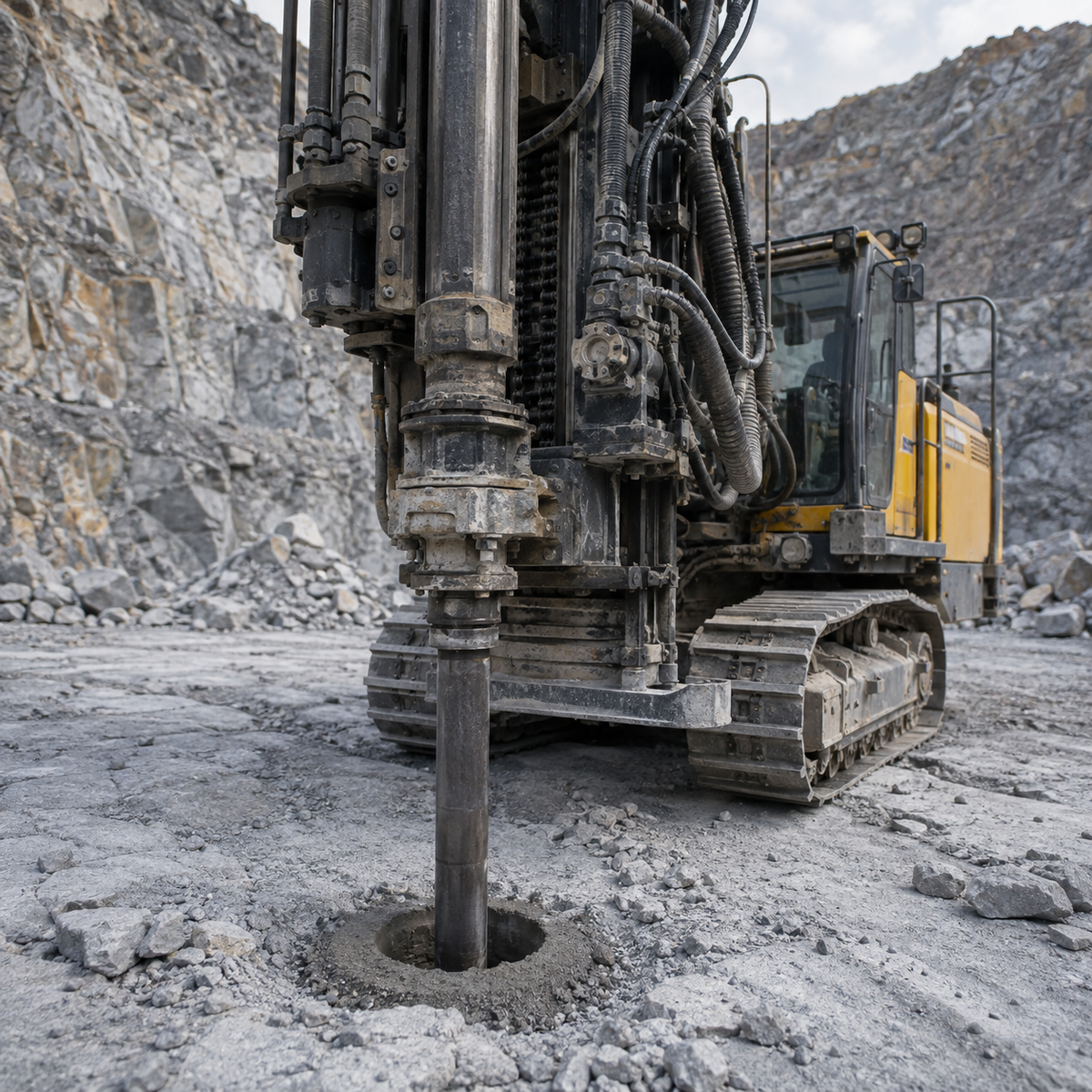

Direct answer: match a top hammer rod to the hole by checking the largest outside diameter that must pass through the borehole—not the thread name alone. That controlling diameter may be the rod body, coupling sleeve, integral female end, guide component or worn bit skirt. The selected button bit must create enough usable clearance for cuttings return and tool recovery while remaining inside the drill-string manufacturer’s approved range.

A larger gap is not automatically better. With the same flushing flow, an excessively large annular area can reduce return velocity and let heavy cuttings fall back. An excessively small gap can restrict large chips, increase pressure loss and wall contact, and make couplings or guides difficult to recover. The workable match depends on flushing medium and capacity, cuttings size, hole inclination, depth, rock breakage, component wear and the exact rig/tool system.

Why Thread Size Does Not Define Rod-to-Hole Clearance

Labels such as R32, T38 and T45 identify a connection family. They do not, by themselves, state every diameter that matters. Two products with the same thread can have different body profiles, coupling outside diameters, integral female ends, guide diameters or internal flushing passages. A buyer who asks only for “T38 rods” can therefore receive a compatible thread but an unsuitable physical envelope.

Use the Largest Passing Diameter in the Calculation

For a circular hole and a circular component, the theoretical annular flow area is:

Annular area = π/4 × (hole diameter² − component outside diameter²).

Use the largest component that repeatedly travels through the section being assessed. If a coupling is wider than the rod body, calculating with rod OD overstates the available path. If a guide adapter nearly matches the bit diameter, use the guide diameter at that point. For hexagonal steel, a simple round-rod calculation is only an approximation because the flats and corners change both open area and turbulence.

The formula is a screening tool, not a universal acceptance limit. It does not account for hole roughness, deviation, out-of-round drilling, fractured-wall collapse, oversized chips, water, mud, coupling wear or a bit that has lost gauge. Final acceptance must come from the rig and drill-string supplier’s approved combinations and a field result.

Worked Clearance Calculation: Use the Worn Bit and Largest Passing Component

This example shows the calculation method; it does not create a universal acceptance limit. Assume a proposed string has a 76 mm nominal bit, a documented 73 mm bit gauge at the planned withdrawal or replacement point, a 55 mm coupling outside diameter and a 39 mm rod-body diameter. The coupling is the controlling passing component because it is larger than the rod body.

The calculation identifies the geometric bottleneck; it does not prove that 9.0 mm radial clearance is adequate. Approval still depends on the machine and tooling supplier’s allowed combination, actual bit gauge, coupling and guide wear, hole roughness and deviation, cuttings size, inclination, flushing medium and delivered flow. Do not import a minimum velocity or clearance from an unrelated drilling method.

Diameter-Compatibility Release Worksheet

Complete this worksheet for the exact proposed string. Use dimensions from controlled drawings or traceable measurements, not catalogue-family assumptions.

Disposition gate

• RELEASE: the exact machine/string combination is approved, worst-case dimensions are documented, and controlled field evidence shows stable return and recovery.
• CONTROLLED FIRST-HOLE CHECK: documents support the proposal, but a new combination still requires an authorized trial with stop criteria and post-hole inspection.
• HOLD FOR DATA: bit wear limit, controlling OD, flushing capacity, ground condition or approval source is missing or inconsistent.
• RESELECT: a component cannot pass the planned worn-gauge hole, the proposal is outside the approved range, or field evidence shows repeated rubbing, packing or recovery difficulty.

Copy-ready calculation record

• Rig / rock drill / tooling option:
• Bit part number; nominal gauge; approved worn-gauge limit:
• Rod body OD; coupling OD; MF-end OD; guide or adapter OD:
• Controlling passing component and drawing revision:
• Worst-case radial clearance:
• Worst-case theoretical annular area:
• Flushing medium and verified available capacity:
• Hole depth, inclination, rock and cuttings condition:
• Approval source and first-hole evidence:
• Disposition: RELEASE / CONTROLLED CHECK / HOLD / RESELECT:

How Clearance Changes Flushing Behavior

Top hammer flushing has two connected paths. Air or water moves down the internal bore, exits through the bit and must carry broken rock back through the annulus. Changing the rod, coupling or hole diameter affects only part of that system, so a large internal bore cannot compensate for a blocked return path, and a wide annulus cannot compensate for inadequate supply.

A Smaller Gap Can Raise Velocity—but Also Raise Recovery Risk

For a fixed volumetric flow, reducing annular area increases average return velocity in an idealized calculation. This is why “more clearance” should not be treated as the goal. However, real holes must pass irregular cuttings and hardware through a rough, sometimes deviated borehole. When the remaining radial space approaches the size of chips or wall projections, bridging and packing can dominate the theoretical velocity advantage.

A tight match is more sensitive to:

• gauge-button wear that reduces the hole cut by the bit;
• a coupling sleeve or integral female end larger than expected;
• bent rods or a deviated hole that move the string off-center;
• fractured rock falling behind the bit;
• clay, water or fines that bind coarse cuttings;
• thread or body wear that creates raised damage and burrs.

That means the selection target is usable clearance across the planned service interval, not merely a positive difference between new-component catalog dimensions.

Do Not Transfer Hole Ranges Across Drill-String Systems

Published hole ranges are configuration-specific. Thread choice is also influenced by rock-drill energy, rod stiffness, hole depth, straightness, flushing capacity, application and product architecture. Overlapping ranges do not prove that a rod, coupling and bit from different systems form an approved combination.

Use the controlled drawing, current tooling list or written technical approval for the exact machine and drill-string configuration. A range copied from another system is demand evidence for the buyer problem, not release evidence for a substitution.

Selection Workflow for Rod, Coupling and Bit Diameter

1. Identify the installed system. Record rig and rock-drill model, shank adapter, thread family, rod end type, coupling or female-end type and bit code.
2. Measure or obtain controlled dimensions. Capture new and service-worn bit gauge, rod body OD, maximum coupling or MF-end OD, guide OD and internal flushing bore.
3. Confirm the planned hole. State nominal diameter, depth, inclination, straightness tolerance and whether the hole is single-pass or extension drilled.
4. Define the flushing case. Record air or water, available flow and pressure at the rig, hose and swivel condition, and how performance changes when several drills operate.
5. Describe the cuttings. Hard blocky chips, abrasive fines, wet clay and fractured wall material do not travel through the same annulus equally well.
6. Check the largest passing component. Do not calculate with the rod body when the coupling, guide or integral female end is larger.
7. Apply the system supplier’s range. Verify bit, rod and coupling together; do not approve a substitution from thread label and nominal hole diameter only.
8. Validate in a controlled field trial. Record penetration, return, pressure, coupling marks, deviation, retrieval and wear before expanding the change across the fleet.

Air and Water Flushing Need Different Checks

Dry air flushing depends on enough delivered volume and a usable return velocity to lift the expected cuttings. Increasing hole diameter without changing the string enlarges annular area; if supply stays constant, average velocity falls. A deeper or leaking string can further reduce what reaches the bit.

Water flushing adds fluid density and dust-control benefits, but introduces different pressure loss, leakage, disposal and freeze considerations. Mixed water and fines can form a paste in some ground. Do not reuse an air-flushing rule as a water-flow requirement.

In both cases, evaluate the entire circuit: compressor or pump, hoses, swivel, shank, rod bore, couplings, bit ports, hole annulus and collar discharge. The correct setting and minimum flow remain machine-, system- and condition-specific.

Inspect the Components That Define the Real Envelope

Before a new order or substitution, inspect:

• bit gauge and skirt diameter at several positions;
• coupling or MF-end maximum OD, including raised damage;
• rod body profile, straightness and local wear;
• thread family, end type and make-up shoulder;
• flushing bore continuity and bit-port condition;
• guide components or tubes that enter the hole;
• evidence of wall contact, packing or asymmetric wear.

Mid-body diameter, guide diameter, bit diameter, air or water flushing and hole-straightness requirements must be specified as one engineered system. Outside diameter is a controlled compatibility input, not a cosmetic catalogue field.

Common Ordering Mistakes

• Ordering by T38 or T45 alone. The thread can match while body, end type, coupling or bit range does not.
• Using bit diameter minus rod diameter as the only check. The coupling or guide may be larger.
• Ignoring wear. A worn bit can cut a smaller hole while damaged couplings need more passage.
• Assuming a bigger hole improves cleaning. It can lower return velocity when available flow is unchanged.
• Assuming a tighter gap always improves cleaning. It can restrict chips and increase contact or recovery risk.
• Mixing MM extension rods and MF speed rods in the same description. Their connection architecture and maximum ODs differ.
• Copying an OEM range across brands. Published ranges belong to the named system.
• Approving from a website photo. A controlled drawing and written configuration should govern supply.

RFQ Checklist for Diameter and Flushing Compatibility

• rig and rock-drill model;
• shank adapter model and thread;
• R32, T38, T45 or other exact connection;
• MM extension rod, MF speed rod, guide rod or tube;
• rod body profile and measured OD;
• coupling, female-end and guide maximum OD;
• bit thread, code, nominal diameter, face and current gauge;
• rod internal flushing-bore diameter;
• hole diameter, depth, inclination and straightness requirement;
• air or water supply at the rig under operating load;
• rock condition, cuttings size, water and collapse history;
• photos or drawings of every mating component;
• required inspection records, quantity and destination.

Frequently Asked Questions

Is T38 rod diameter always 38 mm?

No. T38 is a thread-system designation. The actual rod body, coupling, MF end and flushing-bore dimensions must be taken from the specific product drawing.

Which diameter controls the minimum hole passage?

Use the largest component that must travel through that section of the hole, commonly the coupling, integral female end or guide rather than the plain rod body.

Does a larger bit always improve flushing?

No. A larger bit creates a larger annular area. With unchanged flow, average return velocity may fall, although recovery clearance increases. The result depends on the complete flushing circuit and cuttings.

Can T38 and T45 rods drill the same hole diameter?

Some manufacturer ranges overlap, but that does not make the systems interchangeable. Rock-drill energy, shank, coupling, bit, rod architecture and OEM approvals must all match.

What should a buyer measure on a used sample?

Measure bit gauge, maximum coupling or female-end OD, rod body OD, guide OD and internal bore, then record wear and damage. Compare these with a controlled new-product drawing.
