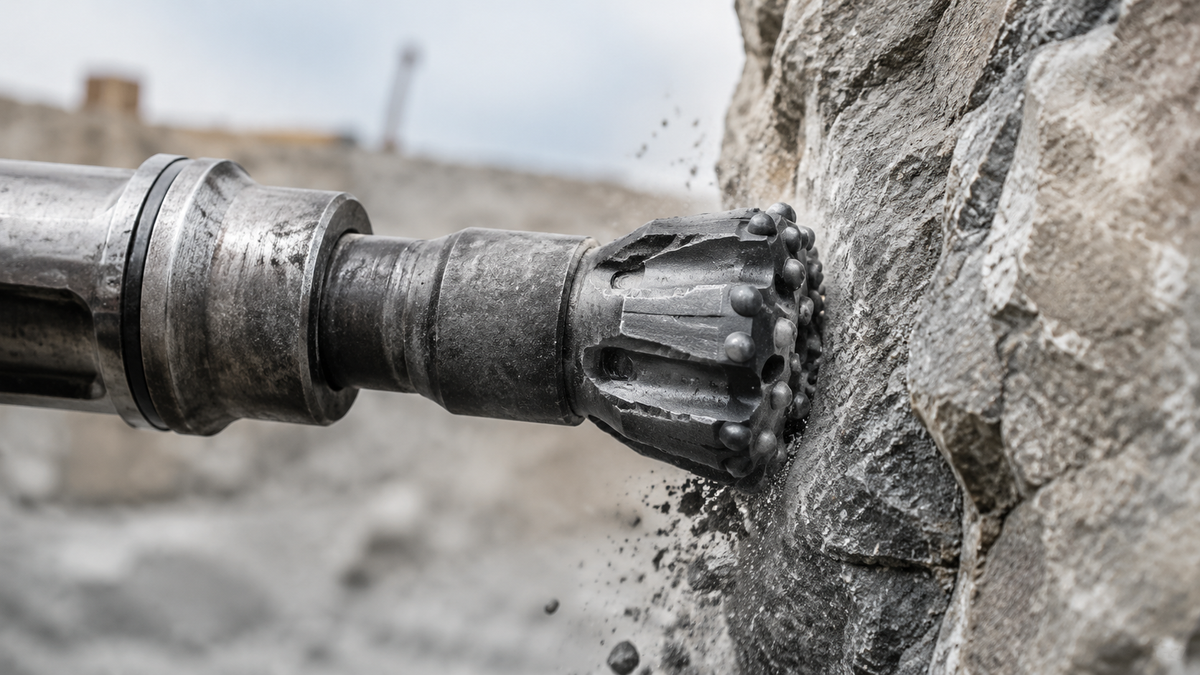

Quick answer: rotation speed and torque describe different parts of a percussive drilling system. Rotation speed, normally shown in revolutions per minute (RPM), tells you how quickly the bit changes angular position. Torque, normally shown in newton-metres (N·m), tells you how much turning moment the rotation system can apply when the bit and drill string resist rotation. More RPM does not automatically mean more torque, more impact energy or faster penetration.
In top hammer, down-the-hole (DTH) and pneumatic rock drilling, percussion performs most of the rock-breaking work. Rotation helps distribute successive button contacts around the hole bottom and keeps the bit moving through changing resistance. The correct combination depends on the drilling method, bit diameter and face design, rock condition, hole depth, drill-string friction, feed, flushing and the rig’s control system. There is no universal “best RPM” that can be copied from one machine or bit to another.
1. Rotation speed vs torque: the essential definitions
| Term | What it describes | Common unit | What it does not prove |
|---|---|---|---|
| Rotation speed | How many complete revolutions the bit or drill string makes per minute | RPM or r/min | Available turning force, impact energy or penetration rate |
| Torque | The turning moment available to overcome rotational resistance | N·m or kN·m | How fast the string rotates |
| Peripheral speed | How fast a point at the bit’s outer diameter travels around the circumference | m/min or m/s | Whether the buttons are contacting fresh rock correctly |
| Rotation power | The rate of rotational work at a stated torque and speed | kW | Percussion power delivered to the rock |
| Percussion rate | How many impact events occur per unit time | Hz or blows/min | Impact energy per blow |
These quantities are related, but they are not interchangeable. A rotation unit can be configured for relatively high speed and lower torque, or lower speed and higher torque. Current drilling equipment reflects this distinction: OEMs offer different rotation-motor options or selectable torque/speed modes for different hole diameters, formations and drilling methods.
2. Why does a percussive drill bit rotate?
In percussive drilling, the hammer repeatedly transfers impact energy to the bit. Rotation changes the position of the bit face between impacts so the buttons do not continually load the same local zones. Continuous, controlled rotation also distributes contact and wear around the bit and helps the drill string respond to changing bottom-hole resistance.
This is different from non-percussive rotary drilling, where rotational power and thrust are the primary rock-cutting actions. Robit’s current technical overviews explicitly describe top hammer drilling as a combination of percussion, rotation, feed and flushing, while its rotary-drilling overview describes a method that relies on rotational speed, torque and pull-down without percussion.
For a broader explanation of the four functions, see Percussive Rock Drilling Explained: Percussion, Rotation, Feed, and Flushing.
3. RPM tells you speed—not how strongly the system can keep turning
RPM is easy to compare because it is a familiar number, but a high maximum RPM is not automatically an advantage. The useful speed is the speed the system can maintain under the actual resistance of the bit, drill string and hole—not merely its free-running or maximum specification.
A larger bit has a longer circumference. At the same RPM, its gauge buttons travel farther per revolution than those on a smaller bit. Peripheral speed can be expressed as:
Peripheral speed = π × bit diameter × RPM
Use consistent units. If diameter is entered in metres and speed in revolutions per minute, the result is metres per minute. This relationship explains why the same RPM does not represent the same outer-button motion on two bit diameters.
RPM also interacts with percussion rate. A simple descriptive calculation is:
Degrees of rotation per blow = 360 × RPM ÷ blows per minute
This calculation describes angular indexing only. It does not provide a universal ideal value because button count, button layout, rock fracture behavior, bit diameter and system dynamics all change the useful relationship.
4. Torque tells you the ability to overcome rotational resistance
Torque is the rotational equivalent of a turning moment. The required torque rises when resistance to turning rises—for example, because of a larger contact area, increased drill-string friction, cuttings accumulation, hole deviation, damaged tools, tight joints or unstable ground. The cause must still be diagnosed; simply applying more torque can conceal a hole-cleaning or mechanical problem.
Torque should also be read at the correct point. A motor rating, rotation-head output and torque delivered at the bit are not necessarily identical because gearing, hydraulic efficiency, drill-string torsion and friction affect the system. A specification sheet should identify whether the number is maximum, nominal or available at a stated speed and pressure.
Drilling torque and breakout torque are different buyer questions. Breakout or joint-opening capability concerns making or separating drill-string connections. It should not be assumed to equal continuous drilling torque, and neither value should be used to tighten threads beyond the approved tooling procedure.
5. How speed, torque and rotational power relate
Mechanical rotational power can be expressed as torque multiplied by angular speed:
Rotation power (W) = torque (N·m) × 2π × RPM ÷ 60
This equation helps explain the tradeoff available from a given power source. If two operating points use similar rotational power, increasing speed generally reduces the torque available at that point, while increasing torque generally requires a lower speed. Real hydraulic and pneumatic systems also have efficiency losses and control limits, so the equation is a comparison tool rather than a substitute for the manufacturer’s performance curve.
| Specification pattern | Directionally suited to | Buyer caution |
|---|---|---|
| Higher speed / lower torque | Conditions where the string turns freely and the method requires faster indexing | Maximum RPM may collapse under load if available torque is insufficient |
| Lower speed / higher torque | Larger contact, longer strings or conditions with greater rotational resistance | High torque does not correct poor flushing, binding or a wrong bit |
| Wide variable range | Changing diameters, formations or drilling methods | Confirm performance across the usable range, not only two maximum values |
| Multiple motors or gear ranges | Matching torque/speed architecture to the application | Record the supplied motor, displacement or gear option in the quotation |
6. Top hammer, DTH and pneumatic rock drills use rotation differently
Top hammer drilling
The rock drill’s rotation unit turns the shank adapter and the connected drill string. Torque and rotational motion pass through rods and couplings before reaching the bit. As hole depth and the number of joints increase, drill-string condition, alignment and friction become more important. Sandvik currently offers multiple rotation-motor variants on several top hammer rock drills specifically to meet different RPM and torque requirements across hole diameters and formations.
The ordered rod architecture must still match the system. The active PerfoMax T45 extension drill rod page defines a male–male extension-rod configuration; a thread family name alone does not define rotation-head capability or the complete drilling setup.
DTH drilling
In DTH drilling, the pneumatic hammer operates near the bottom of the hole, but the rig still rotates the drill pipe, hammer and bit. The percussion path is shorter than in top hammer drilling, while rotational resistance still accumulates through the string and borehole contact. Hammer size, bit diameter, pipe length, hole cleaning and formation changes all affect the useful speed/torque requirement.
The current PerfoMax CIR90 DTH hammer illustrates why hammer configuration, bit/shank match and compressor conditions must be checked together with rig rotation capability. Pressure and airflow are separate from rotational torque; see the published DTH Air Pressure vs Airflow guide for that distinction.
Handheld and air-leg pneumatic rock drills
Many handheld or air-leg rock drills contain an integrated rotation mechanism. The buyer may receive a stated rotation frequency rather than an independently controlled rotation-head curve. That number must be read with the model’s test pressure, shank, bit range and application. Do not compare it directly with the variable RPM and torque of a hydraulic drill-rig rotation unit.
For example, the active PerfoMax YT28 air-leg rock drill uses a model-specific configuration and final data-sheet control. Its drill-steel and air-leg system should be evaluated as a complete package rather than by a rotation number alone.
7. What changes the required rotation speed and torque?
- Bit diameter: changes circumference, contact area and peripheral speed at a given RPM.
- Button count and layout: change how successive impacts cover the hole bottom.
- Rock strength and fracture pattern: change button penetration, chipping and resistance to rotation.
- Abrasivity: changes the wear consequence of sliding or poor indexing; it is not the same as rock strength.
- Hole depth and deviation: increase the potential for string contact and friction.
- Drill-string architecture: rod diameter, joint count, couplings, tube rods and MF/MM layouts change torsional behavior.
- Flushing and cuttings return: poor hole cleaning can increase resistance and produce misleading torque symptoms.
- Feed and bit contact: insufficient or excessive contact changes how percussion and rotation interact.
- Tool wear: lost gauge, damaged buttons, worn threads or bent rods can change both resistance and hole quality.
- Control system: motor displacement, gear range, hydraulic pressure/flow and control logic determine the available torque-speed envelope.
Because these factors interact, a supplier should not prescribe RPM from rock hardness alone. A useful recommendation states the system, conditions and adjustment boundary.
8. How buyers should read a rotation-unit specification
- Identify the drilling method: top hammer, DTH, handheld pneumatic or non-percussive rotary.
- Confirm the hole and tooling range: bit diameter, shank/thread, rod or pipe diameter, length and planned depth.
- Separate maximum from working values: ask whether RPM and torque are maximum, continuous, nominal or measured at a stated pressure/flow.
- Request the torque-speed relationship: a single maximum RPM beside a single maximum torque may represent two different operating points.
- Record the motor or gear option: the supplied configuration can materially change the usable range.
- Check units: distinguish N·m from kN·m and rpm from percussion frequency in Hz or blows/min.
- Confirm control capability: determine whether speed is continuously variable, stepped or fixed by the rock-drill mechanism.
- Check monitoring: ask what the operator can see—RPM, hydraulic pressure, torque estimate, rotation pressure or only a control setting.
- Define the acceptance test: agree how the supplied configuration and rotation function will be verified before shipment.
9. Common interpretation mistakes
| Mistake | Why it fails | Better question |
|---|---|---|
| “Higher RPM drills faster.” | Penetration also depends on percussion, feed, bit/rock contact and flushing. | What working speed maintains correct indexing under the stated conditions? |
| “Maximum torque and maximum RPM occur together.” | They may be endpoints of different operating conditions. | Can the supplier provide the torque-speed curve or rated operating points? |
| “DTH and top hammer use the same RPM.” | Their hammer location, string dynamics, diameters and control systems differ. | What does the specific OEM recommend for this hammer/rock-drill and bit? |
| “More torque solves a tight hole.” | Resistance may come from poor flushing, deviation, damaged tools or unstable ground. | What evidence separates normal load from binding or hole-cleaning failure? |
| “The thread size defines rotation requirements.” | Thread is only one part of the bit–string–rig system. | What are the complete hole, tooling, depth and formation conditions? |
10. RFQ checklist for rotation speed and torque
Send the following information when requesting a rig, rock drill, rotation unit or compatible drilling tools:
- drilling method and rig/rock-drill model;
- target hole diameter, depth, direction and straightness requirement;
- rock type, strength/abrasivity information and fracture condition;
- bit type, face design and shank;
- rod or pipe thread, outside diameter, length, joint architecture and planned number of sections;
- current rotation motor, displacement or gear range if replacing equipment;
- required working RPM range and torque evidence, not only maximum numbers;
- available hydraulic pressure/flow or pneumatic supply, with measurement conditions;
- flushing method and cuttings-return constraints;
- observed rotation-pressure, jamming, wear or hole-deviation symptoms;
- required test documents and pre-shipment acceptance evidence.
Keep percussion specifications separate. Impact energy and impact frequency describe another part of the system; the published Impact Energy vs Impact Frequency guide explains how to compare them.
Frequently asked questions
Is torque the same as rotation pressure?
No. Torque is the turning moment at the output. Hydraulic rotation pressure can be an input or an operating indicator, but the resulting torque depends on motor displacement, efficiency, gearing and the control circuit. Use the manufacturer’s relationship for the supplied rotation unit.
Does a larger drill bit always need lower RPM?
Not as a universal rule, but diameter changes peripheral speed and often changes the required torque/speed combination. The correct setting must also consider button layout, rock, drilling method, percussion rate and the OEM’s specified operating envelope.
Why can RPM fall when the bit enters a difficult layer?
The rotational resistance may have increased. Possible causes include a change in rock or fractures, cuttings accumulation, increased string contact, tool wear, deviation or insufficient available torque. Diagnose the cause before increasing pressure or torque.
Can maximum RPM and maximum torque be compared between two rigs?
Only after confirming how each value is defined and at what operating condition it occurs. Ask for the torque-speed curve, motor/gear option, continuous rating and the exact drilling configuration. Two headline maximums may not describe the same test point.
What is more important for penetration: RPM or torque?
Neither number works alone. RPM controls indexing speed; adequate torque maintains that rotation under load. Penetration also depends on percussion, feed, flushing, bit condition and the rock. The useful comparison is the complete operating system under matched conditions.
Technical references
- Sandvik HL1560T — independent rotation, localized wear control and rotation-motor options
- Sandvik HL710S — torque/RPM motor variants for different hole diameters and formations
- Robit — top hammer percussion, rotation, feed and flushing overview
- Mincon JT200 — selectable high-torque/low-speed and low-torque/high-speed rotation-head modes
Compare the whole rotation system, not one headline number
Rotation speed and torque are complementary specifications. RPM tells you how fast the bit indexes; torque tells you whether the system can keep turning against resistance. A sound purchasing decision connects both to the drilling method, bit, drill string, hole and rock—not to a universal target. To review a PerfoMax drilling-tool configuration or prepare a matched quotation, send the application, tooling and rig details through the Request a Quote page.
