Direct answer: Rate of penetration (ROP) is the distance a drill advances through rock divided by the drilling time used for that advance. It is commonly expressed in metres per minute (m/min), metres per hour (m/h), or feet per hour (ft/h). ROP is useful for comparing drilling performance only when the measurement window and drilling conditions are defined. A higher ROP by itself does not prove that a tool, rig, bit, or supplier gives lower cost per metre, longer service life, straighter holes, or better whole-shift productivity.
For mines, quarries, contractors, distributors, and procurement teams, the practical question is not simply “What ROP can this tool achieve?” It is: what exactly was timed, in what rock, with what drilling system, and what happened to tool life, hole quality, and downtime while that rate was achieved?
1. What Does ROP Mean in Rock Drilling?
The basic relationship is straightforward:
ROP = drilled distance ÷ drilling time
If a drill advances 1 metre during one minute of active drilling, the measured rate is 1 m/min, which is equivalent to 60 m/h. The arithmetic is simple; the difficult part is defining drilling time.
| ROP expression | Typical use | What must be defined |
|---|---|---|
| m/min | Short active-drilling intervals, test holes, bit-on-rock comparisons | Start/stop points and whether collaring or pauses are excluded |
| m/h | Longer drilling intervals or production summaries | Whether rod changes, flushing pauses, positioning, and other cycle time are included |
| ft/h | Imperial-unit projects | The same timing boundary and operating conditions as above |
This distinction matters because two reports can show the same unit and still measure different things. One may record only active penetration while the bit is drilling. Another may include collaring, rod changes, blowdown, repositioning, or other parts of the drilling cycle.
2. Net Penetration Is Not the Same as Whole-Shift Productivity
For a useful comparison, separate the speed of rock breakage from the productivity of the complete operation. Sandvik’s drilling-planning documentation, for example, distinguishes net penetration from broader drilling capacity measured over time. That is a useful discipline for buyers even when the exact terminology differs between fleets.
| Metric | What the clock includes | Best use |
|---|---|---|
| Net / active ROP | Mainly bit-on-rock drilling time | Comparing rock breakage and drilling response under controlled conditions |
| Cycle drilling rate | Active drilling plus defined drilling-cycle activities | Comparing operating setups and rod-handling effects |
| Shift productivity | Drilling plus positioning, rod handling, delays, maintenance, and other shift losses | Production planning and operational improvement |
| Cost per metre | Not a speed metric; combines output with tool and operating costs | Commercial comparison of drilling alternatives |
If a supplier quotes an impressive penetration rate, ask whether it is a best short interval, an average net ROP, an average over multiple holes, or a gross production rate. Without that definition, the number is not directly comparable.
3. What Changes Rock Drilling ROP?
ROP is a system result. The same rig can produce very different penetration rates when rock, bit condition, contact, operating parameters, flushing, or drill-string conditions change.
Rock strength, structure, and abrasiveness
Harder intact rock can require more energy to break, but uniaxial compressive strength (UCS) alone does not predict drilling response. Fractures, grain structure, abrasiveness, weathering, and local variability can change penetration, bit wear, and hole behaviour. If the only rock description in a field trial is “hard rock,” the comparison is too weak for procurement decisions. See the related UCS in Rock Drilling guide for why MPa is only one input to drillability.
Bit design and bit condition
The bit is the interface where drilling energy becomes rock breakage. Button geometry, face design, flushing layout, carbide condition, and wear all change how effectively energy reaches fresh rock. Epiroc’s current top-hammer bit guidance explicitly treats face design, carbide layout, flushing, penetration, and wear as linked design considerations rather than independent variables.
Feed and bit-rock contact
Too little or unstable contact can reduce useful energy transfer; excessive loading can increase tool stress or create other losses. Modern OEM monitoring makes this relationship visible. Sandvik RockPulse measures stress waves and bit response to help operators manage feed, tool load, and bit-rock contact rather than simply maximizing one machine setting.
Percussion or hammer operating input
Higher input does not automatically create a proportional increase in useful penetration. The drilling system must transfer that input into effective rock breakage without excessive stress, poor contact, or other losses. Sandvik reported field tests in which RockPulse-guided optimization increased average penetration rate by about 5% while percussion power was about 4% lower. That is an OEM-reported test result, not a universal performance promise, but it illustrates the principle: optimization can matter more than maximizing a single input.
Rotation
Rotation must present the cutting buttons to new rock between impacts. A setting that is appropriate for one bit size, rock condition, or drilling method may be unsuitable for another. For a fair field trial, record the rotation setting instead of treating it as an invisible operator variable.
Flushing and cuttings removal
Broken rock must leave the bottom of the hole. If cuttings are not removed effectively, the bit can repeatedly re-break debris instead of attacking fresh rock. OEM bit designs therefore treat flushing-hole and groove geometry as part of penetration performance. Air or water availability, contamination, water inflow, hole depth, and annular clearance can all change the cleaning condition.
Drill string, depth, and drilling method
Top-hammer and DTH systems transfer impact energy differently. In top-hammer drilling, the impact originates at the rock drill and travels through the drill string. In DTH drilling, the hammer works directly behind the bit at the bottom of the hole. Furukawa Rock Drill explains this difference as one reason DTH performance can be less affected by drill-string energy transmission as holes deepen, although flushing, back pressure, wear, and operating conditions still matter in both methods.
4. Why “More Power = More ROP” Is an Unsafe Buying Rule
It is tempting to compare rock drills, hammers, or operating settings using one input number and assume the larger value must drill faster. That ignores the conversion chain:
machine input → energy transfer → bit-rock contact → rock breakage → cuttings removal → measured advance.
A loss anywhere in that chain can reduce the useful result. Worn threads, a mismatched bit, poor feed, insufficient flushing, excessive regrind wear, or changing geology can all change ROP without any change to nominal machine power.

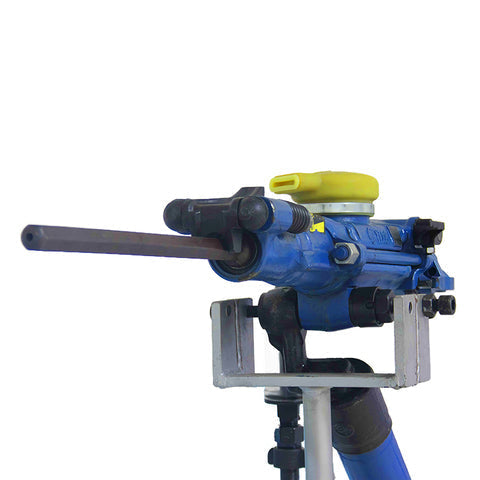

For the same reason, ROP should not be diagnosed in isolation from the drilling system. PerfoMax buyers working with air-leg rock drills can review the current YT28 pneumatic rock drill, while top-hammer users can check the current drill rod range and DTH users can review DTH tools. The purpose is not to infer a guaranteed ROP from a product page; it is to identify the actual system being compared.
5. How to Run a Fair ROP Field Comparison
- Define the question. Are you comparing bits, drill rods, hammers, a rock drill, operating settings, or complete drilling systems?
- Define the measurement window. Decide whether the clock covers active drilling only, a drilling cycle, or the entire shift. Use the same definition for every trial.
- Control the rock interval. Compare holes or sections with reasonably similar geology. Record UCS or other available rock information, but also note fractures, abrasiveness, weathering, and obvious changes in formation.
- Control the tooling condition. Start with equivalent new or equivalently worn bits. Record bit diameter, face/button design, regrinding condition, rod/coupling condition, hammer or rock-drill model, and relevant connection details.
- Record operating settings. Feed, rotation, percussion or air settings, flushing medium, compressor condition, hose/line setup, and operator practice should not be hidden variables.
- Repeat the comparison. A single unusually fast hole can be misleading. Use multiple comparable intervals and report the spread, not only the best result.
- Pair ROP with outcome metrics. Record tool life, regrinding, hole deviation or acceptance quality where relevant, downtime, rod/bit changes, and cost per metre.
6. A Buyer’s ROP Comparison Sheet
| Record this | Why it matters |
|---|---|
| Drilling method: top hammer, DTH, or pneumatic hand/air-leg drilling | Different systems transfer energy differently |
| Rig / rock drill / DTH hammer model | Defines the installed energy and operating system |
| Hole diameter and depth | Changes bit size, drill string, flushing, and cycle requirements |
| Rock description and interval | Prevents soft/hard or intact/fractured rock from being compared as if identical |
| Bit type, diameter, and wear state | The bit is the rock-breaking interface |
| Rod, coupling, or drill-pipe configuration | Controls compatibility and the energy/air path |
| Feed, rotation, percussion/air settings | Operating parameters can materially change penetration |
| Flushing medium and condition | Cuttings removal affects whether the bit reaches fresh rock |
| Active drilling time | Needed for net ROP |
| Total defined cycle time | Separates bit-on-rock speed from operating productivity |
| Metres drilled | Numerator of the ROP calculation |
| Bit wear, regrinding, failures, and downtime | Prevents a short-term speed gain from hiding higher total cost |
7. Common ROP Comparison Mistakes
- Comparing m/min with m/h without checking the timing definition. Unit conversion is easy; inconsistent measurement windows are the bigger problem.
- Comparing the best short interval with an average production figure. These answer different questions.
- Ignoring geology. A fast hole in softer or more fractured rock does not prove a tool is faster in the buyer’s target formation.
- Ignoring bit condition. A fresh bit and a worn bit are not a controlled comparison.
- Changing several variables at once. If the bit, rod, settings, operator, and flushing all change, the cause of the ROP change is unclear.
- Using one hole as the conclusion. Repeatability matters more than a single peak number.
- Selecting a supplier from ROP alone. Tool life, hole quality, downtime, compatibility, and cost per metre remain part of the commercial decision.
8. What to Send When Asking PerfoMax to Review ROP
If you are trying to improve penetration rate or compare a new drilling-tool package, send enough information to make the comparison meaningful:
- rig and rock-drill or DTH-hammer model;
- drilling method and current drill-string configuration;
- bit type, diameter, face/button design, and wear condition;
- hole diameter, typical depth, and drilling direction;
- rock description, available UCS data, fracture/abrasiveness observations;
- current feed, rotation, percussion or air settings where available;
- flushing medium and compressor/air information for pneumatic or DTH systems;
- how the current ROP was measured: active drilling, cycle, or shift;
- baseline metres drilled, drilling time, tool life, regrinding, and downtime;
- the actual problem: low penetration, rapid wear, hole deviation, excessive tool cost, or unstable performance.
For a system review, send PerfoMax the current drilling setup and field conditions. A useful recommendation should start from compatibility and operating conditions, not from an unsupported universal ROP promise.
FAQ
What is a good rate of penetration in rock drilling?
There is no universal “good” ROP. The useful benchmark is a controlled baseline for the same drilling method, hole size, rock, tooling condition, and measurement window. A rate that is strong in one formation or system can be poor or unrealistic in another.
Is ROP better reported in m/min or m/h?
Either can be correct. The unit matters less than the definition of the timed interval. m/min is convenient for short active-drilling tests; m/h is common for longer production summaries. Always state what activities the clock includes.
Why can ROP decrease as a hole gets deeper?
The cause depends on the drilling method and site conditions. In top-hammer drilling, the drill string is part of the impact-energy path and more joints or depth can change system response. In DTH drilling, impact is generated at the bottom of the hole, but deeper drilling can still change flushing, back pressure, cuttings return, and operating conditions.
Does increasing percussion power or air pressure always increase ROP?
No. Useful penetration depends on bit-rock contact, tool condition, compatible operating limits, rotation, flushing, and the full drilling system. More input can be wasted or increase tool stress if other variables are wrong.
Should a buyer choose the supplier with the highest quoted ROP?
Not without a controlled trial. Compare repeatable ROP under similar conditions, then check tool life, regrinding, hole quality, downtime, compatibility, and cost per metre. The fastest short interval is not automatically the lowest-cost drilling result.
