UCS vs RQD in Rock Drilling: Intact Rock Strength, Rock Mass Quality, and Why Both Matter

Quick answer: UCS and RQD describe different parts of the drilling problem. UCS measures the compressive strength of an intact rock specimen. RQD describes how much sound, relatively continuous core is recovered in a core interval under the governing logging method. UCS helps indicate how resistant intact rock may be to crushing; RQD helps indicate how broken or continuous the rock mass appears along the borehole. Neither value, used alone, is a complete drillability index or a sufficient basis for choosing a bit, hammer, rod system, or drilling method.

The distinction matters because a quarry can contain very strong intact blocks separated by frequent joints, or weak rock that is surprisingly continuous. Those two conditions can produce very different penetration behavior, flushing losses, deviation, hole-wall stability, and stuck-tool risk even when a single laboratory or core-log number looks favorable.

UCS vs RQD: the difference in one table

The most useful interpretation is therefore not “UCS or RQD,” but “UCS plus rock-mass structure plus the actual hole requirement.”

What UCS tells a drilling buyer

Uniaxial compressive strength is obtained by loading a prepared intact rock core specimen until failure under defined test conditions. The current ASTM D7012-23 covers compressive-strength and elastic-modulus testing of intact rock core specimens. It also notes that anisotropy matters: bedding, cleavage, or foliation can make results direction-dependent.

For drilling discussions, UCS can help answer a narrow question: how strongly does an intact piece of this rock resist compression? A higher result may be associated with greater energy demand for breaking intact rock, but it does not automatically predict penetration rate, bit life, or hole quality. Mineral hardness, abrasivity, grain bonding, stress state, weathering, fractures, machine power, bit design, flushing and operating parameters all influence field performance.

If a geology report gives only one UCS number, ask whether it is an average, a minimum, a maximum, or a result from a particular lithology and orientation. A single high value from competent core may not represent weathered seams or fractured intervals crossed by production holes. For a deeper explanation of the test and its limits, see UCS in Rock Drilling: What MPa Means—and What It Cannot Tell You.

What RQD tells a drilling buyer

Rock Quality Designation is derived from core logging. Under the traditional approach, the logger sums qualifying sound core pieces at least 100 mm long and divides that length by the core-run length, expressing the result as a percentage. The exact logging procedure, treatment of natural versus drilling-induced breaks, core size, and interval definition must follow the project’s governing method.

RQD is best treated as an indicator of rock-mass continuity along the borehole, not as a direct strength measurement. The US Federal Highway Administration’s rock-core guidance explains both the calculation concept and the importance of discontinuity frequency, while warning that drilling technique can lower core recovery and RQD artificially.

A lower RQD can warn that holes may cross more discontinuities, but it does not tell the whole story. It does not by itself describe joint orientation, aperture, persistence, roughness, clay or mineral infill, groundwater, or whether the broken material was created during drilling and handling. It also does not show three-dimensional block geometry from a single borehole direction.

Why high UCS can occur with low RQD

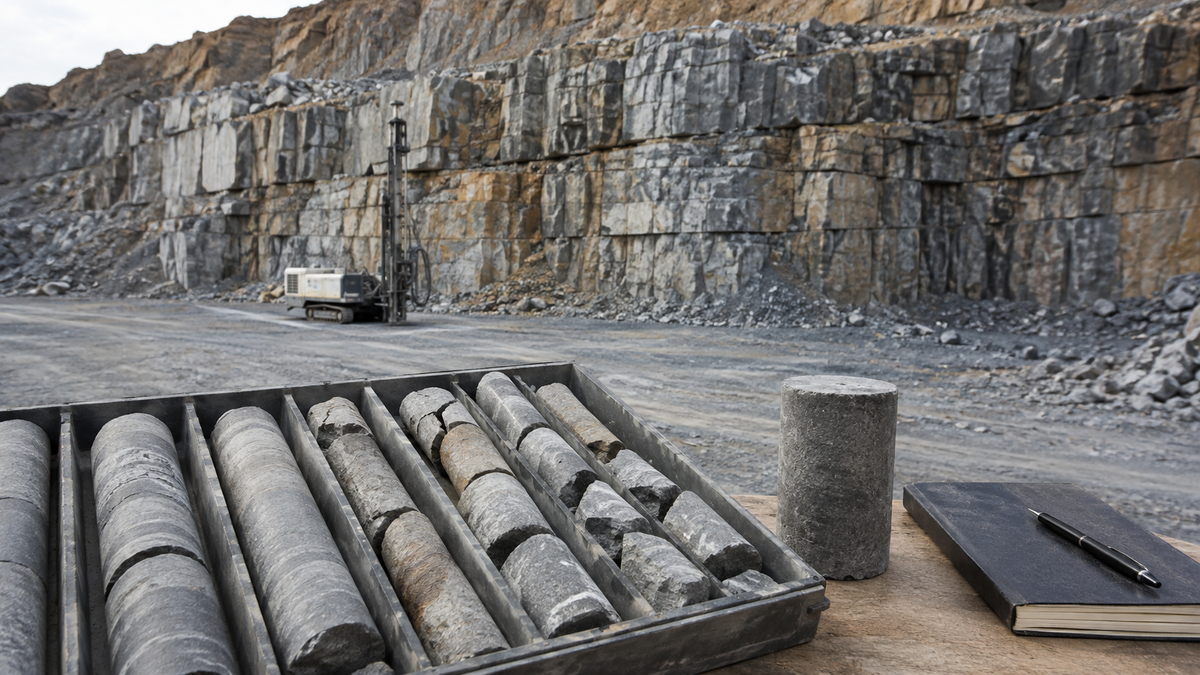

Imagine a strong crystalline rock. An intact laboratory specimen may require high compressive stress to fail, so its UCS is high. At the bench, however, the same rock mass may be divided into small blocks by joints, faults, or bedding breaks. A core hole that intersects many of those discontinuities can produce a low RQD.

For drilling, this combination can create a mixed signal:

• Intact blocks may require substantial percussive energy and can be abrasive.
• Natural discontinuities may cause sudden penetration changes and bit deflection.
• Open fractures can accept flushing air or water, reducing cuttings return.
• Loose blocks or infill can increase re-drilling, jamming, or stuck-tool risk.
• Hole deviation may depend more on joint orientation than on UCS.

This is why “hard rock” does not always mean a uniform hole. If strong rock is heavily jointed, the operating plan must address both intact-rock breakage and discontinuity-driven instability. See the related field guide on DTH drilling in fractured rock.

Why low UCS can occur with high RQD

The reverse combination is also possible. A weak or moderately strong sedimentary or weathered rock can be recovered in long, continuous pieces, producing a relatively high RQD even though the intact material has a low UCS.

That does not automatically make drilling easy. Continuous weak rock may permit fast penetration, but the hole wall can erode, smear, ravel, or lose gauge depending on mineralogy, moisture and flushing. Soft clay-rich seams may clog or destabilize the hole. If the material changes rapidly with water exposure, the core condition at logging and the in-hole condition during production drilling may differ.

A high RQD therefore should not be translated into “strong rock” or “stable hole” without reviewing weathering, moisture sensitivity, joint condition, and the actual lithology.

Four UCS–RQD combinations and their drilling meaning

These are screening interpretations, not automatic equipment prescriptions. The same pair of values can represent different drilling conditions when joint orientation, groundwater, depth, diameter or required straightness changes.

Why RQD orientation and drilling quality matter

RQD is directional. A joint set nearly parallel to the core axis may be sampled less frequently than one crossing the axis at a steep angle. A 2025 peer-reviewed review of six decades of RQD practice found that borehole orientation and anisotropy remain important limitations. The review also notes that the 100 mm threshold can hide differences between intervals with similar fracture distributions. See Analyzing Drill Core Logging Using Rock Quality Designation.

Core quality also depends on the drilling method, barrel, handling, recovery and logging discipline. Mechanical breaks created during coring or handling should not be mistaken for natural discontinuities under the governing procedure. If the core is badly disturbed, the apparent RQD may describe the sampling problem as much as the ground.

For procurement, ask who logged the core, which method was used, the core diameter, the run length, the hole orientation, and whether mechanical breaks were identified. Do not compare RQD values from different reports as if they were automatically equivalent.

What rock-mass details should sit beside UCS and RQD?

The current ISO 14689:2017, confirmed in 2023, describes rock material and rock masses using mineralogy, structure, grain size, discontinuities and other characteristics. That broader description is closer to what a drilling team needs than a single classification number.

• Lithology and mineralogy: especially quartz or other abrasive minerals.
• Weathering grade: fresh rock, altered zones, decomposed seams and transitions.
• Joint sets: spacing, dip, direction, persistence and their angle to the planned hole.
• Joint condition: open or tight, rough or smooth, clean or filled.
• Infill: clay, crushed rock, mineralization or loose fragments.
• Groundwater: inflow, pressure, wet seams and circulation-loss zones.
• Variability: interval-by-interval changes instead of one site average.
• Stress and excavation effects: especially where relief, blasting damage or instability changes the near-face rock.

Can UCS and RQD choose between DTH and top hammer?

Not by themselves. Method choice also depends on hole diameter, depth, inclination, straightness tolerance, production pattern, rig access, available air, rod handling, noise or dust controls, and cost per acceptable hole. UCS can inform intact-rock breakage demand; RQD and discontinuity data can inform structural variability. The final choice must integrate both with the operational constraints.

For a concrete example of a multi-variable decision, read DTH vs Top Hammer for 76–115 mm Quarry Blast Holes. That guide treats geology as one input rather than a universal selection rule.

A practical workflow for reading a geology report

1. Separate material from mass. Mark UCS and other intact-rock tests separately from RQD, joint and weathering descriptions.
2. Plot values by depth. Avoid relying on one average across different lithologies or structural zones.
3. Check data direction. Compare core-hole orientation and joint orientation with the planned production holes.
4. Identify transition zones. Highlight weathered seams, faults, water-bearing fractures, overburden and lithology contacts.
5. Match the hole requirement. Record diameter, depth, inclination, straightness tolerance and final-hole purpose.
6. Review site resources. Confirm rig, drill string, compressor or flushing supply, access and handling limits.
7. Use field feedback. Compare the report with penetration changes, cuttings return, torque, vibration, deviation, bit wear and stuck-tool events from nearby holes.
8. Define trial and stop rules. Establish what evidence triggers parameter adjustment, tool change, casing, re-drilling or method reassessment.

Common mistakes when using UCS and RQD

• Calling UCS a complete “rock hardness” or drillability value.
• Calling RQD a rock-strength percentage.
• Assuming high RQD guarantees a stable, dry or non-abrasive hole.
• Assuming low RQD means the intact rock is soft.
• Using one average value across a variable bench or borehole.
• Ignoring the angle between the core hole, joint sets and production holes.
• Comparing RQD from different logging methods without checking definitions.
• Selecting a bit or drilling method from UCS and RQD alone.

What to include in a drilling-tool RFQ

• Application: quarry blast hole, mining development, foundation, water well or other defined job.
• Hole diameter, depth, inclination, pattern and straightness requirement.
• Rock types and the depth or bench intervals in which they occur.
• UCS results as a range or distribution, with specimen orientation and test method where available.
• RQD by interval, plus core diameter, run length, hole orientation and logging method.
• Joint spacing, orientation, aperture, infill, weathering and groundwater observations.
• Known problem zones: lost flushing, collapse, stuck tools, deviation or unusual wear.
• Current rig, rock drill or hammer, thread or shank system, rod or pipe dimensions, bit size and face design.
• Available compressor or flushing-water capacity at the working condition.
• Photos of core, rock face, used bits and representative cuttings where permitted.

This information does not eliminate the need for site trials, but it gives the supplier a much better basis than “hard rock, 150 MPa” or “RQD 60%.”

Frequently asked questions

Is a higher RQD always better for drilling?

No. Higher RQD generally indicates more continuous sound core along the borehole, but it does not define intact strength, abrasivity, weathering, groundwater or hole-wall behavior. It is one rock-mass indicator, not a drilling-performance score.

Can hard rock have a low RQD?

Yes. Strong intact blocks can be separated by frequent joints or faults. UCS may be high while RQD is low because the two measurements describe different scales.

Can weak rock have a high RQD?

Yes. A weak but continuous rock unit can yield long core pieces. High RQD should not be interpreted as high UCS without strength testing.

Does RQD predict hole deviation?

Not alone. Fracture frequency can contribute to deviation risk, but joint orientation, aperture, infill, hole angle, drill-string stiffness, collaring and operating parameters are also important.

Which value should be sent to a drilling-tool supplier?

Send both when available, together with interval logs, lithology, weathering, joint orientation and condition, groundwater, hole geometry, equipment and past drilling observations. The complete context is more useful than either number alone.

Use geology as a controlled input, not a single-number shortcut

UCS answers an intact-material question; RQD answers a core-continuity question. Good drilling decisions connect those answers to discontinuities, water, abrasivity, hole geometry and the installed drilling system. To discuss a tool or system against a real geology package, send the available logs, hole plan and equipment details through the PerfoMax Request a Quote page. PerfoMax can then respond to the stated conditions without pretending that one UCS or RQD number determines the solution.
