Rock Drilling Tool Warranty Claims: Evidence Checklist for Premature Failure

Short answer: when a rock drilling tool fails earlier than expected, stop treating the failed part as scrap. Isolate the affected tool, preserve the fracture or wear surfaces, photograph it before cleaning or disassembly, record the order and batch identity, and capture the operating conditions at the moment of failure. Then notify the supplier promptly and ask what return or inspection process applies.

A persuasive rock drilling tool warranty claim is not simply “the rod broke” or “the bit wore too fast.” It is a traceable evidence package that allows the buyer and supplier to separate a possible material or manufacturing defect from normal wear, incompatibility, overload, lubrication failure, corrosion, handling damage or an operating-condition problem.

Important boundary: warranty coverage, notification deadlines, exclusions, remedies and freight responsibility are controlled by the quotation, purchase order, sales contract and supplier warranty that applied to the order. This guide is a documentation workflow, not a warranty promise or legal interpretation.

What should you do immediately after a premature failure?

The first hour is often more important than the first claim email. Useful evidence can be destroyed by routine workshop actions, especially grinding, welding, sandblasting, aggressive cleaning or continued drilling with the damaged part.

1. Make the area safe. Follow the mine, quarry or contractor’s lockout, pressure-release, lifting and incident procedures before handling the tool.
2. Stop and isolate the failed component. Do not return it to the scrap bin or mix it with other used tools.
3. Keep all pieces. Retain mating fragments, broken buttons, foot valves, seals, coupling sleeves and adjacent components where they can be recovered safely.
4. Photograph the as-found condition. Take overall, medium and close views before cleaning, separating or moving parts more than necessary.
5. Tag the item. Record the site, rig, hole, date, operator, product identity and a unique claim reference.
6. Quarantine related stock when the pattern is unusual. If several tools from the same lot show a similar early failure, pause that lot pending a risk review rather than consuming all remaining evidence.
7. Contact the supplier. Ask whether the component should remain assembled, be returned, or be examined locally before any destructive work.

The five parts of a complete warranty-claim evidence pack

Do not wait for a perfect laboratory report before making first contact. Send a prompt preliminary notice with the facts already available, state what has been quarantined, and agree the next inspection step.

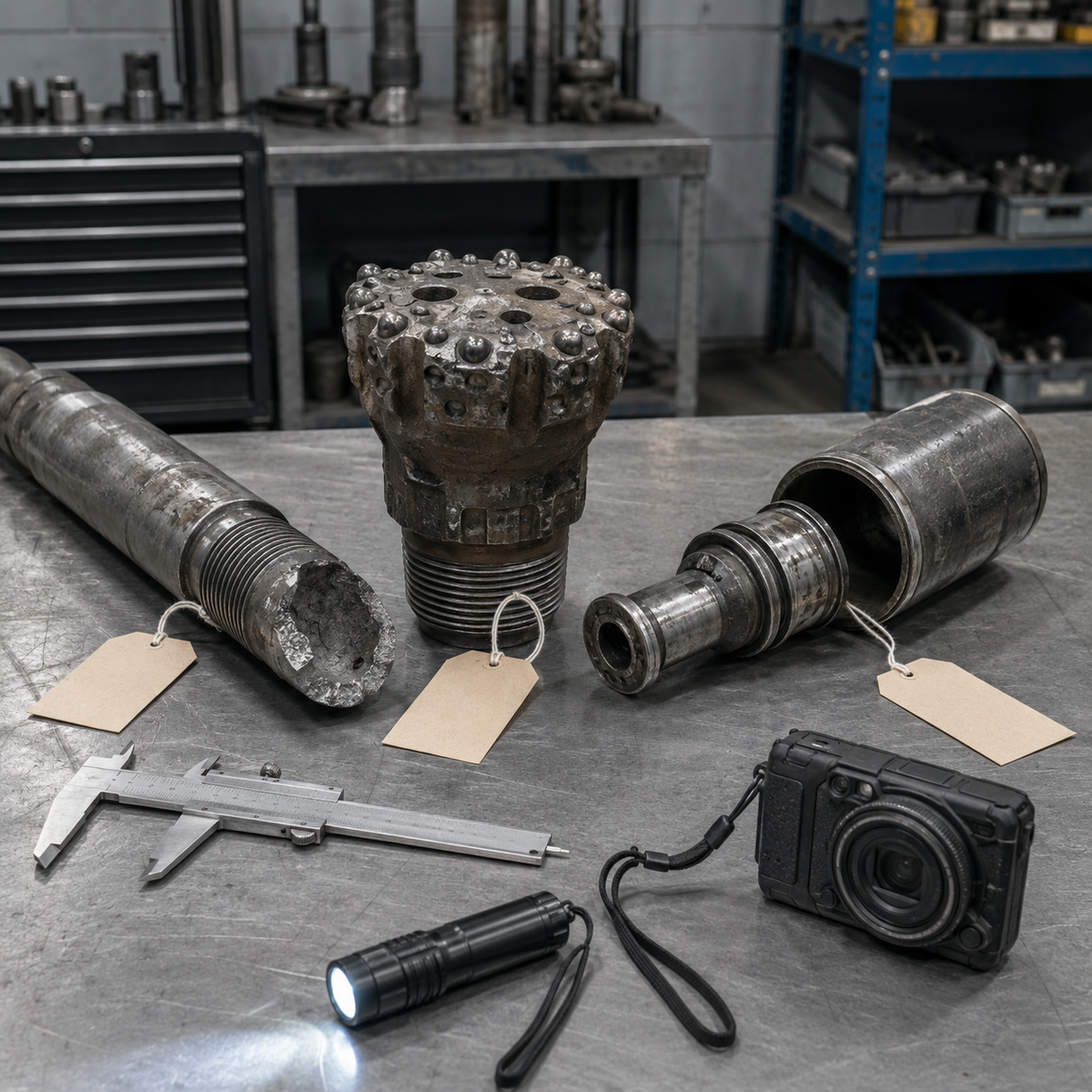

How to photograph a failed drill tool for supplier review

Photographs should establish identity, scale, location and condition. A single close-up of a fracture face is rarely enough.

• Context view: the complete component and recovered pieces on a clean surface.
• Identification view: stamped marks, package label, part number, batch code or other traceability mark.
• Orientation view: show which end faced the bit, hammer, shank adapter or drill rig.
• Damage-location view: thread root, shoulder, flushing hole, piston zone, bit face, shank or body.
• Close views: several angles with controlled light; avoid glare that hides cracks or surface texture.
• Scale view: include a ruler or caliper without covering the damage.
• Mating-part views: photograph the coupling, bit shank, chuck, driver sub, sleeve, seals or adjacent rod.
• Remaining-lot view: packaging and marks on unopened or unused pieces from the same delivery.

Keep the original image files. Do not rely only on screenshots or compressed messaging-app copies. Rename files with the claim reference, component, view and date so the sequence remains clear.

Why you should preserve the fracture and wear surfaces

A fracture surface may contain features that help a competent examiner evaluate where a crack started and how it progressed. Heavy cleaning, wire brushing, grinding, welding, hammering or fitting the two halves together repeatedly can alter those features. Rust and contamination can also obscure them.

ASTM E860-22 is written for evidence that may become involved in civil or criminal litigation, so it is not a routine warranty specification. However, its general evidence-preservation principle is useful: document the condition before an examination or test that could alter it, and record any necessary change. A normal commercial claim does not need forensic chain-of-custody paperwork, but it does benefit from controlled handling.

Practical preservation steps include:

• do not grind, polish or acid-clean a fracture face;
• do not weld the failed part “to see if it holds” before supplier review;
• keep mating fragments separated with clean, non-abrasive protection;
• store dry and protect against impact and corrosion;
• record any disassembly, cleaning or measurement already performed;
• obtain written approval before cutting samples or conducting destructive tests.

Rockmore’s official resource library provides operation, service and failure-troubleshooting guides for DTH and top-hammer tools. Those documents reinforce an important claim principle: equipment condition, lubrication, operating practice and component damage patterns must be reviewed together, not as isolated photographs.

Which operating data should be included?

The required data depends on the tool system. Record actual readings where available, not only nominal machine settings.

If data logging is not available, use an operator statement and supervisor confirmation. Clearly separate measured values, machine display values and estimates.

How to describe failure without guessing the cause

A claim form should begin with observations, not conclusions. “Manufacturing defect” is a conclusion; “transverse fracture 42 mm behind the thread shoulder after approximately 310 drilled meters” is an observation.

Use a three-column record:

This neutral format prevents the buyer from locking onto one explanation too early. For technical diagnosis before submitting a commercial claim, use the published DTH Hammer Troubleshooting Guide or Top Hammer Drill Rod Failure Guide.

How to separate normal wear from a potentially claimable failure

Premature life does not automatically prove a product defect, and a worn component is not automatically excluded. The comparison must use the agreed specification and documented service conditions.

Investigate these boundaries:

• Expected wear: progressive button wear, thread wear, seal wear or dimensional loss consistent with service.
• Operating damage: bending, impact marks, heat, welding, insufficient lubrication, contamination, corrosion, incompatible mating parts or use outside stated limits.
• Installation or maintenance effects: incorrect assembly, damaged threads, wrong tools, missing parts or unapproved repairs.
• Possible product nonconformity: wrong dimensions or material against the purchase specification, abnormal repeat failures within a traceable batch, visible manufacturing defects or verified property deviations.

The supplier should explain which evidence supports acceptance or rejection. The buyer should ask for the disposition in writing and preserve the part until the review and any agreed appeal are complete.

A practical warranty-claim workflow

1. Notify: send the supplier a preliminary claim reference, product, order, date, failure symptom and safety status.
2. Contain: identify affected and unaffected stock; quarantine only what the risk pattern justifies.
3. Document: complete the evidence pack, photographs, service data and product traceability.
4. Agree inspection: confirm whether the part should remain assembled, be returned, or be inspected locally.
5. Authorize testing: define who can cut, clean, measure or test the component and how results will be shared.
6. Review cause and coverage separately: technical cause, contractual coverage and commercial remedy are connected but not identical decisions.
7. Record disposition: replacement, credit, repair, rejection, shared-cost action or further investigation.
8. Close the loop: update incoming inspection, operating practice, stock controls or supplier requirements based on the verified finding.

Common claim mistakes that weaken the buyer’s case

• discarding the failed part or sending it without identification;
• cleaning or grinding the fracture before photographs;
• reporting only “failed early” without meters, hours or holes drilled;
• omitting the rig, hammer, drifter, mating parts or operating settings;
• mixing failures from different batches into one claim;
• continuing to consume the full batch after repeated similar failures;
• returning goods without written authorization or shipment instructions;
• claiming downtime or consequential loss without checking the contract;
• using edited photographs that hide the sequence or condition;
• stating a root cause before the physical and operating evidence is reviewed.

Prevent the next dispute at the RFQ and purchase-order stage

Claims are easier when expectations were defined before shipment. For higher-risk orders, agree:

• product drawing, model, thread or shank and compatible system;
• material or performance specification where applicable;
• batch marking and traceability format;
• pre-shipment inspection, sample plan and document set;
• how service life will be measured and which operating records will be kept;
• warranty period, start date, exclusions and notification deadline;
• return-material authorization and freight responsibility;
• available remedies and decision or appeal process.

A supplier cannot evaluate a vague compatibility request or life expectation reliably. Give the application, equipment and acceptance basis before ordering.

Frequently asked questions

Should a failed drill rod or bit be cleaned before return?

Remove only loose contamination when necessary for safe handling and when the supplier agrees. Do not grind, polish, wire-brush or chemically clean important fracture and wear surfaces before they are documented and reviewed.

What if the component has no visible batch number?

Preserve the package label, bundle tag, delivery note, remaining identical stock and site issue record. Explain the traceability gap rather than assigning an uncertain batch identity.

Can photographs replace returning the failed part?

Sometimes a supplier can make an initial decision from clear photographs and records, but subtle fracture, material or dimensional questions may require physical examination. Ask before disposal or return.

Should every early failure stop the entire site?

No universal rule applies. Assess safety, similarity, severity, batch concentration and the consequence of recurrence. A repeated unusual failure pattern generally justifies quarantining the related lot until the risk is reviewed.

Who should pay for laboratory failure analysis?

Agree this before testing. The purchase contract, warranty terms, preliminary evidence and proposed test scope should define who authorizes the laboratory, owns the samples, receives the report and bears the cost.

Technical references

• Rockmore International: DTH hammer operation, service and failure-troubleshooting guides
• Rockmore International: top-hammer and DTH failure-troubleshooting resources
• ASTM E860-22: documenting evidence condition before potentially altering examination or testing
• Simpson Strong-Tie: an example of a published drill-bit claim procedure and related tool-holder checks
