High air use is not proved by a compressor running continuously. It is proved when a known drill, at a known operating condition, requires materially more delivered air than its controlled specification or than its own healthy baseline. The apparent problem can come from the rock drill, but it can also come from leaks, an undersized distribution system, a restrictive coupling, an incorrect pressure setting, poor lubrication or multiple unrecorded air users.
Start with a measured baseline. Confirm the exact model and its airflow figure at the stated pressure, then measure dynamic pressure near the tool while it is working. Do not compare a tool's consumption at one pressure with a compressor headline rating at another reference condition.
What “too much air” can mean
| Observation | Likely interpretation | First check |
|---|---|---|
| Compressor cannot hold pressure when the drill starts | Total demand, leakage or delivered-capacity shortfall | Other users, compressor FAD, main hose and header |
| One drill uses more air than an identical healthy drill | Tool, oiler, control or connection fault | Swap only controlled external components and compare |
| Strong leakage is audible before the trigger is operated | Hose, coupling, inlet, throttle or seal leakage | Isolate and leak-test the external path |
| Drill runs but impact is weak and exhaust is heavy | Low inlet pressure, internal bypass, valve/piston wear or poor lubrication | Dynamic pressure and lubrication first |
| Air use rises after the line becomes longer | Distribution pressure loss, not necessarily tool wear | Hose ID, length and minimum coupling bore |
Step 1: freeze the comparison basis
Record the model, controlled data-sheet revision, required pressure, stated air consumption, drill-steel and bit setup, hose ID and length, coupling type, lubricator, compressor model and number of simultaneous users. Air-consumption comparisons are valid only when their pressure and test conditions are stated. ISO 2787 provides the technical framework for measuring pneumatic-tool air consumption and adjusting results to specified conditions; use the current controlled specification and the exact model documentation for acceptance.
Use compressor FAD or delivered air at the required pressure and site condition, not motor power, receiver size or theoretical displacement. A receiver may buffer short changes; it does not replace sustained delivered flow.
Step 2: measure pressure where the drill uses it
Static pressure at the compressor can look normal while the working drill is starved. Measure dynamic pressure at an approved point close to the tool while the drill is under representative load. Compare it with the model requirement and with the pressure at the header.
- Pressure falls at every branch: review compressor capacity, common leakage, filters, valves and the main header.
- Pressure falls only at one drill: review that branch hose, coupling, regulator, lubricator and inlet.
- Pressure remains correct but air use is abnormal: the investigation moves toward control leakage or internal wear.
Use the air-hose sizing guide and long-hose pressure-drop guide to document the distribution path.
Step 3: isolate external leakage

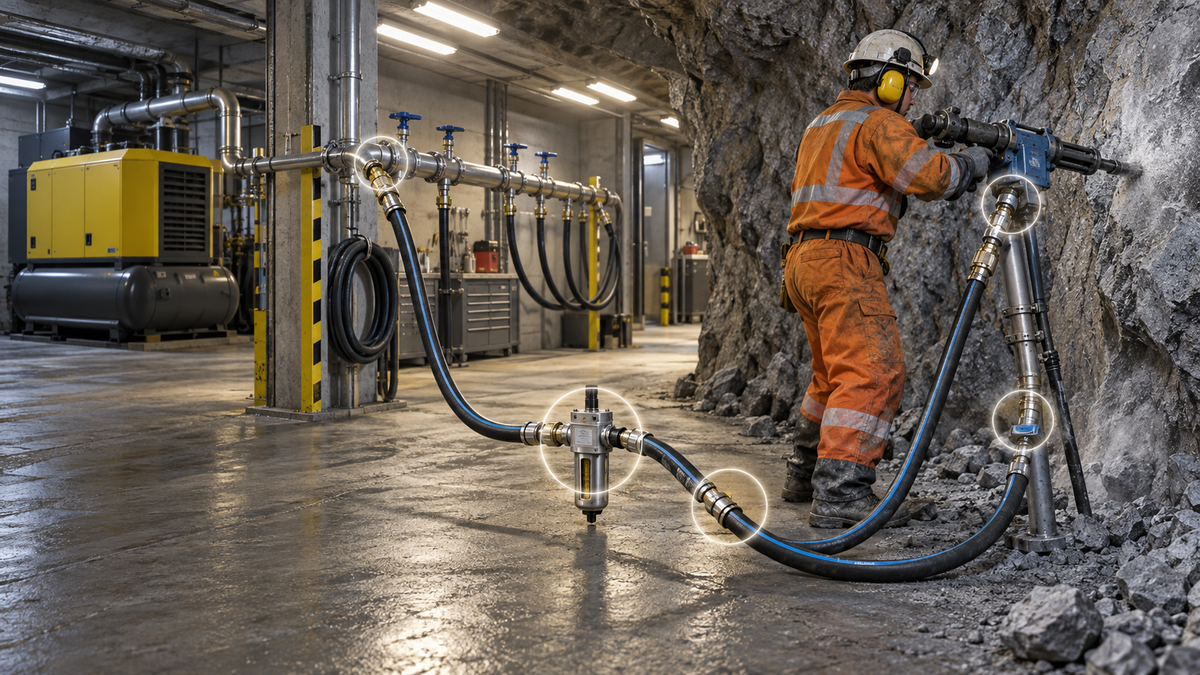

With the system made safe under the site's procedure, inspect the complete branch from manifold to tool:
- hose cuts, abrasion, blisters and loose ferrules;
- coupling seals and positive locking features;
- reducers with a smaller internal bore;
- filter, separator, regulator and lubricator joints;
- throttle and inlet connections;
- unused branches or drain points left open.
Do not use a hand to search for a compressed-air leak. Use the approved leak-detection method and keep the assembly within its pressure rating. Replace damaged hose or fittings; do not improvise a repair with hardware not designed for compressed-air service.
Step 4: check lubrication and operating controls
Too little lubricant can increase friction, heat and wear. Too much oil can create carryover and obscure the diagnosis. Confirm the correct rock-drill oil, oiler location, fill condition and model-specific feed setting. Use the pneumatic rock drill lubrication guide for the external oil-path check.
Also confirm that a blow or flushing control is not being left in a high-flow position and that the trigger or throttle returns correctly. If air passes through the drill but percussion does not start normally, move to the air-but-no-impact diagnostic.
Step 5: move to internal inspection only after external checks pass
Internal leakage can occur when a valve, piston, cylinder, seals or mating surfaces are worn, damaged, contaminated or assembled incorrectly. Exact parts and limits vary by model. A qualified technician should inspect the controlled parts list and service manual rather than replacing the most convenient seal first.
Useful comparison evidence includes:
- dynamic inlet pressure and compressor output before and during the symptom;
- timed air use or compressor load for a healthy and suspect drill under the same setup;
- exhaust behavior, impact sound, rotation and temperature;
- oil delivery and oil condition;
- photos of the inlet, throttle, valve and wear parts after authorized disassembly;
- measured wear against the model limit.
Run a controlled A/B air-consumption test
A compressor load indication, run time or audible exhaust can identify a symptom, but it does not isolate the cause. Use a calibrated or site-approved flow method and compare the suspect drill with a known-serviceable drill or a documented healthy baseline under the same controlled setup. Keep the model, dynamic inlet pressure, hose and couplings, oiler, drill steel, bit, flushing condition, rock or test load and operating duration equivalent.
Where a valid baseline airflow is available, calculate the relative change:
Airflow change (%) = (suspect measured airflow − accepted baseline airflow) ÷ accepted baseline airflow × 100
For example, if a controlled baseline is 5.0 m³/min and the suspect result is 5.8 m³/min under the same accepted conditions, the measured change is 16%. That figure is a comparison result—not a universal rejection limit. Apply the model manufacturer’s limit or the site’s approved engineering threshold before disposition.
| Controlled test result | Likely Owner | Decision | Required next evidence |
|---|---|---|---|
| Header and every branch lose dynamic pressure when the planned load starts | Common supply or distribution system | HOLD TOOL DIAGNOSIS | Compressor delivered capacity, total simultaneous demand, common leakage and header restriction |
| Healthy and suspect drills both perform poorly on one branch, but perform normally on a verified branch | Branch hose, coupling, treatment component or valve | REPAIR BRANCH | Before/after dynamic pressure and leak/restriction result for the same branch |
| Suspect drill shows higher controlled airflow or weak impact on a verified branch while the healthy drill remains normal | Drill controls or internal condition | WORKSHOP INSPECTION | Throttle/control state, lubrication confirmation and model-specific valve, piston, cylinder and sealing inspection |
| External leakage is found before or during operation | Hose assembly, coupling, inlet or control connection | ISOLATE AND REPAIR | Rated replacement, approved leak test and repeated controlled measurement |
| Results change with pressure, bit, load, hose or operator method | Test method is not controlled | HOLD FOR EVIDENCE | Repeat the comparison with matched conditions; do not condemn the drill from mixed data |
| Repair restores pressure, airflow and function to the accepted baseline | Resolved component or branch | RETURN TO SERVICE | Recorded post-repair result, approver and next monitoring point |
Compressed-air demand should be assessed from measured system demand, pressure and point-of-use conditions. The Compressed Air & Gas Institute identifies baseline demand, leaks, pressure-driven artificial demand and distribution pressure drop as separate system considerations. Do not assign all four to the rock drill.
Copy-ready excessive-air diagnostic record
| Record block | Evidence to capture |
|---|---|
| Tool identity | Drill model, serial or asset ID, data-sheet/manual revision and stated airflow-pressure basis |
| Controlled setup | Compressor, branch, hose ID/length, couplings, oiler, steel, bit, flushing condition, load and simultaneous users |
| Supply readings | Compressor/header pressure and dynamic pressure near the drill before and during the test |
| Airflow evidence | Measurement instrument/method, calibration or control status, accepted baseline, suspect result and calculated change |
| Functional observations | Impact, rotation, exhaust, temperature, lubrication delivery, leakage and abnormal control behavior |
| Isolation result | Healthy-drill/known-branch comparison and the component or section that follows the symptom |
| Disposition | RETURN TO SERVICE, REPAIR BRANCH, WORKSHOP INSPECTION, ISOLATE AND REPAIR or HOLD FOR EVIDENCE; approver and date |
Do not release the drill merely because the compressor can maintain pressure. Release it only when the measured comparison, functional response and repaired-system evidence meet the controlled acceptance rule.
Decision tree
- No controlled model baseline? Obtain it before calling the drill inefficient.
- Dynamic pressure low at all drills? Diagnose the compressor and common distribution system.
- Dynamic pressure low only at one branch? Diagnose hose, couplings, treatment components and inlet restriction/leakage.
- Dynamic pressure correct but external leakage present? Repair the branch and retest.
- No external leak, lubrication correct, controls correct, air use still high? Move to model-specific internal inspection.
- Air use returns to baseline after repair? Record the accepted readings for future comparison.
What to send for a configuration review
Send the exact model, number of simultaneous drills, controlled air-consumption figure and pressure basis, compressor FAD curve, site altitude, hose IDs and lengths, coupling/manifold layout, dynamic pressure readings, lubricator setup and a description of the symptom. For a commercial comparison, open the Pneumatic Rock Drills collection and the ACTIVE YT28 air-leg rock drill route, then request a technical review.
FAQ
Does higher compressor pressure reduce air consumption?
Not as a general rule. Raising pressure outside the approved operating condition can increase demand and stress components. Select and operate the system from the controlled tool requirement and compressor delivered-capacity data.
Can a small hose make the drill appear to use too much air?
Yes. A restrictive hose or fitting can create pressure loss, causing poor performance and longer drilling time even when the compressor is heavily loaded. Measure pressure at the tool under load.
Is heavy exhaust proof of an internal failure?
No. Control position, supply pressure, poor lubrication and external restrictions or leaks must be checked first. Internal inspection comes after the external path is verified.
