There is no universal maximum air-hose length for a pneumatic rock drill. A long hose is acceptable only when the complete air path can deliver the tool manufacturer's required pressure and flow at the drill inlet while the drill is working. Length matters, but internal diameter, couplings, bends, leaks, simultaneous air demand, moisture-control equipment and compressor performance at site conditions can matter just as much.

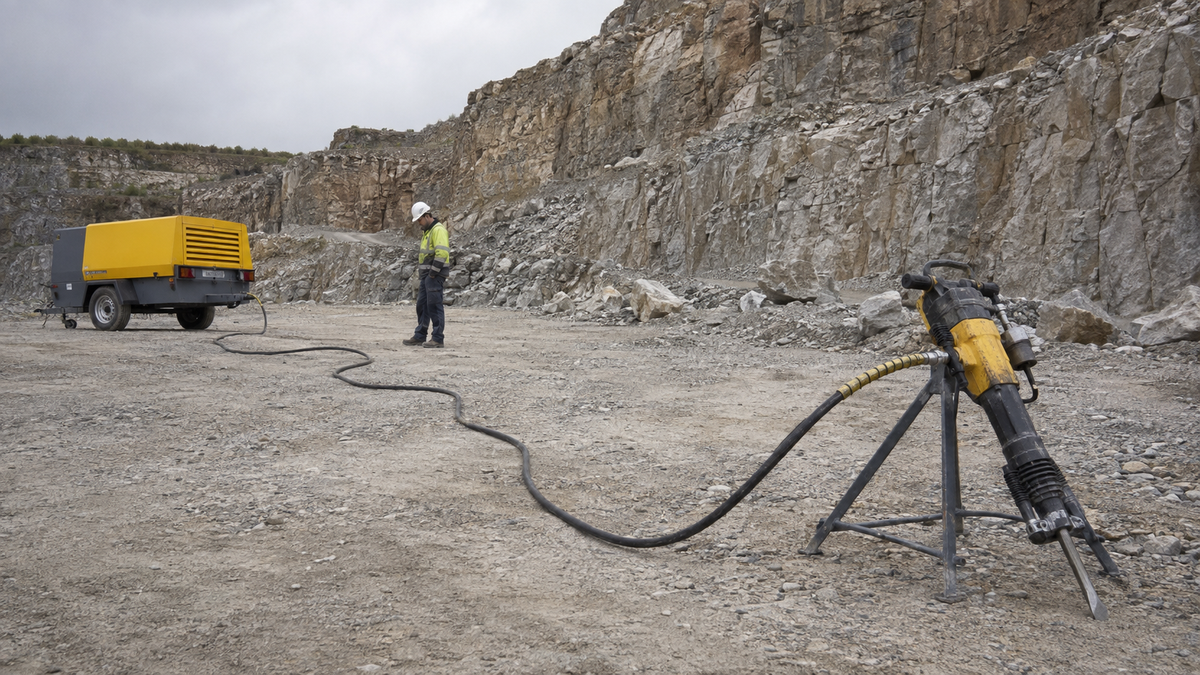

This distinction is important for quarry, mine and construction teams that move a compressor away from the face for access, noise or traffic reasons. A compressor gauge may look normal while a distant rock drill strikes weakly because the gauge shows pressure at the source, not the dynamic pressure available at the tool. The right field question is therefore not “How many metres of hose are allowed?” but “What pressure and flow reach this drill under its real operating load?”
The short answer: hose length alone is not the limit
Compressed air loses pressure as it moves through a hose. Friction increases with distance and with the velocity of the air. A smaller internal diameter forces the same volume through a tighter passage, which raises velocity and generally increases loss. Couplers, elbows, reducers, valves, filters and damaged hose liners add further restriction.
Two installations with the same hose length can therefore behave very differently. A correctly sized, straight line with full-bore fittings may supply a drill adequately, while a shorter line with a small bore, several reducers and a leaking branch may not. The acceptable arrangement is the one that meets the exact drill's inlet requirement without exceeding the ratings of the compressor, hose, fittings, lubricator or tool.
Start with the current manual or controlled data sheet for the exact drill model. Confirm the required working pressure, air consumption, inlet connection and recommended hose size. Do not substitute a family name or a similar-looking model for these values: different rock drills can have materially different demand.
Why static pressure can mislead the drilling crew
Static pressure is not delivered performance
When the drill is stopped, little or no air is flowing. Gauges along the line can then equalize and show an apparently healthy static pressure even if the hose is undersized. When the throttle opens, flow rises and the restrictions create a pressure drop. The tool-inlet reading under this load is the useful diagnostic value.
Pressure and flow must be considered together
A pneumatic rock drill converts a continuous supply of compressed air into repeated piston impacts and rotation. A pressure reading alone does not prove that the supply path can sustain the required flow. A line can recover pressure between tests yet collapse under continuous demand. Conversely, raising compressor discharge pressure is not a safe substitute for correcting a restricted line: it can waste energy and may expose upstream or downstream components to conditions outside their ratings.
What determines pressure drop in a long rock-drill air hose?
| Variable | Why it changes the result | What to confirm on site |
|---|---|---|
| Drill air demand | Higher consumption produces more loss through the same hose and fittings. | Exact model, specified pressure and consumption from the current manual. |
| Hose internal diameter | A small bore raises air velocity and friction for a given flow. | Actual ID along the full route, not only the nominal coupling size. |
| Total effective length | Longer paths add friction; coiled surplus hose still counts. | Compressor-to-tool route including whips and flexible drops. |
| Couplings and restrictions | Reducers, small quick couplers, elbows and partly open valves create local loss. | Smallest opening in every component, plus its pressure and flow rating. |
| Hose condition | Kinks, crushed sections, delaminated liners and contamination reduce the passage. | Full visual and tactile inspection after isolation and depressurization. |
| Leaks | Escaping air consumes capacity before it reaches the drill. | Connections, hose damage, manifold joints, valves and the tool inlet. |
| Other air users | Simultaneous tools can pull down header pressure or overload a shared branch. | Worst-case number of tools operating together. |
| Site conditions | Altitude, ambient temperature and compressor condition affect delivered capacity. | Site elevation, temperature range and verified compressor output at those conditions. |
| Air treatment | Filters, separators and lubricators add resistance, especially when dirty or undersized. | Element condition, flow rating, installation direction and drain status. |
Use a pressure-location test to find the restriction
A disciplined test compares readings at several points while holding the operating condition as constant as practical. Use calibrated instruments, rated test fittings and the manufacturer's procedure. A competent person should plan the test so the tool, hose and gauge cannot move unexpectedly.
| Observed pattern under load | Likely area to investigate | Next check |
|---|---|---|
| Pressure is low at the compressor outlet | Compressor capacity, regulation, maintenance or environmental derating. | Verify delivered output and the total connected demand. |
| Outlet pressure is stable but header pressure falls | Main line, aftercooler, receiver, separator, valve or header restriction. | Measure across each major component and inspect its condition. |
| Header is stable but the distant branch falls | Branch hose ID, length, couplings, kinks or leaks. | Inspect the complete branch and compare it with a shorter known-good line. |
| Pressure is adequate until a second tool starts | Shared branch or compressor capacity is insufficient for simultaneous demand. | Test tools separately, then together, and review manifold and header sizing. |
| Inlet pressure is stable but impact remains weak | The supply line may not be the primary fault. | Stop and inspect lubrication, tool condition, drill steel and operating setup under the manual. |
Record both static and loaded readings, but do not compare measurements taken with different tool states as if they were equivalent. Note which tools were running, the compressor control state, the hose route and the test point. That record makes later comparison useful and prevents teams from repeatedly changing parts without proving the cause.
A practical commissioning sequence for a long hose run
- Identify the exact drill. Record the manufacturer, complete model, inlet connection, required working pressure, air consumption and approved lubricator arrangement.
- Map the full air path. Include compressor outlet, receiver, separator, header, manifold, valves, couplers, main hose, whip hose and the tool inlet. Mark every reduction in internal passage.
- Check component ratings. The hose, couplings, clamps, restraints, valves, filters, lubricator and gauge assembly must all be rated for the service and environment.
- Inspect before pressurizing. Remove damaged hose from service. Correct kinks, crushed areas, contamination and loose or improvised connections. Route hoses away from traffic, sharp edges and hot surfaces.
- Test one drill under load. Measure at the source, branch and tool inlet according to the approved site procedure. The tool should be operated only in a controlled drilling or test condition.
- Test the real simultaneous load. If the branch will feed more than one tool, repeat with the expected combination operating. Intermittent and continuous demands should not be treated as the same case.
- Confirm lubrication and moisture control. Check the line oiler, separator and drains after flow is established. Follow the drill and lubricator manuals for oil grade, placement, setting and inspection.
- Create a baseline. Record hose ID and length, fitting configuration, loaded readings and observed drilling behavior. Recheck after any route, tool or compressor change.
What to change when the distant drill is starved
The most effective correction depends on where the loss occurs. Do not begin by increasing compressor set pressure. First remove avoidable restrictions and verify that every proposed change remains within the manufacturer and site limits.
- Increase the hose internal diameter based on the required flow, total length and allowable pressure loss.
- Shorten the route or move the compressor, receiver or distribution point closer when site logistics permit.
- Replace undersized quick couplers, reducers and valves with rated components that preserve the necessary flow area.
- Uncoil unused hose and remove sharp bends, kinks and crushed sections.
- Repair leaks and maintain filters, separators and drains.
- Give high-demand drills dedicated branches instead of connecting multiple tools through one small branch.
- Review compressor capacity at the site's elevation and ambient temperature, not only its nameplate value.
A larger hose is not automatically compatible. It can add weight and handling difficulty, and its end connections still need to match the approved inlet arrangement. The entire assembly should be selected as a system.
Plan shared lines for the worst simultaneous demand
A header that serves two rock drills must carry their coincident demand plus any other connected loads. Problems often appear only during shift peaks: each tool works when tested alone, then both slow when operated together. This is a distribution-capacity issue until testing proves otherwise.
Where practical, use a properly sized main header with dedicated drops rather than a chain of tools connected through progressively smaller fittings. Place isolation where it can be reached safely, keep branches identifiable and document which tools are allowed to run together. If one drill requires substantially more air than another, do not assume equal branches will perform equally.
Do not separate pressure-drop checks from lubrication and condensate control
Long outdoor lines can cool compressed air and encourage condensate to collect at low points. Water, dirt and unsuitable lubrication can damage a pneumatic tool or create symptoms that resemble air starvation. Drain and separation arrangements must match the compressor system, climate and drill manufacturer's instructions.
The line oiler also needs enough flow capacity for the drill. An undersized or contaminated lubricator can become another restriction. Its position, oil grade and adjustment should follow the current manuals; a generic distance rule is not reliable for every oiler and hose configuration. After commissioning, verify that lubrication reaches the tool as intended instead of assuming that a full reservoir proves delivery.
Common mistakes that waste time or create risk
- Judging by the compressor gauge alone. It cannot show losses after the outlet.
- Choosing hose by coupling thread only. Thread size does not reveal the minimum internal passage through the coupling.
- Testing with the drill stopped. Static pressure can hide a flow-related restriction.
- Ignoring the second shift tool. A line sized for one drill may fail when simultaneous demand begins.
- Raising pressure to mask a small hose. This can increase energy use and create an overpressure hazard elsewhere.
- Using unrestrained or visibly damaged hose. Isolate and depressurize before inspection; remove unsafe hose and fittings from service.
- Changing the drill before proving the supply. A known-good tool can look defective when the point-of-use air supply is inadequate.
Information to include in an RFQ or technical review
When the compressor is far from the drilling face, include the air-distribution conditions with the tool request. This lets the supplier review the drill and supply path together.
- Exact rock-drill model or required hole/application duty.
- Number of drills and maximum number operating simultaneously.
- Compressor type, rated free-air delivery, regulated pressure and maintenance condition.
- Site elevation and expected ambient-temperature range.
- Total main-hose and branch-hose lengths, with internal diameters.
- Coupling, valve, manifold, separator and lubricator types and minimum passages.
- Existing loaded pressure readings at compressor outlet, header and tool inlet.
- Air and water availability, drilling direction, rock condition and shift pattern.
- Applicable hose, fitting, restraint and mine or site safety requirements.
Frequently asked questions
How long can an air hose be for a pneumatic rock drill?
There is no universal length. The acceptable length depends on tool demand, hose ID, fittings, compressor output, site conditions and allowable pressure loss. Validate the layout with a calculation and a loaded tool-inlet measurement.
Will a larger hose always make the drill stronger?
A larger ID often reduces friction loss, but it will not correct inadequate compressor capacity, a blocked filter, poor lubrication or an internal tool fault. Confirm the location of the pressure loss before changing parts.
Why does the gauge show normal pressure until drilling starts?
The stopped tool draws little air, so the line can equalize. Opening the throttle creates flow and exposes restrictions. This is why dynamic readings under a controlled load are essential.
Can two pneumatic rock drills share one hose?
They can share a distribution system only when the compressor, header, manifold and branches are sized for their simultaneous demand. Feeding both through one small hose or restrictive coupler can starve them even if each works alone.
Should the lubricator be installed near the compressor or the drill?
Follow the exact drill and lubricator manuals. Placement depends on the lubricator design, hose arrangement and operating conditions. Confirm rated flow and actual oil delivery after installation.
Match the drill and the air supply as one working system
A pneumatic rock drill should not be selected in isolation from the compressor and hose route. If your project has a long supply run, send PerfoMax the tool duty, site conditions, compressor data, hose layout and simultaneous-demand plan. You can review the active YT28 air-leg pneumatic rock drill as a commercial starting point, then confirm the final configuration against the controlled product data and your measured point-of-use air supply.
Bottom line: measure at the drill while air is flowing, correct the smallest restrictions first and treat hose, fittings, air treatment, compressor and tool as one system.
