Direct answer: select a pneumatic rock drill air hose by the drill’s required airflow and operating pressure, the hose’s true inside diameter (ID), the total run length, and the smallest bore through every coupling, valve, filter and lubricator. The inlet thread on the drill does not tell you the correct hose ID. A hose assembly that looks compatible can still starve the tool if one small fitting or an unnecessarily long run creates excessive pressure loss.
For buyers and site engineers, the practical goal is simple: deliver the drill manufacturer’s specified dynamic pressure and airflow at the tool inlet while the drill is operating. Confirm the complete air path before ordering hoses or adapters; do not select by nominal thread size alone.

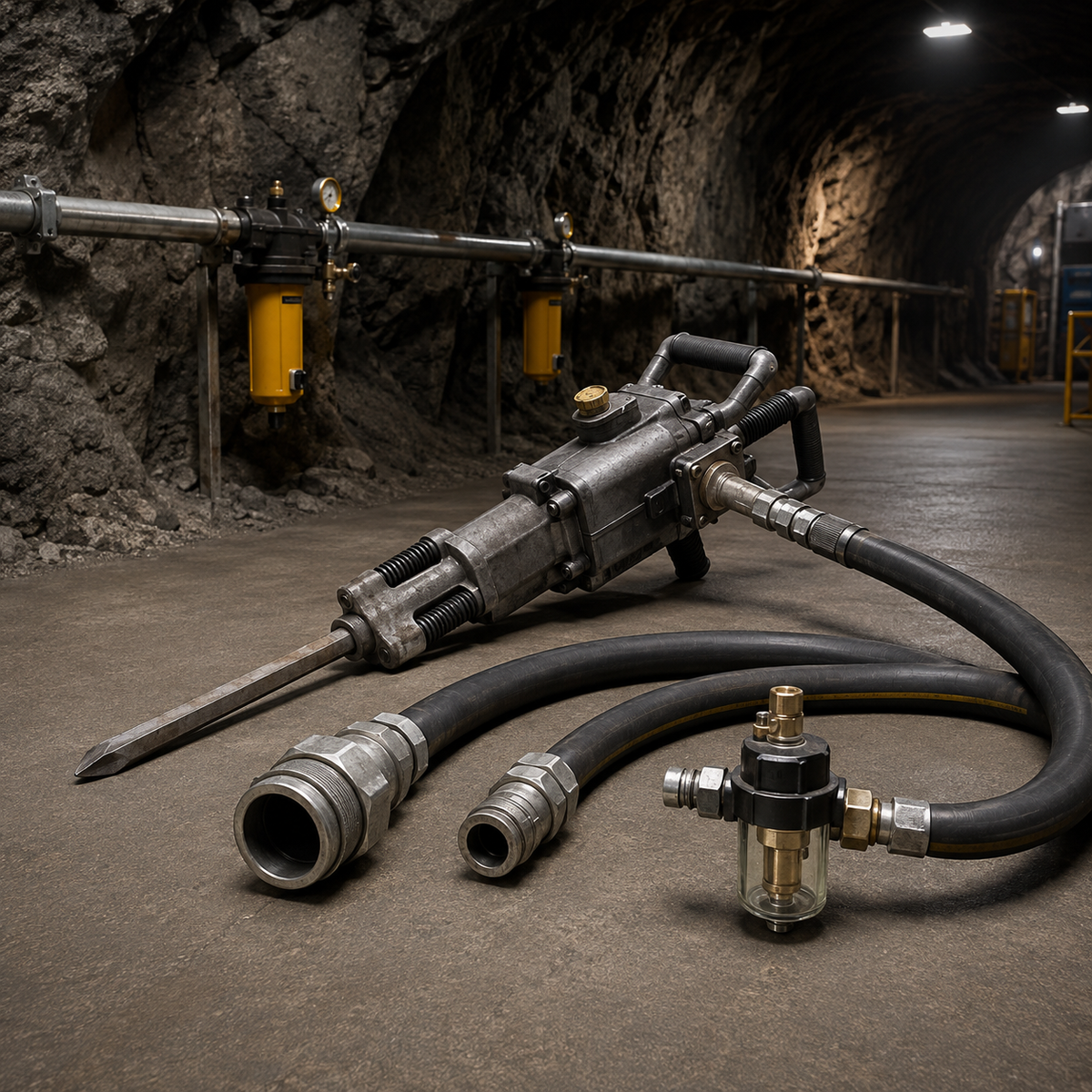

Pneumatic rock drill air hose sizing: the five checks that matter
| Check | What to confirm | Why it changes the answer |
|---|---|---|
| Rock drill demand | Required airflow and operating pressure for the exact model and configuration | The hose must pass the tool’s demand under load, not merely hold static pressure. |
| Hose inside diameter | Actual ID, not outside diameter or fitting thread | A smaller flow area raises velocity and pressure loss. |
| Total air-path length | Main hose, whip hose, branches and practical routing | Longer runs produce more friction loss and may require a larger ID. |
| Minimum component bore | Couplings, nipples, valves, regulator, filter, lubricator and manifold ports | The narrowest restriction can become the bottleneck even when the hose is large. |
| Site and safety requirements | Working-pressure rating, abrasion, temperature, oil compatibility, restraints and local rules | A flow-capable hose is not acceptable unless the complete assembly is safe for the site. |
This article focuses on the hose assembly downstream of the compressor. If compressor capacity is still uncertain, first read the published YT28 air compressor sizing guide, then use the checks below to prevent the distribution system from wasting that capacity.
Hose ID, outside diameter and inlet thread are different specifications
Three dimensions are often confused during an RFQ:
- Hose inside diameter is the flow passage and is the main hose-sizing dimension.
- Hose outside diameter depends on wall thickness and reinforcement; it is useful for selecting clamps and judging handling, but it does not define airflow capacity.
- Tool inlet thread defines how a connector attaches to the drill. It does not prove that the connector’s internal bore, the hose tail or the hose itself can pass the required airflow.
A reducer can make two parts screw together while creating a severe internal restriction. Likewise, a large hose connected through a small-bore quick coupling behaves like a system with a throttle point. Ask suppliers for the minimum clear bore through the assembled connector path, not only the thread designation.
Start with the exact drill model’s air requirement
Do not reuse a hose rule from another pneumatic tool without checking the rock drill data sheet. Percussive rock drills can have sustained airflow demands that differ greatly from smaller workshop air tools. The model, operating pressure, wet- or dry-drilling configuration, and number of tools running together all affect the supply arrangement.
For PerfoMax enquiries, buyers can begin with the live YT28 air-leg pneumatic rock drill, YT29A air-leg rock drill, or Y19A hand-held pneumatic rock drill page. Treat page data as preliminary matching information and attach the final supplier data sheet to the purchase order. Similar model names from different suppliers should not be assumed to have identical inlet or air-demand specifications.
Why hose length changes the required inside diameter
Air loses pressure as it moves through a hose because of wall friction and turbulence. Loss increases with flow demand and run length, and it increases sharply when the passage is too small. Bends, coiled hose, damaged liners and rough or undersized fittings add further loss.
This is why a short hose that performs acceptably near the compressor may fail when extended to a remote tunnel face. Rock-drill manuals commonly recommend minimizing hose length to limit pressure loss and moving to a larger bore when a longer portable-compressor run cannot be avoided. Treat that as a sizing principle, not a universal hose-size table: the final selection must be checked against the exact drill, hose, coupling and site specification.
Use equivalent length, not straight-line distance
Measure the installed route, including slack needed for safe drill movement. Then list every coupling, shut-off valve, filter, regulator, lubricator and branch. If a flow calculation is required, use the hose and fitting manufacturer’s pressure-drop data at the expected airflow. Where those data are unavailable, make a conservative provisional selection and verify it with an under-load pressure test before production drilling.
Coupling bore and profile can defeat a correctly sized hose
Coupling selection has two separate jobs: it must connect safely and it must pass enough air. Confirm all of the following:
- connection standard or coupling profile on both halves;
- thread type, nominal size and gender at each threaded joint;
- hose-tail size matched to the selected hose ID;
- minimum internal bore through the nipple, valve and coupling body;
- working-pressure rating for the actual air system and environment;
- compatible seals, lubricant exposure and temperature range;
- positive locking or restraint provisions required by the site.
Two couplings with similar outside shapes may not share the same profile. Forcing mismatched parts, stacking adapters or grinding a fitting to make it connect can create leakage, separation and flow restriction. Standardize the site’s coupling family where practical and record it on the hose assembly drawing.
Check dynamic pressure at the tool—not only static pressure at the compressor
A pressure gauge at the compressor outlet can look normal while the drill receives inadequate pressure. With the tool stopped, little air is moving, so the static reading does not reveal distribution loss. Dynamic air pressure is the pressure available at the tool inlet while the pneumatic tool is operating under a representative load.
A practical under-load test sequence
- Confirm that the drill, hose, fittings, gauge and test method are approved for the site. Isolate and depressurize before installing any test fittings.
- Inspect the hose for damage, kinks, soft spots, exposed reinforcement and insecure connections.
- Record compressor discharge pressure with the intended number of tools operating.
- Record pressure at an approved point near the drill inlet while the drill is running under a representative condition.
- Compare the near-tool reading with the drill manufacturer’s specified operating pressure.
- If the loss is excessive, inspect the narrowest components first, then hose length and ID, loaded filters, regulator setting, lubricator restriction, leakage and manifold capacity.
Never compensate automatically by raising compressor pressure. Excess pressure can increase tool stress and may exceed the rating of hoses or fittings. Correct the restriction or capacity problem and keep every component within its manufacturer’s limits.
Single-drill and multi-drill installations need different checks
A hose sized for one drill does not prove that a header can supply several drills. For multiple tools, calculate simultaneous demand using the operating combination—not the number of outlets. Confirm compressor free-air delivery at the required pressure, main-header capacity, branch lengths, manifold bore, regulators and the worst-positioned tool.
| Observed pattern | Likely area to investigate | Useful next check |
|---|---|---|
| All drills weaken when another starts | Total compressor, header or manifold capacity | Measure loaded pressure before and after the distribution point. |
| Only the farthest drill is weak | Long branch, small ID, extra couplings or local leakage | Compare near-tool dynamic pressure between branches. |
| One drill remains weak after hoses are swapped | Tool condition, inlet restriction or local accessory | Follow the model’s troubleshooting procedure; do not open the tool while pressurized. |
| Pressure is acceptable but lubrication is poor | Lubricator selection, oil level, installation or adjustment | Use the pneumatic rock drill lubrication guide. |
Hose construction and working-pressure rating are safety gates
Flow capacity alone is not enough. Select hose and fittings rated for the maximum possible system pressure, with a suitable margin and compatibility for oil mist, water, temperature, abrasion, ultraviolet exposure and the site’s mechanical hazards. Follow the hose manufacturer’s crimp, clamp and inspection instructions.
For US construction work, OSHA 29 CFR 1926.302 requires pneumatic tools to be positively secured to the hose, prohibits exceeding manufacturers’ safe operating pressures for hoses and fittings, and requires a safety device at the source or branch for hoses exceeding 1/2-inch ID. Other countries and mine sites may apply different or additional requirements. Treat this as an example of jurisdiction-specific safety control, not a substitute for the rules governing your project.
Release the Complete Hose–Coupling Assembly Before Service
A hose that passes the airflow calculation is not automatically ready for drilling. Release the complete assembly only after its identity, condition, end attachments, coupling pair, failure controls and loaded performance have been verified together. This method does not prescribe a universal coupling, restraint or test pressure; those choices remain specific to the assembly manufacturer, drill manual, site rules and jurisdiction.
| Release gate | Evidence to record | Hold or remove when |
|---|---|---|
| 1. Controlled identity | Drill model; hose maker, type, true ID, total installed length, pressure rating and assembly ID; coupling profile, part reference and minimum bore. | A critical marking is missing, the two coupling halves cannot be positively identified, or the assembly cannot be tied to an approved specification. |
| 2. Hose condition | Inspection for cuts, abrasion, blisters, soft spots, exposed reinforcement, crushed areas, tight kinks and contamination incompatible with the hose construction. | Reinforcement is exposed, the wall is blistered or soft, damage reaches the discard criteria, or the route forces a damaging bend. |
| 3. End attachment | Crimp, ferrule or clamp type; assembly instruction used; evidence that the fitting has not slipped, rotated or loosened. | Attachment parts are mixed without approval, the fitting moves in the hose, the ferrule is damaged, or the assembly method cannot be verified. |
| 4. Coupling pair and retention | Matching profiles, seal condition, locking feature, positive retention and a through-bore that does not defeat the hose selection. | Connection requires force, grinding or stacked improvised adapters; profiles differ; retention will not engage; or leakage persists after an approved seal change. |
| 5. Failure control | The restraint, source/branch safety device or other control required by the applicable rule and site procedure; approved attachment points and condition. | The required control is absent, attached to an unapproved point, damaged, incorrectly sized or being used to carry the normal hose load. |
| 6. Flow and loaded pressure | Smallest bore in the path and near-tool dynamic pressure while the identified drill operates under a representative condition. | The tool-inlet reading does not meet the exact drill requirement, the limiting component is unidentified, or someone proposes raising supply pressure beyond a component rating. |
| 7. Controlled leak and retention check | Exclusion zone, controlled pressurization, leak-check method, coupling stability, shutdown, isolation and depressurization result. | Any movement, abnormal noise, leakage, insecure connection or inability to isolate and vent is found. Never search for a leak with an unprotected hand. |
Use one controlled comparison when the weak point is unclear
- Isolate, lock out where required and fully depressurize the line before changing a hose, coupling, gauge or accessory.
- Choose one known-good, compliant hose assembly whose identity and condition have already been verified. Do not use an unknown spare as the reference.
- Keep the drill, branch, operating condition and measurement position unchanged. Replace only the suspect hose assembly with the reference assembly.
- Pressurize under the approved procedure and record loaded inlet pressure, leak behavior and drill response. Then isolate and depressurize again before inspection.
- If the result follows the hose assembly, hold that complete assembly and inspect its narrowest bore, coupling pair, attachment and internal condition. If the result remains with the branch or drill, return to the distribution or tool diagnostic Owner instead of repeatedly changing hoses.
This comparison isolates a path; it does not prove that an unsafe hose is suitable for a live test. Any assembly that fails a visual, identity, rating, retention or required-restraint gate is removed from service before pressurization.
Four-status disposition
| Status | When to use it | Required action |
|---|---|---|
| READY FOR SERVICE | All seven gates pass and the loaded reading meets the exact drill requirement. | Release the identified assembly and retain the acceptance record. |
| CONDITIONAL CONTROLLED TEST | Identity, condition, rating, attachment and safety controls pass, but representative loaded performance still needs confirmation. | Run only the authorized controlled test; do not release for production drilling until the result is accepted. |
| HOLD FOR IDENTIFICATION OR MEASUREMENT | Critical profile, bore, rating, length, attachment evidence or loaded-pressure evidence is missing. | Segregate and label the assembly; obtain the drawing, gauge result or test evidence. |
| REMOVE OR REBUILD | Damage, incompatible coupling halves, insecure attachment, persistent leakage, failed retention or a missing mandatory safety control is confirmed. | Depressurize, tag out and replace or rebuild only under an approved hose-assembly procedure. |
Copy-ready hose assembly acceptance record
- Site, rig or heading; date; inspector; work-order number.
- Drill model and serial or asset number; required operating pressure and airflow source.
- Hose maker/type, true ID, installed length, pressure rating, date code and assembly ID.
- Coupling profile and part reference, through-bore, seal, retention feature and tool-inlet adapter.
- End-attachment method and instruction/drawing revision used.
- Restraint, source/branch device or other required failure control and its attachment points.
- Visual inspection result and any segregated damage evidence.
- Compressor/header reading, near-tool dynamic reading, operating condition and gauge ID.
- Controlled leak/retention result; matched-comparison result if performed.
- Final status: READY, CONDITIONAL CONTROLLED TEST, HOLD, or REMOVE/REBUILD; approver and next action.
Common pneumatic rock drill hose selection mistakes
- Buying by inlet thread alone: connection size and airflow passage are not the same.
- Using outside diameter as hose size: always specify actual ID and relevant tolerances.
- Ignoring the smallest fitting: a small-bore nipple can erase the benefit of a larger hose.
- Measuring static pressure only: pressure must be checked under representative flow.
- Extending a hose without recalculating loss: length, fittings and bends change the result.
- Assuming all tools run separately: simultaneous demand can expose an undersized header.
- Raising pressure to mask restriction: this can overstress the tool and hose system.
- Mixing coupling profiles: a connection that appears to latch may still be unsafe or restrictive.
RFQ checklist for the hose and coupling assembly
Send the following information with a request for quotation. Photos should include a scale and clear views of markings, but do not rely on photos alone for thread identification.
- exact rock drill make, model and configuration;
- manufacturer’s required operating pressure and airflow;
- compressor model, rated delivery and intended loaded pressure;
- number of drills and maximum simultaneous operation;
- main hose and branch lengths, including expected movement allowance;
- required hose ID, or permission for the supplier to size it from verified data;
- hose working-pressure rating and environmental requirements;
- tool inlet thread standard, size and gender;
- site coupling profile and minimum acceptable through-bore;
- filter, regulator, lubricator, manifold and shut-off-valve details;
- required positive-lock, safety cable or hose-failure device;
- applicable mine, contractor and national safety requirements.
Ask the supplier to return an assembly description or drawing that identifies every connection and minimum bore. This prevents an unlisted adapter from becoming the hidden restriction during installation.
FAQs
Can I choose hose ID from the drill’s inlet thread size?
No. The inlet thread is a connection interface, not an airflow calculation. Use the drill’s airflow and pressure requirements, total run length and the bore of the complete assembly.
Does a larger air hose always improve drilling performance?
Not automatically. A larger ID can reduce pressure loss, but it cannot correct an undersized compressor, a restrictive coupling, a loaded filter, internal tool wear or incorrect operation. It also adds weight and handling requirements. Size the system, then verify under load.
Where should air pressure be measured?
Use an approved test point as close to the tool inlet as the manufacturer and site procedure allow, and measure while the tool is consuming air under a representative condition. A compressor-outlet static reading is not enough.
Can a small-bore quick coupling be used on a large hose?
It may physically connect, but it can become the system bottleneck. Confirm the coupling’s flow data or minimum through-bore and pressure rating before acceptance.
What should be changed first when pressure loss is too high?
Inspect obvious restrictions, damage and leaks first. Then review hose ID, total length, coupling bore, valves, filter, regulator, lubricator and manifold. Do not exceed the rated pressure of the drill or air-line components to compensate.
Technical basis and next step
This guide’s safety boundaries align with OSHA 29 CFR 1926.302 and the UK HSE’s HSG39 guidance for compressed-air equipment. These are reference frameworks, not a universal approval. Final dimensions, attachment methods, restraints, test pressures and service controls must follow the exact equipment and hose-assembly instructions plus the rules that apply at the jobsite.
Need a rock drill and air-line compatibility review? Send PerfoMax the drill model, airflow and pressure requirement, hose route, coupling standard and simultaneous-tool count. Review the active YT28 pneumatic rock drill as a starting point, then request a configuration check before ordering.
