Short answer: if a pneumatic rock drill passes air but does not hammer, do not assume the compressor is adequate or the drill is internally broken. Free exhaust flow only proves that some air has found a path through the tool. The failure can still come from low pressure at the inlet under load, a restricted hose or coupling, a throttle or blow-control position, an incorrectly seated drill steel, missing lubrication, water or ice, a sticking valve, or a seized or damaged piston.
The fastest safe diagnosis works from outside to inside: isolate the tool, confirm the symptom, verify the air supply at the drill inlet, check the hose and oiler, confirm the drill steel and controls, then move to internal inspection only if the external checks pass. Always follow the model-specific manual because valve arrangements, controls, and service limits differ among pneumatic rock drills.
First identify what “air but no hammering” actually means
Several different symptoms are often described with the same phrase. Separate them before changing parts:
| Observed symptom | What it suggests | First check |
|---|---|---|
| Strong air exits only when the blow or flushing control is used | The operator may be in a blow function rather than the percussion operating position. | Confirm the control sequence and positions in the correct model manual. |
| Air flows continuously from the exhaust, but there is no impact sound | Air is bypassing or not switching the piston cycle; supply loss, a stuck valve, or a stuck piston remains possible. | Measure dynamic inlet pressure and verify lubrication before opening the tool. |
| The drill starts briefly, then stops while air continues | Contamination, icing, poor oil delivery, overheating, or an intermittently sticking internal part may be involved. | Stop, depressurize, inspect air quality and oil delivery, and note temperature and moisture conditions. |
| Impact is present with no load but disappears against the rock | Delivered airflow or pressure may collapse under load, or the striking interface may be worn or incorrectly seated. | Check pressure at the tool while operating and inspect the shank and chuck interface. |
| One drill fails while another works on the same tested branch | The fault is more likely within the failed tool or its immediate connection. | Compare the inlet fitting, oiler path, controls, and internal condition. |
Do not use exhaust noise as a pressure test. A restricted system can sound as though it is passing plenty of air while failing to maintain the manufacturer-specified pressure and flow at the inlet when the drill attempts to cycle.
Make the tool safe before diagnosis
A pneumatic rock drill can move, rotate, eject a drill steel, or whip a hose without warning. Before touching the retainer, chuck, inlet, valve chest, or fasteners:
- close and isolate the compressed-air supply;
- bleed stored pressure from the hose and tool;
- verify that the tool cannot start from residual pressure;
- secure the drill and drill steel against movement;
- use the required eye, face, hearing, hand, and foot protection;
- inspect the hose, coupling, locking device, and whip restraint as required by the site and local rules;
- keep bystanders clear during any controlled functional test.
OSHA guidance for pneumatic power tools, for example, requires a positive means to prevent accidental separation between tool and hose. Requirements vary by jurisdiction and worksite, so the local safety procedure and manufacturer instructions remain controlling.
Step 1: confirm the controls and drill-steel seating
Traditional pneumatic rock drills may combine throttle, blow, flushing, or water-control functions in different ways. A control can pass air for hole cleaning without engaging the normal percussion cycle. Compare the actual lever or valve position with the model manual and check for a bent, loose, or obstructed control linkage.
Next inspect the drill steel and retainer. Some percussion mechanisms depend on the shank being correctly inserted and positioned for normal striking. A wrong shank length, badly mushroomed striking end, excessive burr, damaged collar, obstructed chuck, or incompletely seated steel can prevent correct energy transfer and may make the tool appear to have no impact.
With the air isolated, verify:
- the shank size and length match the drill and chuck;
- the striking end is not mushroomed, cracked, heavily burred, or contaminated;
- the retainer closes correctly and is not forcing the steel into an abnormal position;
- the chuck bore is clear of broken steel fragments, grit, or packed debris;
- the steel can move only as the manual permits, without binding.
Never grind or modify a shank to force compatibility. If the supplied drill steel does not match, correct the ordering or identification problem.

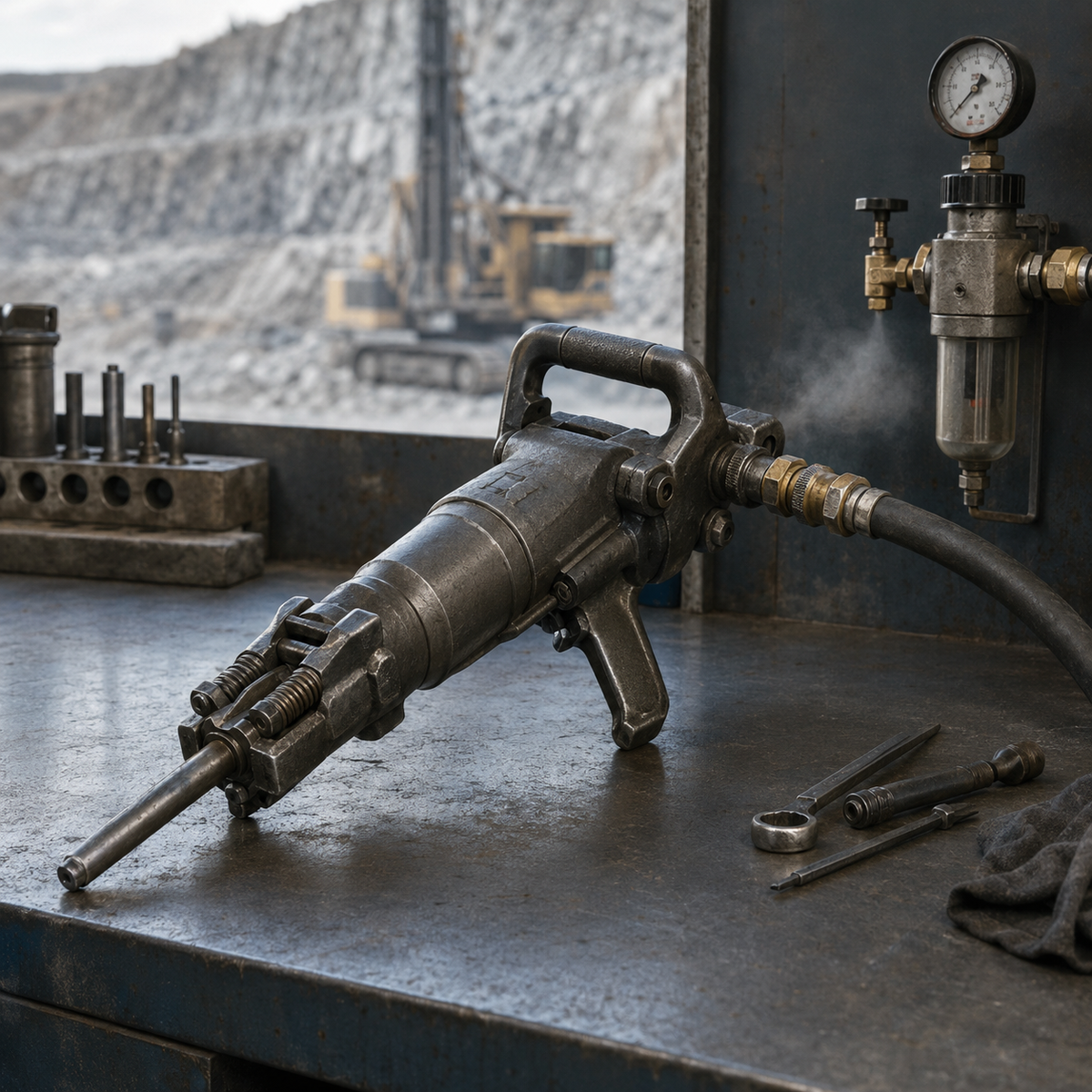

Step 2: verify air supply at the drill—not only at the compressor
The compressor gauge shows pressure near the source. It does not show what reaches the rock drill after hose length, undersized fittings, quick couplings, bends, filters, separators, regulators, manifolds, and leaks. Test the supply under the same operating condition that produces the fault.
- Confirm that the compressor can deliver the drill manufacturer's required free-air flow and working pressure.
- Inspect the full hose run for kinks, crushed sections, internal delamination, soft spots, leaks, or an incorrect inside diameter.
- Check couplings and reducers. A single small-bore fitting can restrict an otherwise adequate hose.
- Drain the receiver and separator according to the compressor instructions.
- Inspect and clean the tool inlet screen only as the service manual allows.
- Measure pressure as close to the drill inlet as practical while the tool is commanded to operate.
If static pressure looks normal but collapses during the test, investigate supply capacity and restriction before disassembling the drill. The related guide to pneumatic rock drill air-hose sizing, length, couplings, and pressure drop explains this part of the system in more detail.
Controlled substitution matrix: prove where the fault follows
Use substitution only when the site procedure permits it and every substituted drill, hose, coupling, oiler and drill-steel interface is correctly rated and compatible. Keep the approved lubrication, hose-restraint, control and guarding arrangements in place. Do not bypass an oiler, regulator, retainer or other safety component merely to make the test faster.
| Controlled comparison | If the no-impact fault remains | If normal percussion returns | Decision |
|---|---|---|---|
| Repeat the as-found condition after confirming the correct control position and properly retained steel | The symptom is repeatable and suitable for controlled isolation | The original condition may have been incorrect control position, incomplete steel seating or an intermittent fault | Do not order parts from a one-time symptom. Record the exact control and seating condition first. |
| Suspect drill on a known-good, compatible air branch with the required pressure, flow, hose, coupling and lubrication arrangements | The fault follows the drill or its immediate inlet/steel interface | The original branch, treatment equipment, hose, coupling or oiler becomes the stronger suspect | Inspect the immediate connection, steel seating and tool-side systems before internal teardown. |
| Known-good compatible drill on the suspect branch | Both drills fail on the same branch | The branch can run the known-good drill under the same controlled condition | Failure of both tools points upstream; normal operation of the comparison drill moves the suspect back to the original tool. |
| Suspect drill with a known-correct, undamaged drill steel and confirmed retainer engagement | The fault does not follow the steel | Percussion returns with the known-correct steel | Quarantine the original steel and inspect its shank length, striking face, collar and seating damage; do not grind it to force a fit. |
| Suspect drill after the approved condensate drain, temperature correction and oil-delivery check | Continuous exhaust or no impact persists under verified conditions | The drill restarts only after moisture, icing or lubrication conditions are corrected | Treat air quality, temperature or lubrication as causal and correct the system before returning to production. |
| Verified branch, verified steel and verified lubrication, with the fault still following the same drill | Internal valve, piston, cylinder, port or striking-interface fault becomes more likely | Not applicable—the external branches have been isolated | Stop field substitution and move the exact model to qualified workshop inspection using the correct service limits. |
A substitution result is valid only when one variable changes and the symptom is observed in the same operating state. A free-air sound, compressor-panel gauge or visual similarity between drills does not prove equivalent delivered conditions.
Stop the field test and escalate when
- the throttle or control does not return predictably, or the drill may start unexpectedly;
- the hose, coupling, restraint, retainer or drill steel cannot be secured;
- continuous exhaust persists on a verified compatible branch with correct lubrication;
- there is abnormal heat, smoke, odor, metal debris, cracking or repeated internal sticking; or
- the next step requires opening the valve chest, cylinder or other pressure-loaded assembly.
Step 3: confirm that the line oiler is actually delivering oil
Pneumatic rock drills depend on oil carried by the air stream to lubricate moving surfaces. Atlas Copco notes that airline oil reduces friction and wear in internal moving parts, and recommends an external lubricator where the tool has no built-in unit. A dry valve or piston can stick; prolonged dry running can cause serious scoring or seizure.
Check the complete oil-delivery path:
- use only the lubricant grade specified for the drill and ambient conditions;
- confirm the oiler is installed in the correct flow direction;
- confirm the reservoir is filled with clean oil and the pickup is not blocked;
- check the adjustment against the model or oiler instructions;
- keep the lubricator within the distance recommended by its manufacturer;
- look for evidence of oil delivery at the exhaust using the approved site method;
- inspect for water that can interfere with oil transport or promote corrosion.
Do not pour diesel fuel, solvent, brake cleaner, or an unknown oil into the inlet as a “quick fix.” These can create fire, seal, health, and lubrication risks. For routine setup, see the guide to pneumatic rock drill lubrication and line-oiler checks.
Step 4: check moisture, icing, and contamination
Compressed air cools as it expands, and water can condense in receivers, pipes, hoses, and tools. Atlas Copco recommends water separation, receiver draining, and removing residual water from hoses to reduce corrosion and freezing problems. Cold conditions can turn moisture into ice at a valve or exhaust restriction; humid conditions can leave corrosion products after shutdown.
Clues include a fault that appears after several minutes, visible frost near the exhaust, water discharged from the hose, rusty oil, or a drill that sticks after storage. Do not heat a pressurized tool with a flame. Isolate it, move it to a safe service area, follow the approved thawing or drying procedure, and correct the upstream water-control problem before restarting.
Dust, rust scale, hose fragments, and dirty oil can also obstruct small air passages or prevent a valve from seating. A blocked inlet screen is an external check; contamination deeper in the valve chest is an internal-service task.
Step 5: decide whether the fault is internal
If the correct drill steel is seated, dynamic inlet supply is adequate, controls are correct, the oiler is delivering, and the fault follows the drill, internal inspection is justified. The exact architecture varies, but common fault areas include:
| Internal area | Possible condition | Evidence to look for |
|---|---|---|
| Air-distribution valve or valve chest | Sticking, contamination, incorrect assembly, wear, distortion, or damaged seating surfaces | Deposits, corrosion, burrs, abnormal contact marks, blocked passages, incorrect orientation |
| Piston and cylinder | Oil starvation, contamination, scoring, galling, corrosion, seizure, or excessive wear | Longitudinal scoring, discoloration, pickup, rust, tight movement, dimensional results outside the manual |
| Inlet and internal passages | Foreign material, ice, gasket misalignment, or obstruction | Restricted ports, damaged screens, misplaced seals or gaskets, debris trails |
| Striking interface | Worn or damaged piston face, shank end, chuck, or guide surfaces | Chipping, mushrooming, uneven contact, cracks, abnormal clearance |
| Fasteners and housing joints | Loose, uneven, cross-threaded, or incorrectly torqued assembly | Uneven joint gaps, leaks, damaged threads, shifted covers, repeat loosening |
Do not reuse a cracked, galled, distorted, or severely scored impact component because it “still fits.” Do not polish away damage or change clearances without a model-specific limit. If measurement limits, tightening sequences, or test equipment are unavailable, send the drill to a qualified service technician.
A practical no-impact decision sequence
- Stop and isolate. Bleed pressure and secure the tool.
- Define the symptom. Distinguish blow air, continuous exhaust, brief starting, and impact loss under load.
- Check controls and steel. Confirm operating position, compatible shank, correct seating, retainer, and clean chuck.
- Verify dynamic supply. Measure near the inlet while attempting operation; inspect hose, fittings, filters, and leaks.
- Verify oil delivery. Confirm correct oil, oiler direction, adjustment, and evidence of delivery.
- Check water and temperature. Drain, separate, dry, and address icing or corrosion conditions safely.
- Substitute one variable. Use a known-good compatible hose branch or drill where permitted.
- Escalate to internal service. Inspect valve, piston, cylinder, ports, and striking interface against the manual.
- Test after repair. Reassemble to the specified sequence and conduct a guarded functional test before returning the drill to production.
Post-repair no-impact verification: prove the percussion cycle before release
A drill that starts on the workshop bench is not automatically ready for production. After a valve, piston, cylinder, port, gasket, control, or striking-interface repair, verify that the original no-impact symptom is gone under controlled conditions and that the repair has not introduced continuous exhaust, unstable impact, abnormal heat, leakage, or an unsafe control response. Use the exact model manual for assembly order, clearances, fastener settings, lubricant, pressure limits, and any approved test fixture.
Keep the release comparison controlled. Use the same verified air branch, hose, coupling, lubricator, compatible drill steel, and test condition for the repaired drill and—where available—a known-good drill of the same configuration. Never dry-fire a drill unless the manufacturer provides a specific safe procedure.
| Release gate | Evidence to capture | Pass indication | Hold or escalate when |
|---|---|---|---|
| 1. Identity and repair record | Drill model and serial mark; valve, piston, seals, fasteners, or other parts fitted; drawing or part-number revision; technician and date | The repaired assembly and every replacement part are traceable to the exact drill configuration | Identity is uncertain, parts were mixed between variants, or the repair basis cannot be reconstructed |
| 2. Isolated static inspection | Control return, retainer engagement, shank condition, joint seating, inlet and exhaust clearance, hose connection, and manual checks permitted by the service procedure | Controls return predictably, the correct steel seats and locks, passages are clear, and no visible damage or assembly error remains | A control sticks, the steel or retainer cannot be secured, a joint is uneven, or internal movement is rough or uncertain |
| 3. Verified test inputs | Oil grade and delivery evidence; hose inside diameter and length; coupling sizes; loaded pressure measured near the inlet; air and ambient condition | Inputs match the approved test basis and can be repeated | The supply collapses under demand, oil delivery is unproved, water or ice is present, or the setup differs from the comparison drill |
| 4. Guarded start and shutdown | Start response, exhaust pattern, control response, shutdown behavior, leakage location, and any unexpected movement | Percussion begins and stops predictably with no continuous bypass pattern or uncontrolled restart | Air passes without stable impact, the drill continues after the stop command, or the hose, steel, retainer, or body moves abnormally |
| 5. Controlled load confirmation | Percussion consistency, rotation behavior, penetration response, exhaust tone, inlet pressure, and behavior of a known-good comparison where available | Impact remains stable under the approved load and the repaired drill no longer reproduces the original fault | Impact fades, stalls, becomes intermittent, or differs materially from the controlled baseline; pressure loss or steel seating cannot be excluded |
| 6. Repeatability and post-test inspection | Results from repeated start–run–stop cycles; temperature trend; oil or debris at the exhaust; joint gaps, fasteners, leaks, and shank/striking-face condition after isolation | The result repeats without new heat, leakage, debris, loosening, scoring, or interface damage | The fault returns after warming, metal debris appears, heat rises abnormally, a joint shifts, or the repaired components cannot be inspected against a service limit |
Use one documented disposition
| Status | When to use it | Next action |
|---|---|---|
| RELEASE | All six gates pass and the original symptom does not recur in the controlled load test. | Return the drill to service with the test record attached to its maintenance history. |
| CONDITIONAL RELEASE | The drill passes, but a site-controlled observation period or defined recheck is required by the maintenance procedure. | State the operating limit, inspection interval, responsible person, and automatic stop criteria in writing. |
| HOLD FOR REWORK | The failure is repeatable or the test cannot distinguish supply, steel, control, valve, piston, or assembly condition. | Preserve the evidence, correct one verified cause, and repeat the complete release sequence. |
| QUARANTINE | There is uncontrolled starting, cracked or galled material, heavy scoring, metal debris, uncertain compatibility, or another condition outside available service limits. | Tag and segregate the drill; obtain qualified technical review before further powered testing. |
Copy-ready no-impact repair and release record
Drill model / serial or fleet ID: Original symptom and operating state: Repair date / technician: Parts replaced, part numbers and revisions: Valve / piston / cylinder inspection findings: Drill steel shank and retainer condition: Test hose ID / inside diameter / length: Couplings, treatment equipment and lubricator: Oil grade and delivery evidence: Loaded inlet pressure and test condition: Known-good comparison drill or branch: Guarded start / stop result: Controlled load result: Repeat-cycle and warm-condition result: Post-test heat, leak, debris and joint checks: Disposition: RELEASE / CONDITIONAL RELEASE / HOLD FOR REWORK / QUARANTINE Limits, recheck interval or required corrective action: Approved by / date:
This record closes the gap between “the drill hammers again” and a defensible return-to-service decision. If the result depends on an unverified pressure, incompatible steel, undocumented part, or one successful start, the repair has not yet passed a controlled release.
Information to collect before ordering parts
“Pneumatic drill has air but no impact” is not enough information for correct parts identification. Record:
- manufacturer, exact model designation, and serial or production mark;
- photos of the complete drill, nameplate, valve chest, handle, chuck, and air inlet;
- drill-steel shank dimensions and striking-end condition;
- compressor delivery specification and dynamic pressure measured at the tool;
- hose inside diameter, length, coupling sizes, and air-treatment components;
- oil grade, oiler model, adjustment, and evidence of delivery;
- whether the fault began suddenly, after storage, after a repair, or gradually;
- which controlled substitution tests were performed;
- photos and measured condition of any disassembled valve, piston, and cylinder.
This information helps separate an air-system problem from a drill problem and prevents ordering a valve or piston for the wrong model variant.
Common diagnostic mistakes
- Judging airflow by sound: loud exhaust does not prove adequate pressure and flow under load.
- Increasing pressure blindly: pressure above the manufacturer's limit can increase stress and danger without correcting a restriction.
- Skipping the drill steel: a wrong or damaged shank can imitate an internal impact fault.
- Assuming a full oiler is working: wrong direction, blockage, adjustment, or distance can stop oil delivery.
- Opening the tool first: unnecessary disassembly can introduce dirt, reverse a valve part, or destroy evidence of the real supply fault.
- Changing several parts at once: the root cause remains unknown and the fault may recur.
- Testing an unsecured tool: unexpected starting, rotation, or hose movement can cause serious injury.
Frequently asked questions
Why does air come out if the piston is not moving?
Air can bypass through a blow circuit, exhaust path, leak, incorrectly switching valve, or clearance without producing a normal alternating pressure cycle. Exhaust flow therefore does not confirm piston movement.
Can low compressor output cause continuous exhaust with no impact?
Yes. Static pressure can appear acceptable while pressure at the drill collapses when airflow demand begins. Measure close to the tool under the fault condition and check the complete hose and coupling path.
Can adding oil free a sticking pneumatic rock drill?
Correct lubrication may help a lightly dry or contaminated mechanism only when the manufacturer permits that procedure. It cannot repair scoring, galling, corrosion, broken components, or incorrect assembly. Isolate and inspect if the tool does not recover promptly.
Should the drill be tested without a drill steel?
Only if the model manual provides a safe test procedure. Unrestrained operation can damage the tool or eject components. Many drills require correct shank positioning and load conditions for meaningful testing.
When is workshop repair required?
Escalate when the fault follows the drill after verified external checks, when the piston cannot move as specified, when contamination has reached the valve chest, or when cracking, galling, heavy scoring, damaged threads, or uncertain clearances are found.
Confirm the system before replacing the drill
For a recurring no-impact fault, document the drill model, shank, hose layout, working pressure at the inlet, oil delivery, water-control setup, and inspection findings. PerfoMax can review the equipment and replacement request against the available pneumatic-drill supply scope, but model and operating-system details must be confirmed before compatibility or parts recommendations are made.
