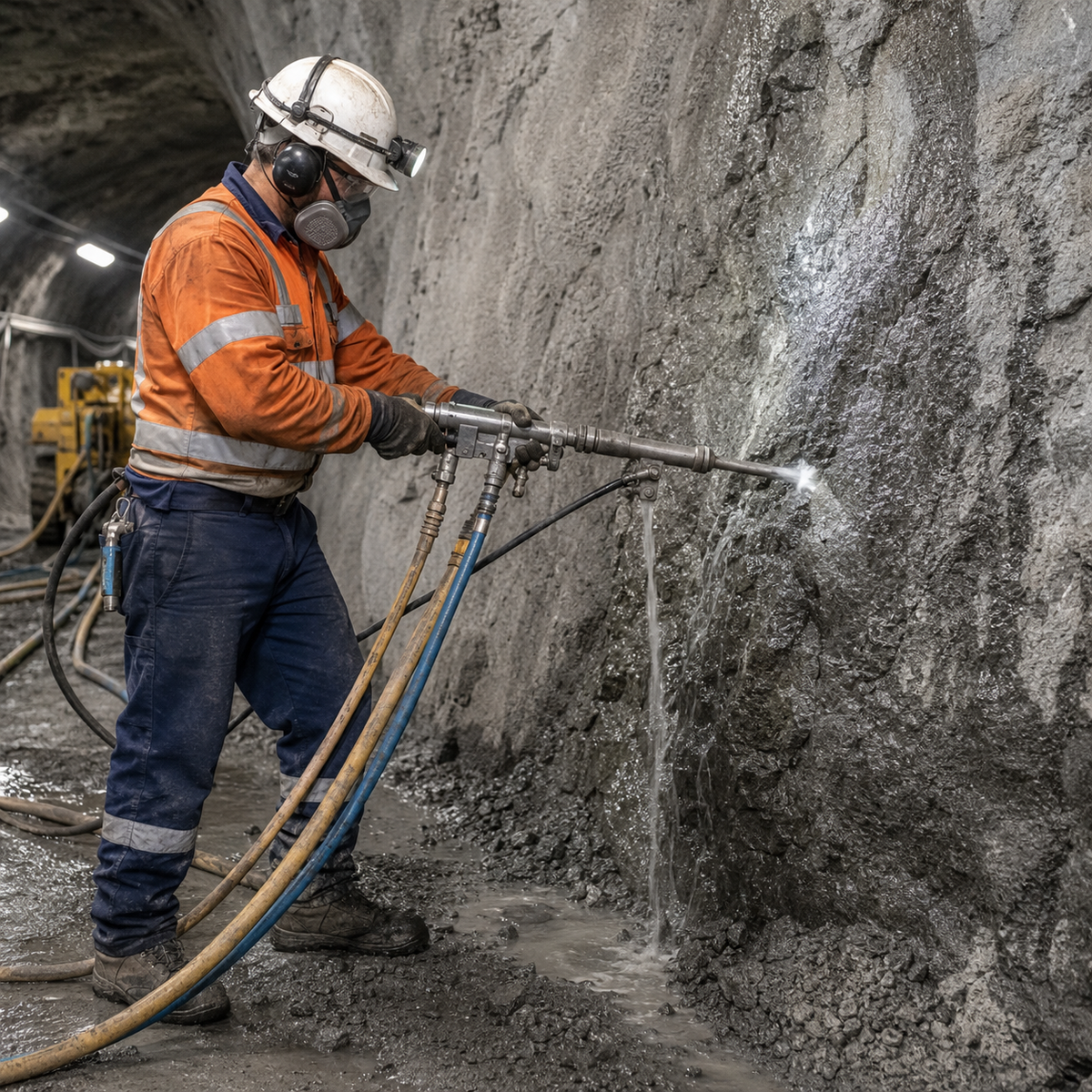

Wet pneumatic rock drilling can be an effective source control for respirable crystalline silica when water is delivered continuously to the cutting point through a drill, hollow steel and bit designed for that purpose. It is not enough to spray the face occasionally or add a loose hose near the hole. The water path must remain open from the supply to the bit, the pressure relationship must protect the drill mechanism, and the return at the collar must stay visibly wet throughout collaring and drilling. Even a good wet system does not prove that exposure is controlled: the site still needs its required exposure assessment, ventilation, work practices, PPE and maintenance program.
This guide is for underground mines, small quarries, tunnelling crews and contractors deciding whether a water-flushed pneumatic rock drill is suitable for a silica-bearing rock task. It explains what must be matched, what the return tells the operator, when to stop and what information a buyer should include in an RFQ.
What wet pneumatic rock drilling actually requires
In a true wet-drilling arrangement, water travels through an approved connection in the drill and then through the centre hole of the drill steel to the bit. Water reaches the point where impact and rotation create fresh cuttings. The return carries wet fines and larger cuttings back along the annular space between the steel and the hole wall.
This is different from simply wetting the floor, spraying the face before work or directing a hose at the collar from outside. Those actions may reduce secondary dust, but they do not replace continuous delivery at the cutting point. NIOSH describes wet drilling systems as pumping water through the drill stem; the operator controls the flow, and greater flow can improve capture until excessive water begins to create operating problems.
Check the complete water-flushing system, not only the drill model
A buyer can order a drill described as “wet capable” and still receive a package that cannot operate as a reliable dust-control system. Every part of the path has to be specified and checked together.
| System element | What to confirm | Why it matters |
|---|---|---|
| Drill configuration | Exact model, approved wet-drilling arrangement, water connection and supplied water tube or conversion parts | A dry configuration cannot be assumed to accept a field-made wet conversion. |
| Drill steel | Correct shank, length and a continuous centre hole without blockage or excessive corrosion | Water must reach the bit without leaking into the mechanism or escaping at a joint. |
| Bit | Correct taper or thread and open flushing passage suited to the steel | A mismatched or blocked bit stops delivery at the cutting point. |
| Water supply | Available pressure and flow at the drill while other users are operating | Static pressure at the source does not show what reaches the tool under load. |
| Hose and controls | Hose size and length, valve, strainer, fittings, restraint and freeze protection | Restrictions, debris, leaks or icing can interrupt the control without an obvious failure at the pump. |
| Drainage and containment | Where slurry will travel and how it will be collected or directed | Unmanaged return can create slip hazards, obscure the collar or spread contaminated sediment. |
For a general explanation of how air and water move cuttings, see Air vs Water Flushing in Percussive Rock Drilling. For internal components and the relationship between the piston, rotation and flushing path, use the published pneumatic rock drill anatomy guide.
When wet drilling is the directionally correct control
Wet pneumatic drilling is usually the first option to evaluate when the rock can contain crystalline silica, the site permits water, an approved wet configuration is available and the return can be managed. The decision is condition-led rather than model-led.
- Silica-bearing rock or uncertain mineralogy: assume dust generation needs control until the site’s assessment shows otherwise.
- Confined or poorly dispersed work areas: source control is especially important because helpers and nearby crews may share the exposure.
- Short hand-held or air-leg holes: internal water delivery can suppress dust at the bit while helping transport fines out of the hole.
- Sites with a dependable water supply: the control is only dependable if pressure and flow remain available throughout the drilling cycle.
- Work with managed drainage: water and cuttings must be kept away from travelways, electrical hazards and sensitive discharge points.
Wet drilling is not the only possible engineering control. A properly designed dry collection system may be more appropriate where freezing, water-sensitive material, drainage restrictions or equipment design rule out water. The acceptable alternative must be selected under the site’s exposure-control plan and applicable law—not by running a wet bit dry.
Why continuous water matters from collaring to hole completion
The first seconds of collaring generate fresh fines close to the operator. If water is started only after the hole is established, that initial dust has already escaped. The water should therefore be established before percussion begins and should continue whenever drilling is underway, subject to the tool manufacturer’s start sequence.
Continuous does not mean “maximum possible.” Too little water may leave visible dry emissions and poor capture. Too much can obscure the collar, wash away support, create excessive slurry or interfere with drilling. The correct setting is the approved manufacturer or site value that maintains a wet return without destabilising the work area. Do not copy a universal flow number from another drill: hose loss, bit size, water passage, supply elevation and rock condition change the result.
Pre-start checklist for a water-flushed rock drill
- Review the job boundary. Confirm rock or material information, the exposure-control method, required monitoring, ventilation, exclusion zone, PPE and slurry route.
- Isolate before inspection. Shut off and relieve air and water in accordance with the site procedure before disconnecting hoses or clearing a passage.
- Verify the exact configuration. Match the drill model, shank, steel, bit, water tube and fittings to the controlled parts list or supplier manual.
- Inspect the water path. Check the strainer, valve, hose, couplings, seals, steel centre hole and bit flushing hole. Replace damaged parts; do not drill through a suspected blockage.
- Check the pressure relationship. Use the drill manufacturer’s limits. For the currently listed PerfoMax Y19A reference configuration, the product page states that water pressure should remain at least 1 bar below air pressure to help prevent water entering the impact mechanism; the final supplied manual controls.
- Test the water before percussion. Confirm stable delivery at the bit and a controlled route for return water.
- Start with the approved sequence. Establish water, collar at controlled feed and observe the return before increasing drilling effort.
- Watch continuously. Stop if water is lost, dry dust appears, the return changes suddenly, hoses move abnormally or the drill sound and penetration change unexpectedly.
How to read the return at the hole collar
The collar return is a fast operational indicator, not an exposure measurement. A steady wet return shows that water is reaching the bit and carrying material outward. Changes help narrow the next safe check.
| Observation | Likely direction | Safe next action |
|---|---|---|
| Visible dry dust or intermittent puffs | Lost supply, restricted passage, insufficient delivery or water started too late | Stop drilling; isolate; verify supply, valve, strainer, steel and bit passage. |
| Water at the drill but little return | Leak before the bit, blocked passage, fractured ground taking water or poor annular return | Stop and inspect; do not increase pressure blindly. |
| Heavy clean water with weak cuttings transport | Excess water, low percussion/feed performance or poor bit engagement | Return to approved settings and diagnose air, feed and bit condition separately. |
| Thick paste or collar packing | Clay-rich fines, insufficient transport space or an unsuitable water balance | Stop before the steel binds; review bit, hole condition and flushing method. |
| Water entering the drill exhaust or lubricator side | Incorrect pressure relationship, failed seals or wrong connection | Stop immediately, isolate and service under the supplied manual. |
If the problem is specific to a YT28 water system, use the separate YT28 water-flushing troubleshooting guide. That article diagnoses faults; this guide defines the application conditions that make wet drilling a valid silica-control approach.
Conditions that can limit or rule out wet drilling
Freezing temperatures
NIOSH notes that wet systems can freeze in winter. Frozen hoses and valves interrupt the control and can damage components. A site needs a documented cold-weather method covering protected supply, drainage after shutdown and the approved alternative control if continuous water cannot be maintained.
Electrical energy nearby
Water can create an additional hazard around electrical sources. Route hoses and slurry under the site’s electrical safety controls, inspect nearby equipment and do not assume that dust suppression overrides electrical isolation requirements.
Fractured, weak or clay-rich ground
Water may disappear into open fractures, soften some materials or combine with fines into a paste that blocks the collar. The operator should reduce uncertainty with a short controlled trial and stop if the return, hole stability or steel movement deteriorates.
No practical drainage or discharge route
Wet drilling transfers part of the dust problem into water and slurry. The plan must prevent slips, uncontrolled sediment discharge and contamination of travelways or sumps. If water cannot be managed, evaluate an approved dry collection system rather than improvising.
Unapproved conversion parts
Do not drill holes into components, force a water tube into an incompatible drill or rely on mixed fittings with no controlled configuration. The result can send water into the impact mechanism, restrict air, weaken a part or fail without warning.
Common mistakes that make wet drilling unreliable
- Buying the drill body without the correct water tube, valve, fittings, hollow steel and flushing bit.
- Checking supply pressure at the pump but not under flow at the working place.
- Starting percussion before water reaches the bit.
- Continuing for “just one hole” after the water supply stops.
- Using visible wetness as proof that respirable silica exposure is compliant.
- Increasing water pressure to overcome a blockage instead of isolating and clearing the path safely.
- Ignoring slurry drainage, freeze protection or electrical proximity during planning.
- Mixing model-family parts without a supplier-approved interface list.
RFQ checklist for wet pneumatic rock drilling
Send enough site information for the supplier to quote a complete, compatible package:
- Application: underground development, small quarry, construction, secondary drilling or another defined task.
- Rock type, silica concern if known, hardness/abrasiveness and fractures or clay seams.
- Hole diameter, depth, direction and expected holes per shift.
- Exact drill model or acceptable model family, including hand-held or air-leg arrangement.
- Shank, steel length and bit connection; request centre-hole steel and compatible flushing bits.
- Compressor delivered pressure and airflow at the tool, hose size/length and simultaneous air users.
- Water pressure and available flow at the drill under load, source quality, filtration and hose length.
- Ambient temperature, freezing risk, drainage and slurry-containment restrictions.
- Required valve, strainer, hose restraints, lubricator, spare seals and cleaning tools.
- Supplier manual, controlled data sheet, parts list, inspection scope and pre-shipment functional checks.
Frequently asked questions
Does wet drilling eliminate silica exposure?
No. It can substantially reduce dust at source when properly designed and maintained, but the employer or mine operator must use the exposure assessment, monitoring and additional controls required for the jurisdiction and task. Visible control is not the same as measured compliance.
Can any pneumatic rock drill be converted to wet drilling?
No. The drill must have an approved water path and compatible internal parts, connections, hollow steel and bit. Ask the supplier for the exact wet configuration and manual instead of assuming a generic conversion will fit.
Should drilling continue if water stops but the hole is almost finished?
No. Loss of the planned engineering control is a stop condition. Stop percussion, isolate the system and restore the control or switch to an approved alternative under the site plan.
How much water flow is required?
Use the drill manufacturer’s specification and the site control plan. Delivery must be sufficient to suppress visible dust and maintain a useful wet return, but excessive water can cause operational and ground-management problems. Verify performance under actual hose loss and simultaneous demand.
Is a wet return enough to show the system is safe?
It is a necessary operational sign, not proof of worker exposure. Maintenance records, work practices and respirable crystalline silica monitoring are still needed where required.
Match the drill and water system before ordering
PerfoMax’s active Y19A hand-held pneumatic rock drill page lists dry or wet drilling with the correct water-pipe conversion and asks buyers to specify the configuration before quotation. Send the application, hole range, compressor data, water supply, steel/bit interface and drainage conditions so the quotation can cover a matched drill package rather than a drill body alone.
Technical references: NIOSH, Reducing Hazardous Dust Exposure when Rock Drilling During Construction; NIOSH, Best Practices for Dust Control in Metal/Nonmetal Mining—Underground Drilling Operations; OSHA, 29 CFR 1926.1153 Respirable Crystalline Silica; and MSHA silica education resources. Regulations and exposure limits vary by jurisdiction; use current local requirements and the supplied equipment manual.
