Short answer: flushing is the controlled movement of air or water through the drill string and back to the collar through the annular space around it. Its first job is to carry newly broken rock out of the hole before the cuttings are crushed again, packed around the tools, or allowed to block the return path. Air is often practical where dry cuttings, cold weather, or limited water supply matter; water is often favored where dust suppression and wet cuttings transport are priorities. The correct choice is conditional on the drilling system, hole geometry, ground, direction, environmental controls, and the equipment manufacturer's instructions.
This guide explains air vs water flushing in percussive rock drilling as a transport problem. It does not replace the drill, hammer, compressor, dust collector, pump, or site safety instructions. Never introduce water into an air system—or run an air-flushed tool wet—unless the equipment supplier confirms that the complete system supports that operating mode.

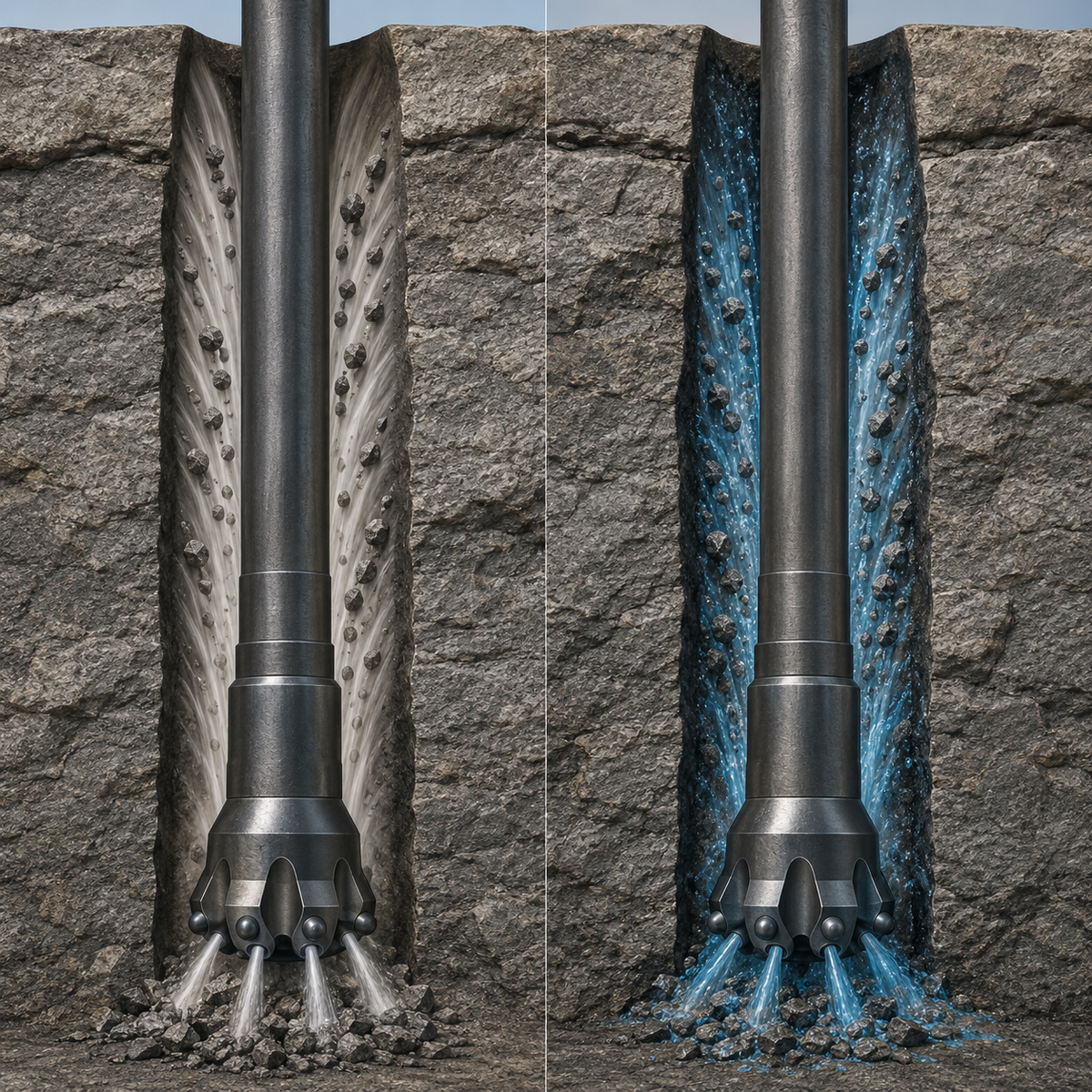

What does rock-drilling flushing actually do?
Every percussion cycle creates fragments at the bit face. Rotation presents fresh rock to the buttons or inserts, while the flushing medium passes through the tool and sweeps fragments away. The return mixture then travels toward the collar through the gap between the drill string and the borehole wall. This gap is the annulus.
Effective flushing supports four connected outcomes:
- Bit-face cleaning: fractured material leaves the cutting zone so the next impacts act on rock rather than a cushion of old chips.
- Cuttings transport: the return flow keeps particles moving through the annulus instead of allowing them to settle or bridge.
- Heat management: the moving medium removes some heat from the bit and surrounding components, although cooling requirements remain system-specific.
- Dust control: water can suppress dust at source, while dry drilling requires effective capture and collection where respirable dust is a hazard.
A clear collar return is useful evidence, but it is not a complete performance measurement. Return can be lost into fractures, diluted by groundwater, interrupted by a blockage, or appear acceptable while coarse chips are still settling deeper in the hole. Operators therefore need to watch the return together with penetration behavior, rotation load, pressure or flow indications, dust-control performance, and tool condition.
Air vs water flushing: the practical difference
| Decision factor | Air flushing | Water flushing |
|---|---|---|
| Typical return | Dry cuttings carried in a high-velocity gas stream | Cuttings carried as a wet return or slurry |
| Dust control | Requires containment, extraction, collection, or another approved control | Suppresses dust at source but creates water and slurry-management duties |
| Cold conditions | Avoids a continuous water supply at the bit, but moisture and icing risks can still exist | Freezing of lines, valves, or the hole must be assessed and controlled |
| Water-sensitive ground or process | May be preferable if dry drilling and dust capture are approved | May be unsuitable where water changes the ground, sample, or process |
| Fractures and voids | Air and cuttings can escape into openings, weakening collar return | Water loss can reduce return and increase site water demand |
| Supporting equipment | Compressor capacity, hoses, seals, filtration, and dust collector | Pump or pressure supply, filtration, hoses, drainage, and slurry handling |
This comparison is directional, not a universal selection table. “Air” and “water” describe the flushing medium, not one fixed pressure, flow, or hardware arrangement. Required capacity depends on the complete drilling system and the actual hole.
When air flushing is a sound starting point
Air flushing is common in surface drilling and is integral to many down-the-hole systems. In DTH drilling, compressed air may both operate the hammer and carry cuttings out of the hole, so compressor delivery and hole cleaning cannot be treated as separate questions. In other percussive systems, air can be supplied through the drill string specifically for flushing.
Air becomes attractive when:
- water is scarce, difficult to deliver, or undesirable in the process;
- the site can capture dry dust with an engineered collection system;
- wet spoil or slurry would create a handling problem;
- cold-weather water management would be difficult; or
- the drilling equipment is designed and documented for air flushing.
The main misconception is that more pressure automatically means better hole cleaning. Pressure helps the system overcome resistance and, in pneumatic equipment, may also power the hammer. Cuttings transport, however, depends heavily on the volume of air moving through the available return area. Leakage, an oversized annulus, a deeper hole, restrictions, or lost return can leave insufficient velocity even when a pressure gauge appears normal. For a deeper explanation, see DTH Air Pressure vs Airflow: What Bar, PSI, CFM, and m³/min Mean.
Air flushing also does not remove the need for dust control. NIOSH describes local exhaust ventilation with a dust collector as an effective engineering approach for surface rock drilling. The dust-control system must be maintained as part of the drilling system, not treated as an optional accessory.
When water flushing is a sound starting point
Water flushing is widely used where dust suppression at the bit is important, including many underground and hand-held drilling applications. The water wets fine particles before they become airborne and carries the broken rock back as a wet return. It can also provide useful cooling, subject to the tool maker's requirements.
Water becomes attractive when:
- the equipment is designed for water flushing;
- respirable dust must be controlled close to the source;
- a reliable supply of suitably clean water is available;
- drainage and slurry can be collected or managed; and
- the ground and downstream process tolerate water.
Water quality matters because abrasive solids can damage valves, seals, passages, and pumps, while scale or contamination can restrict small openings. Excessive or poorly controlled water can also mask return problems, wash material into fractures, affect samples, destabilize sensitive ground, or create slip and drainage hazards. “Use water” is therefore incomplete guidance; the buyer must confirm allowable quality, pressure, flow, temperature, and connection details for the exact equipment.
Water injection into an air-flushed DTH system is a separate application from a drill designed around water flushing. Injection rate, lubrication, corrosion control, and the hammer maker's limits must be considered together. See DTH Water Injection for Dust Control: Setup, Lubrication, and Hole-Cleaning Checks for that narrower operating problem.
Plan water supply from verified demand and actual drilling time
A water-flushing package can be compatible on paper and still fail at the face because the buyer sized only the pump or tank. Plan the complete water balance from the manufacturer-approved flow required at each operating drill, the maximum number of drills working together, actual trigger time, refill capacity, filtration losses and the site's drainage limit. Do not copy a universal litres-per-minute value from another drill family.
Use this planning equation after the exact drill documentation or controlled supplier data has established the required flow at the tool:
Base water volume (L) = verified flow per drill (L/min) × simultaneous drills × trigger time (min)
Planned supply volume (L) = base water volume × (1 + documented operating allowance)
The operating allowance should cover defined items such as functional checks, hose filling, normal changeover and a stated reserve. It must not hide an unresolved leak, uncontrolled loss into fractures or a drainage system that cannot receive the return water.
Worked planning example—not a product recommendation
Assume the approved data for a selected drill requires 5 L/min at the tool, four drills can operate together, and each drill has 240 minutes of actual trigger time during the shift:
- Base volume = 5 L/min × 4 × 240 min = 4,800 L.
- With a documented 20% allowance, planned volume = 4,800 × 1.20 = 5,760 L.
These numbers only demonstrate the calculation. Replace them with the exact equipment requirement, measured duty cycle and site-approved allowance. Then compare the result with usable tank volume plus reliable make-up water during the same shift. Nominal tank capacity is not automatically usable capacity.
| Planning input | Evidence to use | What can invalidate it |
|---|---|---|
| Flow per drill | Exact model manual, controlled quotation or supplier data sheet; confirm the stated pressure and measurement point | Using a family-level value, source flow instead of delivered flow, or a different flushing configuration |
| Simultaneous drills | Maximum tools permitted to run together, not the fleet total | Unplanned tools connected to the same branch or changing the operating sequence |
| Trigger time | Measured percussion/flushing time or a documented production estimate | Using full shift hours when drilling is intermittent—or ignoring flushing during setup and clearing |
| Usable storage | Volume available above pump shutoff and below overflow, with the tank in its operating position | Counting inaccessible volume, sediment space or an unreliable refill source |
| Delivered pressure and flow | Measurement at the drill branch while the planned number of tools operates | Elevation, long hoses, undersized fittings, dirty filters, leakage or simultaneous demand |
| Drainage capacity | Site-approved sump, pumping and slurry-handling capacity | Groundwater inflow, blocked drains, solids loading or water-sensitive ground |
Acceptance check before production
- Confirm the approved water-flow and pressure requirement for every selected drill configuration.
- Run the maximum planned number of drills and verify delivery at the working branches under load.
- Inspect filtration, hoses, valves, seals and bit passages; record the clean-system baseline.
- Compare usable storage plus make-up capacity with the calculated shift requirement.
- Confirm that drainage and slurry handling can manage the expected return and site inflow.
- Define stop conditions for lost flow, uncontrolled leakage, poor return, filter restriction or drainage overload.
Staged simultaneous-load capacity test
A shift-volume calculation proves how much water must be available; it does not prove that the pump, header, filters, branch lines and tool connections can deliver the required pressure and flow when several drills operate together. Commission the system in stages using the exact model requirements, approved measurement points and site isolation procedure. Do not dead-head a pump, exceed the equipment pressure limit or improvise a test outlet.
| Test stage | Hold constant | Record | Decision |
|---|---|---|---|
| 1. Source and header baseline | Approved pump or mine-water arrangement, filter condition, tank level and regulator settings | Source pressure, available flow by the approved method, usable storage, filter condition and elevation to the face | Proceed only when the source is stable and its operating envelope is documented |
| 2. One branch operating | One known-good hose, fitting set, drill configuration and measurement point | Branch pressure and flow under actual flushing, collar return and any leakage | Establish the clean single-branch baseline; diagnose this branch before adding demand if it cannot meet the model requirement |
| 3. Add branches one at a time | Same source, drill models, hose routes and test task | Pressure and flow at every active branch after each addition, plus source response | Identify the exact added load that causes common-system or branch-specific loss |
| 4. Full simultaneous load | Maximum planned concurrent drills and representative operating duration | Lowest stable branch pressure and flow, source condition, return quality, tank drawdown and drainage response | Approve capacity only when every branch stays inside its exact model requirement for the agreed test window |
| 5. Recovery check | Full-load setup, then remove one branch through the normal control method | Time and degree of pressure/flow recovery at the remaining branches | Slow or incomplete recovery indicates a source, regulator, storage or persistent restriction problem that still needs isolation |
| 6. Post-test inspection | System isolated and depressurized under the site procedure | Filter loading, sediment, leaks, loose fittings, hose damage and abnormal drill-side deposits | Release only after the physical evidence agrees with the measured result |
Read the pattern before changing the pump
| Measured pattern | Most useful interpretation | Next controlled check |
|---|---|---|
| Every active branch falls when the next drill starts | Total source, header, storage, regulator or common-filter capacity is the first suspect | Compare source and header measurements before changing local drill hoses |
| One branch is weak at every load while the others remain stable | Local hose, fitting, valve, filter, elevation or branch restriction is more likely than total source capacity | Compare that branch with a verified hose and fitting assembly one variable at a time |
| Branch pressure appears acceptable but measured flow is low | A restriction, partially closed valve, small fitting bore or blocked filter can preserve static-looking pressure while limiting delivery | Verify flow under the approved operating test; do not accept a gauge reading by itself |
| Pressure and flow meet the requirement at the branch, but collar return is poor | The remaining fault is downstream: hose-to-drill connection, water valve, tube, hollow steel, bit outlet, annulus or lost return into the ground | Use the source-to-bit flushing diagnostic for a YT28-type complaint |
| All branches start correctly, then decline as the test continues | Storage drawdown, inadequate make-up, progressive filter blockage, pump heating or uncontrolled leakage may be time-dependent | Extend the controlled test through the planned duty window and record tank level, refill and filter differential where available |
| A new hose assembly changes only one branch result | The branch assembly—not the pump—has been isolated as the controlling variable | Verify the complete hose, inlet, fitting and pressure rating with the water-hose compatibility guide |
Copy-ready water-system commissioning record
Site / heading / date: Water source, pump or header identification: Usable tank volume and make-up source: Filter / regulator / valve arrangement: Elevation change from source to working face: Drill models and exact water requirements: Maximum simultaneous drills: Branch IDs and hose ID / length / fittings: Approved pressure and flow measurement points: Single-branch baseline: Result after branch 2 is added: Result after branch 3 is added: Full-load result and test duration: Lowest branch pressure / flow: Collar-return observations: Tank drawdown / refill response: Drainage and slurry response: Recovery after one branch closes: Post-test restriction, leakage or damage: Decision: READY / REVISE AND RETEST / HOLD Technician / supervisor / date:
Release rule: the water system is ready only when each active branch meets the exact drill requirement under the maximum planned simultaneous load, the result remains stable through the agreed test window, and drainage can accept the return. A larger pump is not the default correction: the staged pattern must first separate common capacity from local restriction and tool-side faults.
For a pneumatic rock-drill package, buyers can review the active PerfoMax rock drill range and send the exact drill model, number of simultaneous tools, hole conditions, available water supply and hose layout through the RFQ route. PerfoMax can review equipment-side inputs; the mine or contractor remains responsible for exposure control, water management and site acceptance.
Why the annular gap changes the answer
The annular return area is set by borehole diameter and the outside diameter of the drill string. If the hole becomes larger while the rod or pipe stays the same, the return area increases. The same supplied flow is then spread across a larger area, so return velocity can fall. Conversely, a very tight annulus raises resistance and increases the risk that larger chips bridge between the string and the wall.
This is why a flushing specification should never state only “air” or “water.” It should identify the intended hole diameter, drill-string outside diameter, bit, depth, and direction. Wear can also enlarge the hole or alter bit-face flow paths, while bent rods, damaged passages, worn seals, and leaking joints reduce the medium reaching the bottom.
Seven variables that control cuttings removal
- Hole diameter and drill-string outside diameter: together they define the return area.
- Hole depth and direction: longer return paths add resistance; inclined, horizontal, and upward holes change how gravity affects settling and drainage.
- Cuttings size and density: fine dust, coarse chips, clay-rich material, and dense fragments do not behave identically.
- Rock structure: joints, cavities, weathered bands, and open fractures can take the flushing medium away from the designed return path.
- Available flow at operating conditions: nameplate capacity is not necessarily the flow that reaches the bit after hose, elevation, leakage, and restriction losses.
- Tool and passage condition: blocked bit holes, worn seals, damaged tubes, leaking threads, or internal erosion change distribution.
- Collar control: poor sealing, an unsuitable shroud, blocked suction ducting, or ineffective drainage can disrupt return and expose personnel.
How to recognize poor flushing before a tool sticks
| Observed symptom | Possible flushing-related cause | Safe first checks |
|---|---|---|
| Return becomes weak or intermittent | Leak, restriction, blocked passage, settling, or loss into fractures | Stop and follow the equipment procedure; inspect supply, connections, collector or drainage, and visible return |
| Penetration slows while rotation load rises | Cuttings are being reground or packed around the string | Compare with the established baseline; check bit condition and flushing delivery before increasing force |
| Large dust escape at the collar | Failed capture, poor shroud position, damaged ducting, or insufficient wetting | Withdraw personnel from exposure and restore the approved dust control |
| Wet cuttings stop returning | Blocked flow, lost circulation, drainage issue, or supply interruption | Check approved water delivery and return path; do not keep drilling blindly |
| String binds during rod changes or withdrawal | Settled cuttings, wall collapse, deviation, or inadequate cleaning time | Use the manufacturer's clearing and recovery procedure; do not apply uncontrolled torque or impact |
These symptoms are not unique diagnoses. Ground collapse, a worn bit, incorrect feed, poor rotation, misalignment, or a mechanical fault can look similar. A safe troubleshooting sequence isolates supply, return, ground, and tool condition instead of responding with more pressure, more water, or more feed by default.
A practical flushing check before drilling
- Confirm the approved medium. Check the drill, hammer, bit, shank, coupling, swivel, seals, hoses, and collector or drainage system as one package.
- Record the hole geometry. Specify diameter, planned depth, direction, drill-string OD, and likely ground openings.
- Verify the real supply. Confirm delivered air or water at the machine under load, not only the source rating.
- Inspect the flow path. Look for leaks, crushed hoses, blocked passages, worn seals, damaged bit ports, and contaminated filters.
- Establish a clean-return baseline. Observe normal collar return, penetration behavior, control readings, and dust or slurry performance in known ground.
- Define stop conditions. Weak return, uncontrolled dust, rising rotation load, binding, or abnormal pressure should trigger the site's approved response.
- Recheck after a change. New bit diameter, different rods, greater depth, fractured ground, water inflow, or changed compressor or pump setup can invalidate the previous baseline.
What buyers should confirm in an RFQ
For a useful technical quotation, send the supplier the operating context rather than a generic request for “a flushing drill.” Include:
- drilling method and machine model;
- hammer, drill, shank, rod or pipe, bit, and thread or taper interface;
- approved flushing medium and whether water injection is involved;
- hole diameter, depth range, direction, and required straightness;
- rock condition, fractures, groundwater, and expected loss zones;
- available compressor or water-supply data at the machine;
- hose sizes, connection standard, filtration, lubrication, and temperature range;
- dust collector, collar shroud, drainage, and slurry-management arrangement;
- current symptom, photos of returned cuttings, and tool-wear observations when troubleshooting; and
- required manuals, inspection records, spare seals, valves, and service parts.
The basic interaction among percussion, rotation, feed, and flushing is covered in Percussive Rock Drilling Explained. For narrow underground headings using air-leg machines, also review Air-Leg Rock Drilling in Narrow Tunnels.
Frequently asked questions
Is air or water better for rock-drilling flushing?
Neither is universally better. Air is often practical for dry surface drilling, limited-water sites, and systems in which compressed air operates the hammer. Water is often favored for source dust suppression and wet flushing in underground or hand-held work. The approved equipment configuration, ground, hole geometry, climate, and exposure controls decide the answer.
Does higher flushing pressure always clean the hole better?
No. Pressure is needed to overcome resistance, but cuttings transport also depends on delivered flow, annular area, leakage, depth, and particle behavior. A high pressure reading with low flow at the bit can still produce poor cleaning.
Why do cuttings stop returning even when the compressor or pump is running?
The medium may be escaping into fractures, a passage may be blocked, a hose or joint may leak, the supply may fall under load, or cuttings may have bridged in the annulus. Stop and follow the manufacturer and site procedure before the string becomes packed or stuck.
Can water be added to any DTH hammer to reduce dust?
No. Water injection can affect lubrication, corrosion, seals, operating temperature, and hammer performance. Use it only within limits documented for the exact hammer and supporting system.
What information is most important when sizing flushing capacity?
Start with hole diameter, drill-string OD, depth, direction, ground and cuttings characteristics, plus the equipment maker's required supply at operating conditions. Source pressure or compressor displacement alone is not enough.
