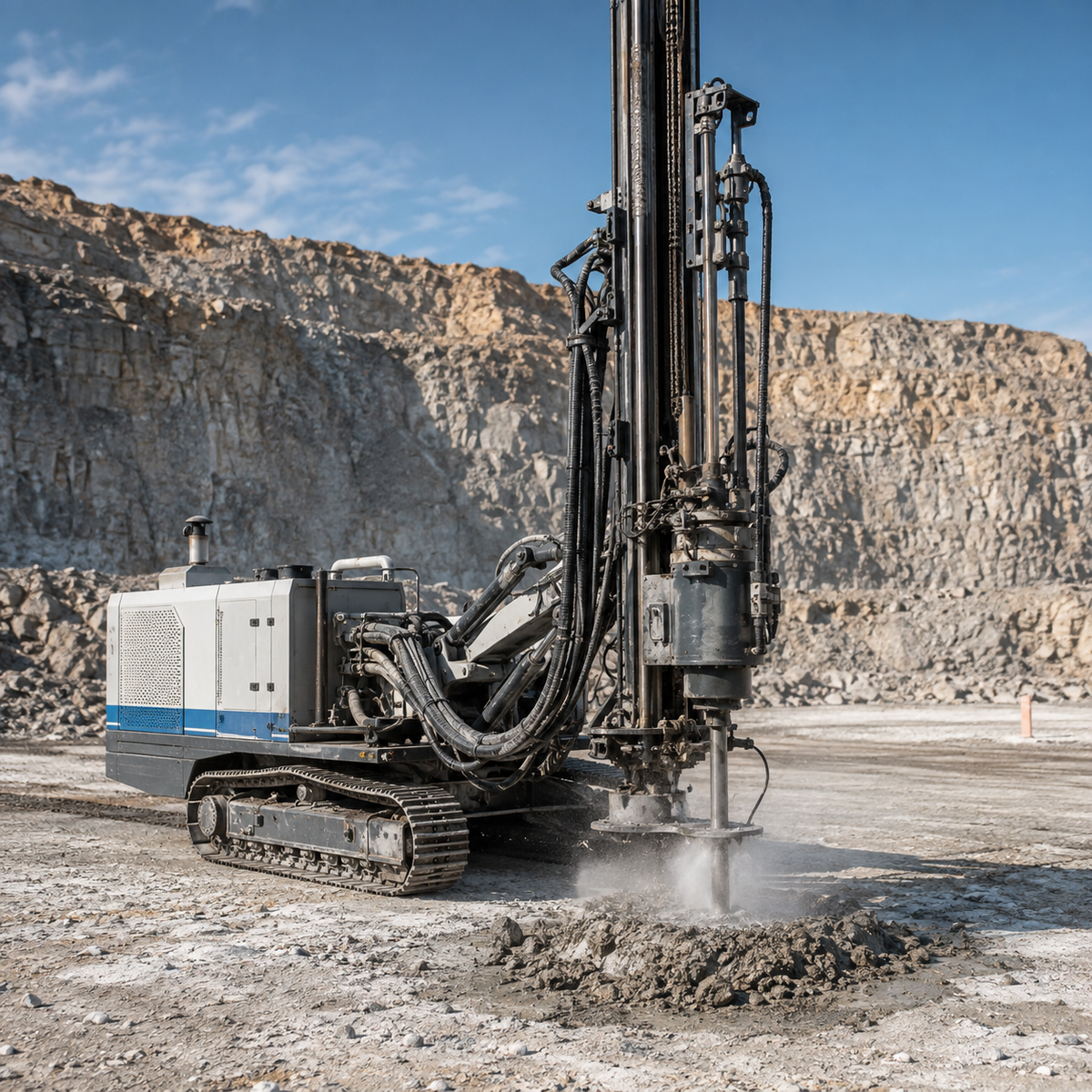

Short answer: controlled water injection can reduce airborne dust during air-powered DTH drilling by adding a small, metered amount of water to the flushing air. The correct setting is the lowest stable flow that visibly conditions the return cuttings and supports the site’s exposure-control plan without creating paste, blocking the annulus, disturbing weak ground, or interfering with hammer lubrication. There is no universal water-rate setting: the rig, hammer, hole size, depth, rock, temperature, air delivery, and local safety requirements all change the answer.
This guide is for quarry, mine, construction, and drilling teams deciding whether deliberate wet DTH drilling is appropriate. It is not the same problem as drilling into uncontrolled groundwater. For formation inflow and back-pressure issues, see DTH Drilling in Water-Bearing Rock.
When is DTH water injection a sensible dust-control method?
Water injection is most relevant when the drilling process creates a visible dry dust plume at the collar, the rock may contain respirable crystalline silica, and the rig is designed to meter water into the flushing circuit. Water droplets mix with fine particles in the return stream so more dust leaves the hole as damp cuttings instead of becoming airborne.
NIOSH describes wet drilling as an engineering control and notes that the operator should control the flow. It also cautions that excessive water can create operational problems without a useful improvement in dust capture. That makes water injection a controlled process variable—not an “open the valve fully” response.
| Site condition | What water injection may help | What must be checked first |
|---|---|---|
| Dry competent rock with a dusty collar return | Conditions fine particles before they escape | Rig and hammer approval, water metering, exposure-monitoring plan |
| Limited water supply | A low-flow mist system may be practical | Tank capacity, refill logistics, stable pump pressure |
| Cold weather | Dust control while operating | Freeze protection, drain-down procedure, hose and valve protection |
| Weak, clay-rich, or water-sensitive ground | Possibly limited benefit | Risk of paste, swelling, wall instability, blocked returns |
| Existing groundwater inflow | May not address the real problem | Back pressure, water column, compressor reserve, alternative hole-cleaning plan |
Deliberate water injection is not formation water
These two conditions can look similar at the collar but require different decisions.
- Deliberate injection is a measured surface input that the operator can start, adjust, and stop. Its primary job here is dust control.
- Formation water enters from fractures or permeable layers. Its rate and pressure may change with depth, and the hammer must work against the resulting water column and back pressure.
If performance falls after a controlled water valve is opened, inspect the injected flow, lubrication, and return condition. If performance falls only after entering a wet zone, treat it first as a water-bearing-ground problem. Adding more surface water can hide the diagnosis.
How does water injection change the DTH drilling system?
In a conventional air-powered DTH system, compressed air carries lubricant through the drill string, powers the hammer, exits near the bit, and lifts cuttings through the annular space between the tool string and the hole wall. A wet suppression system meters water into that moving air stream. The droplets travel down the drill string and mix with dust and cuttings near the point of generation and during the return path.
The objective is a stable three-phase return—air, a limited amount of water, and cuttings. Too little water leaves a dry plume. Too much can turn fines into sticky paste or slurry, increase resistance in the return path, and make the collar condition difficult to interpret.
Seven checks before introducing water
- Confirm equipment approval. Follow the rig and DTH hammer manufacturer’s instructions for water injection, lubricator arrangement, pressure limits, and winter operation. Do not assume that a retrofit is compatible because a hose can be connected.
- Verify the dry drilling baseline. Record compressor pressure, hammer response, penetration trend, rotation behavior, and the appearance of dry cuttings. A baseline makes it possible to separate a water-setting problem from an existing air or tool problem.
- Check actual air delivery at the operating condition. Water injection does not compensate for undersized air supply, leaking drill pipes, excessive annular clearance, or a blocked bit. Stable cuttings transport still depends on adequate airflow.
- Inspect the water circuit. The tank, filter, pump, relief device, valves, meter, hoses, and injection point should be clean, pressure-rated, secured, and protected from damage.
- Confirm lubrication strategy. Water can alter how oil is carried through the system. Use the hammer manufacturer’s oil grade and wet-drilling guidance. For the maintenance boundary, read the DTH Hammer Lubrication Guide.
- Plan where wet cuttings will go. Damp spoil or slurry must not create a slip hazard, block a collar shroud, contaminate a bench, or enter a drainage route that the site has not approved.
- Define the control check. A reduced visible plume is useful, but it does not prove compliance. Use the site’s required exposure assessment, sampling, maintenance, and respiratory-protection program.
A practical field setup sequence
1. Start with a known-good air and tool condition
Inspect the bit flushing passages, drill-pipe connections, lubricator, compressor, and collar area. Begin drilling only when hammer response and return flow are normal. If the hammer is already weak or cuttings are not clearing, diagnose that condition before adding water.
2. Introduce water gradually
Open the metering valve in small increments while observing the collar return. Look for the point where the airborne plume decreases and the finest cuttings become damp. Do not chase a completely wet collar if dust control is already effective and return transport is stable.
3. Watch the return, not only the gauge
A flow meter shows what the circuit delivers; it does not show what happens in the hole. Rock texture, depth, annular clearance, leaks, and fractures can change the result. Use both the instrument and the physical return condition.
4. Recheck lubrication and hammer response
Listen for a change in impact behavior and watch penetration and rotation trends. If the manufacturer specifies a wet-drilling lubrication adjustment, apply that procedure. Do not improvise an oil rate from a different hammer size or brand.
5. Stop and diagnose unstable returns
Paste coating the pipe, intermittent discharge, rising back pressure, sudden loss of cuttings, or a major change in hammer response are stop-and-check signals. Close the water in a controlled way, maintain the safe hole-cleaning procedure specified for the rig, and identify whether the cause is excessive injection, restricted annulus, weak ground, a blocked bit, or natural inflow.
What the collar return is telling you
| Observed condition | Likely interpretation | Next check |
|---|---|---|
| Dry dust cloud remains | Insufficient delivery, poor mixing, empty tank, blocked line, or failed control | Verify water supply, meter response, valve position, and injection point |
| Evenly damp, granular cuttings with stable hammer response | Water and air are probably balanced for the current interval | Hold the setting and continue monitoring exposure controls |
| Sticky paste coating the pipe | Water may be too low for the fines present, or ground may be clay-rich; simply adding more is not always safe | Check formation, annular clearance, airflow, and OEM flushing guidance |
| Heavy slurry or ponding at the collar | Excessive water, poor drainage, natural inflow, or restricted return path | Reduce controlled injection and diagnose before continuing |
| Hammer slows after water starts | Possible lubrication change, excessive liquid load, pressure loss, or another coincident restriction | Check manufacturer wet-drilling procedure, air pressure, lubricator, and line condition |
| Return becomes intermittent with depth | Cuttings accumulation, fracture loss, annular restriction, or groundwater effect | Stop adding variables; check hole-cleaning and water-bearing-ground diagnostics |
When more water is the wrong correction
Do not treat every dusty or weak-return condition as a low-water problem. More water cannot correct a worn bit, blocked flushing holes, a leaking drill string, insufficient compressor delivery, poor annular velocity, or unstable ground. It may make those problems harder to see.
Water injection also needs special caution when temperatures can freeze lines, when runoff is restricted, when the formation reacts badly to water, or when the rig lacks a compatible metering and lubrication arrangement. In those cases, a maintained dry collection system, enclosure, filtered cab, work-zone control, or a different drilling method may be more appropriate. The site’s competent safety and engineering personnel should choose the control combination.
Common wet DTH drilling mistakes
- Using visible dust as the only exposure test. The most hazardous respirable particles are not reliably judged by sight.
- Opening the valve fully at startup. This removes the baseline and can create a slurry before the operator understands the hole.
- Ignoring oil delivery. Water injection changes the operating condition; manufacturer wet-drilling lubrication instructions still apply.
- Copying a water rate from another rig. Hole size, air package, pump, hammer, and formation may be different.
- Confusing groundwater with injected water. Uncontrolled formation inflow can impose back pressure that a surface valve cannot solve.
- Running after the tank is empty. A dry tank can remove the intended dust control without an obvious control-panel fault.
- Leaving water in the system during freezing conditions or storage. Follow the rig’s drain, purge, corrosion-protection, and storage instructions.
Information to provide when specifying DTH tools for wet operation
A useful RFQ should describe the complete operating condition, not only the nominal hammer size. Include:
- rig make and model, compressor pressure and delivered airflow;
- DTH hammer model, shank interface, bit diameter, and drill-pipe dimensions;
- typical and maximum hole depth, angle, and required hole quality;
- rock type, fracture condition, fines or clay behavior, and known groundwater;
- purpose of water injection: dust control, hole cleaning, or both;
- existing tank, pump, meter, valve, hose, and injection-point arrangement;
- ambient temperature range and freeze-protection plan;
- hammer manufacturer’s wet-drilling lubrication requirement;
- site dust-control, runoff, and exposure-monitoring requirements;
- photos of the rig connections and examples of dry versus wet collar returns.
These inputs help a supplier verify interfaces and avoid treating a site-control problem as a stand-alone hammer or bit purchase.
Frequently asked questions
How much water should be injected for DTH dust control?
Use the equipment manufacturer’s permitted range and start at the lowest controllable setting that conditions the return. A published rate from another drill is not a universal setpoint. Confirm performance through collar observations and the site’s exposure-control measurements.
Can water injection replace a dust collector?
Not automatically. Wet suppression and dry collection are different engineering controls, and some rigs or sites use one, the other, or a designed combination. The decision depends on equipment design, climate, water availability, maintenance, regulations, and verified exposure performance.
Does wet DTH drilling require more lubrication?
It can change oil transport and the required setting. Follow the exact hammer manufacturer’s wet-drilling instructions and verify that oil reaches the hammer. Do not apply a generic increase without model-specific guidance.
Why do wet cuttings form paste on the drill pipe?
The return may contain fine or clay-rich material, the air path may be restricted, or the water-to-cuttings balance may be unstable. Check airflow, annular clearance, formation behavior, and the metering system before adding more water.
Is water injection useful in freezing weather?
It may control dust while operating, but freezing can disable hoses, valves, meters, and drains. Use only an approved cold-weather setup with a documented drain-down and storage procedure. A dry collection method may be more practical at some sites.
Technical references
- NIOSH Engineering Controls Database: Reducing Hazardous Dust Exposure when Rock Drilling During Construction.
- NIOSH: Drill Dust Collection Systems and wet suppression practices for surface mines.
- OSHA: Crystalline Silica overview.
