Top hammer stress waves are short elastic pulses created when the rock drill piston strikes the shank adapter. The pulse travels through the shank, rods, threaded joints and bit before reaching the rock. At every change in geometry, contact condition or material response, part of the wave can continue forward, part can return as a reflected wave, and part can be dissipated. That is why drill-string energy transfer is a system question—not a fixed “loss per coupling” calculation.
For buyers, the practical lesson is straightforward: a rod cannot be judged by thread label or length alone. The drifter, shank adapter, rod body, couplings, bit and intended rock conditions must form a compatible energy path. This guide explains that path, the meaning of compression and tensile reflections, and the information worth confirming before an RFQ.
Quick answer: where percussion energy goes

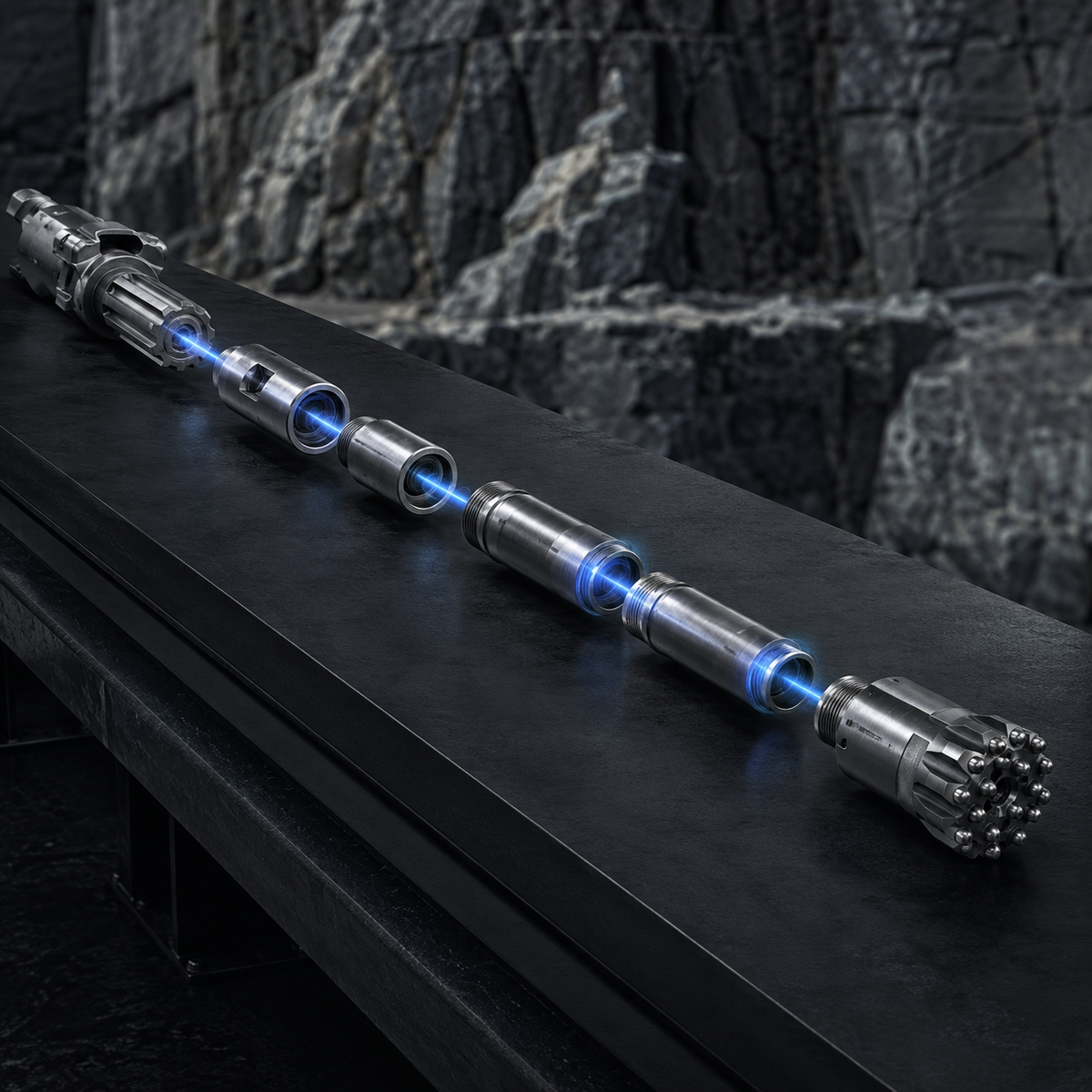

A top hammer drill places the impact source outside the hole. Each piston strike loads the shank adapter and launches a compressive stress wave down the drill string. The useful portion reaches the bit and does work at the bit–rock interface. The remainder is divided among elastic waves returning through the string, friction and local deformation at joints, vibration, sound and heat.
| Location | Main event | Why it matters |
|---|---|---|
| Piston and shank adapter | Impact creates the initial pulse | The piston, shank geometry and contact condition shape the incident wave. |
| Rod body | The elastic pulse propagates along the steel | Cross-section, straightness, material condition and length affect the wave path and structural loading. |
| Threaded joint or coupling sleeve | Load crosses multiple contact surfaces | Joint stiffness, contact and wear influence transmission, reflection and dissipation. |
| Bit connection | The pulse enters the bit | A compatible thread and correctly seated joint help maintain a continuous load path. |
| Bit–rock boundary | Carbide buttons load and fracture the rock | Rock response, bit contact and operating conditions determine how much energy is used and how much returns. |
What is a stress wave in top hammer drilling?
A stress wave is a moving change in stress and particle velocity inside an elastic solid. The steel does not travel down the hole with the pulse. Instead, adjacent sections of the rod compress and recover as the disturbance moves along the drill string.
For a simplified, slender, uniform elastic rod, wave speed is often represented as c ≈ √(E/ρ), where E is Young’s modulus and ρ is density. This model explains why a pulse can move rapidly through steel, but it is not a complete model of a working drill string. Real strings include threads, sleeves, diameter transitions, contact gaps, wear, bending, rotation and a changing rock boundary.
Another useful concept is wave impedance. In a uniform rod it is related to material density, wave speed and cross-sectional area. When the pulse meets a boundary with different effective impedance—such as a joint, diameter transition or bit–rock contact—the incident wave cannot simply continue unchanged. The boundary produces transmitted and reflected components.
How the percussion wave travels through the drill string
- The piston strikes the shank adapter. The impact produces a high-amplitude compressive pulse whose duration and shape depend on the percussion mechanism and contact geometry.
- The shank transfers the pulse into the first rod. The interface must match the drill model and thread system. A nominally similar part is not automatically an energy-path match.
- The pulse travels along the rod body. In an ideal straight, uniform rod, propagation is comparatively simple. Real rods also rotate, bend and experience contact with hole walls.
- The pulse crosses each threaded connection. Threads and sleeves are assemblies with many contact surfaces, not continuous solid bars. Part of the pulse is transmitted; another part can reflect or be dissipated.
- The pulse enters the bit. Geometry changes from the rod to the bit body and finally to the carbide buttons, creating additional boundaries.
- The bit loads the rock. Useful energy contributes to indentation, crack initiation, chip formation and crushing. Energy not absorbed by the rock returns through the string as reflected stress waves.
This sequence repeats at the drill’s impact frequency. Individual pulses and their reflections can overlap, so the drill string behaves as a dynamic system rather than a static stack of parts.
What happens when a wave reaches a coupling sleeve?
A coupling sleeve joins two male-threaded rods. The pulse must pass from one rod into threaded contact, through the sleeve and rod-end region, and then into the next rod. The exact load path depends on the joint design and how its surfaces are seated.
Laboratory work on percussive-drill sleeves has shown that an incident compressive wave can generate a reflected tensile wave, and that the reflection changes with sleeve preload and contact condition. This matters because repeated tensile components can contribute to fatigue at geometric stress raisers even though the original piston strike launches a compressive pulse.
Variables that change joint behavior
- thread family, geometry and manufacturing tolerances;
- rod-end contact and how completely the joint is seated;
- coupling design, mass and stiffness;
- thread flank wear, fretting, corrosion or contamination;
- bending or misalignment across the connection;
- incident pulse shape and rod cross-section;
- the returning wave generated by the bit–rock boundary.
These variables are why a universal percentage loss should not be assigned to every coupling. A value measured for one test assembly is not automatically transferable to another rod size, joint design, wear state or rock condition.
Compression waves, tensile reflections and drill-string fatigue
| Wave component | How it appears | Buyer interpretation |
|---|---|---|
| Incident compression | Launched by piston impact and travels toward the bit | This is the primary carrier of percussion energy. |
| Transmitted compression | Continues across a joint or boundary | Its amplitude and shape show how the next component is being loaded. |
| Reflected compression | Returns from a boundary with a higher effective impedance | It indicates that the incident pulse was not fully accepted by the downstream boundary. |
| Reflected tension | Returns from a lower-impedance or imperfect-contact boundary | Repeated tensile loading is important when considering fatigue cracks at threads and section changes. |
| Dissipated energy | Converted into friction, local deformation, heat, sound and other motion | It is not available for rock breakage, but cannot be inferred from one symptom alone. |
Fatigue is cumulative. A crack normally reflects the combined history of stress amplitude, cycle count, surface condition, geometry, material and operating alignment. Stress-wave theory can explain a plausible mechanism; it cannot identify the cause of a broken rod without evidence from the fracture, wear pattern, operating records and the rest of the drill string.
What happens at the bit–rock boundary?
The bit–rock interface is a changing boundary. During one impact, some buttons may contact competent rock while others meet a crack, soft seam, crushed cuttings or an uneven bottom. The effective resistance seen by the bit changes accordingly.
When the rock accepts the load effectively, more of the pulse contributes to indentation and fracture. If contact is poor or the boundary changes abruptly, a larger or differently shaped response can return through the bit and rods. Research and OEM monitoring systems use this distinction—incident versus reflected response—to understand energy reaching the bit and stresses returning to the tools.
Feed force, rotation and flushing therefore affect more than penetration rate. They help maintain bit contact, present fresh rock to the buttons and remove cuttings. Their correct settings are machine-, bit- and ground-specific; this fundamentals guide does not replace the drill manufacturer’s operating instructions.
Why “energy loss per coupling” is not a universal number
A simple percentage sounds useful for comparing rod strings, but it hides the variables that control the result. The measured transmission of a particular assembly can change with:
- piston and shank design;
- rod diameter, wall section and material properties;
- male–male rods with coupling sleeves versus male–female connections;
- the number, spacing and condition of joints;
- thread seating, wear and contamination;
- bit design, button condition and rock contact;
- feed alignment, hole deviation and side loading;
- the measurement location and definition of “loss.”
Use controlled test data only when the assembly, boundary conditions and measurement method are stated. For procurement, a matched component list and traceable drawing are more useful than an unsupported general percentage.
How to interpret common field symptoms
| Observed symptom | Possible energy-path explanation | What to check before concluding |
|---|---|---|
| Penetration falls while pressure appears normal | Less useful energy may be reaching the rock | Bit wear, flushing, feed, rock change, joint condition, shank wear and machine condition. |
| Couplings run unusually hot | Friction, movement or poor contact may be dissipating energy | Thread wear, seating, lubrication practice, misalignment and OEM limits. |
| Repeated cracks near threaded ends | Reflected tensile loading may be concentrating at a geometric transition | Fracture origin, corrosion, thread damage, bending, impact level and component compatibility. |
| Strong vibration or harsh sound | The dynamic response may have changed | Loose or worn joints, bit contact, feed control, shank condition and hole alignment. |
| One rod position fails repeatedly | A local boundary or bending condition may be amplifying stress | Rod order, guide alignment, coupling location, hole contact and handling damage. |
None of these symptoms proves a single cause. Treat them as prompts for a controlled inspection sequence, not as permission to increase percussion, feed or rotation beyond approved settings.
Common misconceptions about top hammer energy transfer
“A longer rod simply absorbs more impact energy”
Length changes timing, dynamic interaction and the number of possible joints, but a sound elastic rod is not a sponge that consumes a fixed amount of energy per metre. Joints, wear, geometry, contact and rock response must also be considered.
“Matching the thread name guarantees compatibility”
A thread designation is essential, but it does not confirm the shank interface, rod body, length, flushing path, bit connection, operating envelope or supplier drawing. Compatibility is an assembly decision.
“More impact energy always means faster drilling”
Energy must reach a suitable bit–rock contact and remain within the approved operating range. Excessive loading, poor contact or misalignment can increase reflected stress and wear instead of improving useful work.
“A reflected wave means the tool is defective”
Reflection is a normal result of wave interaction with boundaries. The engineering question is whether the magnitude and repetition are appropriate for the system, not whether reflection exists at all.
Information to confirm before a top hammer rod RFQ
Send enough information for the supplier to identify the complete load path. A useful RFQ includes:
- rock drill or drifter manufacturer and exact model;
- current shank adapter designation and verified thread;
- rod thread family, rod type, body diameter, length and flushing arrangement;
- male–male or male–female configuration and the required coupling sleeves;
- bit thread, diameter, face style and current bit model;
- target hole diameter, depth, angle and straightness requirement;
- rock description, abrasiveness indicators, fractures and water conditions;
- current penetration trend, service life and recurring failure location;
- clear photographs of thread wear, rod ends, couplings, shank and failed surfaces;
- the controlled drawing or dimensional reference used for acceptance.
PerfoMax supplies threaded top hammer rod options including T38 extension drill rods and T45 extension drill rods. These product pages identify the commercial route; final suitability still depends on confirming the complete drill string and application.
For component names and interface order, see Top Hammer Drill String Anatomy. If the immediate problem is breakage or thread wear, use the inspection sequence in Top Hammer Drill Rod Failure Guide.
Frequently asked questions
How does percussion energy travel through a top hammer drill string?
The piston impact launches an elastic compressive pulse into the shank adapter. It travels through rods and joints to the bit, where part performs work on the rock and part returns as reflected stress waves.
Why do threaded joints reflect part of the stress wave?
A joint changes geometry and introduces multiple contact surfaces. Its effective stiffness and impedance differ from a continuous rod, so the incident wave divides into transmitted, reflected and dissipated components.
What is a tensile reflected wave?
It is a returning pulse that loads part of the drill string in tension. It can arise when a compressive incident wave meets a lower-impedance or imperfect-contact boundary. Repeated tensile cycles matter in fatigue assessment.
Does every coupling reduce energy by the same percentage?
No. Transmission depends on joint design, seating, wear, rod section, incident waveform, bit–rock response and the test method. A universal percentage should not be used without assembly-specific evidence.
What should buyers verify first?
Start with the exact drifter model, shank adapter, thread system, rod type and dimensions, coupling arrangement, bit connection and hole conditions. These define whether the proposed components form a coherent energy path.
Technical references
- Epiroc SR drill strings — OEM discussion of power transmission, tensile shock waves and fatigue strength.
- Transmission and Dissipation of Stress Wave at a Sleeve of Percussive Rock Drill — experimental study of transmission and reflection at a coupling sleeve.
- Identification of a percussive drill rod joint from its response to stress wave loading — research on nonlinear joint behavior under repeated stress-wave loading.
- Optimal Design Parameters of a Percussive Drilling System for Efficiency Improvement — system-level treatment of wave energy, rods, couplings and bit–rock interaction.
Build the RFQ around the complete energy path
Top hammer stress waves connect every part of the drill string. A reliable buying decision therefore starts with verified interfaces and actual drilling conditions, not a thread label or a generic transmission percentage. Share the drifter model, present tool list, dimensions, bit and ground information with PerfoMax so the proposed rod route can be checked against the complete system before quotation.
