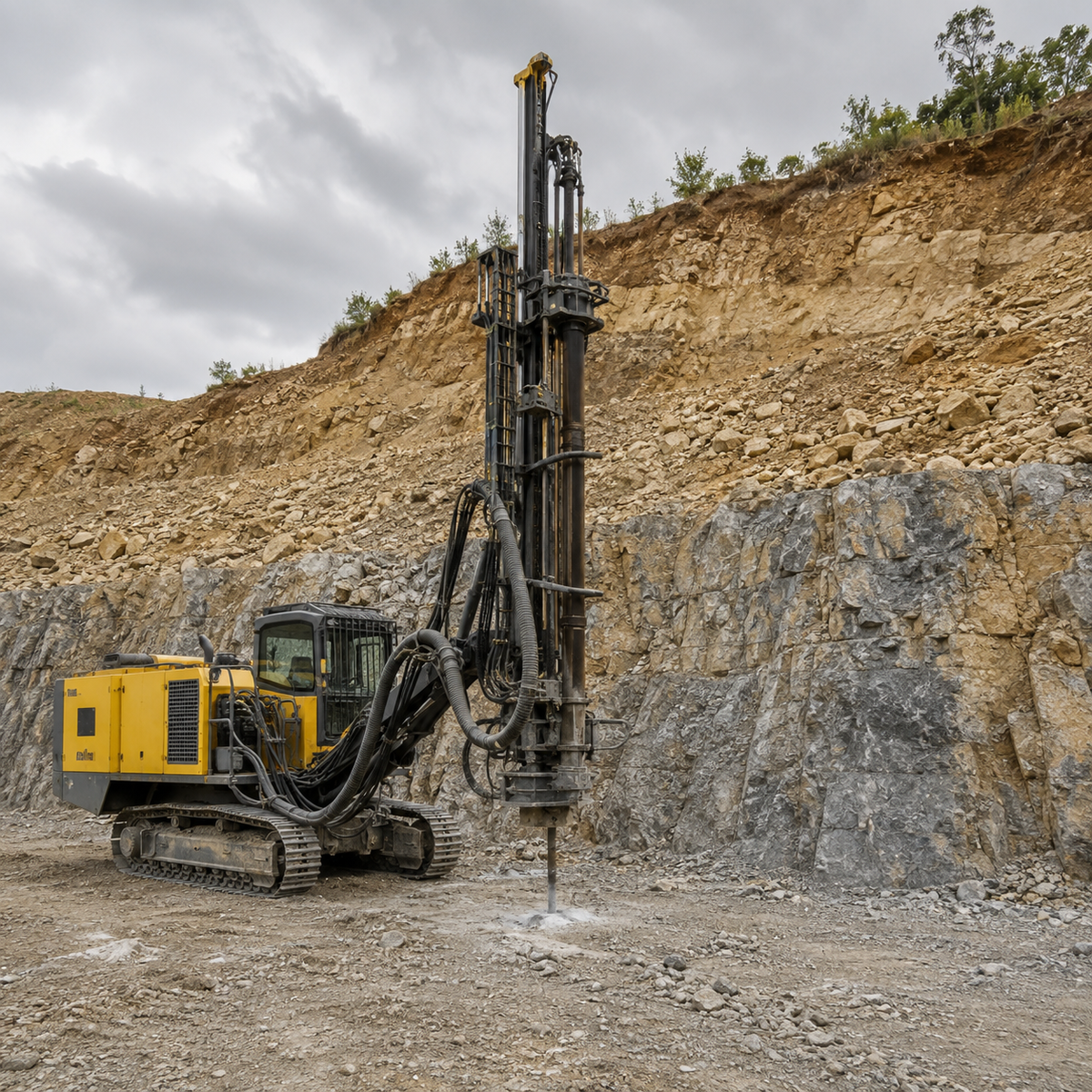

Direct answer: top hammer drilling can work efficiently in soft and weathered rock, but “easy to break” does not mean “easy to hold straight.” Weak collars can wash out, fine cuttings can pack around the rod, and abrupt transitions into harder rock can deflect the bit. Start with controlled collaring, match flushing to the actual returns, keep the drill string supported, and treat sudden changes in penetration, rotation load, or cuttings as a ground-condition signal—not simply a reason to add power.
The correct setup depends on whether the material is competent soft rock, decomposed weathered rock, loose overburden, or alternating weak and hard bands. If the upper interval cannot remain open or cannot support a stable collar, a top-hammer-only approach may no longer be appropriate; casing, pre-collaring, or another drilling method may be required.
Why Soft and Weathered Rock Can Be Difficult to Drill Straight
Competent soft rock fractures readily under percussion. Weathered rock may be partly decomposed, weakly cemented, clay-altered, blocky, or mixed with firmer remnants. Those differences change how the collar and hole wall respond to impact, rotation, feed, and flushing.
| Ground condition | Typical drilling concern | What the driller should confirm |
|---|---|---|
| Competent but soft rock | Fast penetration, excess cuttings, collar erosion, overdrilling | Stable feed, controlled flushing, reliable depth tracking |
| Highly weathered or decomposed rock | Collar breakout, hole-wall sloughing, packed fines | Collar support, return path, whether the hole remains open |
| Soft layer over hard rock | Bit deflection or shock when the bit reaches the stronger contact | Alignment, penetration change, rotation response, transition depth |
| Hard blocks inside weak matrix | Bit wanders around blocks or alternates between cutting and bouncing | Rod support, feed behavior, cuttings changes, hole survey results |
| Loose overburden rather than rock | Collapse, loss of return, buried tool, uncontrolled collar enlargement | Whether casing or a different method is required before rock drilling |
The central buyer lesson is that a single label such as “soft limestone” or “weathered rock” is not enough for tool or method confirmation. Send the supplier information about collar stability, layer changes, fines, water, hole depth, diameter, and the current rig and drill string.
Step 1: Classify the Weak Interval Before Setting Parameters
Before drilling the production pattern, distinguish three practical questions:
- Does the material behave as rock? Can the collar and hole wall remain open after the bit passes?
- Is the weakness uniform? Or are there hard bands, blocks, joints, cavities, clay seams, or water-bearing zones?
- Where is competent rock expected? Record the approximate depth and whether that contact is flat, inclined, or irregular.
A test hole or the first holes in a new bench should be treated as information. Record penetration changes, cuttings color and size, flushing return, rotation behavior, and any difference between planned and measured depth. If the collar collapses repeatedly or returns disappear into loose ground, stop treating the problem as a routine parameter adjustment.
Step 2: Collar With Control, Support, and Alignment
Weathered ground often fails at the collar because the surface is already disturbed or poorly confined. A common mistake is to start with the same aggressive settings used after the bit is established in competent rock.
Use the rig or rock-drill manufacturer’s approved start-up procedure. The practical objective is to:
- prepare a stable, level contact area where site procedures allow;
- align the feed in the planned hole direction before impact begins;
- keep the bit centered and the front support or centralizer correctly positioned;
- use controlled percussion, rotation, feed, and flushing during the initial collar;
- increase operating inputs only after the bit is seated and returns are stable;
- stop and re-establish the collar if the bit walks, chatters, or breaks out one side.
There is no universal collaring pressure or feed-force number for all top hammer rigs. Hydraulic settings, bit diameter, rod system, rock drill, feed design, and ground response differ. Use the approved machine procedure and adjust from observed behavior within that boundary.
Step 3: Match Flushing to Fine Cuttings and Collar Stability
Soft and weathered rock can generate a high volume of fine material. The flushing system must lift those cuttings without excessively eroding the collar or masking a weak return path.
| Observed return | Likely interpretation | Next check |
|---|---|---|
| Continuous, moderate return with visible cuttings | Hole cleaning appears functional | Continue monitoring penetration, collar shape, and return consistency |
| Fine material builds around the rod | Cuttings may be recirculating, packing, or returning too slowly | Check flushing path, rod passage, annular clearance, penetration rate, and blockages |
| Collar rapidly enlarges or craters | Weak ground may be eroding under combined impact and flushing | Reduce disturbance within approved limits; reassess collar support and method |
| Return suddenly decreases or disappears | Possible void, open fracture, collapse, blockage, or loss zone | Stop and investigate before adding air or advancing blindly |
| Cuttings change abruptly from fine tan material to coarse hard chips | The bit may have entered a stronger band or fresh rock | Review alignment, feed, rotation, percussion, and bit behavior at the transition |
Do not use maximum flushing by default. Too little flushing can cause regrinding and packing; excessive flow at a weak collar can increase erosion and dust. The correct setting is the approved value that maintains a clear return path for the actual hole and ground condition.
Step 4: Control Deviation at Soft-to-Hard Transitions
The transition from weathered material into competent rock is often more important than the average rock strength. If the contact is inclined or irregular, one side of the bit can engage the stronger rock first. A poorly supported rod or unstable collar makes that steering effect worse.
Watch for these transition signals:
- a sudden drop in penetration rate;
- increased or irregular rotation load;
- bit bounce, chatter, or unstable feed response;
- a change from fines to sharper or coarser chips;
- movement at the centralizer or visible rod whip;
- measured hole deviation increasing after the contact depth.
Respond within the rig and tool supplier’s operating guidance. Reconfirm feed alignment and support, avoid forcing the bit across the contact, and compare the first holes before continuing the full pattern. Sandvik’s current Guide Adapter information specifically identifies soft rock, variable formations, and deep overburden as deviation-challenging conditions; however, that product is offered for defined T51 and GT60 systems and should not be generalized to every thread or rig.
Step 5: Keep the Drill String Stiff, Compatible, and Supported
Ground condition does not override compatibility. The shank adapter, coupling, rod, and bit must still belong to a verified system. Rod diameter, hole diameter, coupling outside diameter, and guide clearances affect support and cuttings return.
For a current commercial starting point, PerfoMax’s Drill Rods collection covers threaded rod selection for mining, quarrying, and tunneling. Active product pages include T38 male/male extension rods and T45 male/male extension rods. These pages require final confirmation of length, body, flushing passage, end type, coupling arrangement, and controlled quotation data.
Do not choose T38 or T45 only because the ground is described as soft. Thread family and rod configuration must match the rock drill, shank adapter, bit, hole range, feed, and operating power.
Step 6: Manage Penetration Rate Instead of Chasing It
Very fast penetration can be misleading. If drilling advances faster than cuttings can leave, fines accumulate and the bit reworks material. If the collar or wall sloughs, the measured advance may also include unstable material rather than a clean, usable hole.
Track a small group of field indicators together:
- advance per unit time;
- flushing return continuity and cuttings character;
- rotation load or torque trend;
- feed response and rod stability;
- collar diameter and breakout;
- measured final depth and hole openness;
- hole deviation or downstream blast-loading difficulty.
A penetration record without hole-quality and return data is incomplete. The fastest hole is not the best result if it cannot be surveyed, charged, cleaned, or reused as intended.
When Top Hammer Is Still a Good Fit—and When to Reassess
| Condition | Top-hammer direction | Decision boundary |
|---|---|---|
| Shallow to moderate holes in competent soft rock | Often a credible method when the rig, bit, and drill string are correctly matched | Confirm required diameter, depth, accuracy, and OEM application range |
| Weathered collar over competent rock | May work with controlled collaring and stable support | Reassess if the upper interval collapses or cannot maintain a return path |
| Highly variable soft and hard bands | Proceed only with monitored parameters and hole-quality checks | Consider method or tooling changes if deviation or instability remains unacceptable |
| Loose, unconsolidated overburden | Top hammer alone may not keep the hole open | Evaluate casing or another approved overburden method |
| Repeated voids, severe losses, or buried tooling | Stop routine production drilling | Require geological and drilling-method review before continuation |
Common Mistakes in Soft and Weathered Rock
- Calling the ground “easy” because penetration is high. Hole stability and straightness may still be poor.
- Starting with full production settings. An unstable collar can determine the entire hole path.
- Adding flushing whenever returns weaken. A void, collapse, or loss zone must be investigated first.
- Ignoring the soft-to-hard contact. Abrupt transitions can steer the bit and increase string loading.
- Using thread size as the only tooling criterion. Rod body, coupling, bit, shank, feed, and hole diameter still need matching.
- Comparing penetration rates without ground logs. Different weathering, water, layers, and hole depths make the figures non-equivalent.
- Continuing after repeated collar collapse. The method boundary may have been reached.
- Failing to inspect packed fines. Fine material can remain in flushing passages, couplings, and thread areas after drilling.
RFQ and Site-Data Checklist
Provide enough information for the supplier to distinguish competent soft rock from unstable weathered ground:
- application: quarry bench, construction, tunneling, mine development, or other;
- typical and maximum hole diameter and depth;
- hole direction and straightness requirement;
- rock description, weathering depth, and known soft-to-hard contacts;
- presence of clay, loose overburden, joints, cavities, or water;
- collar condition and whether holes remain open after drilling;
- current rig, rock drill, shank adapter, thread family, rod, coupling, and bit;
- flushing medium and available capacity at the rig;
- observed penetration, rotation, feed, return, and deviation problems;
- photos of cuttings, collar breakout, rods, couplings, and bit wear;
- whether the order is direct replacement or a proposed system change;
- quantity, destination, packing, inspection, and controlled-document requirements.
Frequently Asked Questions
Is top hammer drilling suitable for soft rock?
Yes, when the soft rock is sufficiently competent to hold the collar and hole, and when the rig, drill string, bit, depth, diameter, and accuracy requirements fit the method. Loose overburden or collapsing weathered material may require casing or another drilling approach.
Why does a top hammer hole deviate in weathered rock?
Common contributors include an unstable collar, inadequate rod support, hard blocks in a weak matrix, an inclined soft-to-hard contact, mismatched tooling, and excessive forcing when the bit enters stronger rock.
Should flushing be increased in very soft rock?
Not automatically. Increase or reduce flushing only within approved equipment limits and in response to actual returns. Too little flow can allow packing and regrinding; excessive flow can erode a weak collar or worsen dust.
What does a sudden jump in penetration rate mean?
It can indicate a softer layer, a void, wall collapse, or reduced resistance rather than improved drilling efficiency. Check cuttings, returns, feed behavior, depth, and hole stability before continuing.
When should drilling stop for a method review?
Stop when the collar repeatedly collapses, returns disappear, the hole will not remain open, the tool repeatedly sticks, uncontrolled deviation develops, or a void or loose overburden interval cannot be managed within the approved top-hammer procedure.
