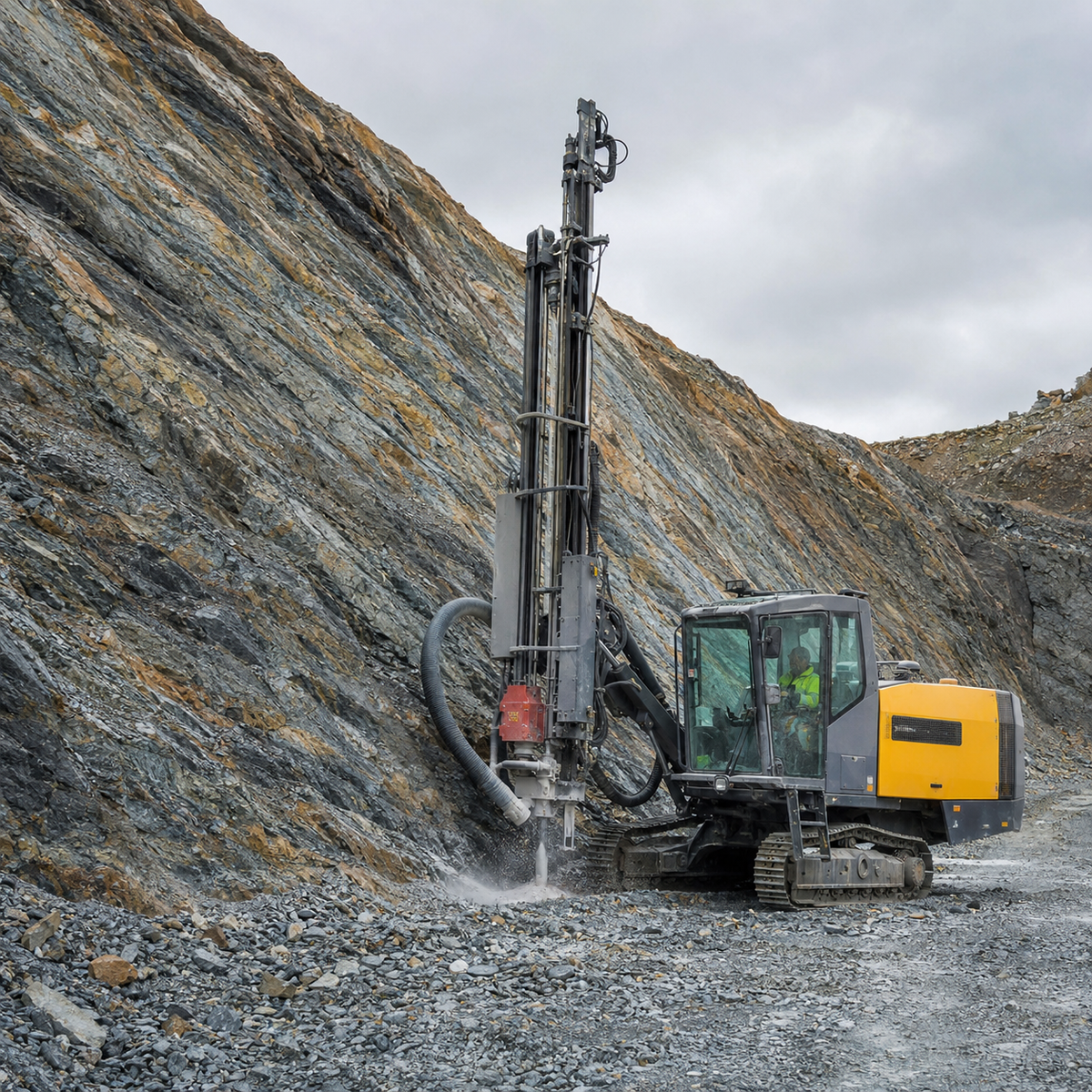

Direct answer: in foliated rock, a top hammer hole can leave its planned path because the bit repeatedly crosses planes with different strength, stiffness and fracture behavior. The risk is controlled less by the rock name than by the angle between the planned hole and the foliation, the persistence and spacing of the fabric, contrasts between bands, weathering, hole depth, collar accuracy and drill-string behavior.
Do not assume every hole will simply “follow the foliation.” Some holes may drift toward a weaker band, deflect as the bit enters a harder band obliquely, or change direction where foliation orientation changes. The practical control is to record the structure, establish a reliable collar, use the rig manufacturer’s condition-appropriate settings, watch the drilling response and survey representative holes when deviation would change burden, spacing, charging or excavation limits.
Why Foliation Creates a Directional Drilling Problem
Foliation is a planar fabric produced by aligned minerals, compositional banding or deformation. In schist, slate, phyllite and gneiss, it can create directional differences in breakage and stiffness. Those differences matter to a percussive bit because the buttons do not always meet equally competent rock across the full face.
Three effects can act together:
- uneven resistance at the bit face: one side may penetrate a weaker band while the opposite side is supported by harder rock;
- preferential fracture: existing fabric planes may open or break more readily than intact rock between them;
- drill-string bending: lateral forces at the bit can be amplified by rod flexibility, clearance, joints, wear and increasing hole length.
Published drilling guidance consistently separates collaring and initial alignment errors from in-hole deviation. That distinction matters: a perfectly straight hole can still miss its target if the feed was misaligned, while a well-collared hole can curve later as it crosses structured rock.
Foliation, Bedding and Fractures Are Not Interchangeable
All three can influence deviation, but they describe different structures. Bedding is depositional layering; foliation is a deformation-related planar fabric; fractures are breaks with little or no cohesion across the plane. A rock mass may contain more than one at the same location.
| Structure observed | Field question | Possible drilling effect | What to record |
|---|---|---|---|
| Continuous foliation | Does its strike and dip remain consistent across the bench? | Repeatable directional bias may appear across a row of holes. | Orientation, spacing, persistence and weathering. |
| Alternating hard and soft bands | How large is the strength contrast? | Uneven bit support and stepwise changes in penetration. | Band thickness, transition depth and drilling response. |
| Open or clay-filled planes | Are planes tight, open, slick or filled? | Loss of support, cuttings changes, flushing disturbance or local steering. | Fill, aperture, water and recurrence. |
| Cross-joints or faults | Do they cut the foliation? | The hole may respond to a second structural direction. | Both structure sets and the depth of unusual drilling events. |
| Folded foliation | Does the fabric rotate across the drilling area? | Deviation direction may change with depth or between holes. | Structural domains rather than one average orientation. |
A single outcrop measurement may be insufficient where the fabric is folded or the bench exposes several structural domains. The drill plan should use the site geologist’s or blast engineer’s structural interpretation, not a visual guess from one collar.
The Intersection Angle Changes the Risk
The important geometry is the angle at which the planned hole crosses the foliation. A hole that cuts strong, closely spaced planes obliquely may load the bit face asymmetrically. A hole approaching nearly parallel to a weak, persistent fabric can also be vulnerable because the bit may remain within, or repeatedly re-enter, the weaker zone.
There is no universal “best angle” that applies to every rock mass and drill system. Mineral alignment, band strength, plane roughness, weathering, water, hole diameter, bit design and drill-string stiffness all change the response. Treat orientation as a testable site variable:
- record planned hole inclination and azimuth;
- record foliation strike and dip by structural domain;
- calculate or visualize the intersection rather than describing the hole only as vertical or inclined;
- compare that geometry with measured deviation from representative holes;
- update the site rule when the structure or drilling setup changes.
Separate Three Sources of Hole-Position Error
| Error source | Where it begins | Typical evidence | Primary control |
|---|---|---|---|
| Collar-position error | Bench surface | Hole starts at the wrong coordinate. | Surveyed layout and durable collar marks. |
| Initial alignment error | Feed setup | Hole is straight but starts at the wrong inclination or azimuth. | Stable rig setup and verified feed orientation. |
| In-hole deviation | Below the collar | Inclination or azimuth changes with depth. | Condition-appropriate drilling practice, drill-string control and measurement. |
Correcting only the pattern marks will not fix geological steering. Changing the rod or bit will not correct a feed that was misaligned at collaring. Diagnose the error source before changing hardware.
Collar the Hole on Stable Rock
Collaring establishes the first part of the hole and strongly influences everything that follows. Loose fragments, an uneven contact surface or a collar located directly on a weak plane can let the bit walk before the hole guides it.
Before collaring:
- remove loose rock only under the site’s approved scaling and safety procedure;
- confirm the collar coordinate and planned hole direction;
- stabilize and level the rig as required by its operating instructions;
- check that the feed, starter rod and bit are straight and correctly assembled;
- inspect the collar for an open foliation plane, void, soft band or weathered seam;
- use the manufacturer-approved collaring mode or reduced starting settings until the bit is guided.
Do not improvise universal percussion, feed or rotation values from an article. The acceptable starting settings depend on the rock drill, rod system, bit diameter, bit face, rock and rig controls.
Read the Drilling Response as the Hole Crosses the Fabric
Foliated ground often gives repeatable field signals. Record them against hole depth rather than relying on the operator’s memory at the end of the shift.
| Observation | Possible interpretation | Immediate check |
|---|---|---|
| Penetration changes cyclically | Alternating bands or recurring planes. | Compare intervals with mapped foliation spacing and cuttings. |
| Rotation load fluctuates | Uneven bit engagement, blocky breakage or poor bottom cleaning. | Check flushing return, bit condition and approved operating settings. |
| Rod vibration increases | Poor bit contact, bending, excessive clearance or changing rock support. | Pause under the operating procedure and inspect the system before continuing. |
| Cuttings become platy | Breakage along planar fabric may be increasing. | Record depth and compare with structural mapping. |
| Return air or water changes | Open plane, fracture, void or local collapse. | Confirm hole cleaning and apply the site’s abnormal-ground procedure. |
| Adjacent holes show similar drift | Geological bias rather than a one-off setup error. | Survey the pattern and compare drift with foliation orientation. |
These signals are diagnostic prompts, not proof. A worn bit, bent rod, loose thread, poor flushing or unstable rig can imitate a geological problem.
Keep the Top Hammer Drill String Straight and Controlled
Top hammer drilling transmits percussion, rotation, feed and flushing through the drill string. In deviation-sensitive ground, small sources of lateral play matter more as depth increases.
- remove bent rods and reject threads outside the supplier’s service limits;
- keep mating thread systems and diameters consistent across the string;
- inspect couplings, shank adapters and bit connections for abnormal play;
- use a bit in suitable condition—worn gauge buttons change clearance and guidance;
- maintain effective hole cleaning so the bit does not repeatedly crush an uneven cuttings bed;
- use stabilizing, guiding or stiffer tooling only when it is compatible with the rig, hole diameter and supplier recommendations.
Sandvik’s published top-hammer information and guide-adapter documentation illustrate the same engineering principle: drill-string guidance and stiffness can improve hole straightness in challenging ground, but those products are system- and size-specific. Do not add an adapter, tube or alternative rod based only on a generic claim.
For current PerfoMax commercial options, review the Drill Rods collection, including active T38 extension rods and T45 extension rods. Compatibility must still be confirmed across the rock drill, shank adapter, coupling, rod, bit and planned hole.
Do Not Chase Deviation with Uncontrolled Parameter Changes
A common response to a wandering hole is to change feed and rotation repeatedly without recording what changed. That can hide the cause and create a new thread-wear, vibration or penetration problem.
Use controlled trials:
- select a representative structural domain;
- hold the rig, bit, rod system, hole direction and depth constant;
- change only one approved operating variable at a time;
- record penetration, flushing return, vibration and tool condition;
- survey the hole path, not just the collar and final depth;
- compare multiple holes before adopting a new site setting.
Boart Longyear’s deviation guidance identifies excessive feed pressure as one mechanism that can bend the string and tilt the bit, while also emphasizing ground conditions, product condition and collar setup. The practical conclusion is not “always reduce feed”; it is to use no more than the compatible system needs and to evaluate the result against hole quality.
When Should the Site Survey the Hole?
A hole-depth measurement does not reveal the path. Surveying becomes more valuable when deviation could alter blast burden or spacing, cause holes to converge or intersect, move a perimeter hole outside tolerance, increase dilution, or invalidate a geological or grouting target.
A practical verification plan can include:
- the first holes in a new foliation domain;
- holes at the maximum planned depth or inclination;
- holes after changing bit, rod configuration or drilling method;
- holes beside critical free faces, final walls or protected boundaries;
- additional holes when operators report repeatable steering symptoms.
The survey method, accuracy, interval and acceptance criteria must suit the project. The U.S. EPA’s borehole-deviation guidance describes deviation logging as measuring inclination and direction with depth; it also notes that borehole direction can be influenced by both drilling technique and subsurface properties. For blasting, the responsible blast designer must decide how measured paths affect charging and the pattern.
When to Change the Setup—or the Drilling Method
Do not keep extending a known deviation problem merely because penetration remains fast. Escalate when measured paths threaten the design or when tool wear and operating changes fail to restore control.
| Evidence | Possible next decision |
|---|---|
| Collar or feed error dominates | Improve bench preparation, marking, rig positioning and alignment verification. |
| Deviation rises mainly with depth | Review hole length, rod stiffness, guidance, clearance and whether shorter benches are viable. |
| Drift repeats with foliation orientation | Review pattern orientation, hole angle and structural domains with geology and blasting teams. |
| One worn configuration performs poorly | Restore compatible bit/rod/thread condition before blaming the rock mass. |
| Required accuracy remains unattainable | Evaluate a guided system, different top-hammer architecture, DTH/ITH, COPROD or another engineered method. |
The switch point is project-specific. Compare actual hole accuracy, penetration, tool consumption, compressor or rig requirements, blast results, redrilling and downstream cost—not only meters per hour.
Common Mistakes in Foliated Rock
- Treating all layered-looking rock as one condition. Separate foliation, bedding, joints, faults and weathered seams.
- Assuming one fixed drift direction. Direction can change with intersection angle and structural domain.
- Measuring only collars. A correct collar does not prove a straight path.
- Changing several parameters at once. The site cannot identify which change helped.
- Ignoring worn gauge and threads. Tool condition can amplify geological steering.
- Using a generic rod or guide recommendation. Every component must be compatible with the actual system.
- Passing unusual holes to the blaster without depth-based notes. Record water, voids, cuttings changes and suspected deviation.
- Continuing to full depth after accuracy is already lost. Confirm whether the hole remains usable under the approved plan.
RFQ and Site-Data Checklist
When asking a supplier to support top hammer drilling in foliated rock, provide:
- application, rig and rock-drill model;
- shank adapter, thread system, rod type and lengths;
- bit diameter, face design and current wear observations;
- planned hole depth, inclination, azimuth and straightness requirement;
- foliation strike/dip, spacing, persistence, weathering and strength contrast;
- fractures, faults, water, voids or clay-filled planes;
- current feed, rotation, percussion and flushing basis from the rig records;
- measured hole paths or at least the observed deviation pattern;
- photos of tool wear, cuttings and collar conditions;
- the commercial quantity and required compatibility confirmation.
Frequently Asked Questions
Will a top hammer hole always follow the foliation?
No. Foliation creates directional behavior, but the final path depends on intersection angle, band contrast, fractures, bit engagement, drill-string stiffness, operating setup and depth. Measure the site response.
Is schist always worse to drill than granite?
Not in every respect. The key issue here is anisotropy: a foliated schist can break differently by direction, while a relatively homogeneous granite may give more uniform bit support. Abrasiveness, strength and fracturing must still be evaluated separately.
Can changing feed force eliminate deviation?
It may reduce one source of string bending when excessive feed is involved, but it cannot correct every geological or alignment problem. Make only manufacturer-approved, controlled adjustments and verify the hole path.
Should buyers choose T38 or T45 for foliated rock?
Foliation alone is not enough to choose a thread system. The decision must match the rock drill, shank adapter, hole diameter and depth, percussion energy, rod configuration, required stiffness and existing fleet.
When should DTH replace top hammer?
Consider another method when measured accuracy cannot meet the design after compatible setup and tool-condition corrections, especially as depth and consequence increase. Compare the full system and downstream cost before switching.
Plan the System Around Measured Ground Behavior
Foliated rock is not solved by a single bit label or a universal feed setting. Map the fabric, lock the collar and feed direction, maintain a compatible drill string, record drilling response and survey enough holes to separate setup error from true in-hole deviation.
To discuss a compatible rod supply, review PerfoMax’s top hammer drill-rod options and send the rig, thread, hole and structural-ground information with your inquiry. For related condition checks, see Top Hammer Drilling in Fractured Rock and Top Hammer Long-Hole Drilling.
