T38 Extension Rod vs MF Speed Rod: Couplings, Handling, and Compatibility

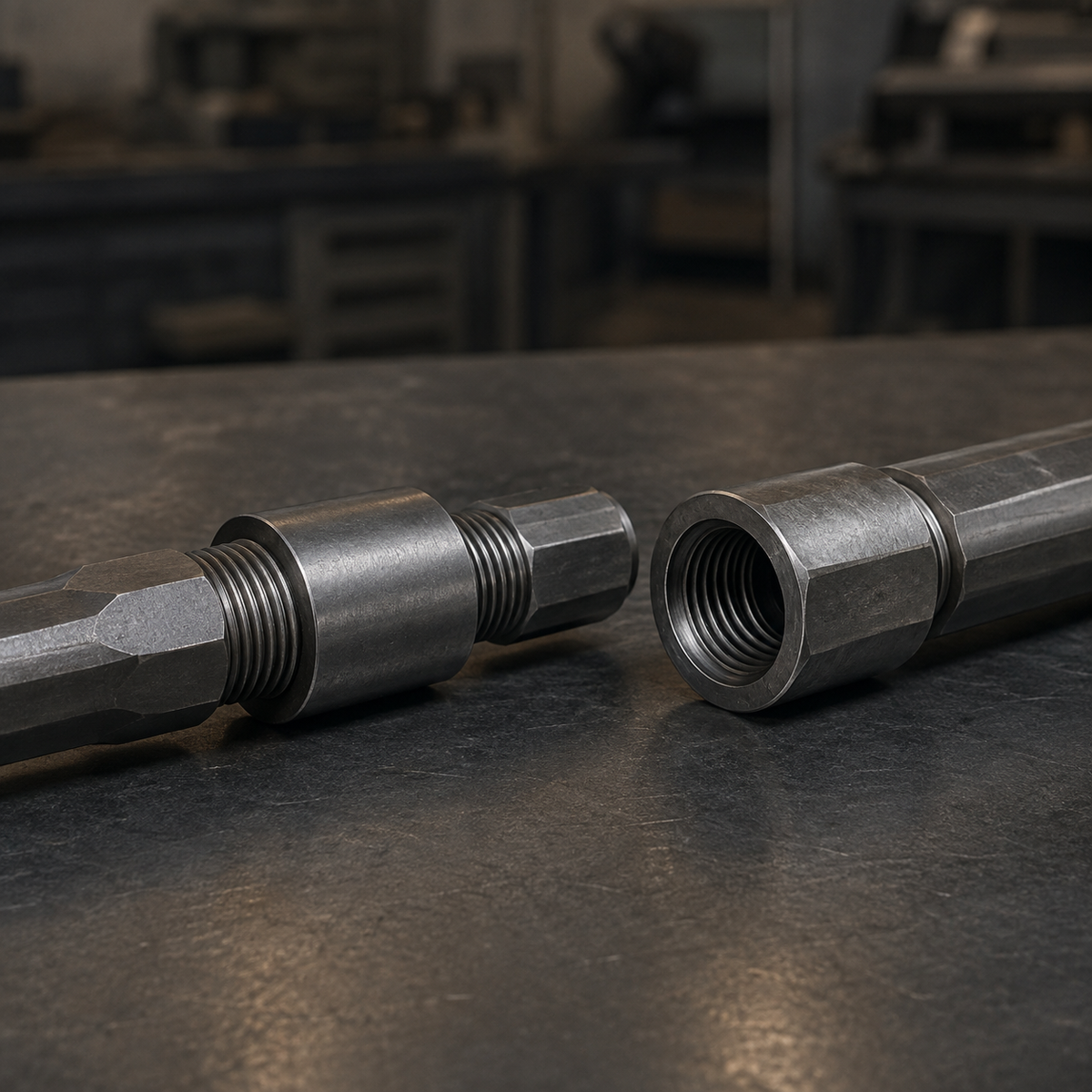

A T38 male–male extension rod and a T38 male–female speed rod use the same nominal thread family, but they are not the same drill-string architecture. The extension rod has a male thread at both ends and needs a separate female–female coupling sleeve between rods. The MF speed rod integrates the female connection into one end, so adjacent rods connect directly.

Choose between them by examining the complete installed system: shank adapter, rod end configuration, coupling arrangement, feed and rod handler, required length, bit thread, flushing path, inventory plan, and the equipment maker’s approved tool string. “T38” is necessary compatibility information, but it does not by itself prove that a replacement rod will fit the current handling and connection setup.

T38 extension rod vs MF speed rod: the direct answer

A male–male extension system is often the lower-risk replacement when the installed string, coupling inventory, and work procedures already use separate sleeves. An MF system can simplify the connection sequence and support a more integrated string, but it should be treated as a system choice rather than a drop-in assumption.

What “T38” confirms—and what it does not

T38 identifies the nominal thread system used across compatible top-hammer components. It helps align the shank adapter, rods, couplings where required, and threaded bit. It does not fully define the product.

Before ordering, confirm all of the following:

• Male–male extension rod or male–female speed rod
• Exact T38 thread form and supplier drawing or product reference
• Rod body diameter and round or hexagonal body profile
• Overall length and the supplier’s definition of effective length
• Flushing-hole diameter and flushing medium
• Shank adapter model and thread at the drill-string end
• Bit thread, bit diameter, and the required first-rod or guide arrangement
• Coupling sleeve type and dimensions for an extension-rod string
• Feed length, carousel pocket, rod handler, breakout device, and extractor limits

Do not approve a substitution from the words “T38 rod” alone. Two products can share that label while differing in end configuration, body, length, or handling fit.

How the two connection architectures work

Male–male extension rods with coupling sleeves

Each rod carries an external T38 thread at both ends. A coupling sleeve provides the two internal threads needed to join adjacent rods. The same connection principle is used wherever a male component needs to join another male-ended part in the string.

The separate sleeve creates an additional stocked component, but it also creates a separately inspectable and replaceable connection part. That can suit operations whose maintenance system, field kits, and rod-changing process are already organized around sleeves.

Male–female speed rods

An MF rod has an internal thread integrated into one end and an external thread at the other. The female end receives the preceding male connection; the male end continues toward the next rod or threaded bit according to the approved string layout. Separate rod-to-rod coupling sleeves are not used in the normal MF sequence.

The integrated connection reduces loose parts at each extension step. However, wear or damage in the female end belongs to the rod assembly, not to a separate sleeve. Inspection and replacement economics therefore differ from a male–male string.

When a T38 male–male extension rod is the stronger choice

Favor the male–male architecture when most of these conditions apply:

• The installed string already uses T38 coupling sleeves.
• The rig, carousel, handling procedure, and breakout tooling are configured for male rods and sleeves.
• The site stocks and inspects sleeves as a separate wear item.
• Replacement consistency matters more than changing the string architecture.
• The supplier can match the existing rod length, body, flushing passage, and thread details.
• The maintenance team wants the option to remove a worn sleeve without replacing an integrated female end.

PerfoMax’s current active T38 extension drill rod page is specifically defined around the male–male configuration in 3050, 3660, 4270, and 4880 mm options. Those listed lengths are commercial options, not proof that every length will suit every feed or rod handler.

When an MF speed rod deserves evaluation

Evaluate an MF string when the rig and drilling program benefit from direct rod-to-rod connections and the complete system has been verified for them. Relevant considerations include:

• Mechanical rod handling or automation designed for MF rods
• A need to reduce separate coupling handling and sleeve inventory
• Long-hole or production drilling where connection stability and straightness are important
• A planned system conversion rather than an emergency one-for-one replacement
• Availability of matching first-rod, shank, bit, breakout, and service procedures

OEM information supports the use of MF rods in production and long-hole systems, but that does not mean every T38 MF product can be installed in every T38 rig. Sandvik lists specific rock drills and hole ranges with T38/T45 MF rods, while Epiroc lists both extension rods and speed rods within its T drill-string range. These examples reinforce the need to match the rod architecture to the particular equipment and approved tool string.

Do not compare the rods by unit price alone

Compare total cost per drilled meter and per available shift. Include rods, sleeves, thread wear, lost or damaged loose components, change time, unplanned stoppage, inventory breadth, and the cost of any conversion work. A lower rod price can be a false saving if it creates a nonstandard mixed string.

Five compatibility checks before changing architecture

1. Map the existing string. Record rock drill model, shank adapter, first rod, every rod end type, couplings, bit, and flushing path.
2. Verify the rig interface. Check feed length, carousel pockets, rod grippers, centralizers, breakout jaws, and extractor settings against the proposed rod drawing.
3. Confirm every thread interface. Use exact product references or controlled drawings. Do not rely on a field description such as “standard T38.”
4. Check operational limits. Confirm hole diameter, depth, percussion class, flushing requirement, and planned rod sequence with the equipment and tool suppliers.
5. Control the change. Trial a documented set, inspect connections after the agreed interval, and keep old and new inventory clearly separated.

Feed length and rod handling can decide the answer

A rod that is technically compatible at the thread can still be unusable on the rig. Overall length must fit the feed and handling sequence. The integrated female end can also change the outside profile at the connection area. Verify clearance through guides and centralizers, the gripper contact area, the breakout location, and the rod rack or carousel pocket.

For manual operations, consider how sleeves are carried, identified, cleaned, lubricated, and prevented from falling or becoming mixed. For mechanized handling, follow the rig maker’s procedures and keep personnel outside the operating envelope during movement.

Thread care and inspection differ in practice

Both systems require clean, correctly lubricated threads and inspection according to the equipment and tool supplier’s instructions. Look for damaged crests, asymmetric wear, galling, pitting, cracks, deformation, corrosion, incomplete make-up, and joints that become abnormally difficult to connect or release.

With male–male rods, inspect the sleeve as its own component and do not assume a new rod can compensate for a worn or damaged coupling. With MF rods, inspect the integrated female end as part of the rod’s acceptance decision. Never force a joint that does not start and engage normally; stop and confirm identity, cleanliness, alignment, and condition.

Avoid mixed-string shortcuts

The highest-risk field mistake is building a hybrid string because the visible thread appears to start. Partial engagement or the wrong shoulder relationship can concentrate stress, damage the thread, make uncoupling difficult, or create a downhole failure. Avoid these shortcuts:

• Connecting components by nominal thread name without part-number verification
• Using an adapter to conceal an unapproved architecture change
• Mixing rods with different effective lengths in an automated cycle
• Reusing an unidentified coupling with a new extension rod
• Combining brands or revisions without documented dimensional confirmation
• Changing rod type while leaving the ERP, bin labels, and RFQ description unchanged

RFQ checklist for T38 rods

Send enough information for the supplier to reproduce or verify the complete connection:

• Required architecture: male–male extension rod or male–female speed rod
• Existing rod manufacturer, part number, and clear photos of both ends
• Rock drill and shank adapter model
• Thread designation and controlled drawing where available
• Overall and effective length
• Rod body diameter and profile
• Flushing-hole requirement
• Coupling sleeve part number for a male–male string
• Bit thread and diameter
• Rig, feed, rod handler, and planned hole depth
• Quantity, required delivery date, and packaging or identification needs

If the existing string is male–male, start with the active PerfoMax T38 extension rod options. For a different configuration, send the complete interface and equipment details for technical confirmation rather than treating “T38” as the full specification.

Frequently asked questions

Is a T38 MF rod interchangeable with a T38 male–male extension rod?

Not automatically. The nominal thread family may match, but the end architecture, coupling arrangement, overall profile, length, handler fit, first-rod layout, and approved equipment string must also match.

Does an MF rod need a separate coupling sleeve?

Not for the normal MF rod-to-rod connection. The female thread is integrated into one rod end. The complete string still needs the correct shank, first connection, and bit arrangement.

Is an MF speed rod always faster?

No universal result should be assumed. It can reduce separate coupling handling in a compatible system, but net drilling performance also depends on the rig, automation, hole plan, rock, operating parameters, thread condition, and crew procedures.

Can I replace only a worn coupling in an MF string?

The female connection is part of the MF rod, so it is not a separate sleeve. Its condition is evaluated with the rod. In a male–male string, the separate coupling sleeve can be inspected and replaced as its own component.

What is the safest way to identify an unknown T38 rod?

Use the product number and equipment records first. Then document both end types, body, overall length, flushing bore, and connection dimensions. Ask the equipment or tool supplier to verify the match before ordering or field assembly.

Technical references

• Epiroc T drill strings — OEM overview of T-thread systems, applications, extension rods, and speed rods.
• Sandvik top hammer drilling tools — OEM overview of drill-string energy transfer, MF rods, hole straightness, and application families.
• Sandvik RD921 rock drill — example of an equipment-specific T38/T45 MF-rod application.
