Direct answer: a DTH hammer piston should not be condemned from low penetration rate alone. Piston wear is more convincingly identified by a combination of performance symptoms, physical evidence such as scoring, pick-up, burning, cracking or abnormal impact-face wear, and dimensional checks against the service limits for the exact hammer model. Poor lubrication, contamination, damaged mating surfaces and incorrect assembly can create similar symptoms—and can also be the root cause of the piston damage.
This guide is for mine, quarry, water-well and drilling-service teams troubleshooting a DTH hammer that has lost impact, become erratic, overheated or shown abnormal internal wear. The objective is to separate a true piston problem from air-supply, lubrication, bit, chuck or other hammer faults before unnecessary parts are replaced.
1. What the Piston Does Inside a DTH Hammer
In a conventional pneumatic DTH hammer, compressed air drives the piston through a repeating reciprocating cycle. The piston accelerates inside the wear sleeve or cylinder and transfers impact energy to the bit through the front end of the hammer. Because the piston works at high frequency with small engineered clearances, lubrication, cleanliness and the condition of mating surfaces directly affect its ability to move freely and seal air effectively.
That is why piston condition cannot be judged in isolation. A piston may look serviceable while excessive clearance elsewhere reduces performance, or it may show scoring because the real failure started with poor oil delivery, debris ingress or a damaged internal component.
2. Symptoms That Can Point to Piston Wear—but Are Not Proof
| Observed symptom | Possible piston-related mechanism | Other faults to rule out first |
|---|---|---|
| Gradual loss of penetration rate | Wear or clearance loss may reduce impact efficiency | Worn bit, poor flushing, low air pressure/flow, rock change, worn chuck or other internal wear |
| Weak or irregular impact | Piston may be sticking, leaking air past worn surfaces or moving inconsistently | Air restriction, valve/foot-valve issue where applicable, contamination, lubrication failure |
| Hammer overheats | Scuffing or seizure risk may create abnormal friction | Insufficient oil, wrong lubricant viscosity, blocked air path, incorrect operating conditions |
| Metallic debris in service oil or inside hammer | Active internal wear or surface damage may be occurring | Wear from chuck, wear sleeve, bearings or other steel components |
| Hammer stops or becomes difficult to cycle | Severe galling or seizure can prevent piston movement | Foreign material, broken component, water/debris contamination, incorrect assembly |
Key rule: treat performance symptoms as a reason to inspect, not as a diagnosis. Current OEM troubleshooting guidance commonly lists several possible causes for slow penetration or poor hammer operation, including lubrication, contamination and worn drilling parts. A piston becomes the leading suspect only after the system-level causes are checked.
3. Five Piston Conditions to Look for During Inspection
3.1 Longitudinal scoring or scratches
Light polishing marks can occur in normal service, but deep longitudinal scoring is a warning sign. It can indicate abrasive particles between the piston and wear sleeve, damaged mating surfaces, inadequate lubrication or localized contact caused by abnormal clearance. Do not simply polish a badly scored piston and return it to service without finding the source of the damage.
3.2 Pick-up, smearing or galling
Transferred metal, rough raised areas or smeared surfaces indicate abnormal metal-to-metal contact. OEM service guidance associates this type of pick-up or burning with lubrication problems. If the surface has overheated, cracked or materially deformed, replacement is normally safer than cosmetic rework unless the exact hammer manual explicitly permits a repair procedure.
3.3 Heat discoloration or burning
Blue, darkened or burned areas are evidence that local temperature has been too high. The piston is an air-lubricated precision component; inadequate oil delivery can destroy the lubricating film and allow rapid scuffing or seizure. When heat damage is found, inspect the lubricator, oil grade, oil rate, air line, water conditions and oil passages before installing a new piston.
3.4 Cracks, chips or impact-face damage
Cracks require immediate attention. The striking end should also be checked for abnormal indentation, chipping, deformation or a wear pattern outside the manufacturer's acceptable limit. Some OEM manuals allow limited re-machining for specific impact-face wear conditions and dimensions, but those limits are model-specific. Do not transfer one hammer family's numerical limit to another.
3.5 Diameter loss and excessive running clearance
External appearance is not enough. Measure the piston at the locations specified in the service manual and compare the results with the matching wear sleeve/cylinder condition. Maximum wear, ovality and clearance limits vary by hammer design. If the supplier cannot provide a controlling limit or service drawing, do not invent one from another brand's manual.
4. An 8-Step Piston Inspection Workflow
- Record the symptom before disassembly. Note air pressure and flow at the hammer, penetration change, impact sound, oil delivery, water conditions and when the problem started.
- Confirm the exact hammer identity. Record brand, model, size, serial/part number where available, shank/bit family and whether the design uses a foot valve/blow tube or is valveless.
- Clean the exterior before opening the hammer. Prevent new dirt from entering during service. Work on a clean bench and keep components in assembly order.
- Inspect lubricant evidence. Note whether internal surfaces are adequately oiled, unusually dry, contaminated with water, or carrying metallic debris. A dry hammer changes the direction of the diagnosis immediately.
- Inspect the piston visually. Look for scoring, pick-up, heat discoloration, cracks, chipping, abnormal end-face wear and localized polishing.
- Inspect mating components. Check the wear sleeve/cylinder, chuck, bit interface and relevant air-control components. A new piston installed against a damaged mating surface may fail again quickly.
- Measure against the correct service limits. Use calibrated tools and the exact model's manual, drawing or supplier limits. Record measurements instead of relying on a visual pass/fail judgment.
- Decide repair, reuse or replacement only after root cause review. If the piston is replaced, correct lubrication, contamination, assembly or mating-part issues at the same time.
5. Why DTH Pistons Gall, Score or Crack
Repeated piston failures are usually more important than the failed piston itself. Replacing the component without correcting the mechanism can turn a service part into a recurring downtime cost.
| Root cause area | How it damages the piston | What to verify |
|---|---|---|
| Insufficient lubrication | Loss of oil film increases friction, heat, galling and seizure risk | Correct rock-drill oil, lubricator function, oil rate and uninterrupted delivery |
| Wrong oil for temperature/conditions | Oil may not atomize or protect surfaces as intended | OEM viscosity guidance and ambient/wet-drilling condition |
| Dust or abrasive contamination | Particles score precision surfaces and accelerate clearance growth | Clean air line, capped connections, clean service bench and storage practice |
| Water contamination or poor shutdown practice | Can wash lubricant away or promote corrosion and sticking | Wet-drilling lubrication, water management and post-shift storage procedure |
| Damaged wear sleeve/cylinder | Piston runs against an already damaged or oversized mating surface | Internal diameter, scoring, ovality and manufacturer wear limit |
| Incorrect assembly or mixed parts | Wrong clearances, interfaces or component stack can create abnormal contact | Exact hammer parts list, orientation and matched service kit |
6. Can Low Penetration Rate Be Caused by a Worn Piston?
Yes, but it should be treated as one branch of the diagnosis. A worn or damaged piston can reduce useful impact or become unstable, but low ROP can also come from a worn drill bit, poor bit-to-hammer matching, insufficient compressor delivery, blocked flushing, excessive back pressure, difficult ground or other worn hammer parts.
A better sequence is:
- verify the rock and hole conditions have not changed;
- check the bit condition and gauge;
- confirm compressor pressure and airflow at operating load;
- confirm lubrication and water conditions;
- check for air leaks or restrictions;
- then inspect internal hammer wear, including the piston.
This prevents a common maintenance mistake: changing an expensive internal part when the performance loss is actually upstream.
7. When Should a DTH Hammer Piston Be Replaced?
Replacement is justified when the piston fails the exact hammer's dimensional limit, has cracks or unacceptable impact-face damage, has severe galling/pick-up, has heat damage that compromises the surface, or cannot move correctly after the root cause and mating components have been addressed.
Do not use a universal replacement dimension. Piston diameter, impact-face geometry, permitted re-machining and running clearances are specific to the hammer family. For procurement and field service, the controlling evidence should be the OEM/service supplier manual, drawing or documented wear criteria for the exact model.
8. Replacing the Piston: What Else Should Be Checked?
- wear sleeve/cylinder condition and internal diameter;
- chuck and bit shank contact areas;
- top sub and air passages;
- check valve and other air-control components for the specific architecture;
- foot valve/blow tube condition where the hammer design uses one;
- O-rings, seals and service-kit components;
- lubricator, oil grade and actual oil delivery;
- air-line cleanliness and water-management practice.
For a remote site, it is often more economical to pair piston replacement planning with a DTH hammer spare-parts plan rather than waiting for each failure to stop the rig.
9. What to Send in an RFQ for Piston or Hammer Service Parts
- hammer manufacturer and exact model;
- hammer size and bit/shank family;
- serial number or existing part number if available;
- clear photos of the hammer and removed piston;
- piston measurements and measurement locations;
- photos of scoring, burning, cracks or impact-face damage;
- wear sleeve/cylinder measurements if available;
- operating pressure and compressor information;
- lubricant type, oil rate and wet/dry drilling condition;
- quantity required and whether a complete service kit is needed.
If your hammer identity or internal part number is uncertain, send the complete information before ordering. Similar outside diameters do not guarantee internal-part interchangeability.
10. Common Piston-Maintenance Mistakes
- diagnosing piston wear from low ROP alone;
- replacing a piston without measuring the wear sleeve/cylinder;
- polishing severe galling without correcting the lubrication failure;
- copying wear limits from another hammer brand or model;
- assembling cleaned parts on a dirty bench;
- restarting after a seized/overheated event without checking oil delivery;
- ordering by hammer diameter only instead of exact model and part identity.
FAQ
How do I know if a DTH hammer piston is worn?
Use a combination of symptoms, visual evidence and measurements. Scoring, galling, burning, cracks, abnormal impact-face wear and dimensions outside the exact model's service limits are stronger evidence than slow drilling alone.
Can a worn piston cause weak impact or low penetration?
Yes, but those symptoms are not unique to the piston. Check bit condition, compressor delivery, lubrication, flushing, contamination and other internal wear before concluding that the piston is the cause.
Can a scored DTH piston be polished and reused?
Only when the exact service procedure permits it and the final surface and dimensions remain within specification. Deep scoring, heat damage, cracks or severe pick-up normally require replacement and root-cause investigation.
What usually causes DTH piston galling?
Insufficient lubrication is a major cause, but contamination, damaged mating surfaces, wrong lubricant for the operating condition and assembly problems can also contribute. Inspect the whole lubrication and internal wear system.
Should the piston and wear sleeve always be replaced together?
Not automatically. Both should be measured and inspected as a matched running pair. Replace whichever components are outside their model-specific limits or damaged in a way that would compromise the new part.
PerfoMax DTH Hammer Support

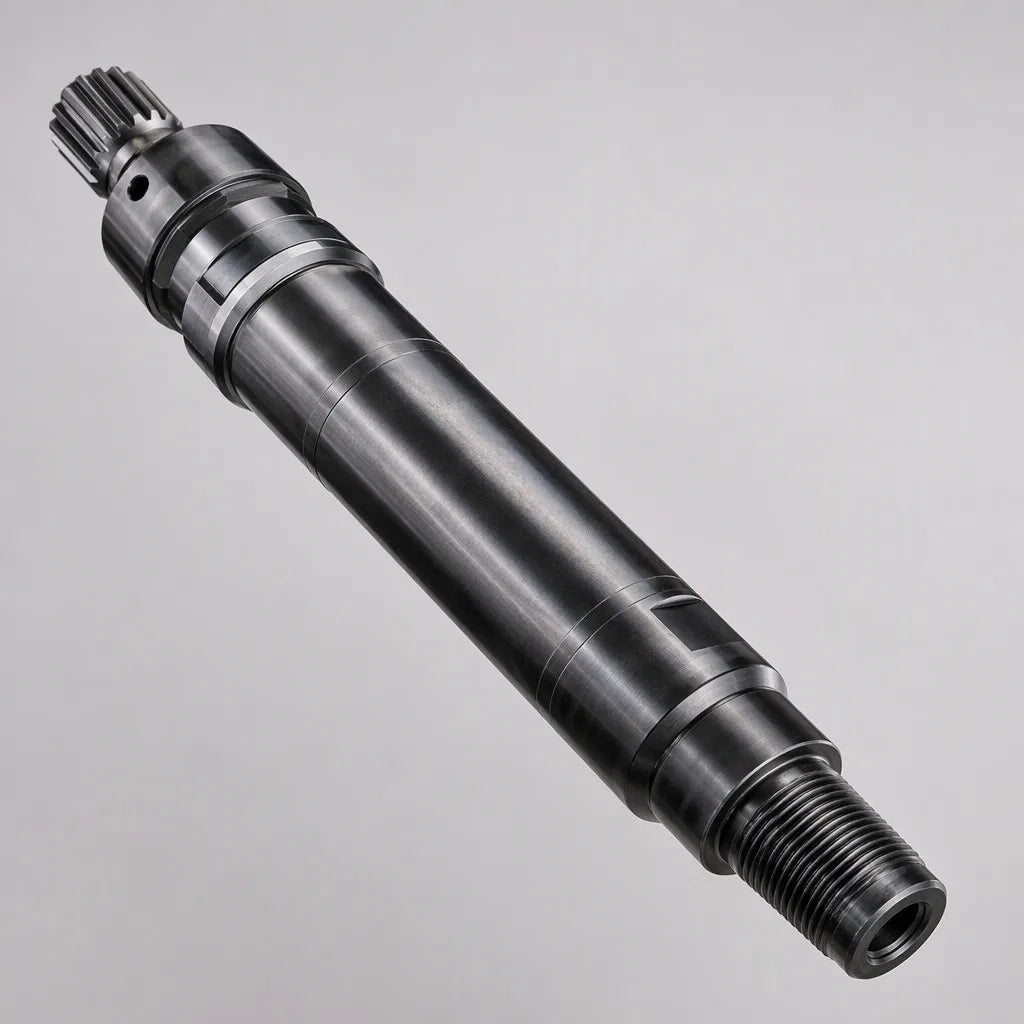

PerfoMax's current DTH range includes the CIR90 low-pressure DTH hammer and related products in the DTH Tools collection. For daily prevention, see the DTH Hammer Daily Inspection Checklist and DTH Hammer Lubrication Guide.
