Air-leg rock drills—often called jackleg or pusher-leg drills—can remain relevant in narrow-vein underground mines where the working opening, access or mining method does not suit larger mechanized drilling equipment. That does not make a jackleg the automatic choice for every narrow opening. The mine must first decide whether handheld pneumatic drilling fits the approved mining method, ground-support sequence, ventilation, compressed-air capacity, water supply, worker-exposure controls and site safety rules.
For procurement, the practical rule is to buy a complete drilling system rather than a bare machine. The rock drill, air leg, drill steel, bit, air and water hoses, line oiler, couplings, compressor capacity, spare parts and service plan must work together at the face. This guide helps mines, contractors and distributors prepare that decision and RFQ. It does not design the mine, ground support, blast round, charging plan or safe work procedure.
Start with the mining constraint, not the model name
NIOSH research describes jackleg drills as common in underground metal mines and notes that they are used where opening size, ground conditions or the mining method do not permit larger mechanized equipment. The same research also records significant accident exposure, especially around the face and incomplete ground support. Those two facts must be considered together: restricted access can explain why a jackleg remains practical, but restricted access is not permission to bypass a safer mechanized method or an approved support sequence.
Use the following gate before comparing models.
| Decision question | Continue evaluating an air-leg system when | Stop and obtain an engineering/site decision when |
|---|---|---|
| Can the approved equipment enter and work in the opening? | The opening and access are compatible with handheld/air-leg equipment and the mine has approved its use | A mechanized alternative is required, or the working envelope and escape route are not defined |
| Is the drilling direction compatible with the tool and support arrangement? | The manufacturer and mine procedure cover the required orientation and feed setup | The planned orientation requires a different tool class, support or work method |
| Can the face receive enough compressed air and flushing water? | Dynamic pressure/flow and water delivery can be verified at the operating point | Only compressor nameplate data are known, or pressure collapses when several tools run |
| Is the drill-steel and bit system controlled? | Shank, H22 steel, taper, length and bit are specified as one compatible string | Existing tools are identified only by appearance or a generic name |
| Are exposure and work controls approved? | Training, ground control, hose routing, dust/noise/vibration controls and maintenance are in place | The procurement team is being asked to solve a mine-design or safety gap by selecting a model |
The Air-Leg Rock Drill Selection Guide covers the general system-selection logic. This page goes one level further into the narrow-vein application and the information a buyer needs to turn that application into a controlled order.
Separate narrow-vein application from narrow-tunnel setup
“Narrow vein” describes the orebody and mining context; “narrow tunnel” describes a restricted opening. They often overlap, but they are not the same page task. A narrow-vein project may include development headings, stoping areas, raises, crosscuts and service work, each with a different approved method. A narrow tunnel page can explain how equipment, hoses and drill steel fit inside a restricted heading without deciding whether the overall mining method should use jacklegs.
Use the Air-Leg Rock Drilling in Narrow Tunnels Guide when the method is already approved and the question is the working envelope, hose routing, feed geometry and flushing arrangement. Use this narrow-vein guide earlier, when the buyer must define the application, decide whether an air-leg package is appropriate, and prepare a complete procurement brief.
Do not reduce the decision to “YT28 or YT29A.” A familiar model name does not prove that the available air, steel, bit, water, access, operator controls or service support are correct for the mine.
Define the complete air-leg drilling chain
An air-leg drill is the center of a system, not the whole system:
Compressor and distribution → isolation and hose → line oiler → rock drill and air leg → shank and drill steel → tapered bit → water flushing → trained operator and approved work area.
A mismatch anywhere in that chain can appear as a weak or unreliable drill. Low dynamic pressure at the face can look like poor machine performance. An incorrect or worn shank can damage the chuck. A long, undersized hose can create pressure loss. Wrong lubricant or an empty line oiler can accelerate wear. A steel or bit mismatch can prevent efficient energy transfer even when the machine itself is sound.
For the air side, record the required tool-inlet pressure and air consumption from the selected manufacturer's data, then calculate simultaneous demand for the number of tools expected to run—not the number purchased. Include realistic duty, distribution losses and other air users, and verify the result at the working face. The Mixed-Fleet Compressor Sizing Guide explains why compressor nameplate capacity alone is not enough.
For the hose side, specify internal diameter, total route length, coupling and inlet interfaces, working-pressure rating and the site's restraint/isolation requirements. The Pneumatic Rock Drill Air Hose Sizing Guide provides the measurement and pressure-drop questions that belong in the package review.
For lubrication, identify the approved rock-drill oil, line-oiler type, installation point, inspection routine and cold/hot-condition requirements. Do not substitute an available engine or hydraulic oil without the equipment manufacturer's approval. The Pneumatic Rock Drill Lubrication Guide separates oil selection, oiler setup and daily checks.
Match drill steel length to the actual working cycle
Narrow-vein work often makes handling space as important as nominal drilling depth. The buyer should define the approved hole purpose and length, available setup distance, collar position, feed-leg geometry, steel-change method and transport route. A longer steel is not automatically more productive if it cannot be positioned, controlled or removed in the available opening.

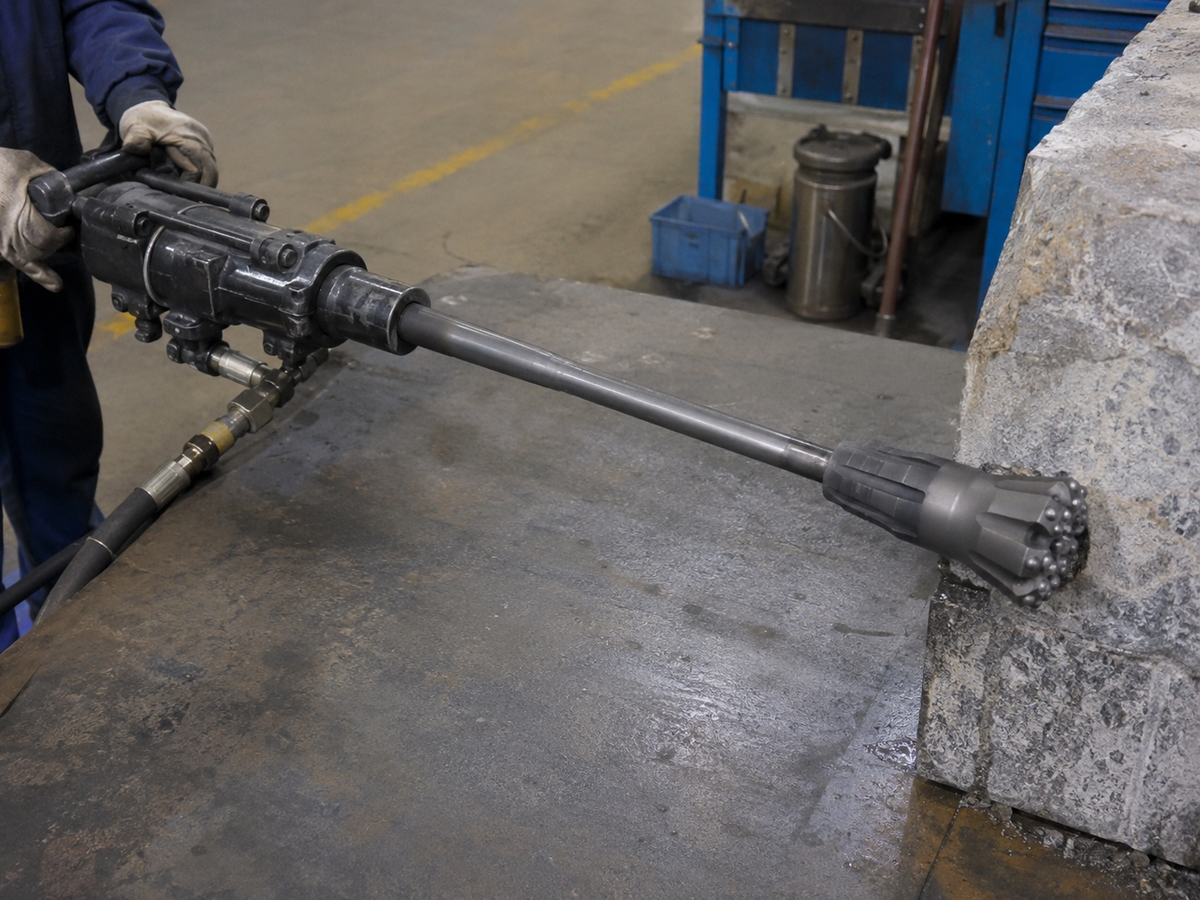

For tapered air-leg systems, record the required shank size and length, H22 steel length, taper angle and bit diameter as linked interfaces. The H22 Tapered Drill Rod Length Guide provides a structured way to match available lengths to hole depth and handling. The final combination must follow the selected drill and tool manufacturer's specifications and the mine's procedure.
Do not publish or purchase from a generic claim such as “drills up to X metres” without the assumptions. Rock condition, fracture, flushing, pressure at the tool, steel condition, bit selection, operator practice and approved drilling method all affect what can be achieved.
Build the RFQ around the mine's operating inputs
The supplier should not have to infer the application from a model name. A useful narrow-vein RFQ includes:
| Input group | Information to provide |
|---|---|
| Mine and application | Underground narrow-vein mine; development, production, support or service drilling; working orientation; relevant opening/access limits |
| Hole requirement | Hole purpose, target diameter and depth range, rock description and water conditions, subject to mine-engineering approval |
| Operating quantity | Tools running at the same time, number of shifts, expected standby requirement and planned maintenance arrangement |
| Compressed air | Available FAD, distribution pressure, dynamic pressure at the face, hose length/ID and other simultaneous air users |
| Water/flushing | Available water pressure/flow, connection and the approved dust-control/flushing method |
| Drill and air leg | Requested model only if already controlled; otherwise performance/application inputs, air-leg length/interface and drilling orientation |
| Drill string | Shank, H22 steel lengths, taper angle, bit type/diameter and compatibility with existing stock |
| Accessories | Air and water hoses, couplings, line oiler, hose restraints, protectors, tools and any required starter steels |
| Service package | Initial consumables, critical spares, maintenance documents, parts identification and training/document expectations |
| Commercial data | Quantity, destination, voltage only if auxiliary equipment requires it, Incoterm, packing, documents and requested inspection evidence |
The quantity of standby drills and spares should come from the mine's availability target, repair turnaround, shift pattern and supply lead time. This guide does not prescribe a universal spare ratio.
Ask for evidence that the delivered package matches the decision
A quotation is not complete merely because it contains the requested model number. Before order approval, the buyer should be able to trace each system interface to a controlled source: the supplier's data sheet, approved drawing, quotation line, parts list or agreed inspection plan.
At minimum, verify:
- exact drill and air-leg identity and the interface between them;
- shank/chuck arrangement and compatible steel/bit system;
- air and water inlet threads, couplings and hose requirements;
- rated air demand and operating-pressure basis stated by the manufacturer;
- supplied line oiler, hoses, fittings, accessories and tools;
- parts manual, operating/maintenance documents and spare-parts identification;
- functional-test evidence and pre-shipment configuration check agreed in the order;
- preservation, port protection, packing-list mapping and export packing.
Do not treat a short unloaded running video as proof of field performance. A no-load test can confirm some basic functions, but it does not reproduce the mine's rock, feed, flushing, hose route or simultaneous air demand. Establish the acceptance sequence before shipment, then commission the delivered system under the mine's approved procedure.
Keep procurement separate from mine design and safe work control
Jackleg drilling involves rotating steel, pressurized hoses, noise, vibration, dust and underground ground-control risks. NIOSH and MSHA material shows why task training, work-area control, approved support, hose routing, isolation and stopping rotation before intervention matter. Procurement content must not turn those principles into a substitute for the mine's legal duties, engineering design or manufacturer instructions.
The buyer should require the supplier documentation needed for training and maintenance, but the mine remains responsible for deciding where and how the equipment can be used. If the method would place personnel under unsupported ground, requires unapproved drilling orientation, exceeds the equipment specification or cannot control air, water, dust, noise or vibration exposure, stop the equipment-selection exercise and resolve the site decision first.
Move from application decision to a model-matched quotation
Use the Rock Drills collection as the commercial product-family owner. For a model-matched proposal, send the application, target hole range, working orientation, simultaneous-tool count, face air data, hose route, water/flushing data, existing shank/steel/bit system, required air leg, spares, destination and inspection/packing requirements through Request a Quote.
PerfoMax should confirm the exact offered configuration against current product and supplier records. This guide does not promise that every model, air leg, hose, accessory, document or customization is available for every order.
FAQ
Are air-leg rock drills still suitable for narrow-vein mining?
They can be suitable where restricted access or the approved mining method does not support larger mechanized equipment, but suitability must be decided with ground control, exposure controls, air/water capacity, equipment instructions and site rules—not from vein width alone.
Is a narrow-vein page the same as a narrow-tunnel drilling guide?
No. Narrow-vein mining is the application and mining context. A narrow-tunnel guide addresses equipment setup inside a restricted opening after the work method has already been approved.
What should be purchased with the rock drill?
Typically the decision must cover the air leg, compatible drill steel and bits, hoses and couplings, line oiler, flushing interfaces, required accessories, initial spares, manuals and the agreed inspection/packing evidence. The exact package depends on the selected model and mine.
How many drills can one compressor run?
Use manufacturer air-consumption data, simultaneous-tool count, duty, distribution losses, other air users and dynamic pressure at the face. Do not divide compressor nameplate flow by one catalog figure and treat the result as guaranteed.
Can the supplier design the blast round from the rock-drill RFQ?
Not through this guide. Hole pattern, charging, ground support and the mining cycle require competent mine engineering and compliance with local law and site procedures.
