Direct answer: T38 is a top-hammer drill-string thread-family designation. It tells a buyer which connection family a rod, coupling, shank adapter, or bit is intended to use. It does not, by itself, define the rod body diameter, body profile, flushing-hole size, rod length, end configuration, bit diameter, or complete cross-brand compatibility.
That distinction matters when reading a catalog, identifying an unmarked component, or preparing an RFQ. “T38” is one field in the specification—not a complete description of the tool.
What does T38 mean?
The letter identifies the T-series top-hammer connection family, commonly described in the drilling market as a trapezoidal-style thread family. The number 38 is the nominal size used to identify that connection system. Together, “T38” is an established commercial designation that lets the drill-string components be discussed as one connection family.
However, the marking should not be treated as a substitute for the controlled thread drawing or gauge. The actual crest, root, flank, pitch, lead-in, shoulder, and tolerance details determine whether two parts mate and carry impact safely. When a component is unknown, worn, or from a different source, confirm those details against an OEM or supplier drawing rather than relying on the stamped code alone.
Major top-hammer manufacturers list T38 alongside other T-series connections such as T35, T45, and T51. They also list R-series connections separately. This is useful evidence that the letter and number identify a connection family—not merely a measured outside diameter.
Does T38 mean the rod body is 38 mm?
No. The “38” in T38 should not be interpreted as a promise that every part of the rod body measures exactly 38 mm. A rod has several distinct regions: the thread, shoulder or runout, main body, wrenching or drive features where applicable, and the internal flushing passage. The dimensions of those regions can differ.
A supplier may offer T38 rods with different body constructions for different drilling systems or service conditions. Round and hexagonal bodies are also described differently: round bodies are normally specified by outside diameter, while hexagonal bodies are commonly specified by width across flats. Those body dimensions must appear as separate fields on the quotation or drawing.
| Specification field | What it controls | Does “T38” define it alone? |
|---|---|---|
| Thread family | Connection identity at the threaded end | Yes, at designation level |
| Rod body size and profile | Rig handling, stiffness, clearance, and wear surface | No |
| Flushing passage | Air or water path through the string | No |
| End style | Male–male extension rod or male–female speed rod arrangement | No |
| Rod length | Feed compatibility and drill-string assembly | No |
| Bit or hole diameter | Cutting diameter and annular flushing space | No |
T38 is not the same as R38
T38 and R38 share the number 38, but the letter identifies a different thread family. Their profiles and mating geometry are not interchangeable merely because the nominal number matches. Trying to start one into the other can create misleading partial engagement, concentrated contact, thread damage, or a connection that cannot transmit impact as designed.
For field identification, begin with the entire marking. Then compare the thread profile, pitch, major diameter, shoulder form, and a known mating component or approved gauge. The published guide on identifying R32, T38, and T45 top-hammer threads provides a practical measurement workflow. If the marking is incomplete or the thread is heavily worn, send clear photographs and measurements to the supplier before ordering.
Does T38 define the bit diameter or hole size?
No. T38 identifies the connection between compatible components. The bit diameter is a separate cutting specification selected around the hole requirement, drilling conditions, drill-string configuration, flushing capability, and the bit designs available from the supplier.
Two T38 bits may have the same thread family but different cutting diameters, face designs, button layouts, or flushing arrangements. Likewise, a T38 rod can be used in more than one drilling setup. A buyer should therefore state both the connection and required bit diameter; never replace one field with the other.
Where T38 sits in the top-hammer drill string

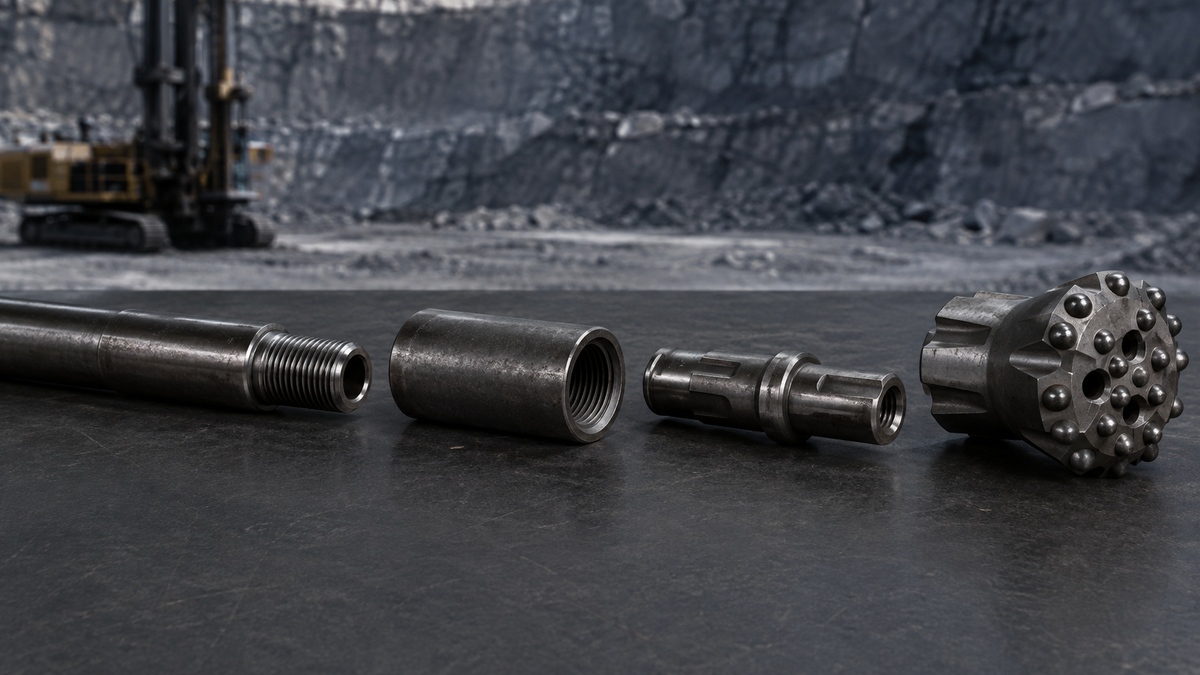

In top-hammer drilling, impact and rotation travel from the rock drill through a connected string to the bit. The thread designation must be traced through every relevant interface:
- Rock drill and shank adapter: confirm the rock-drill model and the shank adapter’s drill-string output thread.
- Shank adapter and coupling: confirm that the coupling is made for the same connection family and expected component format.
- Coupling and extension rod: confirm both rod ends, not only one photographed end.
- Rod and bit: confirm the bit’s connection as well as its cutting diameter and face design.
A single T38 marking on one component does not prove that the rest of the string is correct. This is especially important when a site has mixed inventory, replacement parts from several suppliers, or rods that have lost their original markings.
Male–male extension rod versus male–female speed rod
End configuration is another field that T38 does not settle. A conventional extension rod has a male thread at each end and joins through a separate coupling sleeve. A male–female, or MF, speed rod integrates a female connection at one end, reducing the number of separate couplings in that part of the string.
Both configurations may be described with the same thread-family designation, yet they are not the same purchasing item. An RFQ that states only “T38 drill rod” leaves the end style unresolved. State “male–male extension rod” or “T38 MF speed rod,” and support that text with end photographs or a drawing where practical.
How to read a T38 rod description
Supplier naming formats vary, but a useful description should separate the connection from the remaining attributes. Read each part independently:
- Connection: T38 at each relevant end.
- Component type: extension rod, guide rod, speed rod, coupling, shank adapter, or bit.
- Body: round or hexagonal, with the stated outside diameter or across-flats dimension.
- End configuration: male–male, male–female, or another explicitly drawn arrangement.
- Length basis: overall length or effective length, with the supplier’s definition.
- Flushing passage: bore and inlet/outlet arrangement shown on the controlled drawing.
A notation such as “T38–[body]–T38 × [length]” may be used as a convenient shorthand, but it is not universal. The supplier’s quotation and approved drawing should control the final interpretation.
Can T38 parts from different brands be mixed?
The matching designation is necessary, but it is not sufficient proof of full system compatibility. New, correctly manufactured T38 components may be designed to the same commercial connection family, yet cross-source mixing still requires verification of profile, tolerance, shoulder contact, component length, flushing path, and the operating limits of the rock drill.
Wear complicates the decision. A new rod fitted into a badly worn coupling can produce uneven contact, movement, heat, and accelerated damage even when both parts were originally T38. Do not use thread engagement by hand as the only acceptance test. Follow the rock-drill and drill-string supplier’s inspection limits and replace worn mating components as a controlled set where required.
For a broader pre-purchase comparison of adjacent connection families, see T38 vs T45 top-hammer thread selection.
What should you measure before requesting a quotation?
First clean the part and isolate stored energy. Do not measure a component while it is connected to a pressurized or suspended drill string. Photograph a steel rule beside the part for scale, but use suitable measuring tools for the actual dimensions.
| Evidence to collect | Why the supplier needs it |
|---|---|
| Full component and both ends | Identifies component type and end configuration |
| All legible markings | Preserves the original designation and traceability clues |
| Thread profile close-up | Helps distinguish T-series from R-series or damaged threads |
| Major diameter and pitch | Supports connection-family verification |
| Body OD or hex across-flats size | Defines a field that T38 alone does not provide |
| Flushing-hole diameter | Confirms the internal flow passage |
| Overall and effective length basis | Prevents feed and assembled-length errors |
| Rock-drill, shank-adapter, coupling, and bit references | Checks the complete interface chain |
Common T38 specification mistakes
- Ordering a “38 mm rod” instead of a T38 connection. A body measurement is not a thread-family identification.
- Substituting R38 because the number matches. The family letter is part of the designation.
- Assuming T38 fixes the bit diameter. Connection and cutting diameter are separate fields.
- Ignoring male–male versus MF. The same thread family can appear in different end configurations.
- Mixing overall and effective length. Ask the supplier to state the length reference on the drawing.
- Approving by hand fit alone. Partial engagement does not verify profile, tolerance, shoulder contact, or safe serviceability.
- Reusing a worn coupling with a new rod without inspection. The mating pair must meet the supplier’s wear criteria.
T38 drill rod RFQ checklist
Before sending an inquiry, include the following:
- rock-drill make and model;
- shank-adapter reference and output thread;
- T38 connection required at each interface;
- extension rod or MF speed rod;
- male–male or male–female end arrangement;
- round or hexagonal body and the required body dimension;
- overall/effective length and the definition used;
- flushing-hole requirement;
- coupling sleeve requirement;
- bit connection, bit diameter, and application;
- photographs, markings, and an approved sample or drawing for substitution work.
PerfoMax lists T38 male–male extension drill rods in inquiry lengths from 3,050 to 4,880 mm. Round or hex body and the flushing passage are confirmed on the quotation drawing; MF speed rods are treated as a separate configuration. The final quotation and drawing should control dimensions and tolerances.
Frequently asked questions
What does the “T” in T38 stand for?
It identifies the T-series top-hammer thread family, commonly described in the market as a trapezoidal-style family. For purchasing, treat “T38” as the complete connection designation and verify the actual profile against the supplier’s controlled data.
Is T38 an exact 38 mm measurement?
No. The number is the nominal system designation. It should not be used as an exact acceptance dimension for the thread, rod body, coupling, or flushing hole.
Can a T38 rod use an R38 bit?
No substitution should be approved solely because both designations contain “38.” T38 and R38 are different connection families; confirm the bit and rod use the same approved thread.
Does every T38 rod use a separate coupling?
No. Male–male extension rods normally use a separate coupling sleeve. MF speed rods integrate a female connection at one end. The required arrangement must be stated separately.
What is the minimum information needed to identify an unknown T38 rod?
Provide clear photos of the complete rod and both ends, all markings, thread major diameter and pitch, body OD or hex across-flats size, flushing bore, length, and the mating shank adapter, coupling, and bit references.
Specify the connection—and the rest of the rod
T38 is a useful starting point because it names the connection family. A reliable order continues beyond that starting point: component type, end style, body profile, body dimension, flushing passage, length basis, mating parts, and application must all be confirmed. For a T38 extension-rod quotation, send PerfoMax the complete drill-string references, photographs, and required dimensions so the supplied drawing can close the compatibility gaps before production.
