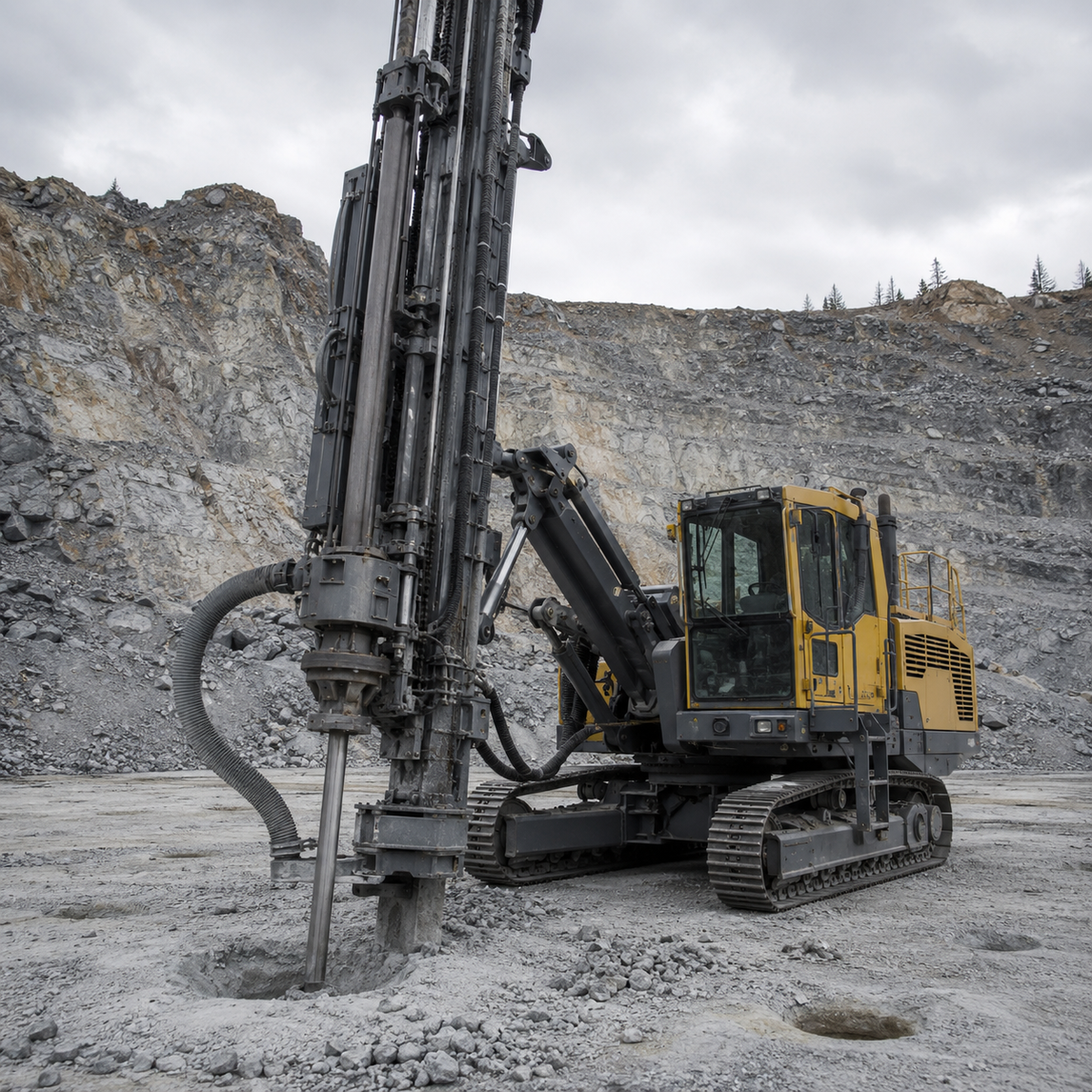

Top-hammer drill rod vibration or chatter is a symptom, not a diagnosis. The practical way to solve it is to identify when the motion begins, then check feed, rotation, flushing, alignment and drill-string condition in that order. Too little feed can let the bit lose firm contact with the rock; too much feed can bend or bind the string. Incorrect rotation, restricted flushing, worn guides, a damaged bit, bent rods or worn threads can produce similar symptoms.
Do not keep drilling through violent vibration. Stop if the rod visibly bows, the feed or rig support moves, a coupling starts to loosen, the impact sound changes sharply, hydraulic oil leaks, or any guard or exclusion-zone control is compromised. Isolate the machine according to the site procedure before touching the drill string. Settings and service limits must come from the exact rig and rock-drill manual, not from a generic pressure value.
Why does a top-hammer drill rod vibrate?
A top-hammer system sends impact energy from the rock drill through the shank adapter, coupling sleeves and rods to the bit. Rotation indexes the buttons to fresh rock, feed keeps the bit engaged, and flushing removes broken material. Chatter appears when one or more of those functions become unstable.
| Observed symptom | Likely cause group | First safe check |
|---|---|---|
| Rod bounces and the impact sound becomes sharp or irregular | Insufficient feed, loss of bit contact, loose support | Confirm collar stability, feed contact and the OEM feed-control baseline |
| Rod bows, rotation slows, or the string binds | Excessive feed, poor alignment, blocked hole or damaged rod | Stop percussion; inspect straightness, guides, centralizer and cuttings return |
| Rotation is jerky only under percussion | Rotation/feed mismatch, fractured rock, worn bit or string friction | Note rotation pressure or torque trend if available; inspect the bit and hole condition |
| Penetration falls while cuttings become fine or stop returning | Restricted flushing, cuttings regrinding or hole blockage | Check flushing supply, hoses, seals and visible return at the collar |
| Vibration starts after adding a rod | Dirty or worn threads, damaged coupling, mismatched component or poor tightening | Isolate and inspect the latest joint and component identity |
| Vibration repeats at one depth or rock band | Jointed, fractured or alternating hard/soft ground | Mark the depth and compare adjacent holes before replacing components |
Diagnose vibration in a controlled sequence
1. Record exactly when the chatter begins
Before adjusting anything, classify the event. Does vibration begin during collaring, after full percussion is applied, after a rod change, at a repeatable depth, or only in one rock band? Is it visible at the first rod, at a coupling, or along the full string? Record the hole angle, bit and rod identities, drilled depth, rock condition and any displayed feed, rotation or flushing values. This separates a setup problem from a component or ground-condition problem.
A repeatable symptom across several holes usually points toward setup, supply or wear. A symptom that follows one rod, coupling or bit points toward that component. A symptom that appears at the same geological boundary in adjacent holes may be ground-driven.
2. Verify rig support, feed alignment and collaring
The feed must be supported so that thrust follows the drill axis. If the feed foot slips, the boom flexes, or the centralizer does not hold the rod on axis, the drill string can oscillate even when the control settings are correct. Confirm the rig is positioned and stabilized within the manufacturer’s instructions, the feed is not side-loaded, and the hole is collared with the low-energy sequence specified for the machine.
Inspect feed rails, guide pads, centralizer jaws and mounting points for looseness or uneven wear. A worn guide can allow a straight rod to whip. A misaligned guide can force a straight rod to bend. Do not compensate for a mechanical alignment defect by increasing feed force.
3. Check feed before changing percussion
Feed keeps the bit in contact with the rock and allows impact energy to pass through the string. With insufficient feed, the bit can rebound and joints can unload and reload. With excessive feed, the string can bow, rotation resistance can rise and the bit may bind in broken ground.
Use the rig’s model-specific starting setting and adjustment procedure. If the machine has rotation-pressure-controlled feed or anti-jamming, verify that the function is enabled and behaving as described by the OEM. Change only one parameter at a time, make a short controlled test, and compare vibration, penetration, rotation behavior and cuttings return. If the required feed keeps drifting, investigate support, hydraulics, guides, hole blockage and rock-drill condition instead of continuing to increase the setting.
4. Evaluate rotation as a load signal
Rotation speed is not universal. It depends on bit diameter and design, rock properties, the drilling stage and the specific rock drill. The goal is smooth indexing without skidding, repeated impact on the same point, or excessive torque.
If rotation becomes jerky under percussion, reduce energy according to the operating procedure and observe whether resistance is continuous or intermittent. Continuous high resistance can indicate excessive feed, blocked cuttings, a bent rod, poor alignment or a tight hole. Cyclic resistance can indicate fractured ground, an unevenly worn bit, damaged threads or a rod running off axis. Do not use higher rotation pressure to force a mechanically binding string.
5. Confirm flushing and cuttings return
Flushing carries broken rock away from the bit. When the return is restricted, cuttings are reground, torque can increase, penetration can fall and the string may chatter. Look for a stable return appropriate to the site’s dust-control and drilling method. A sudden change in cuttings volume, particle size, color or moisture can be as useful as a gauge reading.
Check the supply, hoses, valves, shank seals and bit flushing passages using the OEM procedure. If the return stops, do not continue full-energy drilling into a blocked hole. Clear the condition with the approved method; uncontrolled withdrawal or percussion can release trapped material or damage the string.
6. Inspect the bit, rods, couplings and shank end
After isolation, clean the components before inspection. Look for asymmetric button wear, missing or damaged carbide, reduced gauge, a damaged bit skirt, bent rods, impact marks, fretting, thread galling, cracks, bell-mouthed coupling ends and joints that no longer make up correctly. Confirm every rod and coupling has the intended thread system and diameter; similar-looking parts are not automatically compatible.
Roll rods on an approved straightness fixture or use the site’s specified inspection method. Do not judge a long rod by eye while it is supported unevenly. Compare thread profiles and coupling condition with the supplier’s acceptance limits. Mark and quarantine suspect parts so they cannot return to the rack.
For a deeper failure review, see the published top-hammer drill rod failure guide. If joints show galling, corrosion or difficult breakout, use the drill rod thread grease guide before approving the string for service.
7. Escalate rock-drill and control-system faults
If the feed, rotation, flushing, alignment, bit and string pass inspection but chatter remains, the problem may be in the rock drill, damping system, shank lubrication, accumulators, hydraulic circuit, sensors or control calibration. These systems store energy and require model-specific procedures. Record the symptoms and displayed values, then refer the machine to qualified service personnel. Do not open accumulators or defeat interlocks during field diagnosis.
How to distinguish too little feed from too much feed
| Indicator | More consistent with too little feed | More consistent with too much feed |
|---|---|---|
| Rod motion | Axial bounce or repeated loss of steady contact | Visible bowing, lateral movement or binding |
| Sound | Sharp, ringing or irregular impact tone | Loaded, strained sound with slowing rotation |
| Rotation | May remain free but unstable | Resistance or pressure tends to rise |
| Penetration | Low because energy transfer is poor | Low because the bit or string is constrained |
| Corrective direction | Restore controlled contact within the OEM procedure | Reduce loading and correct alignment or blockage |
These are diagnostic tendencies, not stand-alone proof. Fractured rock, a worn bit or poor flushing can imitate either condition. Confirm the conclusion with the full sequence and with the exact machine manual.
Common mistakes that turn chatter into damage
- Increasing percussion first. More impact energy can accelerate thread, shank and bit damage when contact or alignment is already unstable.
- Changing feed and rotation together. Multiple changes hide the cause and make a stable setting hard to reproduce.
- Ignoring cuttings return. A gauge can look normal while a passage, seal or hole condition restricts actual evacuation.
- Running a visibly bowed rod. Continued use can damage guides, couplings and the hole, and increases the risk of a more serious failure.
- Mixing unidentified rods or couplings. Thread designation alone may not capture all required compatibility details.
- Using generic pressure numbers. Valid settings vary by rig, rock drill, bit, rock and operating mode.
- Testing without an exclusion zone. A moving or failing string can release stored energy and material.
Pre-shift and post-event checklist
- Confirm rig support, feed-foot contact and boom/feed locking.
- Inspect guides, centralizer and visible fasteners.
- Verify the bit, rod, coupling and shank adapter identities match the approved string.
- Check thread cleanliness and the specified lubricant application.
- Confirm flushing supply and hoses are serviceable.
- Use the rig manual’s collaring and operating baseline.
- Watch for smooth rotation, stable contact and consistent cuttings return.
- After a vibration event, record depth, rock, settings and the component sequence.
- Quarantine any suspect bit, rod or coupling; do not return it to general stock.
Information to send with a rod or coupling inquiry
When replacement tooling may be required, send enough information to confirm the system rather than ordering from a visual match. Include the rig and rock-drill model, shank adapter, thread designation, rod diameter and length, coupling type, bit diameter and face style, hole angle and depth, rock description, flushing medium, the point at which chatter begins, wear photographs, and any measured straightness or thread findings.
PerfoMax supplies threaded top-hammer tooling, including active T45 extension drill rods. A complete drilling-system description helps confirm the correct commercial pathway and avoids treating a setup or compatibility issue as a simple rod replacement.
Frequently asked questions
Can low feed cause drill rod vibration?
Yes. If feed is insufficient for the drilling condition, the bit can lose firm contact and the string can unload and reload. Confirm support and alignment first, then adjust only within the machine manufacturer’s procedure.
Can excessive feed make rotation jerky?
Yes. Excessive feed can bow the string, increase friction and constrain the bit. Jerky rotation can also come from blocked cuttings, fractured rock, a worn bit, bent rods or damaged joints, so use the full diagnostic sequence.
Does poor flushing cause chatter?
It can. Restricted cuttings removal increases regrinding and resistance around the bit. Falling penetration, rising rotation load and changing cuttings return are useful clues.
Should a vibrating rod always be replaced?
No. Vibration may originate in the feed setup, alignment, flushing, bit, guides, rock or rock drill. Replace or quarantine a rod only when inspection shows it is bent, cracked, damaged, outside the supplier’s wear limit or otherwise unfit for service.
What if vibration occurs only after adding a rod?
Stop and inspect the latest joint first. Check thread cleanliness, lubrication, coupling condition, correct component identity, make-up and rod straightness. If that joint passes, inspect guides and the changed hole condition at the extension depth.
Technical references
- Epiroc Boomer S10 product information — feed control, anti-jamming and vibration-management context.
- Epiroc FlexiROC T15 R maintenance information — rotation behavior and the need for rig-specific settings.
- Epiroc FlexiROC T15 R operation information — feed and stability considerations for different drilling directions.
