Direct answer: a hand-held pneumatic rock drill can be a practical tool for drilling an isolated oversized boulder when the rock is stable, the work area is controlled, the required hole direction is physically reachable, and the drill, H22 steel, bit, compressor, hose, flushing, and lubrication are matched. It is not a substitute for a blast specification, a licensed shotfirer, or a ground-control decision.
The highest-value checks happen before the throttle is opened: confirm that the boulder cannot roll or settle, inspect cracks and contact points, separate the drilling zone from traffic and people, obtain the required hole location, direction, diameter, and depth from the responsible blast professional, and define what the driller must record. If any of those conditions is uncertain, stop and use a different work method or escalate the decision.
When is hand-held secondary boulder drilling appropriate?
Hand-held secondary boulder drilling is generally considered when an oversized rock fragment remains after excavation or primary blasting and a mobile drill rig cannot be positioned economically or safely. The tool's portability is useful on a cleared quarry floor, but portability does not make every boulder suitable for manual drilling.
| Condition | Reasonable drilling case | Stop or change method |
|---|---|---|
| Boulder support | Rock rests firmly on a level, cleared surface with no sign of rocking or settlement | Rock is perched, suspended, partly buried under loose material, or can move when touched |
| Work position | Operator can maintain stable footing and two-hand control without climbing on the rock | Collar point requires overreaching, overhead work, an unstable platform, or standing in a roll path |
| Hole instruction | Responsible blast professional supplies location, direction, diameter, and depth | Driller is expected to improvise the hole or infer explosive requirements |
| Environment | Controlled exclusion area, managed traffic, adequate visibility, dust control, and hose routing | People, vehicles, power lines, structures, or uncontrolled public access create unacceptable exposure |
| Rock condition | Surface and visible fractures can be inspected and communicated | Severe cracking, voids, loose slabs, water-filled cavities, or unknown previous blast condition prevent a reliable assessment |
| Alternative method | Drilling is authorized after the site risk assessment | Mechanical breaking, removal, resizing at the face, or another engineered method provides the safer boundary |
Separate drilling responsibility from blast responsibility
The driller's job is to create and document the hole specified by the authorized blast plan. Explosive selection, quantity, priming, stemming, firing, exclusion distance, cover, and misfire management belong to licensed and site-authorized personnel under local law. This guide does not provide those instructions.
That boundary matters because secondary blasting can have a high flyrock risk. Business Queensland identifies secondary blasting as a situation requiring particular care and notes that inaccurate hole position or angle can contribute to flyrock, excessive noise, and vibration. The Irish Health and Safety Authority likewise emphasizes that drilling errors accumulate into blasting risk and that unusual geology, water, deviation, or instability must be recorded and passed to the shotfirer or explosives supervisor.
For a buyer or contractor, the implication is operational: do not purchase a portable drill on the assumption that the operator will decide the hole geometry in the field. The work package should specify who marks the collar, who approves the direction and depth, who verifies the completed empty hole, and who controls the area after the drill is removed.
Inspect the boulder and work area before drilling
Confirm that the rock cannot move
Walk around the boulder from a safe position. Look for daylight under contact points, loose fines that may wash or vibrate away, a sloping base, and smaller fragments acting as unstable supports. Never rely on the drill steel to test whether a boulder is stable. If movement is possible, the rock must be made safe through the site's approved ground-control or material-handling procedure before drilling.
Read visible structure, but do not redesign the blast
Mark visible joints, open cracks, weathered zones, cavities, and water. These features affect collaring and can change penetration, cuttings return, and the information required by the blast professional. They are observations, not permission for the driller to relocate or redirect a prescribed hole without approval.
Control the operating envelope
Establish the drilling exclusion area before connecting air. Keep people out of the potential boulder movement path and away from the rotating drill steel, exhaust, dust, hose, and couplings. Separate mobile equipment traffic. Route the hose so it cannot be crushed, driven over, kinked, or used as a trip line, and fit the site's required coupling restraints.
Match the pneumatic rock drill to the job
A compact hand-held drill should be screened as a complete compressed-air system. PerfoMax's active Y19A hand-held pneumatic rock drill is currently listed for downward or inclined holes in small quarry and secondary-blasting applications, using an H22 × 108 mm shank. Its page gives a reference screening range of 34–40 mm hole diameter, 4–5 bar working pressure, air consumption up to 43 L/s at 5 bar, and a minimum 19 mm air-hose internal diameter. The manufacturer data sheet attached to the final quotation controls the supplied configuration.
Those figures should not be copied automatically into a work plan. Confirm pressure and airflow at the tool while operating, not only at the compressor. Confirm hose length, internal diameter, couplings, line lubricator, wet or dry drilling arrangement, H22 shank, taper, bit type, bit diameter, and the required drill-steel length. A portable compressor that appears large enough by nameplate can still deliver inadequate air after hose and coupling losses.
Use the machine with two-hand control and the supplied instructions. PerfoMax does not promote single-hand or overhead use for this model family. For water flushing, confirm the correct conversion and keep the water-pressure relationship within the supplied instructions so water does not enter the impact mechanism.
How to drill the specified boulder hole accurately
1. Receive and verify the hole instruction
Before setup, repeat back the marked collar, hole direction, target depth, and required diameter to the responsible person. Use a durable mark that cannot be confused with a natural stain or an old mark. If the boulder has moved since it was marked, the instruction must be reviewed again.
2. Perform the tool and air-line pre-start
- Check the drill body, throttle, chuck, retainer, shank fit, drill steel, taper, and bit for damage.
- Confirm the air hose, couplings, restraints, valves, and line lubricator are correct and secure.
- Verify the selected bit produces the specified hole diameter and that the flushing passage is open.
- Check PPE, dust or water controls, communication, and emergency isolation.
- Test the drill only in accordance with the manufacturer and site procedure.

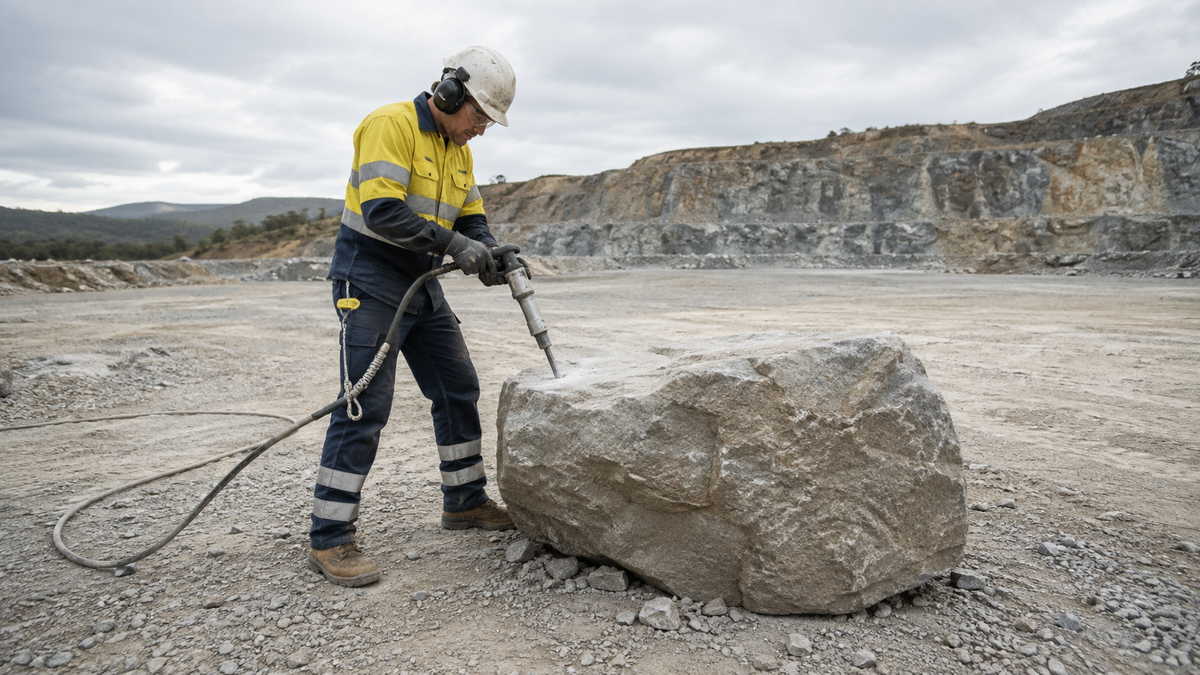

3. Establish stable stance and initial alignment
Stand on the ground, not on the boulder. Keep balanced footing, maintain two-hand control, and position the hose behind the working area. Align the drill steel with the specified direction before starting. If the required line cannot be held without overreaching or side-loading the steel, stop; change the access method rather than forcing the tool.
4. Collar with control
Start gently enough to establish the collar without allowing the bit to skate. Excessive force at the surface can move the bit off the mark, chip an irregular edge, bend the drill steel, or shift the operator. Once the collar is stable, advance within the drill manufacturer's operating range while preserving alignment and effective flushing.
5. Watch for change, not just penetration speed
Stop and reassess if the boulder rocks or settles, a crack opens, the sound or penetration rate changes sharply, flushing is lost, the drill steel binds, water appears unexpectedly, or the collar breaks away. Do not lever the rock with the drill steel or continue through a condition the blast professional has not reviewed.
6. Measure, protect, and hand over the empty hole
After isolating and disconnecting the drill according to procedure, measure the completed depth and record the actual collar, direction, diameter, and any deviation or abnormal condition. Keep the hole free of loose contamination using the site-approved method. The driller should positively hand the empty hole and observations to the responsible blast professional before leaving the area.
Minimum drill-to-blast handoff record
| Record | What to capture | Why the next person needs it |
|---|---|---|
| Boulder identity | Location, photograph, and unique field reference | Prevents confusion when several rocks are being processed |
| Approved instruction | Who marked and approved the collar, direction, depth, and diameter | Preserves the responsibility boundary |
| Actual hole | Measured depth, diameter, direction, and any known deviation | Allows the blast professional to compare actual with planned geometry |
| Rock observations | Cracks, voids, changes in penetration, water, lost flushing, or broken collar | Signals conditions that may change the approved plan |
| Tool configuration | Drill model, steel/shank, bit gauge, wet or dry drilling | Supports traceability and investigation of irregular holes |
| Area status | Whether the hole is empty, protected, signed over, and the zone remains controlled | Avoids uncontrolled access or mistaken assumptions |
Common mistakes that turn a portable drill into the wrong tool
- Drilling a perched or movable boulder. Impact and operator force can change its support unexpectedly.
- Marking the hole with a loose stone or informal verbal cue. The collar and direction require an unambiguous approved reference.
- Selecting by drill weight alone. Air demand, hose loss, shank, bit, flushing, stance, and required hole geometry determine whether the system works.
- Using the drill steel as a pry bar. Side-loading damages the steel and transfers uncontrolled force into the boulder.
- Continuing after an abnormal penetration change. A void, fracture, water pocket, or unstable section must be recorded and escalated.
- Skipping the empty-hole handoff. The blast professional needs the actual depth, direction, diameter, and rock observations—not only a statement that drilling is complete.
- Allowing drilling and loading roles to blur. Portable equipment does not reduce licensing, authorization, exclusion-zone, or blast-control requirements.
RFQ checklist for a hand-held secondary drilling package
- Application: isolated boulder drilling, quarry cleanup, or another clearly defined task.
- Required hole diameter, typical depth, drilling direction, and rock condition.
- Hand-held-only use or an approved support/pusher configuration.
- Compressor free-air delivery, operating pressure, hose length, hose internal diameter, and coupling standard.
- Dry drilling or water flushing, plus the site's dust-control requirement.
- Required shank, rod length, taper angle, bit type, and bit gauge.
- Line lubricator, hose restraints, spare parts, and service-tool requirements.
- Inspection, documentation, nameplate language, packaging, and destination.
For a Y19A inquiry, send the compressor data, hose layout, H22 × 108 requirement, hole diameter and depth, wet/dry configuration, and spare-parts need. Final supply should be controlled by the quoted manufacturer data sheet and inspection agreement.
Frequently asked questions
Can a hand-held rock drill be used on any oversized boulder?
No. The boulder must be stable, accessible from the ground, inside a controlled area, and covered by an approved drilling and blasting process. Movable, perched, suspended, severely fractured, or poorly supported rock requires another decision before drilling.
Who decides where and how deep the hole should be?
The authorized blast designer, shotfirer, or other responsible person defined by local law and the site procedure. The driller verifies the instruction, creates the hole, records the result, and reports deviations or abnormal conditions.
Is the Y19A suitable for secondary boulder drilling?
The current PerfoMax Y19A page lists secondary blasting and downward or inclined hand-held drilling among its screening applications. Suitability still depends on the specified hole, rock, stance, compressor delivery, H22 × 108 steel, bit, hose, flushing, lubrication, and final manufacturer documentation.
Should the operator drill from the top of the boulder?
The operator should not climb onto an unstable rock to reach a collar. If the specified hole cannot be drilled from stable ground with two-hand control and safe body position, stop and change the access or drilling method through the site risk assessment.
What must be reported when drilling behavior changes?
Report changes in penetration, sound, vibration, alignment, cuttings, flushing, water, voids, cracks, collar condition, and boulder movement. Record where the change occurred and provide it to the responsible blast professional before the hole proceeds to any separate loading stage.
Build a matched hand-held drilling package
Review the active Y19A hand-held pneumatic rock drill for an H22 × 108 configuration, then send PerfoMax the actual hole requirement and compressed-air setup for confirmation. Related published guides cover hand-held versus air-leg drill selection, pneumatic rock-drill air-hose sizing, and Y19A maintenance checks.
Technical and safety references
- Business Queensland: Taking precautions against flyrock
- Ireland Health and Safety Authority: Drilling of shotholes
- International Society of Explosives Engineers: Straight holes, safer blasts
Follow the rock-drill manufacturer's instructions, the site's ground-control and isolation procedures, and all applicable explosives laws. Only licensed and authorized personnel may design, load, connect, or fire a blast.
