Quarry blast-hole drilling near a free face must be controlled against the actual three-dimensional geometry—not just the marked collar-to-crest distance. The real burden at any depth is the shortest rock distance between the actual borehole path and the actual free-face surface. An irregular face, a misplaced collar, an incorrect mast angle, or a deviating hole can therefore reduce or increase burden even when the collar mark appears correct.
For front-row holes, reliable drilling is a measurement and handoff problem. The driller needs an approved blast specification, a stable and protected working area, verified alignment, a record of ground response, and—where risk or geometry requires it—face profiling and borehole tracking. The resulting data must be handed to the competent blasting team before any loading decision is made.
Scope and safety boundary: This guide covers drilling geometry, observation, tooling review, and data handoff. It does not provide explosive charging, stemming, delay, firing, or blast-design instructions. Blast design, misfire management, danger zones, approval of deviations, and all explosives work belong to licensed or otherwise competent personnel under the site rules and local law.
Why front-row quarry holes need different controls
The first row is directly related to the free face. Unlike an interior row, its effective rock thickness can change sharply as the face leans, steps, bulges, recesses, or contains an old backbreak zone. A single collar measurement taken on the bench cannot describe those changes down the full hole.
This is why “collar burden” and “actual burden” are not interchangeable:
- Collar burden is a surface measurement from a reference point near the hole collar to a selected face or crest reference.
- Actual burden is the shortest distance from the actual hole axis to the actual free-face surface at the depth being considered.
- Designed burden belongs to the approved blast specification and assumes a defined face and borehole geometry.
If the free face is irregular or the hole departs from its planned path, those three values may differ. The drilling team should expose that difference with measurements and records; the blasting professional decides what it means for the approved design.
Six ways planned and actual front-row geometry can separate
| Variable | What changes in the field | What the drilling team should verify |
|---|---|---|
| Collar position | The hole starts inside or outside the marked tolerance, or the mark is referenced to an unreliable crest line. | Survey control, hole identification, and the actual collar coordinates or offset. |
| Inclination and azimuth | The mast is set to a different angle or direction from the specification, or the rig moves after alignment. | Rig level, mast readings, fixed reference direction, and a recheck after collaring. |
| Borehole deviation | The hole bends because of setup, drilling parameters, string behavior, joints, voids, or changing rock resistance. | Unexpected feed/rotation response, rod behavior, and a downhole path survey where required. |
| Free-face shape | Recesses, toes, overhangs, backbreak, or previous blast damage change the shortest distance to the face. | Face examination plus profiling where visual estimates cannot define the geometry. |
| Collar-zone condition | Broken, weathered, or unconsolidated rock allows the bit to wander before it reaches competent rock. | Bench condition, collaring response, flushing return, and any need for an approved collar-stabilization method. |
| Hole diameter and depth | Bit wear, an incorrect bit, depth error, blockage, or collapse makes the completed hole differ from the specification. | Actual bit diameter, measured depth, hole condition, and all exceptions in the drill log. |
Pre-drilling gate for holes near the free face
Do not treat the collar mark as permission to begin. Before drilling, the responsible team should confirm that the face, bench, specification, and equipment are ready.
- Examine the face from suitable safe viewpoints. Look for loose or shattered rock, cracks, shear planes, overhangs, cavities, unusual backbreak, and areas where the apparent burden may be reduced. Do not enter an exposed area to improve the view.

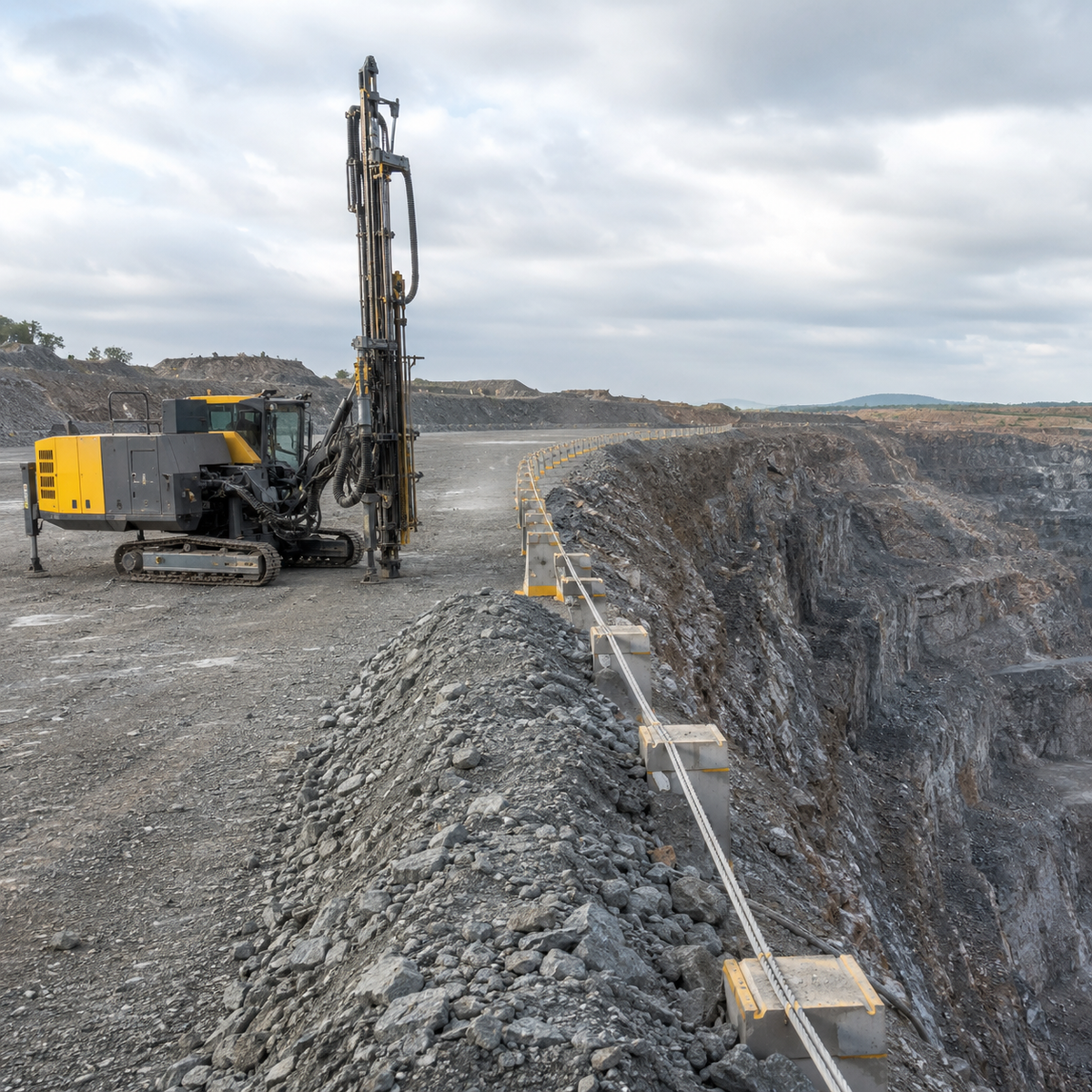

- Confirm the crest and working platform are stable. The rig needs a level, load-bearing position with the edge protection and exclusion controls required by the site. No universal stand-off distance can be inferred from a photograph or article.
- Check for previous holes, misfires, and residual explosives. If any are suspected, stop. Only the site’s authorized misfire procedure and competent explosives personnel can release the area.
- Read the current blast specification. The drilling information should include the identified hole positions, diameter, direction, inclination, depth, and any other parameters the driller must achieve and record. Never substitute an earlier pattern by memory.
- Verify the drilling system. Confirm the intended bit diameter, bit condition, rod or pipe condition, couplings, hammer or drifter setup, flushing path, dust controls, and measuring devices.
- Agree on exception reporting. The driller should know who receives immediate notice when a hole cannot be completed as specified or the ground behaves unexpectedly.
A practical collaring and alignment workflow
1. Preserve the survey reference
Use the site’s established control points, hole IDs, and coordinate method. A painted mark alone can be moved, obscured, or confused with another hole. If the face or collar pattern has changed since the survey, pause for confirmation instead of shifting the hole informally.
2. Position and level the rig
Build the setup around stability. Poor track contact, a soft pad, loose fill, or a machine leaning toward the crest can change alignment and create an unsafe working condition. Set the required edge protection before the rig enters the drilling position.
3. Set both inclination and azimuth
An inclination reading does not establish direction. Use the approved reference method for both axes, then check again after the bit has established the collar. On an inclined hole, the directional reference should remain visible and reproducible throughout setup.
4. Collar with control
Use the equipment manufacturer’s procedure and site-approved parameters. The objective is to establish the bit without lateral movement, excessive vibration, or uncontrolled breakout. If broken ground prevents a stable collar, record the condition and seek an approved response.
5. Watch the drilling response
Changes in penetration, rotation response, flushing return, vibration, water, or cuttings can indicate a joint, void, soft band, blockage, or another change in ground. These observations are not substitutes for a survey, but they are essential context for the person reviewing the completed hole.
6. Measure and protect the completed hole
Verify depth with the site-approved method, record the actual bit diameter and hole condition, and fit the required collar protection or plug. Keep the hole ID traceable. Where the specification or risk assessment calls for borehole tracking, survey the path before the data can be lost.
Top hammer or DTH: which is less likely to deviate?
Neither method is universally straighter. In quarry work, the result depends on hole diameter and depth, rock structure, collar stability, rig alignment, drill-string stiffness, bit condition, flushing, and operating control.
| Consideration | Top hammer | DTH |
|---|---|---|
| Energy location | Impact energy enters at the top and travels through the drill string. | The hammer operates near the bit. |
| Deviation sensitivity | String joints, excessive feed, poor alignment, and rock structure can influence the path. | Collaring, hammer/bit matching, pipe stiffness, operating setup, and rock structure still matter. |
| Best decision basis | Use the required hole geometry, site geology, rig capability, available air, tooling system, and measured field results—not a generic method claim. | |
For a deeper method comparison, see DTH vs top hammer for 76–115 mm quarry blast holes. For setup and operating causes specific to drifter drilling, read how to reduce drill-hole deviation in top hammer drilling. Inclined DTH crews can also use the inclined DTH alignment and cuttings-return checks.
When face profiling and borehole tracking are justified
Visual examination is indispensable, but it cannot always quantify the relationship between a complex face and a hole at depth. Laser face profiling can map the face surface; borehole tracking can measure the completed hole’s inclination, azimuth, and deviation. Combining those datasets can reveal the actual burden along the hole.
Use the site’s risk assessment and competent-person decision to determine survey coverage. It is particularly relevant when the face is irregular, the first row is critical, a long or inclined hole is planned, the drilling response suggests structural changes, the blast specification requires confirmation, or earlier results show unexplained burden or deviation variation.
Survey data does not “approve” a hole. It gives the blasting professional evidence to compare with the specification and decide whether the plan must be revised.
What belongs in the drill log and handoff
| Record | Why it matters |
|---|---|
| Hole ID and planned location | Prevents confusion between holes and connects the log to the specification. |
| Actual collar position | Shows whether the hole began where designed. |
| Specified and actual inclination/azimuth | Documents alignment and any accepted setup difference. |
| Bit type and actual diameter | Confirms the produced hole matches the tooling assumption. |
| Measured depth and completion status | Identifies short, blocked, collapsed, abandoned, or redrilled holes. |
| Drilling response by depth | Locates water, voids, soft bands, broken zones, loss of return, or other anomalies. |
| Borehole survey result | Provides the actual path when tracking is required. |
| Collar and hole condition at handoff | Records plugging, damage, obstruction, and identification status. |
| Exceptions and notifications | Shows what changed, when work stopped, and who made the next decision. |
Make the log usable: consistent hole IDs, units, depth references, and terminology are more valuable than long free-text notes that cannot be matched to a particular hole.
Stop and escalate instead of improvising
Stop work and follow the site escalation procedure when the face or crest appears unstable; edge protection or the working platform is inadequate; a previous hole, residual explosive, or misfire is suspected; the collar cannot be positioned to the specification; the mast cannot hold the required alignment; the drilling response indicates an unplanned void, weak zone, water condition, or lost return; the hole path is unknown where tracking is required; or a completed hole is damaged, blocked, collapsed, or cannot be identified.
The correct response may be a resurvey, a revised hole, additional profiling, different tooling, a changed drilling method, or a revised blast specification. The driller supplies observations and measurements. The competent person authorizes the change.
Common front-row drilling mistakes
- Using the crest line as if it were the entire free face.
- Checking mast inclination but not azimuth.
- Accepting a stable collar as proof that the full hole is on path.
- Changing the hole position without updating the survey record and hole ID.
- Ignoring changes in cuttings, water, penetration, or flushing return.
- Reporting only the final depth while omitting the ground conditions encountered.
- Assuming a DTH or top-hammer system is inherently immune to deviation.
- Allowing production pressure to bypass a stop-work trigger.
Information to send for a drilling-tool or RFQ review
A tool supplier can help assess drilling-system fit only when the operating context is clear. Before requesting a recommendation, prepare:
- rig make/model and drifter or DTH hammer model;
- current bit, shank, coupling, rod, or pipe system, including thread and dimensions;
- planned hole diameter, depth range, and inclination range;
- compressor pressure/airflow or hydraulic drifter information, as applicable;
- rock type plus known joints, abrasiveness, weathering, voids, and water;
- measured deviation or borehole survey examples—not just “holes are crooked”;
- bit wear, rod/pipe wear, coupling condition, and typical service observations;
- photos of the working setup taken from protected positions, plus the site’s target geometry.
For tooling selection, start with the Quarry & Blast-Hole Drilling Solutions page. PerfoMax can review the drilling context and applicable tool pathway, but the quarry’s competent blasting professional remains responsible for blast design and approval. Send the verified drilling-system and ground-condition details to PerfoMax for a focused tooling discussion.
Frequently asked questions
What is the real burden of a front-row blasthole?
It is the shortest distance from the actual borehole path to the actual free-face surface at the depth being evaluated. It can vary down the hole, so a surface collar measurement alone may not represent it.
Can a correctly marked collar still produce the wrong burden?
Yes. The face may be irregular, the mast may be misaligned, the rig may move during collaring, or the borehole may deviate after entering the rock. Face profiling and borehole tracking can identify these differences where required.
How much hole deviation is acceptable?
Use the project specification, risk assessment, equipment guidance, and local requirements. Some regulator guidance cites strict good-practice targets—for example, Ireland’s HSA discusses minimizing deviation to 2–3 degrees—but that is not a universal acceptance rule and does not replace a site-specific specification.
Does DTH always drill straighter than top hammer?
No. DTH places the impact mechanism near the bit and can be advantageous in some hole ranges, but alignment, collaring, pipe stiffness, bit condition, operating setup, and geology still control the result. Compare measured performance under the intended conditions.
Who decides whether an out-of-spec hole can be used?
The authorized competent person under the quarry’s procedures and applicable law. The driller should identify the exception, protect and label the hole, provide the log and survey data, and wait for an approved decision.
