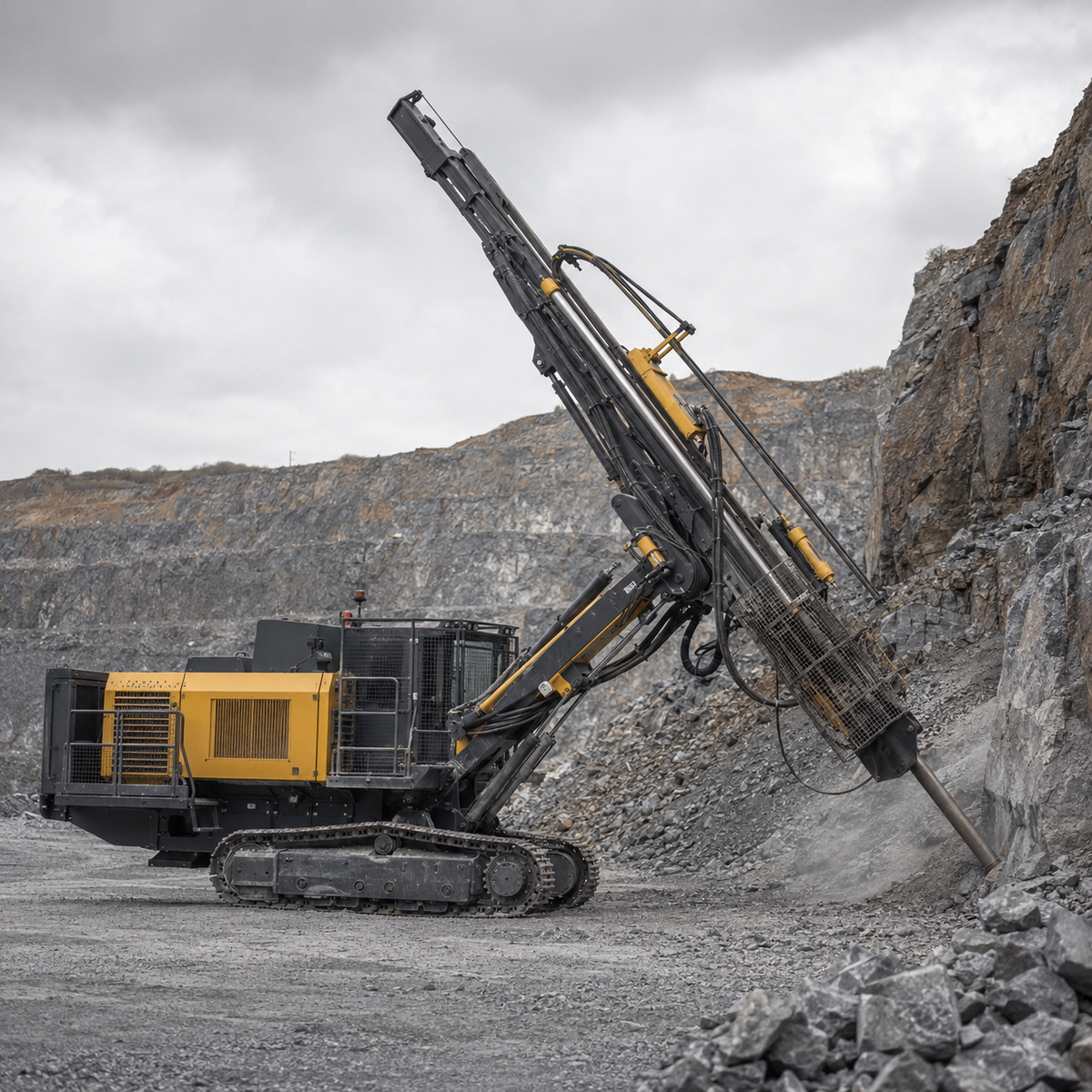

Quick answer: Inclined DTH drilling can produce accurate blast, presplit, foundation, and other angled holes when the entire setup follows the planned hole axis. The angle itself is not the only control point. Collar position, azimuth, mast alignment, rig stability, drill-string support, feed, rotation, air delivery, cuttings return, rock structure, and borehole verification all affect the result. Use the rig and hammer manufacturers’ operating limits; there is no universal “best” inclination that applies to every DTH rig, hole diameter, depth, or ground condition.
This guide is for quarry, mine, drilling-contractor, and procurement teams planning inclined DTH holes. It focuses on how changing the hole away from vertical changes field setup and risk—not on designing a blast pattern or replacing the site’s drilling and blasting specification.
1. What Changes When a DTH Hole Is Inclined?
A vertical hole lets gravity act approximately along the borehole axis. In an inclined hole, gravity has a component across the hole. That difference affects how the drill string rests, how loose cuttings collect, and how bending or sag can influence the planned trajectory. It also makes direction control two-dimensional: the crew must set both inclination and azimuth.
The Irish Health and Safety Authority’s quarry drilling guidance emphasizes that inclined holes must follow the specified direction, that hole length must account for the required vertical distance and inclination, and that gravity can contribute to drill-string sag. It also treats collar location, hole direction, deviation control, drilling records, and borehole tracking as connected parts of the same process.
| Variable | Why inclination makes it more sensitive | Field confirmation |
|---|---|---|
| Collar position | A small positioning error changes the entire line from crest to toe or target. | Mark from the approved plan and verify before the bit touches rock. |
| Inclination and azimuth | Correct tilt in the wrong direction is still a wrong hole. | Set both values with the rig’s approved instruments or site method. |
| Mast and rig stability | The feed load acts along a tilted mast and can expose poor leveling or support. | Check ground, tracks/jacks, mast locks, and operating envelope. |
| Collaring | Side loading during first contact can establish a path different from the plan. | Start under control and confirm the bit remains on the intended axis. |
| Cuttings return | Chips can settle on the lower side of the annulus instead of moving uniformly. | Watch discharge, penetration response, torque, pressure, and cleaning behavior. |
| Drill-string alignment | Gravity, feed, joint condition, and rock structure can combine to bend the path. | Use straight, compatible components and verify critical holes after drilling. |
2. Start With the Required Hole Geometry
Do not begin by asking, “Can this rig drill at 15 degrees?” Begin with the designed collar coordinates, target, hole length, inclination convention, azimuth, burden or alignment requirement, and allowable deviation. Confirm whether the angle is measured from vertical, horizontal, or the face. A number without a reference plane is ambiguous.
The U.S. Federal Highway Administration notes that rock-slope drilling may use vertical, horizontal, or angled holes depending on access and slope-face requirements. This is an important boundary: inclined drilling is a response to project geometry, not a stand-alone performance upgrade.
- Confirm the design direction before positioning the rig.
- Calculate actual hole length from the required geometry; do not reuse the vertical depth as the drilled length.
- Identify the part of the hole where deviation would create the greatest consequence.
- Define how the completed hole will be checked when burden, intersection, alignment, or target accuracy is critical.
3. Check Whether the Rig Can Hold the Planned Angle Safely
The mast angle shown on a display is only one capability. The rig must be stable on the actual bench, keep the feed beam supported, handle rods at that angle, retain safe access to the carousel or rod handler, and route hoses without abnormal strain. Use the rig manual’s operating envelope and site procedure; do not extrapolate from a promotional photograph or from another model.
Before setup, inspect the bench for loose material, cracking, edge stability, slope, and room to position the crawler. The HSA guidance requires examining the face and drilling area for geological and stability hazards before drilling. If safe rig placement conflicts with the designed collar or direction, stop and escalate the conflict to the responsible drilling/blasting team rather than improvising a new hole.
4. Collaring Establishes the Initial Trajectory
The first part of an inclined hole deserves controlled feed and rotation. If the bit skates, the feed beam is offset, or excessive side load is applied before the face is seated, the hole can begin on the wrong trajectory. Later corrections can create curvature rather than restore a straight line.
- Mark and verify the collar from the approved layout.
- Set the rig and mast without placing tracks or jacks on unstable edges or loose fill.
- Confirm inclination and azimuth independently.
- Bring the bit to the collar with the drill string centered on the feed path.
- Establish a clean seat using the equipment manufacturer’s collaring procedure.
- Increase operating inputs progressively only after the bit tracks steadily.
- Recheck the mast and rig position after the collar is established.
A miscollared hole should be recorded and managed through the site’s drilling/blasting procedure. Concealing the error by changing the planned direction can create an unknown burden or intersecting-hole risk.
5. Feed, Rotation, and String Support Must Stay Balanced
DTH impact energy is generated close to the bit, but the drill string still transmits feed, rotation, air, and pullback. Inclination does not eliminate the need to balance these inputs. Too little effective feed can allow poor bit contact and unstable drilling; too much feed can increase side loading, bending, or deviation when the mast, string, or collar is not aligned.
Use the hammer and rig manufacturers’ procedures for the actual model, pressure, bit size, and ground. Treat changes in rotation torque, penetration response, vibration, discharge, or mast movement as information—not as automatic instructions to keep increasing feed.
- Keep rods and joints straight, clean, and correctly made up.
- Do not mix components whose threads, shoulders, outside diameters, or wrenching features have not been verified.
- Check that centralizers, guides, and handling devices are appropriate for the rod and angle.
- Reduce mechanical causes of bend before blaming geology.
6. Inclination Changes Cuttings-Return Behavior
Compressed air travels down the pipe, powers the DTH hammer, and returns with cuttings through the annular space between the tool and borehole wall. In a tilted hole, chips can collect on the lower side, especially when the annular return velocity, chip size, hole condition, or air delivery is marginal. This does not mean every inclined hole requires more compressor capacity, but it does mean that a system already near its cleaning limit has less room for error.
Watch the actual discharge rather than relying only on compressor nameplate data. A reduction in cuttings return, increasing torque, unstable penetration, repeated regrinding of the same interval, or material falling back during pauses can indicate inadequate cleaning, a change in geology, restriction, leakage, or an unfavorable annular condition.
For the broader airflow chain, see Deep-Hole DTH Drilling: Airflow, Cuttings Return, and Pressure Loss.
7. Rock Structure Can Steer the Hole
Inclined holes may cross bedding, joints, faults, cavities, or alternating layers at different angles. The bit can preferentially follow weaker material or deflect at a hard/soft interface. The direction and magnitude are not reliably predicted from inclination alone.
Record changes in penetration rate, vibration, torque, cuttings size, water, voids, and unusual return. Compare these observations with nearby holes and geological mapping. If the face or crest shows shattered rock, open joints, or changing burden, involve the responsible blasting or engineering team before continuing. For condition-specific controls, see DTH Drilling in Fractured Rock.
8. Use a Repeatable Inclined-DTH Setup Workflow
- Lock the plan: collar coordinates, target, length, inclination reference, azimuth, diameter, and allowable deviation.
- Check the site: face and bench stability, edge distance, access, space, and safe rig orientation.
- Confirm the system: rig angle range, mast support, rod handling, compressor, hammer, bit, pipes, joints, and centralizers.
- Position and level: stabilize the rig according to its manual; do not use mast tilt to mask poor base setup.
- Align: set both inclination and azimuth with the approved site instrument or rig system.
- Collar under control: establish the initial path before applying full production inputs.
- Monitor: record depth, penetration response, return, pressure indications, torque, vibration, geology, water, and interruptions.
- Verify and report: protect the hole, survey critical holes when required, and reconcile deviations with the blast or project plan.
9. Symptom-to-Check Matrix
| Observed symptom | First checks | Do not assume |
|---|---|---|
| Bit moves off the collar | Marking, mast azimuth, initial contact, loose surface rock, feed alignment. | That more feed will straighten the hole. |
| Cuttings return weakens | Delivered air, leakage, annulus, blockage, bit/hammer condition, depth, wet or fractured interval. | That inclination is the only cause. |
| Torque rises or rotation becomes unstable | Hole cleaning, pipe/joint condition, bit freedom, side loading, collapsed material, rock transition. | That maximum rotation input is the correct response. |
| Hole misses direction | Collar error, reference convention, azimuth, mast movement, rod sag/bending, geology, survey data. | That the display angle alone proves the hole path. |
| Repeated pipe or thread distress | Alignment, rod support, joint make-up, bending, handling at angle, stuck-hole events, component compatibility. | That a higher-grade pipe alone removes the root cause. |
10. Common Inclined DTH Drilling Mistakes
- Specifying only an angle. Inclination needs a reference plane, azimuth, collar, target, and length.
- Setting the mast before stabilizing the rig. Poor base support can move after collaring begins.
- Using aggressive feed to correct a bad collar. This can curve or side-load the drill string.
- Ignoring return because the hammer still impacts. Impact does not prove that the hole is being cleaned effectively.
- Reusing vertical-hole length. Inclined geometry changes drilled length for the same vertical reach.
- Assuming DTH eliminates deviation. DTH can support straight drilling, but collar error, sag, component condition, geology, and operating practice still matter.
- Skipping the drilling log or survey. Unmeasured hole paths become unknown inputs to blasting or construction.
11. Information to Confirm Before Mobilization or RFQ
- application: production blast, presplit, foundation, utility, or other approved purpose;
- collar coordinates, inclination convention, azimuth, target, diameter, and total hole length;
- bench/face geometry, access limits, working room, and expected rig orientation;
- rock type, strength indicators, abrasivity, bedding/joint orientation, fractures, cavities, and water;
- rig make/model, permitted mast-angle range, rod handling, centralizer, feed/pullback, and compressor data;
- DTH hammer make/model/size, shank, bit diameter/face, and pressure/air requirements;
- drill pipe OD, wall/bore, thread, length, current condition, and number of joints;
- expected cuttings-control method and dust/water restrictions;
- required collar, depth, inclination, azimuth, and completed-hole verification method;
- site reporting, abandoned-hole, deviation, and escalation procedure.
PerfoMax can help buyers review the DTH hammer, bit, pipe, and connection information in an inquiry, but the site engineer, rig manufacturer, and drilling/blasting plan must control the permitted angle and operating procedure. Review current DTH Tools or send the full configuration through Request a Quote.
FAQ
Is DTH suitable for inclined blast holes?
Yes, when the selected rig is approved to work at the planned angle and the full setup controls collar position, azimuth, mast stability, drill-string handling, flushing, geology, and completed-hole verification. Suitability cannot be decided from the hammer alone.
Does an inclined DTH hole need more air than a vertical hole?
Not by a universal multiplier. Air demand starts with the hammer and bit, while effective hole cleaning also depends on leakage, annular area, depth, chip size, water, borehole condition, and inclination. Evaluate delivered air and actual cuttings return under the planned conditions.
Why can inclined holes deviate even with a DTH hammer?
Common contributors include collar and azimuth error, mast movement, drill-string sag or bending, poor component condition, excessive or unstable feed, weak cleaning, and deflection at fractures or rock interfaces.
Should feed be reduced for inclined drilling?
Feed should follow the rig and hammer procedure and maintain stable bit contact without excessive bending or side load. A lower, controlled collaring feed is often appropriate, but the correct production setting is model- and condition-specific rather than a universal number.
How should completed inclined holes be checked?
Use the site’s specified method. Collar, depth, inclination, and direction checks provide useful control, while critical burden, intersection, or target requirements can justify borehole survey equipment. Record the result and reconcile material deviation before charging or continuing the work.
