Pneumatic Rock Drilling in Hard Abrasive Rock: H22 Bit Wear, Flushing, and Setup Checks

For pneumatic rock drilling in hard abrasive rock, the safest starting point is not “more pressure.” First separate rock hardness from abrasivity, confirm the H22 rod-and-bit interface, keep the hole bottom clean, and watch the wear pattern. Hard rock needs effective percussion and stable bit contact; abrasive, quartz-rich cuttings can rapidly remove gauge diameter and body material. A setup that still penetrates may therefore be consuming bits, drilling under-gauge holes, or wasting energy by re-crushing cuttings.

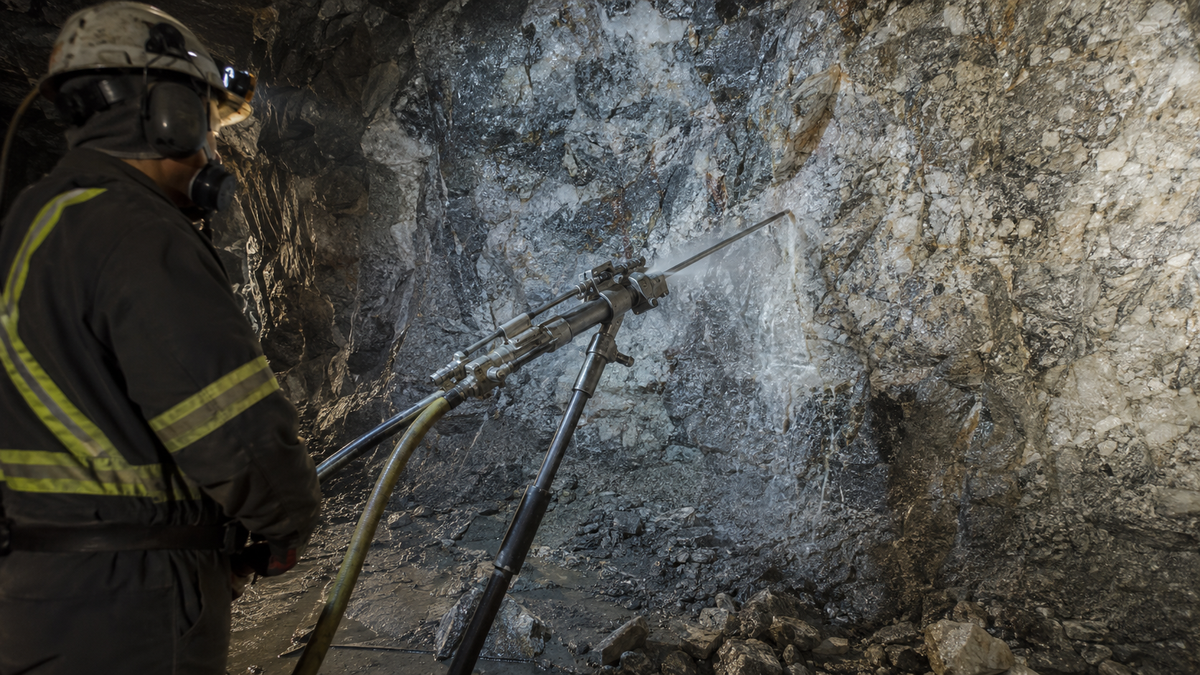

This guide is for mine, quarry and construction teams using hand-held or air-leg pneumatic drills with H22 tapered drill steel for small blast holes, secondary breaking and development work. It explains what changes when the formation is both hard and abrasive, what to observe during a controlled trial, and what to report before ordering replacement bits. Exact air pressure, oil rate, feed force, rotation behaviour and wear limits must come from the drill, air-leg, rod and bit documentation for the actual configuration.

Hardness and abrasivity are different drilling problems

Hardness describes resistance to indentation or breakage. Abrasivity describes how aggressively the rock and its cuttings wear the tool. The two often appear together, but not always. A competent rock can be relatively non-abrasive, while a quartz-rich formation can cause severe sliding wear even when its compressive strength is not exceptional.

Do not classify the formation only by a rock name. “Granite,” “quartzite” and “gneiss” can cover wide variation in grain size, weathering, jointing and mineral content. A representative sample, previous drilling records and a short controlled trial are more useful than a label alone.

Choose the bit system before adjusting the drilling setup

H22 identifies the 22 mm hexagonal drill steel, but it does not by itself identify the taper angle or prove that a bit fits. A replacement bit must match the existing rod taper, socket depth, usable diameter, face and button configuration, and flushing arrangement. PerfoMax’s active H22 taper button bit range lists 30–40 mm inquiry sizes and requires the taper and flushing configuration to be confirmed before quotation.

For hard abrasive conditions, a button bit is often considered because distributed carbide inserts can provide a durable cutting structure, but “button bit” is not a complete specification. Button shape, gauge protection, face layout, body clearance and flushing paths change the balance between penetration and wear. A more aggressive shape may penetrate well in one rock yet chip or wear unevenly in another. A conservative shape may last longer but drill more slowly. The correct conclusion should come from the drill power, required hole, rock condition and trial data—not from a universal hardness chart.

If the site is still choosing between bit structures, use the published button bit vs cross bit vs chisel bit guide first. This article assumes the system decision has been made and focuses on operating H22 pneumatic drilling in a wear-intensive formation.

Keep percussion, rotation, feed and flushing in balance

Pneumatic percussive drilling works as a system. The piston delivers impact energy through the shank and rod; rotation indexes the cutting edges or buttons to fresh rock; feed keeps the bit in contact; flushing removes chips. In hard abrasive rock, imbalance is expensive because the tool may continue making a hole while wear accelerates.

Percussion: verify delivered air before blaming the rock

Compressor discharge pressure is not the same as the condition at the drill inlet while the tool is operating. Hose length and internal diameter, couplings, filters, regulators, leaks and simultaneous users can reduce delivered flow or pressure. If penetration is unexpectedly low, measure at a safe point close to the drill under load and compare the result with the exact drill manual. Do not exceed the manufacturer’s operating limit to compensate for a restriction.

Rotation: look for consistent indexing, not a guessed speed

For many hand-held and air-leg pneumatic drills, rotation is built into the mechanism rather than independently controlled. The field check is therefore whether the bit rotates consistently, stalls, binds or produces an abnormal wear pattern. A bit that repeatedly strikes without proper indexing wastes impacts. Excessive sliding contact at the gauge can also accelerate abrasive wear. If rotation is irregular, inspect the drill, chuck, shank, rod straightness and hole condition before changing the bit specification.

Feed: maintain contact without forcing a stalled drill

Too little feed allows bouncing, poor energy transfer and collar damage. Too much feed can stall rotation, increase bending and make a deviating hole worse. With an air leg, use the model-specific feed control and keep the drill aligned with the intended hole. If penetration falls, do not automatically increase thrust. First check cuttings return, bit condition and delivered air.

Flushing: remove abrasive cuttings before they become grinding media

Hard rock creates chips that must leave the hole. When cuttings remain under the face, the bit spends energy crushing them again, heat rises, withdrawal becomes harder and abrasive particles continue contacting the gauge and body. Confirm that the bit flushing holes and grooves, rod bore, water tube and hose remain clear. If wet drilling is used, the return should be continuous enough to carry cuttings without producing an uncontrolled spray or a stagnant collar.

Rock drilling can generate respirable crystalline silica. NIOSH identifies wet or dry dust-reduction engineering controls as important ways to reduce hazardous drill dust. Keep the approved suppression or extraction system operating; never use “better visibility” as a reason to remove a required control. For the dust-control boundary, see the related wet pneumatic rock drilling guide.

Use wear patterns as diagnostic evidence

Abrasive wear should be managed by condition, not by waiting for total failure. Clean and inspect bits at defined intervals so trends are visible. Record the bit identity, meters or holes drilled, rock zone and observations. A single damaged bit may reflect impact, handling or a local seam; a repeated pattern across several bits points more strongly to the formation, setup or specification.

• Even face and gauge wear: usually provides the best baseline. Track the rate and compare cost per drilled meter.
• Gauge loss ahead of face wear: review alignment, rotation behaviour, wall contact and the bit’s gauge protection. Do not continue until withdrawal becomes unsafe.
• Flat or polished buttons: penetration can fall as the contact geometry changes. Follow the supplier’s regrinding or replacement rule.
• Chipped or cracked carbide: consider shock loading, fractured rock, wrong carbide/geometry, poor contact or overheating. Do not assume abrasion alone.
• Body wash around buttons or flushing holes: inspect cuttings flow and the abrasive slurry path. Continued erosion can undermine button retention.
• Loose, missing or tilted buttons: remove the bit from service and investigate. Do not drill until the failure mode and retention risk are understood.

OEM bit documentation emphasizes the balance among carbide geometry, body strength, gauge retention and flushing. It also treats wear management as part of drilling economics. The practical buyer lesson is to specify the application and compare trial results, not to accept “for hard rock” as a complete description.

A controlled field sequence for hard abrasive rock

1. Define the baseline. Record drill model, air leg, H22 shank, rod length, bit identity, nominal diameter, taper, flushing arrangement, hose setup and rock zone.
2. Inspect before starting. Check the rod for straightness and shank damage, confirm taper fit, clear flushing paths, inspect the bit and verify the lubricator.
3. Collar carefully. Stabilize the alignment and use the drill’s approved startup technique. Poor collaring creates deviation and side contact that can look like “abrasive rock wear.”
4. Observe the complete return path. Confirm cuttings are leaving the hole and that water, slurry or dry collection is controlled according to the site method.
5. Hold other variables steady. When comparing bits, avoid changing the drill, rod length, hose, operator technique and rock zone at the same time.
6. Inspect at a planned interval. Measure or gauge diameter with the approved method and photograph face, gauge and body condition.
7. Stop on abnormal signals. Irregular rotation, rising vibration, binding, missing carbide, weak flushing or rapid gauge loss needs investigation before another hole.
8. Compare cost per useful meter. Include penetration, bit consumption, regrinding, change time, stuck-steel events and hole acceptance—not purchase price alone.

Common mistakes that shorten bit life

• Treating hardness and abrasivity as the same value. This hides the reason for rapid gauge wear.
• Ordering by H22 and diameter only. H22 does not define the taper angle, socket or flushing layout.
• Compensating with excessive pressure or feed. This can mask an air-delivery, rotation or flushing problem and may exceed equipment limits.
• Running until the bit is visibly destroyed. Late inspection loses the wear evidence needed to improve the setup.
• Comparing bits in different rock zones without records. A formation change can be mistaken for a product difference.
• Dry drilling without an approved dust control. Quartz-rich abrasive rock can also present a serious respirable-silica hazard.
• Changing several variables at once. The crew may improve performance without learning which change mattered.

What to send in an H22 bit RFQ for abrasive rock

A supplier needs enough information to match the bit and judge the application. Send:

• drill model, chuck/shank size and air-leg model if used;
• clear photos of the rod shank, tapered end, old bit socket and bit face;
• H22 rod length, taper angle or controlled dimensions, and any part markings;
• required hole diameter, depth, direction and acceptable gauge loss;
• rock description, known mineralogy or abrasivity data, and photos of fresh cuttings;
• wet flushing, air flushing or dust-extraction method;
• current bit type, button shape/layout, service history and failure pattern;
• penetration and bit-life records from a representative zone;
• quantity, packing requirement, destination and trial-order plan.

When laboratory abrasivity data is unavailable, say so. A small controlled trial with a documented wear check is more defensible than inventing a rock classification. PerfoMax can review the H22 interface and the application information, but the approved quotation and configuration sheet should control the supplied taper, geometry, tolerance and inspection scope.

Frequently asked questions

Is a button bit always best for hard abrasive rock?

No. Button bits are common for hard rock, but the best structure depends on the pneumatic drill, hole size, taper system, fracture pattern, flushing and acceptable wear. Compare compatible structures in a controlled trial when the formation or current failure mode is uncertain.

Why does the outside row wear faster than the face?

Gauge buttons or cutting edges contact the borehole wall as the bit advances and rotates. Abrasive cuttings, deviation and excessive side contact can accelerate that wear. Check alignment, rotation behaviour, flushing and the bit’s gauge design before treating it as normal consumption.

Should the operator increase feed when penetration slows?

Not automatically. Slower penetration may come from worn buttons, poor cuttings return, air loss, irregular rotation or a harder band. Excessive feed can stall rotation or increase bending. Diagnose the cause and stay within the drill and air-leg instructions.

Can water flushing reduce bit wear?

Effective flushing removes chips and limits re-crushing and abrasive recirculation, so it can support more stable drilling. The result depends on a clear water path and adequate return. Water is also part of dust control, but it must be used according to the equipment and site safety plan.

What information is most useful when a new bit wears rapidly?

Send the exact drill/rod/bit configuration, rock zone, meters or holes drilled, face-and-gauge photos, measured diameter, cuttings return, under-load air condition and details of any chipping, body wash or lost buttons. That evidence separates compatibility, operating and material questions.

Technical basis and next step

This guide applies the drilling-system principles reflected in Epiroc drill bit documentation, the lubrication requirement described in Atlas Copco rock drill air-oil guidance, and NIOSH engineering-control guidance for rock-drilling dust. Always follow the exact equipment manuals and local safety requirements.

For a PerfoMax H22 bit inquiry, send the rod-end and old-bit photos, taper confirmation, hole diameter, rock condition, flushing method, current wear pattern, quantity and destination through the H22 taper button bit page or the Request a Quote page.

Bottom line: in hard abrasive rock, productive pneumatic drilling depends on a matched H22 bit, verified air and lubrication, stable bit contact, effective flushing and early wear inspection. Treat gauge loss and cuttings return as operating signals, then use controlled trial records to select the next bit rather than relying on a generic “hard rock” label.
