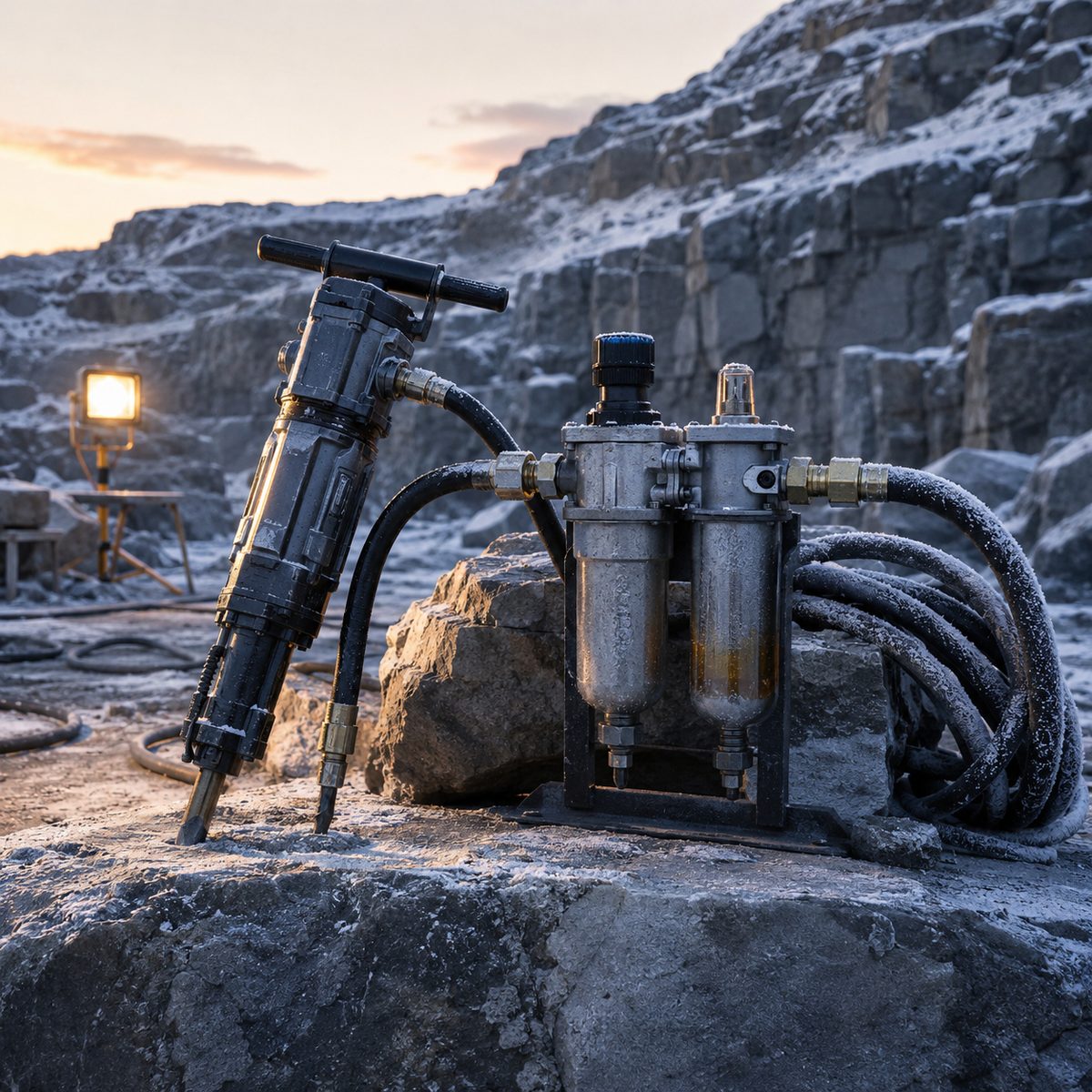

Cold-weather pneumatic rock drilling succeeds when the air system stays dry, the tool receives the correct lubricant, and pressure is checked at the drill while it is working. Below 0°C (32°F), condensate that would normally remain liquid can freeze in drain lines, separators, couplings, hoses, valves, or exhaust passages. The result may look like a worn drill: slow blows, weak rotation, intermittent stopping, or a tool that works again after warming.
The practical response is not simply to raise compressor pressure. Remove moisture upstream, protect exposed air-system components, use only the lubricant approved for the exact drill and temperature range, and diagnose restrictions from the compressor toward the tool. This guide is for mines, quarries, tunnelling contractors, and service teams operating hand-held or air-leg rock drills in sub-freezing conditions.
Cold-weather symptom guide
| Observed symptom | Likely cold-related cause | First safe check | Recommended action |
|---|---|---|---|
| Drill starts normally, then slows or stops | Ice forming in a separator, coupling, hose restriction, valve, or exhaust path | Isolate and depressurize; inspect from the upstream moisture controls toward the drill | Drain and thaw components by an approved method; correct the moisture source before restarting |
| Good pressure at the compressor but weak performance at the drill | Frozen condensate, restricted coupling, undersized hose, or excessive pressure loss | Measure dynamic pressure near the drill while it is operating | Restore flow, correct hose or coupling restrictions, and compare with the drill manual |
| Little or no oil reaches the tool | Oil too viscous for the temperature, empty or blocked lubricator, poor adjustment, or iced passage | Check the lubricator and approved oil under the supplier's safe procedure | Use the specified cold-weather rock-drill oil and restore metering; never improvise with solvents |
| Tool repeatedly works after warming, then fails outside | Recurring internal or line icing | Check condensate drains, separator placement, dew point, and exposed low points | Improve moisture removal and winter protection rather than repeatedly warming the tool |
| Water spits from the line or exhaust | Condensate carryover exceeds separation or drainage capacity | Drain the receiver, separator, manifold, and low points safely | Verify aftercooler, dryer, separator, and drain operation before continued drilling |
Why compressed air freezes at the drill
Atmospheric air carries water vapour. Compression, cooling, and distribution can turn part of that vapour into liquid condensate. If liquid water remains in the receiver, aftercooler, separator, manifold, hose low points, or tool, winter temperatures can turn it into ice. Air also cools as it expands through the drill, so icing can occur inside or around exhaust passages even when the incoming line does not appear frozen.
Pressure dew point matters because it describes the temperature at which water begins to condense at system pressure. If the exposed air system operates below its effective dew point, moisture can condense and then freeze. There is no universal dryer or separator setting for every site: the required moisture control depends on the lowest expected ambient temperature, compressor package, air demand, line exposure, and the drill manufacturer's instructions.
External frost is useful evidence, but not a complete diagnosis. A coupling may frost because of local expansion while remaining open, and a hidden restriction may exist without visible ice. Confirm the restriction with safe inspection and loaded pressure or flow checks.
Winter readiness decision: READY, HOLD, or STOP
Before pressurizing the drill, use one release decision for the complete winter air path. The decision must be based on the lowest temperature expected at the most exposed hose, separator, coupling, lubricator, and tool—not only the temperature beside the compressor. Do not apply a universal pressure-dew-point margin or oil grade: use the limits and evidence for the exact compressor package, dryer, hose, lubricator, and drill.
| Release input | Evidence to record | READY condition | HOLD or STOP trigger |
|---|---|---|---|
| Lowest exposed temperature | Forecast/site reading, location and exposure period | Falls within every component supplier's declared operating range | HOLD: a component limit is missing; STOP: the expected temperature is outside an approved limit |
| Pressure dew point and air treatment | Dryer/separator specification, measurement point and current operating evidence | The supplier-approved air-treatment plan is adequate for the recorded winter condition | HOLD: only a summer rating or unlocated dew-point value is available; STOP: liquid carryover or repeated ice remains |
| Receivers, separators and drains | Drain check, collected water, automatic-drain function and protected low points | Required drains function and no frozen safety-related component is found | HOLD: function cannot be proved; STOP: a drain, separator, regulator or safety device is frozen or damaged |
| Hoses, couplings and restraints | Pressure/temperature ratings, condition, locking and routing | All assemblies are rated, secured and free from cold damage or ice plugs | HOLD: ratings are unknown; STOP: cracking, bulging, stiffness, loose locking or suspected blockage is present |
| Lubricant and delivery | Approved product, declared temperature range, lubricator setting and delivery check | The exact drill's approved lubricant reaches the tool under the approved test | HOLD: oil approval is unclear; STOP: delivery is lost or an improvised de-icer has been added |
| Loaded tool pressure and function | Measurement point, drill operating state, pressure and observed percussion/rotation | Loaded results meet the exact drill and system instructions without bypassing controls | HOLD: only static/compressor-panel pressure is known; STOP: unstable operation or a recurring restriction remains |
| Initial-cycle recheck | Time after start, frosting/condensate location, oil delivery and repeated loaded reading | No new restriction or unsafe change appears after expansion cooling begins | HOLD: the recheck was skipped; STOP: icing, leakage, loss of lubrication or unsafe hose movement develops |
Record the release so the next shift can repeat it
Keep one line for: date and shift; drill and compressor IDs; lowest exposed temperature; dryer or separator reference; pressure-dew-point evidence and measurement location; drain result; hose and lubricant approvals; loaded pressure at the drill; initial-cycle recheck; final READY / HOLD / STOP decision; approver; and corrective action. A HOLD means evidence or a correctable condition is incomplete and production has not been released. A STOP means the system must remain isolated until the unsafe or out-of-range condition is corrected under the site procedure.
ISO 8573-1 classifies compressed-air purity for particles, water and oil; it does not select the winter purity or dew-point requirement for a particular drill site. The buyer and equipment suppliers must define that requirement for the actual exposure and system.
Start at the compressor and moisture-control system
A rock drill cannot compensate for wet or restricted supply air. Before the shift, confirm that the compressor is permitted to operate at the expected temperature and complete the compressor manufacturer's winter checks. Oil, coolant, batteries, drain valves, and control systems can all have model-specific temperature limits.
- Drain accumulated condensate safely. Check the receiver, aftercooler or moisture separator, filters, manifold, and low points. Frozen automatic drains can appear normal while remaining closed.
- Verify the dryer and separator are suitable for the weather. A device that works in summer may not deliver an adequate pressure dew point during a colder shift.
- Protect exposed drains and lines. Use only approved insulation, sheltering, or heat tracing. The protection must preserve access for inspection and must not exceed hose or component temperature ratings.
- Check loaded performance. Compressor display pressure alone does not prove that sufficient air reaches the drill. Record pressure near the tool while the drill is operating.
- Compare with a warm-weather baseline. A sudden winter-only drop helps distinguish environmental restriction from normal wear, but it does not replace a mechanical inspection.
For air-demand, pressure, and line-loss planning, see the published YT28 air compressor sizing guide. Use its method with the specifications for your exact drill rather than transferring one model's requirements to another.
Place and drain water separators deliberately
A separator only removes liquid that reaches it, and its position affects what it can collect. Air may leave a compressor package warm and then produce more condensate as it cools along the distribution line. A separator located before that cooling may not capture water formed farther downstream. At the same time, an unprotected downstream separator can freeze.
Use the equipment manufacturer's arrangement for the compressor, dryer, receiver, separator, and lubricator. Some rock-drill manuals give model-specific instructions for separator placement and hose length in freezing weather. Treat those instructions as requirements for that model, not as a universal layout for every pneumatic drill.
- Keep drain points accessible and protected from ice blockage.
- Avoid hose sags and dead legs where water can collect.
- Do not bypass a blocked separator to keep production moving.
- Do not discharge condensate where it can create a slip, environmental, or refreezing hazard.
- Confirm bowls, housings, drains, and fittings are pressure-rated and undamaged after freezing.
Choose winter lubrication by the drill manual
Pneumatic rock drills depend on continuous lubrication. Cold oil can become harder to meter and atomize, while water or ice can obstruct the lubricator and passages. Insufficient lubrication increases friction and wear; excessive or unsuitable fluid can also impair operation and damage seals.
Use only rock-drill oil approved by the exact tool manufacturer for the expected ambient temperature. Confirm the product grade, viscosity range, lubricator type, and adjustment in the current manual. Do not add automotive antifreeze, alcohol, diesel fuel, solvents, or improvised de-icing chemicals unless both the tool and air-system manufacturers explicitly approve the substance and procedure. A liquid that melts ice may be incompatible with seals, lubrication, fire controls, or downstream treatment equipment.
Before the shift, check the lubricator level, condition, mounting direction, adjustment, and oil delivery under the approved procedure. Keep the oil container closed and free of water or dirt. If the tool is dry at the exhaust or shows a sudden change in oil carryover, stop and confirm delivery rather than increasing pressure.
The published pneumatic rock drill lubrication and line-oiler guide explains the normal lubrication circuit and common checks.
Inspect hoses and couplings before pressurizing
Freezing can turn trapped water into a plug and can damage components as it expands. Cold also reduces the flexibility of some hose materials. A hose or coupling that was acceptable in mild weather may become stiff, cracked, loose, or difficult to latch.
- Confirm the hose temperature and pressure ratings cover actual site conditions.
- Inspect the full hose length for cuts, abrasion, flat spots, stiffness, bulges, and frost concentrated around a restriction.
- Clean and inspect coupling faces, seals, locking devices, and safety restraints.
- Route hoses away from vehicle traffic, sharp edges, standing water, exhaust heat, and locations where meltwater will refreeze.
- Replace damaged parts; do not warm a pressurized hose with a flame, torch, or uncontrolled heater.
Always isolate, lock out where required, and fully depressurize before separating a connection. Stored air and a loose hose can cause severe injury.
A safe cold-start sequence
- Confirm the operating envelope. Check the compressor, dryer, hose, lubricator, and rock-drill manuals for minimum temperature, lubricant, and start-up requirements.
- Drain and inspect the air system. Clear condensate by the approved method and verify that automatic drains actually cycle.
- Prepare the tool and approved oil. If site procedure permits protected storage or conditioning, bring the tool and lubricant into the specified temperature range without uncontrolled heating.
- Connect clean, rated components. Check couplings, seals, restraints, and hose routing before opening the air supply.
- Pressurize gradually under the manufacturer's procedure. Listen for leakage and observe separator and lubricator behaviour.
- Run a controlled function check. Confirm percussion, rotation, flushing, exhaust, oil delivery, and stable loaded pressure before full drilling.
- Recheck after initial operation. Expansion cooling can reveal icing that was not visible at start-up.
Do not invent a reduced-pressure warm-up percentage. Some drills and compressor packages have specific start procedures; follow those procedures exactly.
How to diagnose a drill that slows or freezes
Work from the supply side toward the tool so one fault is not mistaken for another.
- Stop and make the system safe. Isolate air, release stored pressure, and secure the hose.
- Check the compressor and receiver. Confirm normal temperature, alarms, condensate level, and delivery under load.
- Inspect dryer, filters, and separators. Look for frozen drains, cracked bowls, blocked elements, or excessive water.
- Inspect manifolds, low points, hoses, and couplings. A local pressure drop or concentrated frosting can help locate a restriction.
- Verify lubricator condition and oil delivery. Correct an empty, blocked, misadjusted, or cold-incompatible lubrication supply.
- Test dynamic pressure near the drill. A static gauge can look satisfactory after the trigger is released while the line collapses under flow.
- Compare with a known-good rated line or tool only under an approved test plan. Change one variable at a time and preserve the same pressure, hose arrangement, and safety controls.
- Inspect the drill internally only if trained and authorized. Persistent symptoms after the air system is verified may indicate wear, valve trouble, blocked flushing, or another mechanical fault.
If the machine is a Y19A, the published Y19A maintenance checklist provides a model-focused inspection sequence.
Controlled test: exhaust icing, upstream restriction, or internal wear?
A cold drill can stall for three different reasons that feel similar at the handle: the branch line loses air through a frozen or water-loaded restriction; ice progressively blocks the drill’s exhaust path and creates back pressure; or an internal valve, piston, port or wear condition remains faulty after the air system is proved. NIOSH research on quieted pneumatic percussion drills documented moisture freezing inside muffler and drill-body passages, restricting exhaust flow and causing a stall. The mechanism is useful evidence, but it does not justify removing a muffler, guard or other safety component for a field test.
Use a written, supervised comparison that changes only one variable at a time. Keep the same drill steel, bit, feed condition, hose length, coupling arrangement, lubricator setup and test task unless the comparison step specifically changes the branch or drill. Do not run a pressurized tool unattended, thaw it with a flame, strike a frozen component or bypass an exhaust device.
| Comparison step | Evidence to record | What the result supports |
|---|---|---|
| 1. Establish the cold baseline | Ambient temperature, tool and branch ID, drain condition, visible water, dynamic inlet pressure, lubrication evidence, exhaust note and time from trigger-on to first deterioration | Creates a repeatable reference instead of relying on “the drill feels weak” |
| 2. Inspect the restriction pattern after safe isolation | Location of concentrated frost or ice, frozen drain or separator, damaged hose, blocked coupling, restricted exhaust cover and any liquid released from controlled drain points | Localizes the symptom without opening a pressurized circuit |
| 3. Put a known-good drill on the same verified branch | Whether the comparison drill develops the same pressure loss, exhaust change or time-dependent stall under an equivalent controlled task | If both drills deteriorate on the same branch, the supply path or moisture-control system becomes the stronger Owner |
| 4. Put the affected drill on a known-good rated branch | Whether the symptom follows the drill while hose, pressure, oil delivery and task remain controlled | If the fault follows the drill, exhaust-path restriction or an internal condition becomes the stronger Owner |
| 5. Repeat only after correction | Same baseline fields plus the corrective action, stable operating interval and recurrence status | Shows whether the correction removed the progressive fault rather than only warming it temporarily |
A visible frost ring is a clue, not a complete diagnosis. Exhaust expansion can create local frost while an upstream branch still maintains acceptable delivery, and a hidden internal restriction may exist without heavy external ice. Pair location evidence with dynamic inlet pressure, exhaust behavior and the matched comparison.
Assign one winter-service disposition
| Status | Use when | Required action |
|---|---|---|
| READY FOR WINTER SERVICE | The branch and drill complete the controlled repeat with stable dynamic pressure, oil delivery, exhaust behavior and no recurring unsafe ice or water carryover | Release under the site’s winter checklist and retain the test record |
| CONDITIONAL — MONITORED RELEASE | A corrected, bounded condition remains under an authorized concession and the drill passes the repeat test | Set a defined recheck point; do not describe an untested warm-up as a permanent correction |
| HOLD FOR AIR-SYSTEM CORRECTION | The symptom follows the branch, a drain or separator is frozen, water carryover continues, or loaded pressure cannot be maintained | Stop issue on the affected branch and correct moisture removal, drainage, hose or coupling condition before retest |
| REMOVE TOOL FROM SERVICE | The fault follows the drill on a verified branch, an exhaust component is damaged or restricted, controls are unpredictable, or internal inspection is required | Tag the exact drill and send it for model-specific qualified service; do not bypass the suspected component |
Copy-ready exhaust-icing event record
- Date, shift, site and responsible person:
- Drill model, serial or internal asset ID:
- Branch, compressor, separator, lubricator and hose IDs:
- Ambient temperature and exposure conditions:
- Dynamic inlet pressure and measurement point:
- Drain condition, water quantity or visible carryover:
- Oil grade approved for the model and delivery evidence:
- Time to first slowdown, irregular exhaust or stall:
- Frost or ice location, photographs and exhaust-note change:
- Known-good branch or drill used for comparison:
- Variable changed and result:
- Correction completed and controlled-repeat result:
- Final status: READY / CONDITIONAL / HOLD / REMOVE:
- Approver and next inspection point:
The NIOSH quieted-percussion-drill research supports the exhaust-freezing and back-pressure mechanism. Site acceptance still depends on the exact drill manual, the installed air-treatment system and the authorized maintenance procedure.
Stop-work conditions
Do not continue drilling when any of the following is found:
- a frozen or non-functioning safety valve, drain, regulator, or separator;
- a cracked bowl, fitting, manifold, coupling, or hose;
- a bulged, cut, abnormally stiff, or unrated hose;
- a blocked exhaust or repeated internal icing;
- unknown component pressure or temperature ratings;
- loss of lubrication that cannot be corrected and verified;
- water discharge that rapidly refreezes in the work area; or
- a pressure or airflow shortfall that encourages unsafe adjustments.
Never strike a pressurized component to break ice, use an open flame, or disconnect a frozen line under pressure. Escalate to the site supervisor or qualified service technician when the cause is not clear.
End-of-shift winter shutdown
Winter reliability is often decided after drilling stops. Follow the compressor and drill manuals for shutdown, draining, and storage.
- Isolate and depressurize before disconnecting equipment.
- Drain the receiver, separators, manifold, and approved low points.
- Protect disconnected inlets and couplings from snow, water, and grit.
- Store the drill, lubricator, and approved oil in a dry temperature-controlled area when the manufacturer and site procedure allow it.
- Record icing locations, water quantity, loaded pressure, lubricant, ambient temperature, and corrective action for the next shift.
- Replace damaged seals, hoses, or fittings before repressurization.
A short log helps distinguish a one-off freeze from inadequate moisture control or recurring system design problems.
Common mistakes that increase winter downtime
- Raising pressure to overcome a restriction. This can exceed component limits without restoring airflow.
- Blaming the drill before checking the air system. Wet supply air, blocked drains, and restricted couplings can imitate internal wear.
- Using an unapproved de-icer. Seal, lubricant, fire, and downstream-treatment compatibility may be unknown.
- Bypassing moisture controls. The immediate pressure improvement can send more water to the hose and tool.
- Heating a pressurized component. Local overheating and trapped pressure create a serious hazard.
- Treating visible frost as proof. Confirm actual pressure loss and inspect the complete flow path.
- Using summer oil without checking its cold range. Poor metering can starve the drill even when the lubricator appears full.
Information to confirm before an RFQ or winter deployment
| Information | Why it matters |
|---|---|
| Exact drill model and current manual | Defines air demand, pressure, lubricant, hose, and temperature instructions |
| Lowest expected ambient temperature and exposure time | Sets the winter operating envelope and moisture-control requirement |
| Compressor model, aftercooler, receiver, dryer, and separator arrangement | Shows where condensate should be removed and what may freeze |
| Hose internal diameter, total length, couplings, and elevation | Supports pressure-loss and restriction checks |
| Dynamic pressure measured near the operating drill | Separates supply loss from a tool-side fault |
| Approved oil name or grade, temperature range, and lubricator type | Prevents cold-viscosity and compatibility errors |
| Shift start, drain, shutdown, and storage procedure | Reveals when water is entering or remaining in the system |
PerfoMax supplies pneumatic rock drills for different drilling arrangements, including the active Y19A hand-held pneumatic rock drill and YT28 air-leg rock drill. Confirm the exact drill, air system, hose, lubricant, and cold-weather conditions before ordering or deploying equipment.
Frequently asked questions
Why does a pneumatic rock drill work indoors but stop outside?
Moisture may freeze after the tool, hose, or separator reaches the outdoor temperature. Expansion cooling at valves and exhaust passages can intensify the effect. Verify condensate control, loaded pressure, and lubricant delivery before assuming the drill is worn.
Can compressor pressure be increased to push through ice?
No. A restriction can prevent airflow while pressure rises upstream, creating an overpressure risk. Isolate and depressurize the system, remove ice by an approved method, and correct the moisture source.
Can alcohol or automotive antifreeze be added to the air line?
Only if the exact drill and air-system manufacturers explicitly approve the substance, concentration, and procedure. Otherwise, compatibility with seals, oil, fire controls, and treatment equipment is unknown. Use approved moisture-control and lubrication methods.
Where should a water separator be installed?
Follow the compressor and drill manufacturers' system layout. The separator must receive condensed liquid and remain serviceable without freezing; additional condensate can form as warm air cools downstream. A generic fixed distance is not reliable for every system.
How can icing be distinguished from drill wear?
Icing often appears only in cold conditions, may recur after a similar operating time, and may temporarily clear after approved warming. Confirm the diagnosis with moisture inspection, loaded pressure, oil delivery, and a controlled one-variable-at-a-time test. Persistent symptoms after supply air is verified require qualified mechanical inspection.
Technical references
- ISO 8573-1:2010 — compressed-air contaminants and purity classes
- UK HSE HSG39 — compressed-air safety, including dryers, separators, hoses and portable pneumatic equipment
Plan the complete winter drilling system
Cold-weather reliability depends on the whole air path, not one component. When requesting a quotation, send PerfoMax the drill model, hole requirement, lowest temperature, compressor and air-treatment arrangement, hose details, measured loaded pressure, and approved lubricant. Review the Y19A hand-held rock drill or review the YT28 air-leg rock drill as current commercial starting points.
