If pneumatic rock drill side bolts keep loosening, repeated retightening is not the complete repair. Stop the drill, isolate and depressurize it, then inspect the paired side bolts, nuts, washers, threads and housing contact faces before applying the exact model's tightening procedure. Uneven or insufficient clamping can let the drill sections lose alignment; continuing to operate can lead to air leakage, heat, irregular running, moving-part seizure or side-bolt fracture.
These fasteners may be called side bolts, side rods, through bolts or long bolts in different manuals and parts lists. Their shared job is to hold the front head, cylinder, valve housing and back head together as one aligned assembly. They are not ordinary cover screws, and there is no safe universal torque value or tightening sequence across all pneumatic rock drills.
What side bolts do inside a pneumatic rock drill
A pneumatic rock drill contains a piston, valve and rotation components that must move within closely aligned bores and guides. The long side bolts provide the clamping force that keeps the major housing sections seated against their mating faces. Correct and balanced tension helps preserve alignment while the drill is exposed to repeated impact, rotation and compressed-air pressure pulses.
If one side carries more tension than the other, the housings can be pulled together unevenly. If both are loose, the joint faces may move under load. OEM troubleshooting manuals connect uneven or insufficient side-bolt tension with misalignment, uneven running, excessive heat, seizure of moving components and abnormal stress at the bolt threads. That is why a loose nut should be treated as evidence to investigate, not simply a cue to add more torque.
Why pneumatic rock drill side bolts loosen
| Possible cause | How it affects the joint | Evidence to look for |
|---|---|---|
| Insufficient initial preload | The housing sections can separate microscopically under impact and lose clamping stability. | Both nuts below the specified condition soon after assembly, joint movement or witness-mark shift. |
| Uneven tightening | One rod carries more load and the body sections can lose alignment. | Different nut positions, one rod repeatedly loosening, irregular running or binding after service. |
| Dirty, damaged or mismatched threads | Friction or poor engagement prevents the intended bolt tension even when wrench torque appears normal. | Rust, debris, galling, flattened crests, cross-threading or nonmatching nuts. |
| Incorrect washer, nut or side-rod part | Bearing area, engagement length or elastic behavior may differ from the designed assembly. | Mixed hardware, improvised spacers, short thread engagement or parts that do not match the exact parts list. |
| Damaged housing contact faces | Fretted, burred or distorted faces settle or move after tightening. | Polished movement marks, dark fretting debris, raised burrs, gaps or leakage at a joint. |
| Side-rod stretch, bending or thread damage | The fastener can no longer maintain the intended clamping load reliably. | Permanent length difference, necking, bent rod, cracked thread root or recurring loss of tension. |
| Incorrect thread condition during torquing | Dry, oiled and greased threads can produce different bolt tension from the same wrench setting. | Assembly condition differs from the service manual or from the other rod. |
| Underlying vibration or internal fault | Abnormal impact, binding, poor lubrication or worn parts impose additional loads on the clamped assembly. | Heat, changed exhaust sound, weak rotation, metal debris or rapid recurrence after correct assembly. |
Stop-work signs that need more than a quick retightening
Take the drill out of service when the retention condition is uncertain or when continued operation could increase damage. A competent maintenance person should inspect the tool before restart if any of the following are present:
- A side-bolt nut is visibly loose, missing or no longer seated squarely.
- A gap opens at a housing joint, or air and oil escape from the joint while the drill runs.
- The same nut loosens again within a shift or shortly after service.
- The drill becomes unusually hot, runs unevenly, changes sound or begins to bind after tightening.
- Threads show galling, flattening, corrosion, cracks or evidence of cross-threading.
- A rod appears bent, stretched, necked or different in effective length from its matched partner.
- Washers, nuts or spacers differ between sides or do not match the controlled parts list.
- Mating faces show fretting, burrs, impact marks or material transfer.
Do not use a running air leak as a locator while hands or tools are near an unsecured assembly. Isolate the energy source first. Local lockout, hose-restraint and stored-energy procedures take priority over any general maintenance sequence in this guide.
A safe inspection sequence for loose side bolts
- Confirm the exact drill identity. Record the complete model, variant and serial information where available. Obtain the correct operating, service and parts documents; a family name alone is not enough.
- Isolate and depressurize. Disconnect air and water supplies under the approved site procedure. Verify that stored pressure is released before touching fasteners.

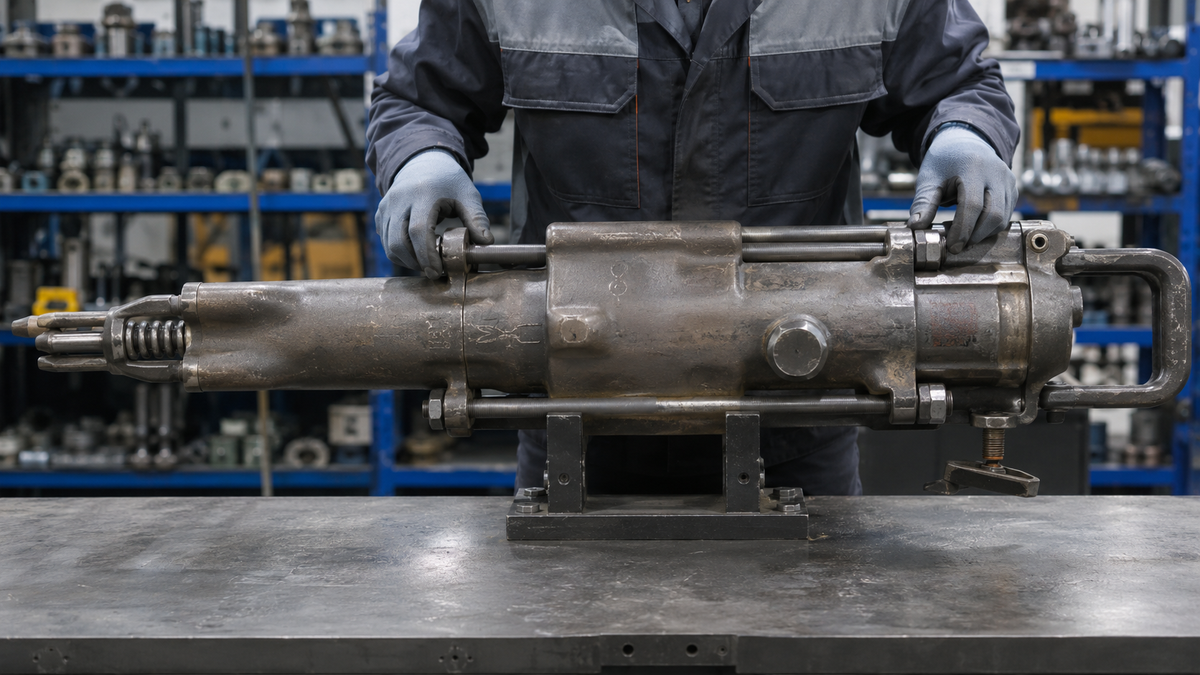

- Secure and clean the tool. Support the drill in a suitable fixture so it cannot roll or shift. Clean external dirt without forcing contamination into ports or joints.
- Record the as-found condition. Photograph nut positions, washers, leakage paths, joint gaps and witness marks. Note which side was loose and whether the drill had recently been rebuilt.
- Inspect both sides as a pair. Do not assume the apparently tight rod is serviceable. Compare thread engagement, nut and washer condition, rod straightness and exposed length.
- Inspect the clamped components. Look for burrs, fretting, cracks, distortion and debris on contact faces. If the manual requires dismantling for this inspection, only trained personnel should perform it.
- Check for related faults. Review lubrication, chuck-bushing condition, piston or guide damage, air-supply quality and any symptom that could create abnormal vibration or heat.
- Decide whether parts can be reused. Apply the manufacturer's wear, crack, thread and dimensional limits. Replace questionable fasteners rather than attempting to recover preload with extra torque.
How to tighten side bolts without creating a new fault
The controlled service procedure for the exact model is the authority. It should specify the fastener condition, thread treatment, washer arrangement, tightening sequence, torque and any recheck interval. A torque value from a different drill—even one with similar weight or shank size—must not be transferred.
Prepare the joint correctly
Threads and bearing faces must be clean and undamaged. Install the specified rods, nuts and washers in the specified orientation. Do not add oil, grease, thread-locking compound or substitute hardware unless the manual calls for it. Lubrication changes friction and therefore changes the bolt tension produced by a given torque.
Bring the assembly together evenly
Seat the body sections and start the nuts by hand. The nuts should advance without cross-threading or abnormal resistance. Tighten the paired fasteners in gradual, alternating steps using the specified sequence so one side does not pull the assembly out of line. Use a calibrated torque wrench in good condition for the final pass.
Verify function before returning to production
After assembly, check that external controls move correctly and that no component has been trapped or distorted. Perform the manufacturer's prescribed low-risk functional and leakage checks in a controlled area. Stop immediately if the drill binds, runs unevenly, heats quickly or leaks at a body joint. Record the torque procedure, parts changed and technician.
Diagnose recurring loosening by when it returns
| When the problem appears | Most useful checks | Decision boundary |
|---|---|---|
| Immediately during assembly | Thread match, damaged threads, wrong nut or washer, mis-seated housing, debris between contact faces. | Do not force the nut or exceed the specified torque to overcome resistance. |
| During the first controlled run | Even tightening, trapped component, joint leakage, internal binding, correct part stack. | Stop if the drill runs unevenly, heats or leaks. |
| Shortly after overhaul | Settling at repaired faces, correct recheck requirement, replaced versus reused fasteners, assembly record. | Follow the manual's recheck procedure; repeated movement requires inspection. |
| After many normal shifts | Routine inspection history, thread corrosion, rod fatigue, housing wear, abnormal vibration. | Compare both rods and inspect the full joint before reuse. |
| Only under difficult drilling | Feed alignment, drill-steel condition, chuck wear, lubrication, side loading and operating technique. | Correct the operating or internal cause instead of repeatedly tightening the exterior fasteners. |
When should a side rod, nut or washer be replaced?
Replace a component when it fails the exact model's service limit, when its identity is uncertain or when damage prevents reliable clamping. Common rejection reasons include cracked or rolled threads, galling, permanent bending, visible stretch, severe corrosion, damaged nut bearing faces, distorted washers and incorrect part geometry. A nut that runs freely does not prove the rod has retained its original mechanical condition.
Housing faces also matter. Tightening new rods against fretted or distorted contact surfaces may produce another short-lived repair. Burr removal, surface restoration or housing replacement must follow the manufacturer's repair limits; do not hand-grind precision mating faces without an approved procedure.
Common side-bolt maintenance mistakes
- Tightening only the loose side. The pair must be assessed and tightened through the specified balanced sequence.
- Using an impact wrench for final torque. It does not provide the controlled final condition required by a service procedure.
- Copying a torque from another model. Similar appearance does not establish identical bolt size, material, thread condition or joint design.
- Adding lubricant without checking the manual. A changed friction condition can create excessive preload at the same wrench setting.
- Reusing visibly damaged fasteners. Extra torque cannot repair stretched metal or damaged threads.
- Ignoring mating-face fretting. A moving or distorted joint can loosen new hardware again.
- Restarting without a functional check. Uneven assembly may show up as binding, heat, leakage or irregular operation.
- Treating witness paint as proof of torque. Marks can reveal movement, but they do not measure current preload or confirm internal alignment.
What to include in a spare-parts or service request
Side bolts are configuration-controlled parts. To prevent an incorrect substitution, send the supplier enough information to identify the assembly and understand the failure:
- Complete rock-drill model and variant, plus serial number where available.
- Parts-list reference for each side rod, nut, washer and locking component.
- Overall rod length, thread at each end and clear photographs of the original parts.
- Quantity required and whether the parts will be installed as a matched pair.
- Photographs of thread damage, nut bearing faces and housing contact surfaces.
- Which side loosened and how soon after assembly or overhaul.
- Observed heat, leakage, binding, changed sound or side-rod fracture.
- Current maintenance procedure, torque-tool control and thread-condition requirement.
- Air pressure, lubrication arrangement, drill-steel shank and application conditions if abnormal operation is involved.
Frequently asked questions
Can I tighten a loose side-bolt nut while the drill is connected to air?
No. Isolate and depressurize the drill under the site procedure before inspection or adjustment. Secure the tool so it cannot move while torque is applied.
Are side bolts and through bolts the same part?
The terms are often used for the long fasteners that clamp the drill body, but naming varies by manufacturer and model. Confirm the part number and drawing rather than relying on terminology alone.
Why does one side bolt keep loosening?
Possible causes include uneven tightening, damaged threads, a stretched rod, mismatched hardware, a moving housing face or an underlying alignment or vibration problem. Inspect both sides and the complete joint.
Should side-bolt threads be greased?
Only if the exact service instruction specifies that thread condition and lubricant. Torque values depend on friction; changing from dry to lubricated threads can change bolt tension significantly.
Can I reuse a side rod after a nut has come loose?
Not automatically. Inspect the rod, threads, nuts, washers and mating faces against the manufacturer's limits. Recurring looseness, visible stretch, bending, cracks or thread damage are reasons to reject or escalate the part.
Match maintenance documents to the exact drill configuration
For a broader diagnostic sequence, see the published YT28 rock drill troubleshooting guide and the pneumatic rock drill lubrication guide. If you are reviewing a new or replacement drill, the active YT28 air-leg pneumatic rock drill page is a commercial starting point. Send PerfoMax the exact drill identity, application, air supply and controlled parts references so the quotation can be checked against the required configuration.
Bottom line: recurring side-bolt loosening is evidence of an unresolved joint, fastener or operating problem. Restore the complete clamping system with the correct parts and model-specific procedure before the drill returns to service.
