Direct answer: when a pneumatic rock drill gets hotter than its normal operating pattern, stop drilling and treat the temperature rise as a lubrication or alignment warning—not as a reason to increase air pressure. Isolate the air and water supplies, bleed stored pressure under the site procedure, let the tool cool, and check whether oil is actually reaching the drill-steel shank. If lubrication is correct, investigate shank alignment, chuck or guide wear, uneven side-bolt clamping, contamination, a sticking valve, or internal seizure using the exact model manual.
A warm tool body alone does not identify a fault. The useful evidence is where the heat appears, how quickly it develops, whether impact or rotation changes, whether the shank carries an oil film, and whether the drill shows rough running, unusual noise, air leakage, discoloration, or scoring. A sudden change from the machine's established baseline deserves an immediate stop and inspection.
When is a hot pneumatic rock drill a stop-work condition?
| Observation | What it may indicate | Immediate boundary |
|---|---|---|
| Temperature rises quickly after startup | Oil is absent, the oiler is reversed or blocked, the selected oil is unsuitable, or a moving part is binding | Stop, isolate, and verify lubrication delivery before another test |
| Front end becomes hot and impact sounds sharp | Piston-to-shank contact is abnormal, the shank is too short or damaged, or the front cushion is not working as intended | Do not continue free running; inspect the shank and front-end interfaces |
| Heat appears with uneven running or a tight feel | Body sections, guides, or moving parts may be misaligned; side bolts may have unequal tension | Remove from service for model-specific alignment and fastener checks |
| Heat appears with water or washed-off oil at the exhaust | Flushing water may be entering the mechanism through a tube, seal, or pressure problem | Isolate both services and inspect the wet-drilling circuit |
| Heat is accompanied by blue metal, burning odor, scoring, cracks, or seizure | Heat damage or loss of the oil film may already have caused internal damage | Do not restart; send the drill for qualified inspection |
| Heat is stable, performance is normal, and the model manual gives no alarm | May reflect normal operating warmth | Record the reading and compare it with the machine's known baseline; do not invent a universal temperature limit |

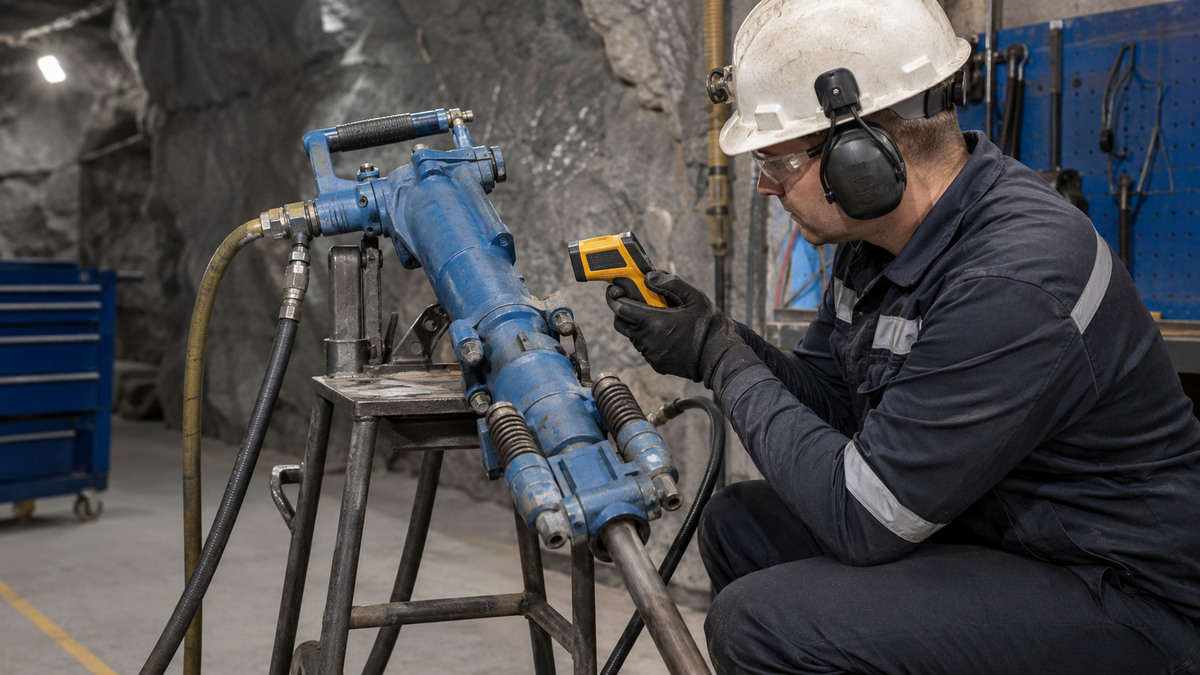

First response: isolate the tool and preserve evidence
- Stop impact, rotation, feed, and flushing. Do not keep drilling to see whether the condition clears.
- Shut off and isolate compressed air and water. Bleed residual pressure through the approved procedure before touching hoses, couplings, the shank, or fasteners.
- Keep people clear of the steel and air leg. The drill steel may be hot, sharp, stressed, or difficult to release.
- Let the tool cool naturally. Do not pour water on a hot drill steel or improvise with flame, solvent, or an unapproved cooling method.
- Record the symptom before cleaning. Note time from startup, drilling direction, rock, feed behavior, pressure at the tool, oil level, water setting, heat location, sound, and any visible leakage.
The Ingersoll Rand YT28 product manual warns against operating without lubrication and against extended free running. It also directs tool repair and maintenance to an authorized service center. Those boundaries are useful across a mixed fleet: field personnel can verify external supply and interface conditions, while internal repair follows the controlled manual for the exact drill.
Pneumatic rock drill overheating diagnostic sequence
1. Confirm that oil reaches the shank
Lubrication is the highest-priority check because a percussion drill depends on an air-carried oil film between rapidly moving metal surfaces. The YT28 manual describes proper lubrication as the most important single factor in rock-drill service life and states that serious damage can occur within the first minutes when lubrication is inadequate.
- Confirm that the line oiler is installed in the correct flow direction and close enough to the drill for the model's instructions.
- Check the reservoir level, oil cleanliness, adjustment, blocked passages, and hose routing.
- Use only the rock-drill oil and viscosity approved for the ambient temperature and the supplied model.
- Inspect the drill-steel shank for the light oil film described by the manufacturer. Exhaust mist alone can be misleading.
- Look for excessive oil as well as too little. Heavy exhaust smoke, oil running down the steel, difficult starting, or uneven performance can indicate over-lubrication on some models.
Do not copy one supplier's oil-flow setting into another drill. Oiler design, hose length, temperature, oil grade, and tool demand change the correct adjustment. Use the final manufacturer data sheet and operating manual supplied with the machine.
2. Check air quality, hose condition, and pressure at the tool
Dirty or wet compressed air can carry rust, rubber particles, and foreign material into valves and running clearances. A blocked filter, deteriorating hose liner, undersized line, kink, or leaking coupling can also make performance unstable and tempt the operator to overfeed the drill.
- Drain the compressor receiver, filters, separators, and low points at the intervals required by the compressor and site plan.
- Inspect the inlet screen, hose, couplings, restraints, and oiler for restriction or contamination.
- Measure pressure while the drill is operating at the tool inlet, not only at the compressor.
- Confirm that the hose internal diameter and length match the model and number of drills being supplied.
- Blow out a disconnected supply hose only in a controlled area using the approved method; never direct compressed air at a person.
Low air delivery is normally a performance problem rather than a cure for heat, but supply restrictions can obscure the diagnosis. Restore the approved air system before judging the drill itself.
3. Rule out flushing-water backflow
On a wet-drilling machine, water must reach the hole without entering the impact mechanism. Water at the exhaust, milky contamination, disappearing oil film, or a heat problem that began after a flushing change should move the investigation toward the water tube, seals, connections, and pressure relationship.
Do not set water pressure from a generic web value. The correct relationship is model-specific. Follow the supplied manual, and keep water pressure below the limit specified relative to operating air pressure. If leakage continues after external settings are corrected, remove the drill from service for inspection.
4. Inspect the drill steel and front-end alignment
The piston is intended to strike a correctly dimensioned, square, aligned shank. A damaged striking face, incorrect shank length, bent steel, worn chuck bushing, off-center flushing hole, or side-loaded drilling position can change contact and concentrate heat.
- Compare the shank dimensions and condition with the controlled drill specification.
- Inspect the striking face for mushrooming, chipping, cracks, blue discoloration, and uneven contact.
- Check whether the steel enters and withdraws without abnormal tightness after the tool is isolated and cool.
- Inspect the chuck or shank sleeve with the manufacturer's gauge or wear method where one is specified.
- Correct feed and collaring alignment; do not use air-leg thrust to force a bent or misaligned steel.
5. Check side bolts without guessing torque
Safety and operating instructions for several Atlas Copco pusher-leg drills identify uneven or insufficient side-bolt tension as a cause of internal misalignment, seizure, abnormal strain, and side-bolt breakage. That does not authorize a universal field torque.
After isolation and cooling, examine bolt condition, thread damage, contact faces, missing hardware, and evidence that body sections have shifted. If torque or tightening sequence is unknown, stop. Obtain the exact manual, calibrated tooling requirement, and service instruction for the model and revision. Tightening one visibly loose nut by feel can make clamping less even.
6. Escalate internal binding, valve, piston, or guide faults
If external lubrication, air, water, shank, and fastener checks do not explain the heat, the drill needs qualified internal inspection. Relevant findings can include a dirty or damaged main valve, seized piston guide, scored cylinder, worn intermediate guide, damaged front cushion, or heat-damaged piston.
Internal parts showing blue discoloration, fissures, transfer marks, scoring, abnormal polish, or local seizure should not simply be cleaned and returned to work. Record the part, location, orientation, and oil condition; compare measurements with the controlled wear limits; and replace or repair only under the authorized procedure.
Cause-to-evidence troubleshooting table
| Suspected cause | Evidence to collect | Corrective boundary |
|---|---|---|
| No or insufficient oil delivery | Oiler direction, level, adjustment, oil grade, passage condition, shank film | Restore the approved oil supply before a controlled test |
| Wrong oil for temperature | Oil product, viscosity grade, ambient temperature, flow behavior | Use the manual's temperature-based lubricant recommendation |
| Water entering the mechanism | Water at exhaust, seal/tube condition, pressure settings, washed shank | Correct external settings or remove for wet-system repair |
| Shank or chuck mismatch | Shank length and section, striking face, sleeve wear, alignment, steel straightness | Replace the damaged or incompatible interface; never grind by assumption |
| Uneven side-bolt clamping | Fastener condition, shifted joints, contact-face damage, service history | Use the model-specific sequence and torque with calibrated tools |
| Internal seizure or heat damage | Scoring, blue tint, cracks, metal transfer, tight piston or guide | Qualified teardown, measurement, and controlled parts decision |
| Extended free running or poor feed contact | Operator sequence, steel engagement, front-end sound, impact marks | Correct operating practice and inspect the front cushion and striking interfaces |
When can the drill return to service?
A restart is justified only when the cause has been identified, the relevant repair or setup correction is complete, the tool has no unresolved heat damage, and the test method follows the exact manufacturer instructions. A practical sign-off should record:
- drill model, serial or fleet ID, and manual revision used;
- oil product, oiler orientation, setting, and proof of oil at the shank;
- air pressure at the tool under load and the hose configuration;
- water-system settings and confirmation of no backflow;
- shank, chuck, guide, side-bolt, and internal inspection results;
- parts replaced, measurements taken, and technician authorization;
- controlled test duration, heat location, performance, sound, and final disposition.
Do not approve a drill because it cooled down. Cooling removes the symptom temporarily; it does not restore a lost oil film, correct misalignment, or reverse heat damage.
Prevention checklist for air-leg rock drills
- Fill and check the approved line oiler at the specified interval.
- Confirm a light oil film at the shank during the pre-shift check.
- Keep oil containers closed, clean, and correctly identified.
- Drain compressor, receiver, filters, and low points as required.
- Inspect hoses for internal deterioration as well as external damage.
- Use the correct shank and inspect its striking face before installation.
- Avoid extended free running and excessive feed that disturbs alignment.
- Check side-bolt condition and tension only by the model-specific procedure.
- Record unusual heat early, before a seizure produces secondary damage.
RFQ and service-information checklist
When buying a replacement air-leg drill or asking a supplier to investigate repeated overheating, send enough evidence to avoid a model-name-only answer:
- exact model, nameplate, supplier, serial or batch, and manual revision;
- hole diameter, direction, rock condition, drilling cycle, and air-leg model;
- compressor delivery, operating pressure at the tool, hose ID and length;
- oiler model, location, oil brand/grade, ambient temperature, and oil consumption;
- wet or dry drilling, water pressure and connection arrangement;
- H22 shank dimensions, rod condition, chuck or sleeve measurements;
- where and how quickly heat develops, with photographs or infrared readings;
- noise, impact, rotation, exhaust, and penetration changes;
- inspection findings, parts history, quantity, documentation, and destination.
For a current commercial starting point, review the active PerfoMax YT28 air-leg pneumatic rock drill. Its website figures are reference screening data; the final quotation and attached manufacturer data sheet must control the supplied drill, air-leg, hose, oiler, water connection, and maintenance instructions.
Frequently asked questions
Why does a pneumatic rock drill get hot?
The first suspect is insufficient oil reaching the moving surfaces. Other causes include the wrong lubricant, water washing away the oil film, shank or chuck misalignment, uneven side-bolt tension, contamination, a sticking valve, or a seized piston or guide. Diagnose the location and accompanying symptoms instead of treating every hot drill as the same failure.
Is oil mist at the exhaust enough to prove lubrication?
No. Manufacturer instructions for pusher-leg drills commonly require evidence of oil at the drill-steel shank. Check the oiler direction, setting, hose arrangement, and shank film. Excess oil can also create starting or performance problems, so follow the model manual.
Can I keep drilling if impact and penetration still look normal?
Not when the temperature rise is sudden or abnormal for that drill. Continued operation can turn an external oil-delivery problem into scoring, seizure, or piston and cylinder damage. Stop, isolate, document, and inspect first.
Can I tighten side bolts by feel?
No. Unequal tension can cause the misalignment you are trying to correct. Use the exact model's sequence and torque with the required calibrated tool, or send the drill to qualified service if the data is unavailable.
Should a hot drill steel be cooled with water?
No. Let hot components cool naturally under the manufacturer's procedure. Rapid water cooling can create an additional material risk, and it does not correct the lubrication, alignment, or impact condition that produced the heat.
