Short answer: pneumatic rock drill chuck-bushing wear is usually confirmed by excessive or uneven fit between the drill-steel shank and the bushing, not by one performance symptom alone. Warning signs include new shank play, rapid polishing or rounding of the hex flats, a deformed striking end, difficult steel removal, irregular rotation, abnormal vibration, and repeated damage to otherwise correct drill steels. Stop the tool, isolate the air and water supplies, inspect both mating parts, and apply the exact gauge or wear limit specified for that drill model.
A worn bushing can allow the shank to sit or strike off-axis. That changes how percussion and rotation loads pass through the front head and can accelerate damage to the shank, piston striking face, rotation components, and flushing parts. Replacing only the damaged steel may provide a short restart, but it does not correct a bushing that has already lost its guiding geometry.

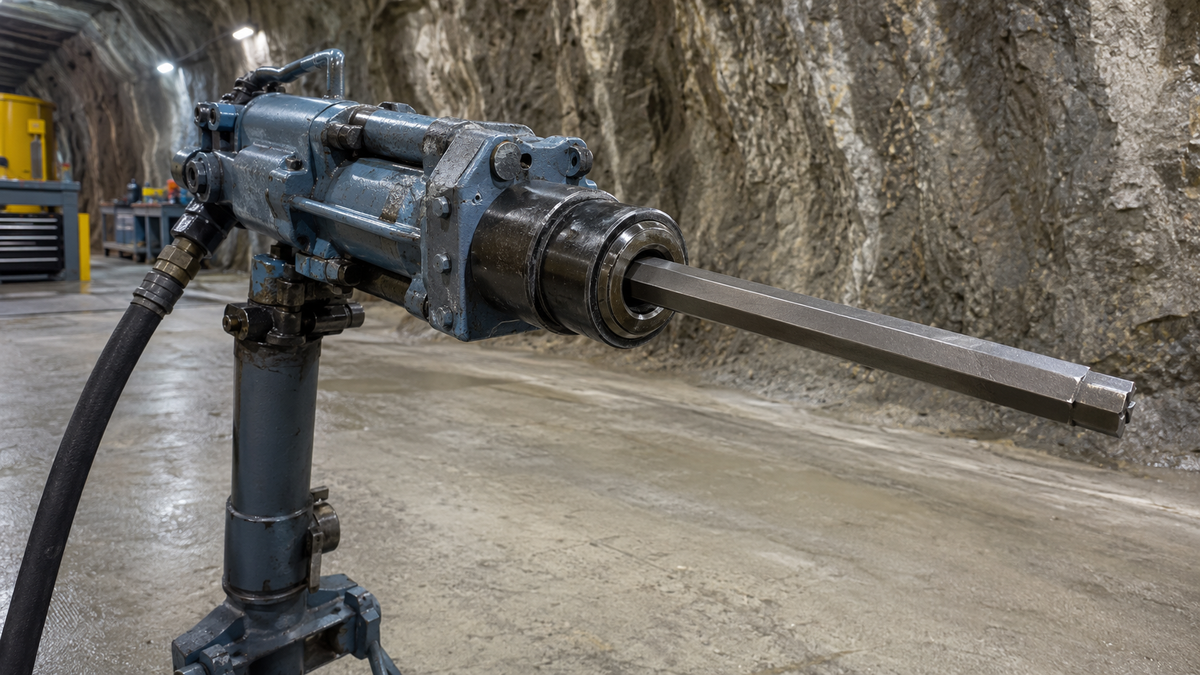

What the chuck bushing does
The chuck bushing is the replaceable guiding interface at the front of many handheld and air-leg pneumatic rock drills. It supports the drill-steel shank, keeps the steel aligned with the piston and rotation mechanism, and permits insertion and removal within a controlled fit. On a hex-shank drill, the bushing bore must retain the correct form and clearance for the specified shank.
It is not the same as every component that operators casually call the “chuck.” Depending on the drill design, the front-head assembly can also include a chuck nut, rotation sleeve, retainer, splines, water tube, seals, or other guides. Review the pneumatic rock drill anatomy guide before naming or ordering a replacement part.
The current PerfoMax YT28 air-leg rock drill page lists an H22 × 108 shank in its reference configuration. That does not make every H22 bushing interchangeable: the quoted manufacturer, drill revision, front-head design, part number, controlled drawing, and supplied manual must govern the replacement.

What causes chuck-bushing wear?
| Wear driver | What happens at the interface | What to check next |
|---|---|---|
| Normal impact and rotation cycles | Contact surfaces polish and clearance increases over time. | Trend the model-specific gauge result and steel condition by shift or service interval. |
| Insufficient or interrupted lubrication | The oil film becomes inadequate, raising friction and local heat. | Line oiler direction, oil grade, delivery to the shank, and contaminated air. |
| Wrong or worn shank | Incorrect dimensions, rounded flats, an uneven striking face, or damaged edges load the bushing irregularly. | Shank system, drawing, straightness, striking face, water hole, and wear history. |
| Side loading or poor feed alignment | The steel bears heavily on part of the bore instead of remaining centered. | Air-leg footing, feed line, collaring method, bent steel, and hole deviation. |
| Dirt or abrasive contamination | Hard particles circulate between the shank and bore and accelerate scoring. | Air filtration, hose cleaning, upward drilling exposure, storage plugs, and bench cleanliness. |
| Water entering the impact or rotation area | Oil can be displaced and corrosion or poor lubrication can follow. | Water pressure, flushing seals, water tube, condensate control, and shutdown practice. |
| Internal misalignment | Uneven side-bolt tension or damaged mating faces can disturb the tool axis. | Workshop inspection using the drill manual’s sequence and torque specifications. |
These causes can overlap. For example, a worn steel may begin the uneven loading, while insufficient lubrication accelerates the bushing damage. Treat the damaged shank and the worn bushing as a paired evidence set.
Symptoms that justify an immediate inspection
- Side play at the shank feels greater than the drill’s known serviceable baseline.
- The shank rocks unevenly or sits visibly off-center in the front head.
- One or two hex flats show heavier polish, scoring, or edge rounding than the others.
- The striking end becomes peened, upset, chipped, dished, or difficult to withdraw.
- A new correct drill steel begins wearing much faster than expected.
- Rotation becomes irregular even though supply pressure and external obstructions are normal.
- The drill develops new rattling, vibration, heat, or repeated front-head stoppages.
- Multiple shanks fail in a similar area or show the same asymmetric contact pattern.
None of these symptoms proves the bushing is the only failed part. A bent or out-of-spec steel, piston-face damage, worn rotation components, insufficient feed, incorrect lubrication, or internal misalignment can produce a similar field report. The inspection sequence should separate these causes instead of replacing parts by guesswork.
Safe isolation before checking the front head
- Move the control to stop and follow the site’s lockout or energy-isolation procedure.
- Shut off the compressed-air and water supplies upstream.
- Bleed stored pressure and verify the hose and tool are depressurized.
- Restrain or disconnect hoses according to the manufacturer and site procedure.
- Remove the drill steel only when it can be supported without pinch or drop exposure.
- Clean the exterior before opening any part so dirt does not enter the mechanism.
Do not check play on a live tool, place fingers around an inserted steel while air is connected, or strike the front head to free a jammed shank. If the steel is seized, the bushing is cracked, the retainer is damaged, or disassembly requires special tools, transfer the drill to an authorized workshop.
A practical chuck-bushing inspection sequence
1. Confirm the correct shank system
Read the drill data sheet, parts list, and controlled quotation. Confirm shank cross-section, across-flat dimension, length, water-hole arrangement, and any model-specific chamfers or radii. Model names and the term “H22” are not enough to prove complete front-head compatibility.
2. Inspect the drill steel first
Clean the shank without grinding away evidence. Look for asymmetric bright bands, rounded flats, burrs, mushrooming, chips, cracks, heat discoloration, blocked flushing holes, and a striking face that is no longer flat and square. Check straightness by the approved method. Retire cracked or seriously deformed steel; do not force it through the bushing for a fit test.
3. Clean and illuminate the bushing
Remove oil sludge and loose abrasive material with the approved cleaning process. Inspect every flat and corner of the bore. Uneven polish, steps, scoring, cracking, oval or bell-mouthed appearance, and localized battering matter more than general surface brightness.
4. Use the specified wear gauge
Some OEM instructions use a dedicated hex gauge that enters between opposite flats until its shoulders or reference surfaces indicate the wear limit. Use only the gauge and insertion rule specified for the actual drill and shank system. A generic ruler, a guessed clearance, or a different model’s gauge cannot establish acceptance.

5. Compare fit with a known-correct shank
When the manufacturer permits a fit check, use a clean, dimensionally verified shank. Insert it without forcing and compare play through the full rotation and insertion depth. A single hand-feel test is supplementary evidence; the specified gauge or dimensional method remains the acceptance control.
6. Inspect related components
Check the retainer, chuck nut or sleeve, piston striking face, rifle bar and nut, pawls, splines, water tube, seals, front-head faces, and side-bolt condition as the manual requires. If a worn bushing has allowed off-axis impact, secondary damage may already exist.
How to read the wear pattern
| Observed pattern | Likely direction for diagnosis | Required response |
|---|---|---|
| Even polishing on all flats with an acceptable gauge result | Normal service wear may be present. | Clean, lubricate, document, and keep the scheduled inspection interval. |
| Heavy contact on one side | Bent steel, side loading, unstable air-leg reaction, or internal misalignment. | Inspect the full feed and alignment system before installing another shank. |
| Rounded flats and increasing play | Bushing and/or shank has lost guiding geometry. | Apply both component limits; replace rejected parts as a controlled pair. |
| Scoring with embedded grit | Contaminated air, dirty handling, or abrasive entry through the front head. | Correct filtration, hose-cleaning, storage, and workshop practices. |
| Blue or dark heat marks | Lubrication loss, friction, or abnormal impact contact. | Stop service and inspect for heat damage; do not simply add oil and restart. |
| Cracks, chips, or a split bushing | Severe wear, incompatible steel, overload, or secondary damage. | Quarantine the drill for qualified teardown and root-cause inspection. |

Replace the bushing, the steel, or both?
Replace the steel when it exceeds its own drawing or manual limits but the cleaned bushing passes the correct gauge and shows no cracks or abnormal pattern. Investigate why the steel failed before returning the tool to production.
Replace the bushing when it fails the prescribed gauge, has cracks or serious local damage, or the applicable manual calls for replacement. Inspect the steel and related front-head parts at the same time.
Replace both or hold both for engineering review when the shank is deformed and the bushing is beyond limit, when repeated new steels are damaged, or when the wear pattern indicates incompatibility or misalignment. Installing a new bushing around a rejected shank can damage the replacement; installing a new steel in a rejected bushing can repeat the original failure.
Replacement and internal repair must follow the model-specific service procedure. Do not machine, weld, sleeve, grind, or build up a worn bushing unless the OEM provides an approved repair method.
Why lubrication and air quality belong in the same diagnosis
The bushing is part of a larger open-lubrication pneumatic system. Confirm that the line oiler is installed in the correct direction, filled with the specified oil, adjusted for the actual tool and environment, and delivering a light oil film to the shank. The published pneumatic rock drill lubrication guide covers this check in more detail.
Clean, dry air also matters. Drain compressor receivers and low points, service water separators, and blow debris from the main hose before connection under the approved procedure. Correct the source of contamination; cleaning the bushing without addressing dirty air merely resets the failure clock.
Common inspection mistakes
- Judging the bushing only from drilling speed
- Testing with an already rounded or mushroomed shank
- Using an H22 label as proof that all dimensions and parts match
- Checking one flat while missing localized wear elsewhere in the bore
- Applying a wear value copied from another drill model
- Grinding a shank until it fits instead of checking both controlled dimensions
- Replacing the steel but ignoring repeated asymmetric damage
- Replacing the bushing without inspecting piston, rotation, flushing, and alignment parts
- Restarting after heat discoloration, cracks, or seized steel without workshop review
- Recording “bushing worn” without the drill ID, gauge, shank ID, and evidence
Maintenance record and spare-parts checklist
- Rock drill model, serial or asset ID, manufacturer, and manual revision
- Chuck-bushing part number and controlled drawing revision
- Shank system, across-flat dimension, length, water-hole arrangement, and steel batch
- Gauge part number or approved measurement method
- Pass/fail result and the location of uneven wear
- Photographs of the cleaned bore, shank flats, and striking end
- Lubricator type, oil grade, air-line condition, and contamination findings
- Air-leg, feed-alignment, and side-bolt observations
- Related parts inspected and parts replaced
- Post-repair low-pressure functional check and authorized release
For a broader interval framework, see the published Y19A pneumatic rock drill maintenance checklist. Always replace its generic schedule with the actual manual and site duty cycle for the drill being serviced.
Frequently asked questions
Can I check chuck-bushing wear by moving the drill steel by hand?
Hand feel can reveal a change, but it is not a complete acceptance method. Clean the components, verify the shank, and use the model-specific gauge or dimensional procedure.
Does a worn bushing always stop the drill from rotating?
No. Early wear may show as play, vibration, uneven shank marks, or faster steel consumption while the drill still rotates. A no-rotation condition can also originate in pawls, the ratchet, rifle components, splines, supply, or a jammed steel; use the pneumatic rock drill no-rotation guide to separate those paths.
Can a damaged drill steel ruin a new bushing?
Yes. A wrong, bent, rounded, burred, or mushroomed shank can load the new bore unevenly. Inspect and accept both mating parts before restart.
Is there one universal H22 chuck-bushing wear limit?
No. H22 describes a nominal shank family, not every drill’s gauge design, bore geometry, or replacement criterion. Use the instruction for the actual drill model and revision.
When should the drill go to a workshop?
Escalate when the steel is seized, the bushing is cracked, the gauge fails, heat damage is visible, repeated shanks are damaged, internal misalignment is suspected, or front-head disassembly is required. Qualified personnel should perform internal repair and the controlled restart check.
Prepare a correct replacement or drill-system RFQ
When requesting a replacement bushing or a complete air-leg drill system, send the drill manufacturer, exact model, serial or revision, existing bushing part number, shank drawing, gauge method, photographs, and failure pattern. For a current system reference, review the active YT28 pneumatic rock drill. To confirm configuration and spare parts, send PerfoMax a rock-drill RFQ with the controlled equipment details rather than a model nickname alone.
Technical references
- Ingersoll Rand YT28 Product Information Manual — shank configuration, lubrication, air quality, and authorized-service boundaries.
- Atlas Copco BBC 16W/34W safety and operating instructions — model-specific chuck-bushing gauge procedure, wear consequences, and troubleshooting relationships.
- Atlas Copco pneumatic handheld-tool service tips — fit, contamination control, lubrication, and regular service.
