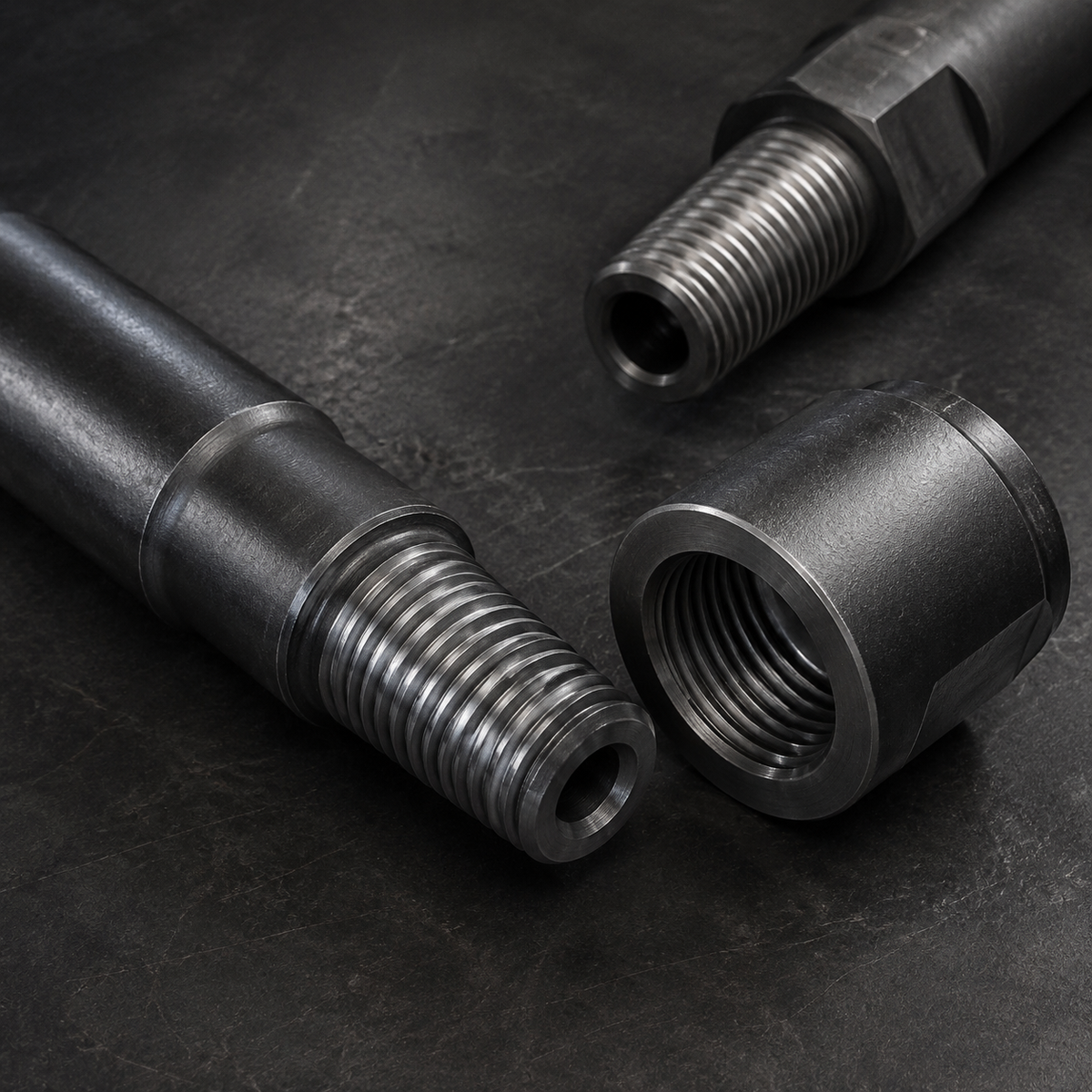

Short answer: a left-hand rock drill thread is a helical connection that advances in the opposite rotational direction from a conventional right-hand thread. Looking squarely at the exposed end of a male thread, a left-hand thread normally screws into a stationary mating part when turned counterclockwise. The viewing direction matters, so thread hand should always be confirmed from the equipment documentation or an approved drawing—not from memory alone.
ISO 10208 specifically defines dimensions and tolerances for left-hand rope threads used on rope-threaded drill steel equipment for percussive drilling. That does not mean every rock-drilling connection is left-hand, or that every component carrying an R or T designation is interchangeable. Handedness is only one field in a complete compatibility check.
What does “left-hand” mean on a rock drill thread?
Thread hand describes the direction of the helix and the rotation needed for axial advance. It does not describe thread diameter, profile, pitch, taper, strength, or the drilling method. Those are separate characteristics.
| Term | What it tells you | What it does not prove |
|---|---|---|
| Left-hand or LH | Helix direction and normal make-up direction from a defined viewpoint | Thread family, size, pitch, or interchangeability |
| Right-hand or RH | The opposite helix direction from LH | That the connection is suitable for a particular drill string |
| Rope thread | A rounded thread-profile family used on percussive drill steel equipment | Exact nominal size, manufacturer system, or condition |
| R32, T38, T45, or another designation | A named connection family and nominal system size | Complete geometry, thread hand, or automatic cross-brand fit without verification |
| Male, female, pin, box, or coupling sleeve | Which mating arrangement the component uses | Whether the two sides share the same profile and tolerances |
A practical shop convention is to hold the male component with its threaded end facing you. If counterclockwise rotation would move that component away from you into a fixed mating thread, it is left-hand. If clockwise rotation produces that axial movement, it is right-hand. When the female component is being rotated instead—or when the observer is looking from the opposite end—the apparent direction reverses. This is why verbal instructions such as “turn it left” are incomplete unless the viewpoint and moving component are also stated.
Why are left-hand threads used in percussive drill steel?
Thread hand is part of the drill-string design. In rotating machinery, designers can select a hand that makes the normal working rotation resist unintended loosening at the connection. The joint must also repeatedly couple and uncouple while carrying percussion, rotation, feed force, and flushing through the string.
However, thread hand alone must never be used to choose the machine’s rotation direction. Top hammer systems differ by equipment, interface, and operating procedure. Use the rock drill or rig manual for rotation direction, coupling, and breakout instructions. Reversing rotation because a loose component “looks left-hand” can damage a correct joint or create a safety hazard.
The important buyer conclusion is simpler: the thread direction is intentional, and it is a controlled interface characteristic. Substituting the opposite hand is not a field adjustment. The wrong-hand part will not become compatible through extra force, a different lubricant, or partial machining.
Left-hand thread is not the same as rope thread
These terms describe different things:
- Left-hand describes helix direction.
- Rope describes a thread-profile family.
- Nominal designations such as R32 identify a system size and family.
- T designations identify a different top hammer thread family with its own geometry.
ISO 10207 addresses rope-threaded drill steel equipment for percussive drilling, including extension rods, coupling sleeves, and drill bits within its scope. ISO 10208 addresses left-hand rope-thread dimensions and tolerances. Current OEM ranges also distinguish R-thread systems from T-thread systems. For example, Epiroc describes R as its rope-thread family and separately lists T35, T38, T45, T51, and T60 in its T drill-string range.
Therefore, “left-hand” cannot replace “R32,” and “R32” cannot replace a complete drawing. Likewise, a T38 component should not be accepted merely because its helix appears to turn in the expected direction. A correct connection needs the right family, size, geometry, hand, fit, and mating components.
Are R32, T38, and T45 threads all left-hand?
Do not answer this from the letter and number alone. ISO 10208 confirms that standardized left-hand rope threads exist for percussive drill steel, but the designation printed in an RFQ may be incomplete, locally used, or tied to a proprietary or manufacturer-controlled system. A buyer should obtain the declared standard or manufacturer series and the relevant drawing.
The safest rule is:
- Record the exact marking on the existing part.
- Identify whether the system is top hammer, DTH, self-drilling anchor, or another application.
- Confirm the thread family and nominal designation.
- Confirm LH or RH from controlled documentation.
- Check the mating component and the complete thread geometry.
For a detailed process covering nominal top hammer thread identification, see How to Identify R32, T38, and T45 Top Hammer Threads Before Ordering Replacement Rods.
How to identify thread hand without damaging the component
1. Start with markings and records
Look for a traceable part number, manufacturer series, thread designation, and any LH or RH notation. Compare those details with the rig manual, rock drill documentation, original purchase order, supplier drawing, or controlled parts list. Documentation is stronger evidence than visual judgment.
2. Put both samples in the same orientation
Clean the parts and place male ends toward the observer. Compare the direction in which the crest rises around the circumference. Do not compare a male end from one side with a female opening viewed from the opposite side; that produces an apparent reversal.
3. Use a known mating part only as a non-forced check
A clean, undamaged, traceable coupling sleeve can support identification. Align the parts by hand without tools. If the threads do not enter smoothly in the expected direction, stop. One or two turns of engagement do not prove correct pitch, profile, taper, or shoulder contact.
4. Measure geometry independently
Record approximate major diameter, pitch, threaded length, shoulder position, bore, and whether the thread is straight or tapered. A thread pitch gauge and caliper help describe the unknown part, but field measurements do not replace an inspection gauge or supplier drawing for final acceptance.
5. Escalate ambiguous parts
If markings are missing, wear has changed the crest shape, or the mating component is also unknown, send clear photographs and measurements to the responsible supplier. For critical or bulk replacements, request a drawing review, gauge evidence, or an approved sample before releasing the full order.
What happens if left-hand and right-hand parts are mixed?
Opposite-hand threads do not form a correct threaded joint. Typical warning signs include immediate refusal to engage, edge contact at the first crest, visible skew, or a part that appears to catch but will not advance normally. Stop before using a wrench, impact tool, feed force, or machine rotation.
Forcing the mismatch can:
- roll or chip the first thread crests;
- damage the coupling sleeve and the rod at the same time;
- create metal debris that contaminates later assemblies;
- hide the original markings or geometry needed for identification; and
- produce a partially engaged connection that cannot carry drilling loads safely.
A damaged first crest can also make a correct replacement seem incompatible. Inspect both the unknown component and the known reference part before concluding that the thread direction is wrong.
Thread-hand checks during receiving inspection
| Receiving check | Acceptance evidence | Reject or hold condition |
|---|---|---|
| Part identity | Purchase-order designation, item marking, and packing list agree | Abbreviated or conflicting thread description |
| Thread hand | LH or RH agrees with the approved drawing or controlled sample | Direction inferred only from an unreferenced photo |
| Profile and pitch | Supplier specification or correct gauge confirms the connection | Visual similarity without dimensional confirmation |
| Condition | Clean crests and roots; no dents, corrosion, burrs, or transport damage | Forced engagement marks or damaged lead thread |
| Mating test | Approved parts engage smoothly using the defined procedure | Binding, skew, abnormal gap, or wrong shoulder contact |
| Traceability | Lot, part number, and supplier records remain linked | Mixed unmarked parts from different systems |
RFQ checklist for threaded top hammer rods
To prevent a wrong-hand or wrong-family order, send more than a shortened thread name:
- rig and rock drill make and model;
- drilling method and application;
- exact thread designation and declared LH or RH direction;
- extension rod, MF rod, shank adapter, coupling sleeve, or bit;
- male-male, male-female, or other end arrangement;
- rod body shape and outside dimension;
- overall length and bore;
- photos of both ends, markings, and the mating component;
- supplier or OEM part number where available; and
- drawing revision, quantity, and sample-approval requirement.
PerfoMax currently lists T38 male-male extension drill rods and T45 male-male extension drill rods. Those live product pages define the commercial rod type and available lengths, but final compatibility still requires confirmation of the complete connection and equipment context.
Common thread-direction mistakes
- Using “left” without a viewpoint. State which component is moving and which end the observer faces.
- Equating LH with R-thread. Hand and profile family are different specification fields.
- Assuming every T38 is interchangeable. Verify the declared system, drawing, and mating components.
- Testing with force. Correct parts should not require damage to demonstrate their identity.
- Identifying from one worn crest. Wear and burrs can disguise the helix and profile.
- Copying an old RFQ shorthand. A historical label may have omitted thread hand, rod type, or manufacturer series.
Frequently asked questions
Which way does a left-hand rock drill thread tighten?
Looking directly at the exposed end of a male thread while the female part remains stationary, a left-hand thread normally advances under counterclockwise rotation. If you change the viewpoint or rotate the female component instead, the apparent direction changes. Use a drawing or manual for the actual assembly instruction.
Can a right-hand coupling be used on a left-hand rod?
No. Opposite-hand threads do not form a correct connection. Do not force engagement or modify the lead thread in the field.
Does the R in R32 mean right-hand?
No. In top hammer terminology, R identifies the rope-thread family; it does not mean right-hand. Thread hand must be stated or confirmed separately.
Can photographs prove a thread is left-hand?
Photographs can support screening only when both the viewing direction and component orientation are clear. Final acceptance should use controlled documentation, a known mating part, a gauge, or a supplier drawing.
Should drill rotation be reversed to loosen a left-hand joint?
Follow the equipment manufacturer’s uncoupling and breakout procedure. Thread hand alone is not permission to reverse the machine under load. Isolate energy and use the specified handling method and tooling.
Technical references
- ISO 10208: Rock drilling equipment — Left-hand rope threads
- ISO 10207: Rock drilling equipment — Rope threaded drill steel equipment for percussive drilling
- Epiroc R drill-string terminology
- Epiroc T drill-string range
Confirm the thread before ordering replacements
Thread direction is easy to state but risky to assume. Send the equipment model, exact markings, both-end photos, mating-component details, rod length, body, bore, and the controlled thread designation. PerfoMax can then review the requirement against its current top hammer rod range without treating a familiar size name as proof of fit.
