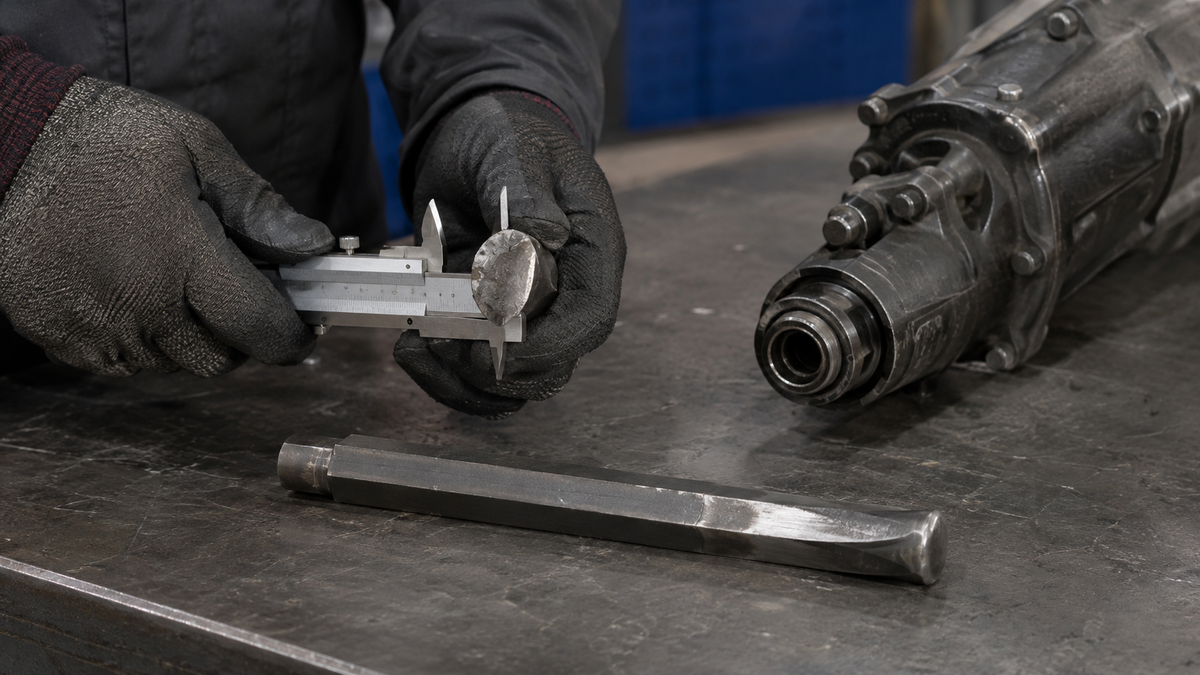

H22 drill-steel shank mushrooming is plastic deformation at the piston-struck end: the end face spreads outward and develops a raised lip after repeated impact. Remove the affected steel from service, preserve it before grinding, and inspect the rod together with the rock drill's chuck bushing, piston striking face, lubrication, air supply and operating alignment. Mushrooming alone does not prove defective steel; the same pattern can be produced or accelerated by poor fit, worn guidance, off-center impact or operating conditions outside the equipment instructions.
Important limit: "H22" identifies a hexagonal drill-steel body size, not the complete interface. Confirm the exact shank length and form, rock-drill model, chuck arrangement and taper connection from controlled drawings or the current manuals. Do not apply a universal wear limit or repair method to every H22 system.
What mushrooming means—and why it matters
In a pneumatic rock drill, the piston repeatedly transfers impact energy into the striking end of the drill steel. A serviceable interface should keep that contact sufficiently centered and supported for the intended system. When the end face progressively upsets, material moves outward and the original edge becomes rounded, flared or lipped. The deformation may be even around the perimeter or heavier on one side.
A mushroomed end can interfere with insertion and removal, damage the chuck or front-head components, hide cracking, shed metal fragments and change how the next impacts are transmitted. Continuing to drill also destroys evidence needed to separate rod condition from a machine-side problem. Quarantine the steel and isolate the rock drill before inspection.
| Observed condition | Immediate decision | What it can indicate |
|---|---|---|
| Small raised lip with no documented limit | Remove from production and compare with the supplier or OEM acceptance criteria. | Progressive end-face upset; severity cannot be judged by appearance alone. |
| Heavy or one-sided mushrooming | Stop using both the steel and the associated drill pending front-end inspection. | Off-center contact, poor guidance, worn chuck components, piston damage or an unsuitable interface. |
| Crack, chip, sharp fragment or loose metal | Quarantine; do not strike, grind or reuse. | A safety-critical failure that requires controlled investigation. |
| Similar damage on several rods from one drill | Prioritize the drill's chuck, bushing, piston and operating setup. | A machine-side or setup-related common cause is more plausible than an isolated rod event. |
Separate the failure location before diagnosing the cause
Use consistent names in photographs and reports. The striking end is the end contacted by the rock-drill piston. The hexagonal body carries torque and is guided by the chuck arrangement. The opposite taper end seats the tapered bit. Damage at these locations points to different interfaces.
Do not combine striking-end mushrooming with a loose taper bit, bent rod body or carbide failure as one generic "drill rod problem." Record every condition, but diagnose the primary symptom at the interface where it occurred. Buyers who still need to verify the full interface can use the published H22 × 108 mm drill-steel compatibility guide.
Root-cause matrix for H22 striking-end deformation
| Cause group | Evidence to look for | Controlled check |
|---|---|---|
| Wrong or poorly controlled interface | Unknown shank form or length, mixed suppliers, incomplete drawing, unusual contact band or abnormal insertion depth | Match the rod and drill identifiers to the approved drawing and manual; compare with an unused confirmed sample. |
| Chuck-bushing or front-end wear | Excessive play, oval or uneven wear, repeated one-sided steel damage, scoring or contact where clearance should exist | Isolate and disassemble only as the rock-drill manual permits; measure components against model-specific service limits. |
| Piston striking-face condition | Pitting, chipping, uneven contact, a damaged edge or a pattern repeated across several rods from the same machine | Have a qualified technician inspect piston condition and alignment using the exact service instructions. |
| Air pressure and impact loading | Unverified regulator, pressure changed to improve output, unstable supply or operation outside the drill's specified range | Verify pressure and delivery at the drill under operating conditions; use only the OEM limits. |
| Alignment and feed practice | Rod bending, angled collaring, side loading, unstable work position or damage concentrated by operator, shift or application | Observe a controlled trial with correct support, collaring and feed technique; change one variable at a time. |
| Lubrication or contamination | Dry or dirty front end, corrosion, abrasive debris, incorrect oil or inconsistent lubricator delivery | Inspect and clean by the manual, then verify the approved lubricant and delivery method. |
| Rod material or manufacturing condition | Damage clustered by heat or lot across different known-good drills, unusual surface condition, inconsistent dimensions or supplier records that do not match the order | Preserve samples and lot traceability; request dimensional, material and heat-treatment evidence appropriate to the purchase specification. |
No single row proves the cause. For example, a soft or incorrectly treated striking end may deform early, but a worn chuck can damage a conforming rod. Conversely, replacing a bushing will not correct an unsuitable shank interface. The useful question is: which variable explains the pattern across rods, drills, shifts and time?
A controlled diagnostic sequence
- Stop and preserve the evidence. Isolate the drill, depressurize it, tag the affected steel and photograph it before cleaning or rework. Retain any detached fragment.
- Identify the complete system. Record rock-drill model and serial or asset number, H22 shank specification, rod length, taper angle, bit type, supplier, purchase order, batch or heat reference, commissioning date and operating location.
- Map the damage. Photograph the striking face square-on and from the side. Record whether deformation is even, one-sided, chipped, cracked or accompanied by body scoring, bending or taper-end damage.
- Compare with a controlled sample. Use an unused rod from the approved specification, not merely another rod that has already run in the same drill. Compare fit, insertion, end geometry and identifying marks without forcing either sample.
- Inspect the rock-drill front end. Check the chuck, bushing, rotation components and piston striking face to the current model manual. Replace parts only when the measured condition and service instructions justify it.
- Review operating data. Confirm pressure at the drill under load, lubrication, hose condition, feed support, collaring method, work angle and any recent change in compressor, drill, operator, rod source or application.
- Build a pattern table. Cross-reference each damaged rod with the drill, operator, shift, supplier lot and accumulated use. One rod on one drill suggests a different investigation from several rods across several proven-good drills.
- Run a controlled trial only after correction. Use approved components and a known-good rod, monitor the striking end at planned inspection points, and change one variable at a time. Stop at the first new deformation or abnormal contact.
For detailed machine-side guidance, see the published pneumatic rock-drill chuck-bushing wear guide. If fractures also occur away from the striking end, use the separate H22 tapered drill-rod breakage guide rather than treating both symptoms as identical.
What not to do
- Do not grind the lip away before documentation. Grinding removes contact-pattern evidence and may expose or create sharp edges, heat effects or cracks.
- Do not reuse a mushroomed or cracked steel by default. Rework is acceptable only when the responsible OEM or supplier provides a controlled, model-appropriate procedure and acceptance criteria.
- Do not raise air pressure to compensate for poor drilling. Overpressure can increase impact loading and may exceed limits elsewhere in the air system.
- Do not install successive new rods in a suspect drill. Repeated damage can convert a maintenance issue into a consumables dispute.
- Do not blame material from one photograph. Appearance cannot establish chemistry, hardness, heat treatment, dimensional conformity or impact alignment.
- Do not mix evidence. Keep affected rods, unused controls and rods from other drills separately identified.
Evidence to send the supplier
A useful technical claim should include:
- purchase order, line item, supplier, shipment date and quantity affected;
- rod description, H22 shank specification, length, taper and any batch or heat identifier;
- rock-drill model, asset number, chuck or bushing history and piston inspection result;
- clear overall, side and end-face photographs with the sample identity kept in the file record;
- measurements taken with the method and instrument stated, plus the controlled drawing or limit used for comparison;
- air-supply, lubrication, hose, feed and application conditions;
- failure timing and a rod-by-drill-by-shift pattern table;
- one unused retained sample and, where agreed, an affected sample for laboratory examination.
Agree in writing who may section, grind or test the sample. Destructive examination can be valuable, but it also prevents later inspection of the original part. For a broader claim workflow, use the rock-drilling tool warranty evidence checklist.
Pre-purchase controls that reduce repeat failures
Before ordering replacement rods, put the complete interface on the RFQ: rock-drill make and model, required shank drawing or H22 × shank length, rod length, taper angle, bit connection, application, operating direction, air-supply limits, quantity, marking and traceability needs, inspection plan and required documentation. A designation such as "H22 rod" is not enough to control compatibility.
Ask how the supplier controls straightness, dimensions, end geometry, material, heat treatment, batch traceability and nonconforming product. For a new or changed source, retain unused samples and conduct a controlled site trial on a verified drill before releasing the full lot. Define what evidence will be reviewed if end deformation appears.
Frequently asked questions
What causes the end of an H22 drill rod to mushroom?
Repeated impact plastically upsets the striking end when the combined contact stress and support conditions exceed what that interface can sustain. Contributing causes can include rod condition, wrong shank fit, worn chuck guidance, piston-face damage, off-axis operation, excessive pressure, poor lubrication or contamination. The failure pattern across rods and drills is needed to rank them.
Can a mushroomed drill steel be ground and reused?
Not by default. Remove it from service and preserve the evidence. Reuse should occur only under a documented OEM or supplier rework procedure with inspection and acceptance criteria for the exact steel and drill system. Never reuse a cracked, chipped or otherwise rejected part.
Does mushrooming prove that the rod steel is too soft?
No. Material or heat-treatment condition may be part of the investigation, but appearance alone cannot prove it. Worn guidance, off-center piston contact, incorrect fit and operating conditions can produce similar deformation. Compare lots across known-good machines and use agreed material testing when justified.
Can a worn chuck bushing damage new H22 rods?
Yes. Excessive or uneven guidance can allow poor alignment and abnormal contact, so repeatedly installing new rods without checking the drill can reproduce the failure. Inspect the chuck bushing and related front-end components to the exact rock-drill service limits.
What photos and measurements should be sent with a claim?
Send overall rod views, square-on end-face and side profiles, identifying marks, associated chuck or piston condition and an unused comparison sample. State the measurement method, instrument and drawing or manual limit. Include the drill, operator, shift, lot and service history so the supplier can see the pattern.
Control the rod and rock drill as one impact system
