Short answer: H22 tapered drill rod breakage is usually a fatigue or overload outcome, not a single visible cause. The first diagnostic question is where the rod broke: at the striking end, collar transition, mid-body, or taper end. Then check alignment, chuck or guide wear, rod straightness, collaring practice, flushing, bit condition, corrosion, and operating history. A photograph alone cannot prove whether the dominant cause was operation, equipment condition, or manufacturing.
Stop using the affected rod and its close companions until the failure is screened. Preserve the fracture surfaces, record the drill and bit combination, and compare failures by batch and location. Continuing to drill with a cracked, bent, mushroomed, or badly corroded rod can turn a useful diagnostic sample into an in-hole loss or a safety incident.

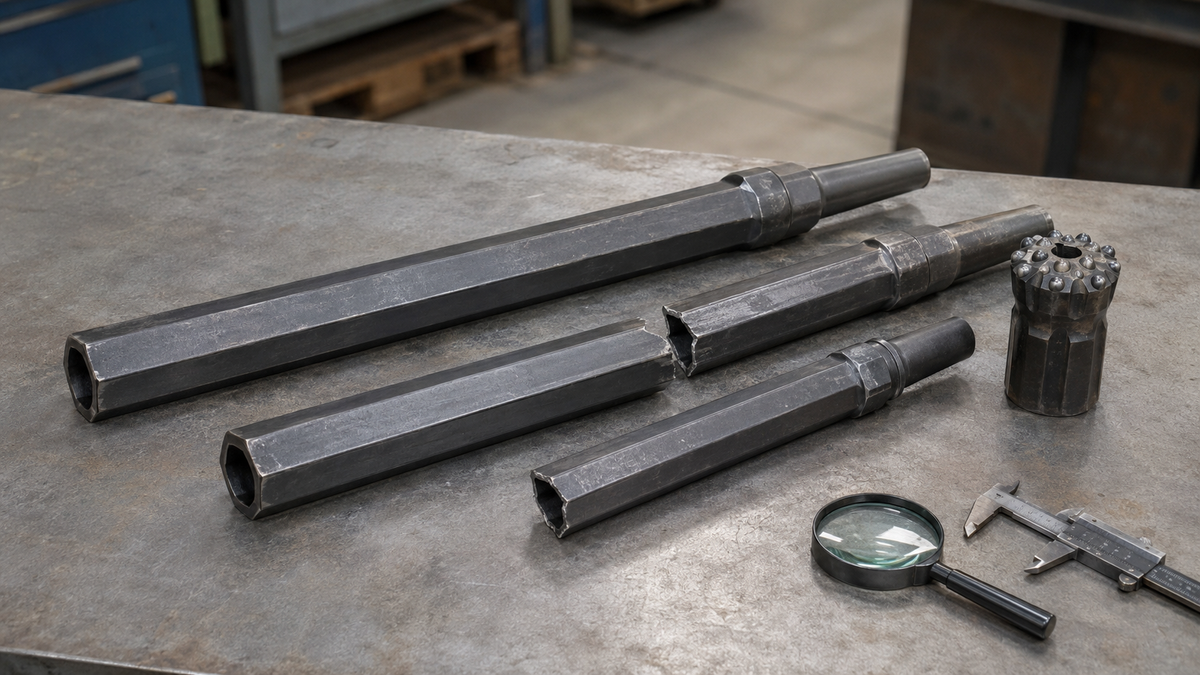

H22 tapered drill rod breakage: start with the failure location
An H22 rod is a small-hole rock-drilling component subjected to repeated impact, rotation, feed, bending, and environmental exposure. “H22” identifies the nominal hexagonal steel section; it does not, by itself, define the shank length, collar geometry, taper angle, rod length, steel condition, or exact rock-drill interface. Those details must be controlled separately.
Before discussing cause, divide the rod into four diagnostic zones:
- Striking end or shank: the end receiving impacts inside the rock-drill chuck.
- Collar and transition: the forged step that locates the rod and changes section between the shank and body.
- Mid-body: the hollow hexagonal length carrying stress waves, rotation, feed, and bending load.
- Taper end: the male conical connection that fits the bit socket.
The location narrows the investigation, but it does not deliver a verdict. A collar fracture may involve eccentric impact, bending, geometry, corrosion, or material processing. A mid-body fracture may follow a surface notch, a bent rod, hole deviation, or fatigue. Several factors can act together.
Quick diagnostic matrix
| Observed location or symptom | Possible contributors | Checks before assigning cause | Immediate decision |
|---|---|---|---|
| Shank face mushrooming, chipping, or breakage near the striking end | Rock-drill chuck or guide wear, poor shank fit, eccentric impact, lubrication or internal drill condition, continued use after deformation | Compare shank contact marks; inspect the chuck, bushings, rotation parts, and companion rods; check the exact shank class | Remove damaged rods; do not dress or reuse until the drill and interface are checked |
| Crack at the collar root or section transition | Repeated bending, misalignment, worn support, abrupt load transfer, corrosion at the transition, forging or heat-treatment issues | Record the crack origin and distance from the shank; inspect alignment, chuck wear, bore condition, corrosion, and failures from the same batch | Quarantine the batch if several rods show the same location and pattern |
| Mid-body fracture or permanent bend | Poor collaring, long unsupported rod, side loading in a deviated or fractured hole, using the rod as a lever, surface damage, fatigue | Check straightness of unused companions, hole-start method, face angle, rod length, jamming events, handling marks, and fracture origin | Retire bent or notched rods; correct the operating condition before restarting |
| Breakage or severe wear near the taper end | Wrong taper combination, damaged or dirty mating surfaces, loose bit, worn bit socket, repeated improper removal, excessive side load | Verify rod and bit taper independently; inspect the contact band, socket, extraction method, and related bit damage | Replace mismatched or damaged pairs; do not mix unidentified tapers |
| Several rods fail after similar service at the same zone | Systematic equipment, operating, environment, specification, or batch factor | Compare drill model, operator, shift, rock, settings, batch marks, service history, and unused control samples | Escalate to a structured supplier and equipment review |
1. Check eccentric impact at the shank and collar
The rock drill must strike the rod through the intended shank interface. If the chuck, guide, or related internal parts are badly worn, the rod may receive off-axis impact or move excessively. That adds bending and local contact stress to the normal percussion load. Repeating this load can damage the shank face, collar transition, and nearby body.
Compare one failed rod with a known-straight, low-service rod of the same controlled specification. Look for uneven polished bands, one-sided peening, asymmetric contact marks, mushrooming, or a fracture that consistently begins on the same side. Then inspect the rock drill according to its current service manual. Do not infer that a new rod will solve a worn-drill problem.
Compatibility is part of this check. The published guide to H22 × 108 mm drill-steel compatibility explains why the rock-drill shank, rod, and bit taper must be matched as separate interfaces.
2. Review alignment, collaring, and bending load
A straight drill rod works best when impact, rotation, and feed remain close to its axis. During hole starting, the bit has limited guidance and can skate on an uneven face. If full feed or impact is applied before the hole is established, the rod can flex. A long rod increases the unsupported span and makes poor collaring more severe.
Review the actual sequence used at the failed holes:
- Was the rock face uneven, inclined, highly fractured, or partly unsupported?
- Was a shorter starting rod available, or was a long production rod used immediately?
- Did the operator stabilize the hole before increasing feed and impact?
- Did the rod visibly bow, chatter, or rub one side of the hole?
- Was the drill held in line during penetration and withdrawal?
- Did the bit jam, and was the rod then twisted, hammered, or used as a lever?
The correct operating values must come from the rock-drill manual and the approved site procedure. There is no universal pressure or feed number for every H22 system. The H22 tapered drill rod length guide can help screen unsupported length and working-space constraints before an RFQ.
3. Inspect the bit, taper fit, and flushing path
A damaged or mismatched bit can change how load returns through the rod. Confirm the taper angle and socket condition rather than relying on a general “H22 bit” description. Seven-, eleven-, and twelve-degree products are separate systems; similar appearance is not evidence of compatibility. The guide to 7° vs 11° vs 12° H22 taper compatibility covers the identification checks.
Look for an incomplete or one-sided contact band, polished or scored taper surfaces, a cracked bit skirt, looseness, and damage created during bit removal. Do not apply a generic lubricant or anti-seize to the taper unless the relevant manufacturer explicitly requires it; the connection behavior depends on the specified fit and procedure.
Also check the central flushing passage and the bit’s flushing holes. Restricted flushing can increase re-crushing, heat, and tool load. Record whether air or water flow changed before failure and whether cuttings return became poor. Clear passages only with the tool isolated and by the approved method.
4. Look for corrosion, impact marks, and surface notches
Percussive drill steel experiences many load cycles. A pit, gouge, sharp stamp, grinding mark, or handling dent can become a local stress raiser. Corrosion inside a hollow rod is especially easy to miss because the exterior can still look usable. Water left in the passage, wet storage, contaminated racks, or damaged protective practices can create conditions for pitting.
Inspect under good lighting and photograph the entire rod before cleaning it. Pay attention to the collar transition, flushing hole, taper, and any surface mark near the apparent crack origin. Check stored rods from the same shipment for rust staining and internal moisture. Do not weld, heat, straighten, or grind a suspect rod for continued service: these actions can change the material condition and destroy failure evidence.
5. Separate operating evidence from manufacturing evidence
Some failures originate from material, geometry, forging, machining, heat treatment, or an internal defect. These possibilities should not be dismissed—but they also cannot be confirmed from a fracture photo alone. A formal failure analysis may require dimensional inspection, hardness testing, chemical verification, metallography, and fractography performed by qualified personnel.
Peer-reviewed failure studies show why this distinction matters. Investigations of drill rods have identified fatigue crack initiation associated with geometry, surface condition, pitting, and severe deformation, but the dominant mechanism differed by component and case. Those findings support a disciplined investigation; they do not prove the cause of an H22 rod from a different design or batch.
Use the pattern of evidence to decide the next step:
- One isolated rod after a known jam or handling event: correct the event, inspect the equipment, and monitor.
- Several rods from different batches on one drill: prioritize the drill, chuck, alignment, and operating setup.
- Several rods from one batch across multiple controlled drills: quarantine the batch and request supplier investigation.
- Mixed locations and inconsistent histories: improve records before drawing a commercial conclusion.
A safe on-site troubleshooting sequence
- Stop and isolate. Follow lockout, depressurization, and site safety procedures. Do not handle a jammed drill string under stored energy.
- Preserve the pieces. Collect both fracture halves where possible. Keep mating surfaces from rubbing together.
- Photograph before cleaning. Capture the full rod, four sides, shank, collar, taper, fracture faces, and any corrosion or impact marks.
- Record the exact system. Rock-drill make/model, rod section and shank class, taper angle, bit model/diameter, rod length, air and flushing arrangement.
- Measure the failure location. Record distance from a defined end and whether the origin is at a transition, flushing hole, surface mark, or mid-body.
- Inspect the drill and companions. Check the chuck or guide condition, contact marks, straightness, bit fit, flushing, and unused rods from the same batch.
- Review the event history. Hole starting, jams, blank blows, visible bending, settings, rock fractures, operator changes, and storage exposure.
- Classify the pattern. Isolated event, drill-specific cluster, application-specific cluster, or batch cluster.
- Escalate without altering evidence. If the cause is unclear or failures repeat, use a qualified failure-analysis laboratory and the supplier’s technical team.
Evidence checklist for a supplier claim or corrective action
A useful claim file lets the buyer, equipment maintainer, and supplier compare like with like:
- purchase order, supplier, delivery date, quantity, and controlled product specification;
- rod markings, batch or lot identification, length, shank class, taper angle, and bit combination;
- rock-drill model and identification, maintenance history, chuck/guide inspection, and relevant manual revision;
- date placed in service and the best available service measure—holes, drilled length, shifts, or operating hours;
- rock type, fracture condition, hole direction/depth, starting method, and flushing medium;
- photos of the complete rod, fracture faces, damage zone, drill interface, bit socket, and comparison rods;
- failure location measured from a defined end and whether other failures repeat at the same location;
- operator account of the final hole, including jamming, unusual sound, loss of penetration, bending, or flushing change;
- retained failed pieces and at least one unused or low-service sample from the same lot where available;
- requested disposition: replacement review, batch containment, joint inspection, or laboratory analysis.
Store samples dry and separately so fracture faces cannot rub together. Use blank or coded evidence cards in photographs, then keep the code mapping in the controlled claim record.
What to confirm when ordering replacement H22 rods
A failure response should not become an uncontrolled substitution. Confirm the rock-drill shank interface, nominal H22 section, collar and shank details, overall and effective length, flushing passage, taper angle, compatible bit, straightness and dimensional requirements, inspection scope, marking, packaging, and applicable documentation.
PerfoMax’s active H22 × 108 mm tapered drill rod page covers an eleven-degree connection option. Use it only when that shank and taper match the controlled system; the quotation and attached drawing or datasheet should govern the supplied configuration.
Frequently asked questions
Why do H22 drill rods often break near the collar?
The collar is a change in section and a major load-transfer area. Repeated bending, eccentric impact, wear in the rock drill, corrosion, geometry, and material processing can all contribute. The location is a diagnostic clue, not a standalone root-cause verdict.
Can a bent H22 rod be straightened and reused?
A visibly bent drill rod should be removed from service. Straightening can leave residual stress or alter the material condition, and it does not address the event that bent the rod. Follow the manufacturer’s rejection criteria and site procedure.
Does a broken rod prove poor steel quality?
No. Steel or processing quality is one possible category, but operation, alignment, chuck wear, corrosion, compatibility, and handling can produce similar outcomes. Confirming a material defect requires controlled inspection and often laboratory analysis.
Should the fracture surface be cleaned before sending it to the supplier?
Avoid grinding, wire-brushing, oiling, or fitting the halves together repeatedly. Photograph and preserve the surfaces first. Ask the supplier or laboratory how to package them, because cleaning can remove corrosion products, crack-origin features, and other evidence.
When should the whole batch be quarantined?
Quarantine is prudent when multiple rods from the same lot show similar early failures, when a visible crack or dimensional anomaly appears in companion rods, or when the cause is uncertain and continued use creates an unacceptable risk. Coordinate disposition with site safety, maintenance, procurement, and the supplier.
Technical references and diagnostic limits
System boundaries and available tapered-tool configurations can be checked against current OEM pages for Epiroc tapered drill strings, Sandvik tapered bits, and Boart Longyear handheld tapered rods. The need to distinguish fatigue, geometry, surface condition, and material evidence is reinforced by a published drilling-rod failure analysis. These references explain mechanisms and product families; they do not identify the cause of a specific field failure without case evidence.
Send the evidence, not only the broken rod
For replacement or root-cause support, send PerfoMax an inquiry with the rock-drill model, H22 shank details, taper angle, rod length, bit combination, failure location, service history, full-rod photos, fracture-face photos, and batch information. A structured evidence package makes it possible to separate compatibility, operating, equipment, and supply questions before a new order is released.
