DTH Drilling in Karst Limestone: Cavities, Air Loss, Stuck Tools, and Method-Change Checks

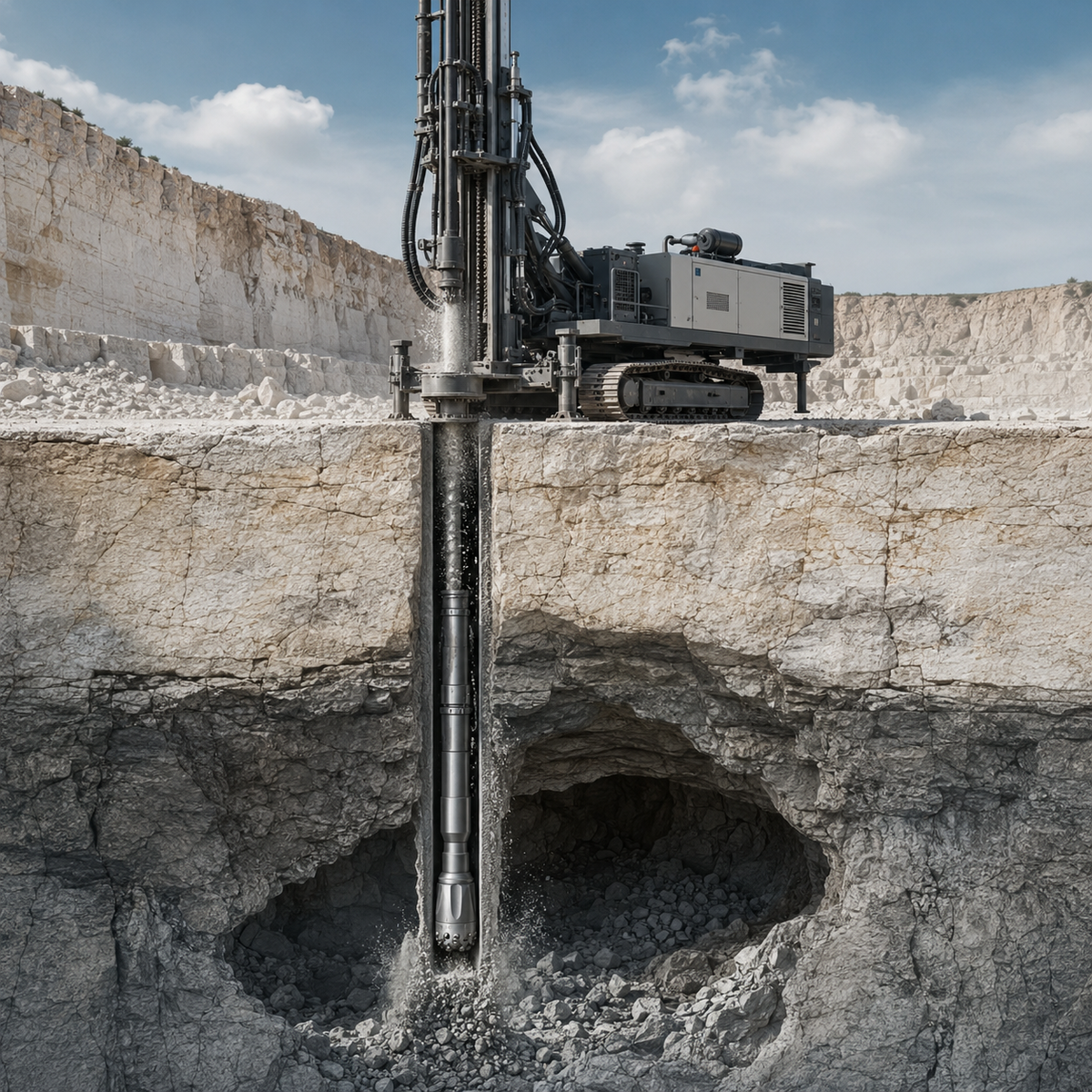

DTH drilling rig and borehole cutaway through karst limestone cavities

Short answer: DTH drilling can work efficiently in competent limestone, but karst changes the risk profile. A borehole may pass from solid rock into an open cavity, a clay-filled void, a fractured roof, or a water-bearing channel with little warning. The correct response is not simply to increase air or feed. Crews need a documented stop-and-assess sequence based on air return, cuttings, penetration, torque, groundwater response, and the stability requirements of the finished hole.

This guide is for quarry, construction, water-well, piling, and geotechnical teams planning DTH drilling in karst limestone. It explains what changes when the bit enters a void, which signals should trigger a pause, and when casing, an alternate circulation system, grouting, or a different drilling method may be required. Final drilling and ground-treatment decisions belong to the project’s qualified drilling and geotechnical personnel.

1. Why Karst Limestone Is Not a Uniform Hard-Rock Job

Karst develops where soluble rock—commonly limestone or dolomite—has been enlarged along joints, bedding planes, and drainage paths. The resulting ground can alternate between strong intact rock and zones with cavities, rubble, clay infill, or flowing water. A pre-drill investigation can reduce uncertainty, but a pilot hole still samples only a narrow path. Nearby void geometry may differ.

Conventional air-powered DTH drilling depends on two linked functions: compressed air cycles the hammer, and exhaust air carries cuttings up the annulus. In solid rock, the annular return path is reasonably defined. In a cavity, some air and cuttings can escape laterally. In broken material, pieces can fall around the hammer or drill string. These changes can reduce visible returns even when the compressor and hammer remain serviceable.

Karst condition Likely field effect Primary decision
Open cavity Sudden bit drop, reduced return, air loss, uncertain hole continuity Pause and establish cavity depth, recovery path, and hole purpose
Clay- or sediment-filled void Sticky returns, poor cleaning, packing, rapid change in penetration Confirm whether air DTH remains suitable or a casing/fluid strategy is needed
Fractured cavity roof Falling blocks, torque fluctuations, stuck-tool risk Protect the recovery path before advancing
Water-bearing channel Back pressure, wet heavy cuttings, unstable returns Recheck air capacity, water management, environmental controls, and method limits

2. What Are the First Signs That the Bit Has Entered a Cavity?

No single signal proves a cavity. The useful evidence is a change from the hole’s established baseline. Record the depth and operating condition whenever the following occur:

  • Sudden penetration increase or bit drop: the bit may have left the rock face. Immediately adding feed can drive the assembly into rubble or strike the far wall off-axis.
  • Loss or sharp reduction of return air: air may be escaping into a void or permeable fracture network. A hose leak or compressor problem can produce a similar symptom, so surface checks still matter.
  • Cuttings disappear or change abruptly: clean chips may stop, become mixed with clay, or return intermittently as material bridges and releases.
  • Rotation torque becomes erratic: broken roof material or loose blocks may be moving around the bit and hammer.
  • Unusual vibration or drill-string movement: the bit may be unsupported across a void or contacting the opposite wall unevenly.
  • Unexpected air, dust, or water at another opening: the borehole may have connected to an existing cavity, fracture, drain, or adjacent hole.

A disappearing dust plume alone is not a reason to increase compressor output. First determine whether the return path is lost, the hole is packing, or the surface air system has changed.

DTH hammer and bit crossing a cavity in fractured limestone
A karst cavity can interrupt the normal annular return path and leave broken material around the bit or drill string.

3. The Stop-and-Assess Sequence for a Suspected Karst Void

  1. Stop advancing and stabilize the controls. Follow the rig and hammer manufacturer’s safe operating procedure. Do not push blindly through a suspected void.
  2. Mark the depth and the exact change. Record penetration, visible returns, torque behavior, compressor readings, water response, and any bit drop. A vague note such as “bad ground” is not enough for the next shift or engineer.
  3. Verify the surface air circuit. Check hoses, couplings, valves, receiver, and compressor condition. Confirm pressure under load at the most relevant available measurement point. This separates a surface restriction or leak from downhole air loss.
  4. Observe the collar from the designated safe position. Note whether cuttings are continuous, intermittent, wet, clay-rich, or absent. Keep personnel out of the discharge zone.
  5. Test tool response cautiously. Any controlled lift, rotation, or flushing action must remain within the rig, hammer, and site procedure. The aim is to determine whether the string moves freely—not to force a blocked tool.
  6. Decide whether the recovery path is stable. If material is falling above the hammer, continuing can bury the tool. Casing or another stabilization measure may need to precede further advancement.
  7. Escalate when the hole’s purpose demands it. Blast holes, anchors, piles, wells, drains, and investigation holes have different acceptance criteria. A void that is tolerable in one application may invalidate another.

If the response is unclear, retrieve the string while recovery remains possible and review the borehole log. A lost tool is usually more expensive than a controlled pause.

4. Air Loss, Hole Cleaning, and Stuck-Tool Risk

Air pressure and air volume perform different jobs. The hammer needs pressure within its approved operating envelope, while cuttings transport depends heavily on delivered flow and the geometry of the return path. A cavity can consume air without improving cleaning at the bit. Raising the setpoint cannot repair a missing annular path and must never exceed the approved limits of the compressor, rig circuit, hammer, or accessories.

When return is weak, the crew should distinguish among four possibilities:

  • air is leaking before it reaches the hammer;
  • air is escaping into the formation or cavity;
  • the annulus is restricted by collapse, clay, or packed cuttings; or
  • groundwater and submergence have increased back pressure beyond the available operating margin.

These mechanisms require different responses. More air may help only when the system is within rating and the return path still exists. If the cavity roof is shedding rock, increased flow can move debris unpredictably or enlarge an erosion path. If the hole intersects sensitive groundwater pathways or nearby structures, the project’s environmental and geotechnical controls govern the next step.

5. When Casing, Grouting, or Another Method May Be Required

DTH tooling is not a substitute for ground support. Casing can preserve a stable passage through loose overburden or broken zones, but the casing system, drilling sequence, and seating depth must be engineered for the application. In some projects, a casing-advancement system is used to maintain the hole while drilling reaches competent rock. In others, a void must be grouted and re-drilled under a controlled procedure.

Consider a method review when:

  • the cavity or broken zone repeatedly collapses above the hammer;
  • air return cannot be maintained and cuttings are not reaching the collar;
  • the borehole connects to an uncontrolled surface opening, watercourse, or structure;
  • the hole must carry structural load or meet a defined alignment and bond-length requirement;
  • clay or loose sediment packs faster than it can be removed;
  • air drilling creates an unacceptable disturbance, contamination, or groundwater risk; or
  • the tooling cannot be retrieved reliably after each advance.

Possible alternatives include staged casing, reverse-circulation equipment, rotary methods with an appropriate fluid program, water-powered downhole equipment, coring, or pre-grouting. The correct option depends on geology, hole function, diameter, depth, access, environmental constraints, and available rig capability. It should not be selected from the hammer name alone.

Technician monitoring DTH drill cuttings return at a limestone quarry
Track changes in return air, cuttings, water, torque, and penetration against depth; the pattern is more useful than any one symptom.

6. A Karst DTH Drilling Field Checklist

Before the hole

  • Review borehole records, geophysics, nearby cavities, groundwater information, and previous drilling losses.
  • Define what constitutes an acceptable finished hole for the application.
  • Confirm hammer, bit shank, bit diameter, drill pipe, compressor delivery, and all pressure ratings as one system.
  • Prepare a depth-based drilling log and clear stop-work triggers.
  • Plan recovery tools, casing options, lost-return response, water control, and exclusion zones before drilling starts.

During drilling

  • Log depth, penetration trend, return character, torque, and water changes at useful intervals.
  • Watch for simultaneous changes rather than chasing one gauge reading.
  • Keep the collar visible and controlled; do not allow spoil to hide a change in return.
  • Maintain lubrication and inspect delivery in accordance with the hammer manual.
  • Pause at suspected voids before extending another pipe or driving farther into uncertain ground.

Before continuing across a void

  • Estimate the top and bottom of the void or infilled zone from controlled observations.
  • Confirm the drill string can be recovered.
  • Check whether the opposite wall can be engaged without severe misalignment.
  • Decide whether casing, grouting, or method change is required.
  • Record who authorized continuation and which operating limits apply.

7. Common Mistakes in Cavernous Limestone

  • Treating a sudden penetration jump as higher productivity. The bit may simply be falling through open space.
  • Increasing feed to find the far wall. This can wedge the bit in rubble or start the next rock interval off-axis.
  • Using compressor pressure as the only diagnostic. A normal compressor gauge does not prove that useful air is reaching the hammer or returning up the annulus.
  • Continuing without a depth log. The cavity interval then becomes guesswork during casing, grouting, charging, or hole acceptance.
  • Assuming every weak return is a hammer fault. Downhole air loss and collapse can imitate mechanical trouble.
  • Forcing a standard open-hole method through unstable ground. The drilling method must follow the formation and the finished-hole requirement.

8. What to Include in an RFQ for Karst Limestone Drilling Tools

A useful RFQ allows the supplier to confirm the interfaces and identify where project engineering is still required. Include:

  • application and finished-hole purpose;
  • target diameter, depth, inclination, and alignment tolerance;
  • known limestone or dolomite condition, including cavities, clay infill, fractures, and groundwater;
  • current rig, compressor free-air delivery at working pressure, and any booster;
  • hammer make/model, pressure class, exact bit shank, and drill-pipe connections;
  • observed lost-return depth, penetration changes, stuck-tool history, and recovery constraints;
  • planned casing outside/inside diameters and connection if casing is involved;
  • site restrictions on air, water, foam, polymers, discharge, noise, or contamination; and
  • photos of tooling, connection drawings, and the latest borehole log.

PerfoMax can use this information to review the commercial tooling pathway without pretending that a bit or hammer alone solves a ground-stability problem. Start with the PerfoMax request-a-quote page. For interface control, the active DTH drill bit selection page explains why shank, diameter, face design, and rock condition must be confirmed together.

FAQ

Can a DTH hammer drill through a limestone cavity?

It may cross a cavity, but the key questions are whether the drill string remains supported, the opposite wall can be engaged without unacceptable deviation, cuttings can still be removed, and the hole remains fit for its purpose. Open voids, infill, water, and broken roofs require different controls.

Why did the DTH hammer lose impact when the hole entered karst?

Possible causes include downhole air loss, increased back pressure from water, a blocked or buried bit, inadequate delivered air, lubrication failure, or a mechanical hammer fault. Use a sequence that checks the surface air circuit, return behavior, tool movement, and downhole conditions before dismantling the hammer. The published DTH hammer troubleshooting guide provides the mechanical diagnostic branch.

Does more air prevent stuck tools in cavities?

Not automatically. Adequate air is essential for hammer operation and cuttings transport, but a cavity may divert air away from the annulus. If broken rock is collapsing around the string, more air does not create structural support. Stay within equipment ratings and review casing or method changes when the recovery path is unstable.

Should foam or water be added when returns are lost?

Only under an approved drilling program. Water or foam can change cuttings transport, dust, sample quality, hole-wall behavior, lubrication requirements, and environmental impact. In an open void, the additive may be lost into the formation. Confirm compatibility with the hammer and site controls before use.

What information best helps a supplier recommend DTH tooling for karst?

The most useful inputs are hole purpose, diameter and depth, rig and compressor data, hammer and shank identity, groundwater, cavity or loss intervals, cuttings behavior, casing plan, and recovery constraints. A geology label such as “limestone” is not enough.
