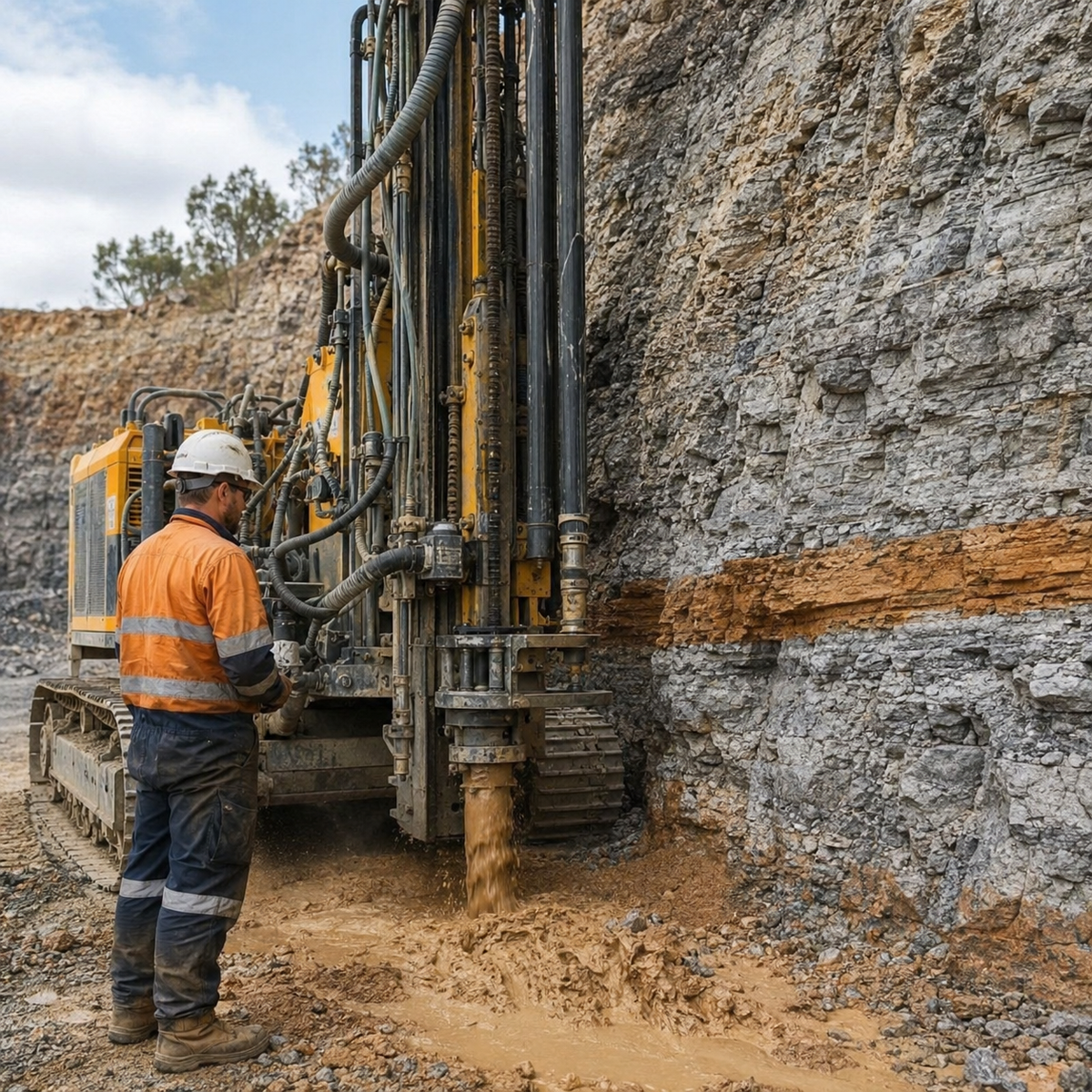

Direct answer: DTH drilling can cross a thin clay seam when the bit remains engaged and the flushing path continues to carry material to surface. The boundary is operational, not simply geological: moist cohesive clay can smear across the bit face, block flushing passages, form a paste around the pipe and suppress cuttings return. If return weakens or disappears, continuing to advance can pack material above the hammer, bury the drill string and turn a short formation change into a recovery job.
The correct response is a controlled diagnosis. Stop advancing under the approved site and equipment procedure, compare the change in percussion, rotation and return, then isolate stored energy before any inspection. Do not compensate blindly with more feed, air pressure, rotation or water. A persistent cohesive interval may require casing or a different drilling method before DTH resumes in consolidated rock.
Why Clay Behaves Differently from Ordinary Rock Cuttings
A DTH hammer is a rotary-percussion system. Compressed air drives the hammer near the bottom of the hole, and the exhaust air also helps move cuttings upward through the annular space around the drill string. The National Ground Water Association describes DTH drilling as best suited to well-consolidated formations. That matters because a clay seam does not always fracture into free-flowing chips.
Dry, friable clay may break and clear. Moist plastic clay can deform, smear and adhere. The same interval may also contain loose sand, gravel or cobbles, creating both stickiness and unstable hole walls. Crews should therefore classify the observed material and response instead of treating every brown return as the same problem.
| Observed condition | Likely drilling response | Main risk to control |
|---|---|---|
| Dry, friable clay or clay-rich dust | Return remains visible but becomes finer and may pulse | Dust, partial plugging and misreading the formation change |
| Moist, plastic clay | Material sticks to the bit, pipe or cuttings stream; penetration and percussion may become irregular | Bit balling, blocked flushing passages and packed annulus |
| Water-bearing clay | Return may become a heavy paste or slurry whose behavior changes with added water | Loss of reliable hole cleaning and possible wall softening |
| Clay with loose sand, gravel or cobbles | Variable torque, intermittent return and unstable engagement | Collapse, bridging, tool burial and loss of hole control |
“Bit balling” means cohesive material accumulates on and around the bit instead of leaving the cutting face as a transportable return. It can cover buttons, occupy face channels or obstruct flushing openings. A packed annulus is related but not identical: material accumulates in the space outside the hammer or pipe and restricts upward flow. Either can occur alone, and both can occur together.
Early Signs That a DTH Bit Is Balling in Clay
No single gauge proves bit balling. Diagnose the pattern across sound, penetration, rotation, air response and the material reaching surface. Warning signs include:
- a sudden change from crisp, regular percussion to weak or intermittent firing;
- penetration that falls sharply even though the interval appears softer;
- a change in rotation load, erratic rotation or a tendency for the string to wind up;
- cuttings return changing from discrete particles to sticky ribbons, pellets or paste;
- return volume falling or stopping while the string is still advancing;
- clay rings or smeared material appearing on pipe as it is withdrawn;
- air venting at an unexpected location or a changed pressure response;
- the hammer firing again only after it is lifted, cleaned or moved back into firmer ground.
Water Well Journal notes that DTH flushing holes can become blocked, especially in clay, and that very soft ground may prevent the bit from engaging the hammer correctly. It also warns that absent cuttings return can have several causes, including balling, cuttings loss into fissures, or material that is too large or heavy to lift. The practical lesson is to avoid a one-symptom diagnosis.
A Safe Diagnostic Sequence When Cuttings Return Falls
- Stop the advance under the approved procedure. Do not keep feeding into a hole that is no longer returning material. Maintain the rig and string in a controlled position.
- Lift off bottom as the OEM and site procedure allow. Observe whether percussion, rotation response and surface return recover. This separates a bottom-engagement problem from some supply-side or annular restrictions.
- Check external causes before blaming the formation. Verify compressor condition, delivery lines, valves, connections, lubricator function and any visible restriction. Use the exact hammer and rig manuals; this article does not replace their operating limits.
- Assess the return. Note volume, continuity, moisture, texture, particle size and any clay adhering to the pipe. A thin dusty return, a sticky paste and no return are different conditions.
- If return is not restored, isolate all energy. Shut down and lock out the relevant air, hydraulic and mechanical energy before separating components or inspecting the bit. Never look into a flushing passage while the tool is connected or pressurized.
- Inspect only in a safe location. If withdrawal is permitted and controllable, check the bit face, flushing openings, hammer exterior and pipe for cohesive buildup, damage or abnormal wear.
- Decide whether the hole is still controllable. Repeated plugging, collapse, bridging or burial is a method-selection problem, not a reason to repeat the same response indefinitely.
Can Adding Water Clear Sticky Clay?
Sometimes water helps control dust or transport material; sometimes it turns a marginal clay interval into adhesive paste. There is no universal “add more water” rule. The result depends on clay mineralogy, natural moisture, water inflow, hole geometry, air delivery, temperature, the chosen flushing system and the approved drilling-fluid plan.
Use only an OEM- and site-approved amount and method. Change one controlled variable at a time and watch the actual return. If a small addition makes the return cleaner and continuous, record the condition. If it increases smearing, produces heavier paste, reduces return or destabilizes the wall, stop and reassess. Do not improvise detergents, polymers or other additives without technical approval, environmental review and a defined fluid-management procedure.
What Not to Do in a Clay Seam
- Do not increase feed or air pressure blindly. More energy does not create an open return path and may push the string deeper into packed material.
- Do not keep drilling with no cuttings return. Material can recirculate or fall back around the hammer and pipe.
- Do not disconnect a pressurized joint. Isolate, depressurize, secure and verify before handling the drill string or bit.
- Do not probe flushing holes while the bit is connected over the borehole. Move inspection to a controlled service position.
- Do not assume a recovered hammer means the hole is stable. The bit may fire again while the clay interval continues to squeeze, bridge or collapse above it.
- Do not treat an unknown formation as a tooling-only issue. Persistent clay, loose overburden or mixed cobbles may require casing or a different drilling system.
When to Continue, Case the Hole or Change Methods
A crew may continue through a short clay band only when the hole remains stable, cuttings return is re-established, the hammer operates normally and the approved operating envelope is maintained. The decision should be made by the competent drilling supervisor using site geology, rig limits and the project’s hole-quality requirement.
| Field condition | Directionally correct response | Reason |
|---|---|---|
| Thin seam; return restored after a controlled lift and cleaning check | Proceed cautiously while monitoring return and pipe condition | The interval may be crossable without changing the system |
| Persistent cohesive interval with repeated balling | Reassess flushing and consider a rotary, auger or approved fluid-based method for that interval | DTH percussion is not automatically the efficient method in plastic ground |
| Clay or loose overburden collapses into the hole | Consider casing advancement or another engineered support method to stable formation | The problem is wall support as well as cutting removal |
| Clay matrix contains cobbles or boulders | Use a specialist overburden method selected for both obstruction and collapse risk | One formation contains conflicting drilling demands |
| Return repeatedly disappears or the string begins to pack | Stop and reassess before further advance | Continuing can bury the hammer or stick the string |
For a broader boundary check, see DTH Drilling in Soft and Weathered Rock. If the clay belongs to a longer unconsolidated interval, use the DTH Drilling Through Overburden guide to decide whether casing should reach stable rock before conventional DTH drilling continues.
Tooling and Air-System Checks Before the Next Attempt
Clay behavior cannot be corrected by hardware alone, but the wrong or worn hardware reduces the margin for reliable hole cleaning. Confirm:
- the hammer, bit shank and bit diameter are a verified system;
- the bit face and flushing passages are clean, open and undamaged;
- button wear, face wear and gauge condition remain within the supplier’s limits;
- the hole diameter and pipe outside diameter leave an appropriate annular return path for the actual cuttings;
- the compressor and delivery system provide the hammer manufacturer’s required air at working depth, after line losses;
- the lubricator and approved oil supply are functioning;
- check valves and other relevant components are clean and serviceable;
- the drill string is straight, connections are sound and there is no previous damage that could catch packed clay.
Do not transfer air, rotation or feed settings from another hammer merely because the nominal hole diameter is similar. Use the operating manual for the exact hammer and rig. For flushing-path fundamentals, review DTH Drill Bit Flushing Holes. If the string is already stuck, stop normal drilling and use the controlled checks in DTH Drill String Stuck in Hole.
What to Record for a Supplier or Method Review
A useful technical inquiry explains the formation change and the complete drilling system. Send the following information instead of only asking for a “clay bit”:
- rig, hammer and bit model or clear identification photos;
- bit diameter, face design, shank and flushing arrangement;
- pipe outside diameter, connection and total drilling depth;
- compressor rated output and the pressure/flow basis used by the hammer supplier;
- hole angle, target depth and hole-quality requirement;
- depth where clay begins and the estimated interval thickness;
- whether the clay is dry, damp, plastic, water-bearing or mixed with sand, gravel or cobbles;
- what changed: penetration, percussion, rotation, pressure response and cuttings return;
- photos of returned material, clay buildup and the cleaned bit face;
- any water or approved drilling fluid used and its observed effect;
- whether the hole collapsed, bridged, lost return or trapped the string;
- available casing equipment and any method restrictions on the site.
PerfoMax’s current DTH Tools collection is the appropriate commercial starting point for a tooling review. Include the data above so hammer, bit, pipe and flushing compatibility can be checked without inventing a universal clay-drilling setup.
Frequently Asked Questions
Why does a DTH hammer stop firing when it enters clay?
Very soft ground may not hold the bit in the normal engaged position, while sticky clay can obstruct the face or flushing passages. Air-supply restrictions and mechanical faults can create similar symptoms, so check the complete system under the OEM procedure before concluding that clay is the only cause.
How is clay bit balling different from cuttings fallback?
Bit balling is cohesive material adhering to the face, buttons or flushing openings. Fallback is material that was lifted but then drops or accumulates around the tool because the return velocity or path is inadequate. They can occur together and produce the same surface symptom: weak or absent return.
Can a conventional DTH hammer drill a thick clay layer?
It may penetrate some clay intervals, but conventional DTH is primarily suited to consolidated formations. Thick plastic or unstable clay can make cleaning and wall control inefficient. Casing advancement, auger, rotary or an approved fluid-based method may be more appropriate, depending on geology and project constraints.
Should the crew keep rotating while lifting out of sticky clay?
Follow the exact rig, hammer and site procedure. There is no universal instruction because rotation, feed, support and stored-energy hazards vary by equipment and hole condition. If withdrawal becomes abnormal, stop and place the system in a safe state for a competent recovery plan.
When is casing the better choice?
Casing becomes directionally appropriate when the clay or mixed overburden cannot keep the hole open, repeatedly bridges around the string or prevents a reliable return path. The casing system and installation method must be selected for the actual diameter, depth, formation and rig—not chosen from a generic rule.
