DTH Drilling in Soft and Weathered Rock: Efficiency Limits, Hole Stability, and Method-Change Checks

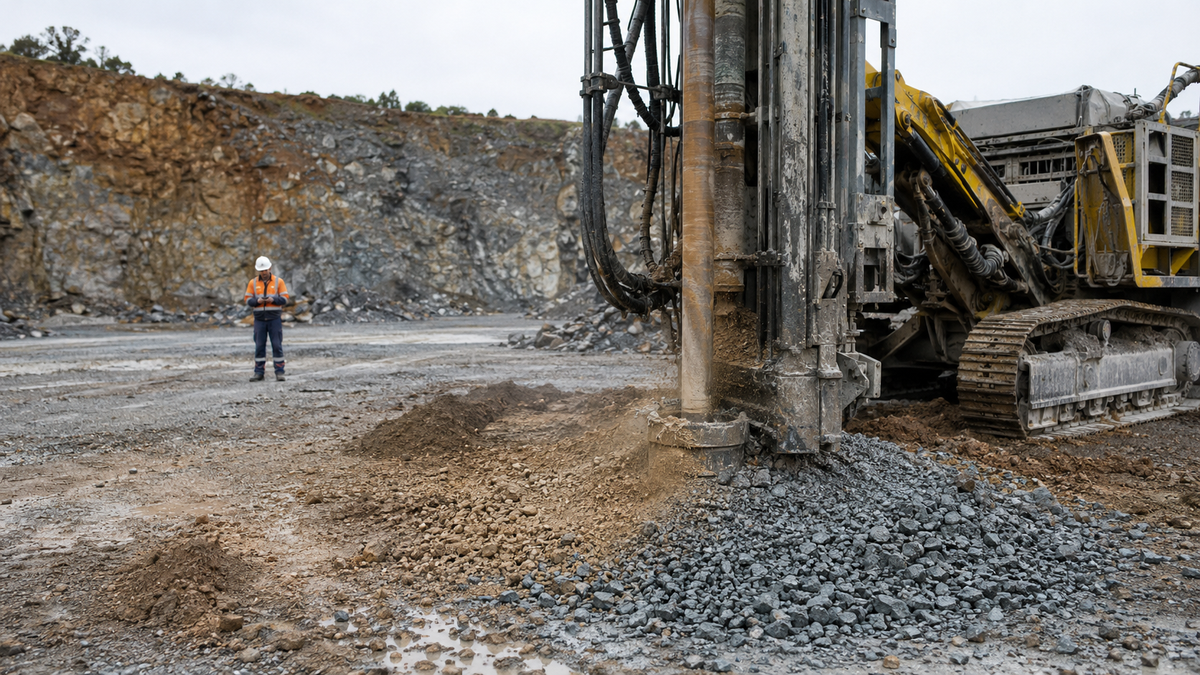

DTH drilling rig working at a weathered-rock collar with changing cuttings

Quick answer: DTH drilling can remain workable in soft or weathered rock when the ground is still sufficiently consolidated, the hole stays open, and air can return cuttings without eroding the collar or escaping into the formation. It becomes a poor or unsafe open-hole choice when impact energy adds little value, sticky fines block the return path, loose ground collapses, or high-pressure exhaust destabilizes sensitive soil. In those conditions, the correct response may be a different hammer setup, controlled flushing, casing advancement, a rotary or mud method, or a planned method change at competent bedrock—not simply more air or feed.

The essential distinction is between soft rock and unconsolidated ground. A weathered but self-supporting sandstone is not the same problem as loose sand, saturated silt, swelling clay, or mixed fill. Before selecting DTH tools, mines, quarries, well drillers and contractors should identify which condition is present, how long the interval is, what hole stability is required, and where competent rock begins.

1. Why soft and weathered ground changes the DTH decision

A pneumatic DTH hammer uses compressed air for two jobs: cycling the piston and carrying broken material up the annulus between the drill string and the hole wall. In competent rock, the button bit breaks the face and the hole wall normally provides a defined return path. In weak ground, both parts of that system can become less predictable.

  • Impact may be unnecessary: very weak material can be cut or displaced efficiently without high percussive energy.
  • The hole wall may not hold gauge: weathered seams, loose particles or cavities can enlarge, slough or collapse.
  • Cuttings may stop behaving like dry chips: clay-rich fines and moisture can form sticky material that restricts the bit face, ports, casing or annular return path.
  • Exhaust air can enter the formation: air loss reduces useful return flow and may disturb sensitive ground.
  • Penetration rate can become misleading: rapid advance through a weak seam does not prove that the hole is stable, clean or ready for the next operation.

The National Ground Water Association’s WellOwner resource describes DTH as best suited to well-consolidated formations and explains that hammer exhaust removes the cuttings. Liebherr similarly describes DTH hammer drilling as mainly applied to hard or very hard rock and large boulders. These are application boundaries, not a claim that every lower-strength rock prohibits DTH.

2. Classify the ground before changing the drilling setup

Ground condition Likely open-hole DTH concern Planning direction
Weathered but self-supporting rock Fast, variable penetration; increased fines; uncertain hole gauge Controlled trial with matched hammer/bit setup and close monitoring
Soft, intact rock Excess percussion or air cost relative to the work required Compare DTH with top hammer or rotary options for depth, diameter and accuracy
Isolated clay-rich seam inside competent rock Sticky returns, restricted airflow, packing around the string Protect cuttings return; define a stop-and-clean or method-change plan
Loose sand, gravel or mixed fill Wall collapse, air loss, oversized hole, buried tooling Evaluate casing advancement or another overburden method
Soft overburden above bedrock Open-hole DTH may not maintain the upper interval Stabilize or case the upper section, then transition to DTH in competent rock
Sensitive urban or shoreline ground Air escape may create over-drilling, cavities or settlement risk Use an engineered, project-approved air-control/casing solution or another method

Do not select a response from the word “soft” alone. Record the interval, moisture, particle/cohesive behavior, boulders, voids, groundwater, nearby structures, required hole diameter and depth, drilling direction, final hole purpose and whether casing must remain or be recovered.

DTH hammer used to illustrate equipment checks for soft and varying ground
Figure 1. Hammer selection should follow the actual ground interval, compressor package, hole plan and required method—not a generic “soft rock” label.

3. When can DTH still be a reasonable choice in softer ground?

DTH can still be directionally appropriate when at least one of its core advantages remains important: reaching competent rock through hard inclusions, breaking boulders, maintaining impact at depth, controlling a rock socket, or continuing a mixed-formation hole after the unstable interval has been supported.

Robit’s current H-Series information is a useful reminder that DTH is not one fixed operating architecture. Robit distinguishes a lower-air, higher-frequency High Efficiency assembly as suitable for softer or varying ground, while its Maximum Performance assembly targets high blow energy and deep-hole drilling. This does not make those settings transferable to another hammer. It shows why the buyer must confirm the exact hammer model, internal configuration, bit shank, compressor envelope and OEM operating instructions.

A controlled DTH trial is more defensible when:

  • the formation remains consolidated enough to maintain the hole;
  • the weak interval is limited and bounded by competent rock;
  • cuttings continue to return steadily at the collar;
  • air does not disappear into fractures, voids or surrounding soil;
  • the rig can control feed, rotation and flushing without forcing the string;
  • the hole’s final use tolerates the observed gauge and wall condition;
  • there is a defined recovery plan if the interval begins packing or collapsing.

4. When should conventional open-hole DTH be reconsidered?

Pause the application decision—not just the machine—when the site sees one or more of the following:

  • the collar or upper hole visibly washes out;
  • returns become intermittent, disappear, or emerge away from the collar;
  • sticky fines coat the pipe or repeatedly restrict the return path;
  • the drill string becomes difficult to rotate, lift or recover after a weak interval;
  • the hole repeatedly sloughs after the bit passes;
  • high penetration coincides with poor cuttings return or uncertain hole condition;
  • air loss affects surrounding ground, nearby services or structures;
  • the interval no longer needs percussive breaking but still consumes a large air package;
  • the hole cannot meet its required diameter, straightness, stability or cleanliness.

These symptoms do not prove that the hammer is defective. They may indicate that the ground, flushing path and drilling method no longer match. Increasing pressure or feed without identifying the mechanism can enlarge the problem, pack more material around the string or disturb more ground.

5. Airflow is part of the geotechnical risk

DTH exhaust is not only a productivity variable. In weak ground it can act on the formation itself. Mincon’s current Spiral Flush information describes how air directed against sensitive overburden can cause over-drilling and underground cavities, and notes that conventional DTH use is restricted in some sensitive urban and shoreline settings. Its engineered system keeps the main airflow within the casing and directs it upward; that is a specialized solution, not an operating trick to copy with standard tooling.

For a buyer or project engineer, the practical conclusion is:

  1. confirm where exhaust air will travel;
  2. identify what contains the return path;
  3. assess the consequence of air loss or ground erosion;
  4. select casing and air-control architecture with the responsible drilling engineer and equipment supplier;
  5. do not treat compressor capacity as permission to use maximum air in every formation.

Where settlement, buried utilities, foundations, shorelines or personnel could be affected, method approval belongs within the project’s geotechnical and safety controls.

6. Sticky clay seams: protect the return path

A clay seam inside otherwise drillable rock presents a different problem from a thick soft-soil interval. Moisture and fines can adhere inside the casing or around the drill string, reducing the area available for return air. Mincon specifically notes that sticky clay can attach to the inside of casing and prevent proper airflow; its controlled-flush product directs more air upward inside the casing to address that application.

On a conventional system, warning signs can include a rapid change from dry chips to cohesive fines, reduced or pulsing returns, material adhering to the pipe, and increasing difficulty lifting or rotating. Operators should follow the rig and hammer manufacturer’s approved clearing procedure, keep lubrication and flushing continuous as specified, and stop before the string becomes buried. Do not improvise chemical additives, water rates or pressure changes without checking compatibility with the hammer, compressor, hole purpose and environmental requirements.

DTH tools used to illustrate application and method-change planning
Figure 2. A method-change plan should lock the hammer, bit, pipe, casing, flushing and recovery interfaces before drilling begins.

7. Casing and method-change boundaries

Casing advancement is designed for conditions where the hole cannot reliably support itself. Epiroc notes that casing advancers can save time in shale, sand, crumbly ground and heavy overburden by installing casing until bedrock is reached. Liebherr’s cased DTH description likewise shows casing and the DTH hammer advancing as an integrated process.

However, “use casing” is not a complete specification. The buyer must confirm:

  • eccentric, concentric or another approved casing system;
  • pilot, ring bit and DTH hammer compatibility;
  • casing outside/inside diameter and wall;
  • casing shoe, joint and recovery requirements;
  • expected boulders, voids and groundwater;
  • whether casing remains, is recovered or becomes part of the completed work;
  • the transition and seating requirement at competent bedrock;
  • rig torque, pullback, feed and compressor capability;
  • the method for verifying final hole condition.

If the job is mainly continuous clay, sand or weak soil with little rock to break, a rotary, auger, mud, sonic or other ground-specific method may be more economical and controllable. Method selection belongs to the project engineer and drilling contractor; the tool supplier should not declare one universal crossover point without the geology and hole specification.

8. Eight-step field decision workflow

  1. Define the finished-hole requirement. Record diameter, depth, direction, straightness, cleanliness, casing and final use.
  2. Describe the weak interval. Distinguish weathered rock, intact soft rock, clay seams, loose soil, gravel, boulders, voids and groundwater.
  3. Establish the competent-rock baseline. Record normal returns, penetration behavior, rotation/feed response and compressor conditions.
  4. Enter the transition under controlled settings. Follow the equipment manuals; avoid assuming that maximum feed, rotation or pressure solves uncertainty.
  5. Watch four evidence groups. Penetration trend, cuttings character/return, collar and surrounding ground, and rig/air/rotation/pullback response.
  6. Stop at the first recovery-risk signal. Clear and inspect using the approved procedure before packing, collapse or air loss becomes severe.
  7. Select the next method deliberately. Continue adjusted DTH, deploy engineered casing/air control, or change to the ground-appropriate drilling method.
  8. Document the transition. Record depth, material, setup, outcome and tooling condition for the next hole and the supplier RFQ.

9. What information should go into the RFQ?

Information Why the supplier needs it
Ground log by depth Separates competent rock, weathered zones, clay, loose material, boulders and water
Hole diameter, depth, direction and tolerance Defines hammer/bit class, string architecture and stability requirement
Current rig and compressor Checks pressure, airflow, torque, feed and pullback feasibility
Current hammer, shank, bit and pipe Prevents interface assumptions and unsafe substitutions
Observed returns and failure symptoms Distinguishes cutting, flushing, collapse and mechanical issues
Casing requirement Defines pilot/ring/casing interfaces and method architecture
Nearby structures and ground sensitivity Flags the need for engineered air control and project approval
Final hole purpose Changes acceptance criteria for blasting, water well, foundation or anchoring work

PerfoMax’s active CIR90 low-pressure DTH hammer page provides a reference hole range and product architecture, but it is not evidence that the hammer suits every soft or weathered interval. The final quotation and data sheet should confirm the exact application, compressor, bit, pipe and ground conditions.

10. Common mistakes in soft-ground DTH planning

  • Using UCS alone: strength does not describe cohesion, clay behavior, voids, water or hole stability.
  • Calling all weak material “soft rock”: intact weathered rock and loose soil require different controls.
  • Chasing lost returns with more air: the formation may be accepting or being eroded by the exhaust.
  • Interpreting fast advance as success: the hole may be oversized, unstable or poorly cleaned.
  • Changing the hammer but not the method: casing, flushing and ground support can be the controlling issue.
  • Ordering casing components independently: the hammer, pilot, ring bit, casing and shoe must form one verified system.
  • Ignoring recovery capability: pullback and a stop/recovery plan matter before the string is trapped.
  • Copying operating parameters across models: hammer architecture and OEM limits differ.

Frequently asked questions

Can a DTH hammer drill soft rock?

Yes, in some consolidated soft or weathered rock. The question is whether percussion, flushing, hole stability and total cost still support DTH. Confirm with a controlled trial and the hammer/rig supplier rather than relying on hardness alone.

Can DTH drill through clay or sand?

It can physically enter these materials, but conventional open-hole DTH may suffer from sticky blockage, air loss or collapse. Thick or unstable intervals often require casing advancement or a different soil-drilling method before DTH resumes in bedrock.

Why does a DTH hole become oversized in weathered ground?

Weak walls may slough or be eroded by flushing air, while repeated movement of the string can enlarge the interval. Confirm the mechanism before changing air, feed or bit size.

Does lower air pressure always solve soft-ground problems?

No. Lower pressure may affect hammer cycling and cuttings return, and the permitted range is model-specific. Ground stability may require casing or controlled-air architecture rather than a simple pressure reduction.

When should the drilling method change?

Reconsider the method when the hole will not remain stable or clean, returns cannot be controlled, air affects surrounding ground, recovery risk rises, or percussion is no longer the economical way to remove the material.

Technical references

Match the drilling method to the full ground profile

The right DTH decision protects more than penetration rate. It protects hole condition, tooling recovery, surrounding ground and the transition into competent rock. Review the current DTH vs top hammer guide for 76–115 mm quarry holes when the project is still comparing percussive systems. For product screening, browse the live PerfoMax DTH Tools collection. To verify a soft- or weathered-ground application, send the ground log, hole plan, rig, compressor and existing interfaces through the Request a Quote page.
