Short answer: DTH bit flushing has one critical job: move broken rock away from the bit face and carry it out of the borehole fast enough that the bit does not keep striking and regrinding the same cuttings. Good flushing depends on the complete air path—not just the number of holes in the bit. Delivered air volume, bit-face grooves, flushing passages, hole diameter, drill-pipe diameter, hole depth, formation condition, leakage, and bit wear all change the result.
If cuttings return becomes weak, erratic, or disappears, do not immediately order a bit with more flushing holes. First determine whether the restriction is in the bit, the air-delivery system, the annulus, or the formation. This guide gives mining, quarry, water-well, foundation, and drilling contractors a practical way to diagnose poor hole cleaning and specify the right information before buying replacement DTH bits.

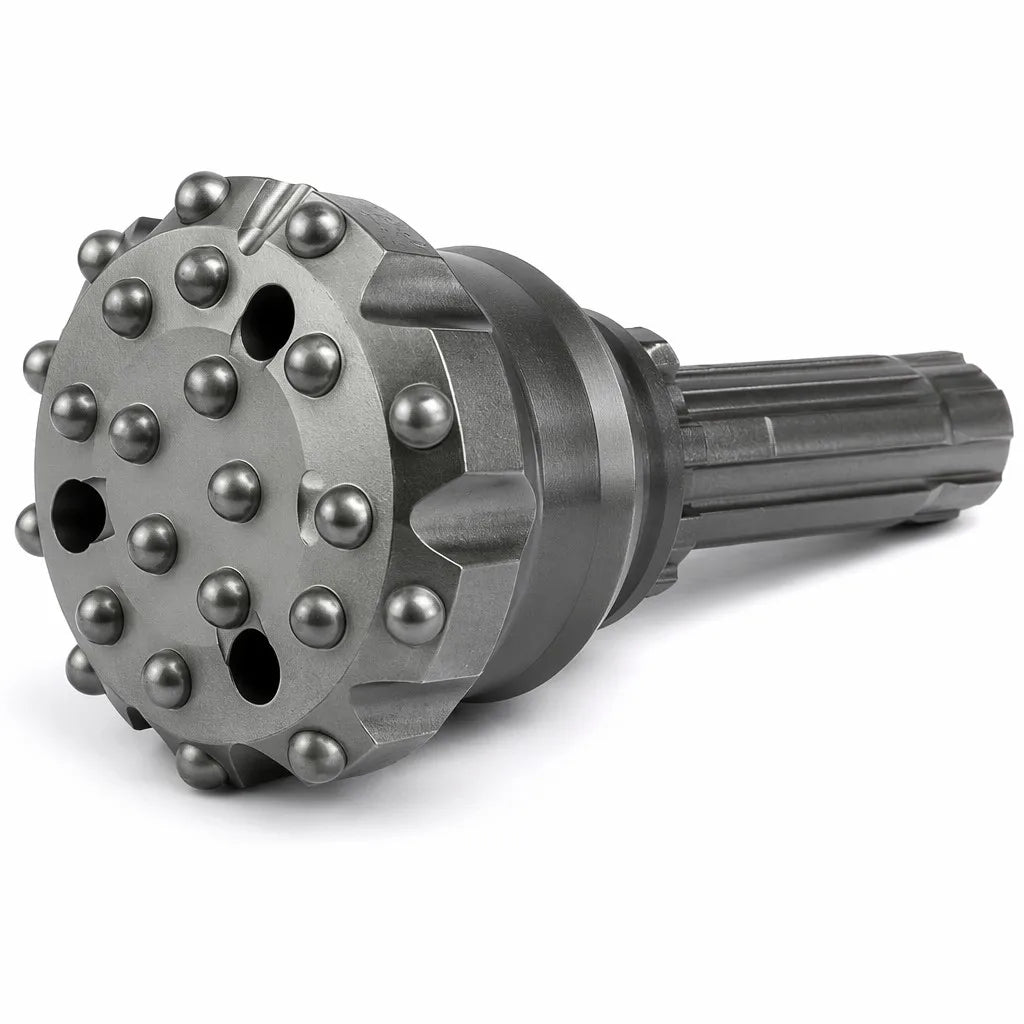

1. How Do DTH Drill Bit Flushing Holes Work?
In conventional DTH drilling, compressed air powers the hammer and then exhausts around or through the bit face. That exhaust air entrains the broken rock generated by the carbide buttons and transports the cuttings upward through the annular space around the drill string.
The bit face therefore has two jobs at the same time: break rock and provide a controlled path for exhaust air and cuttings. Epiroc describes optimized bit-face flushing as a design feature for handling drill cuttings, while Sandvik emphasizes deep face grooves and optimized flushing designs to aid cuttings removal and reduce wear. Boart Longyear similarly describes DTH bit design as a balance among flushing, button wear, bit life, and rate of penetration.
The operational implication is important: poor flushing can look like a drilling-performance problem even when the hammer is still striking. When cuttings remain under the bit, energy is spent rebreaking loose material instead of creating fresh rock fracture. Water Well Journal notes that inefficient cuttings removal can cause regrinding, slower penetration, and premature bit wear or failure.
2. Flushing Holes vs. Face Grooves: What Does Each Part Do?
Buyers often focus on the visible flushing holes, but the whole face geometry controls how air and cuttings move.
| Feature | Main function | What poor performance can look like | What to verify |
|---|---|---|---|
| Flushing / exhaust holes | Deliver hammer exhaust air to the bit face and bottom-hole zone. | Weak local cleaning, packed fines, uneven return, repeated clogging. | Passages are open; layout matches the bit design and hammer system. |
| Face grooves / channels | Give air and broken rock a path across the face toward the annulus. | Cuttings remain under buttons, localized wear, regrinding. | Grooves are not packed, damaged, or badly worn. |
| Gauge area | Maintains hole diameter and influences the flow path from face to annulus. | Unstable cleaning, abnormal gauge wear, changing hole condition. | Gauge buttons and bit body are within serviceable condition. |
| Bit diameter | Sets the borehole size and helps determine the annular flow area around the drill string. | A larger-than-planned hole may require more air for effective cuttings transport. | Actual bit diameter, pipe OD, hammer class, and available air are matched. |
| Bit face profile | Controls rock contact and also interacts with groove and flushing layout. | Cleaning and wear behavior changes when face design changes. | Evaluate face profile, button profile, and flushing arrangement as separate but interacting variables. |
PerfoMax's current DTH Drill Bits selection page follows this system approach: the final bit is defined by hammer shank, nominal diameter, face profile, button geometry, flushing arrangement, and rock condition. That is why two bits with the same outside diameter can behave differently at the bottom of the hole.
3. Why Are DTH Drill Cuttings Not Coming Out of the Hole?
Start with the symptom, then separate air-delivery problems from bit-design and ground-condition problems.
| Observed symptom | Likely area to investigate | First checks |
|---|---|---|
| Cuttings return was normal, then suddenly drops | Leak, blockage, formation loss, or sudden ground change | Air-line joints, drill-pipe connections, bit passages, change in formation, and whether air is escaping into fractures. |
| Cuttings return has gradually weakened | Wear, increasing depth, restriction, or declining delivered air | Bit/gauge condition, hose and pipe condition, compressor operating point, and depth-related losses. |
| Hammer sounds active but penetration slows | Cuttings regrinding or inefficient bottom-hole cleaning can be one cause | Return volume, cuttings size, bit-face packing, flushing grooves, and air supply. |
| Fine material repeatedly packs around the face | Insufficient evacuation or formation-specific sticking | Groove condition, flushing holes, moisture/clay conditions, and operating procedure. |
| Cleaning becomes poor after changing to a larger bit | Air system may not support the new hole/annulus condition | New bit diameter, drill-pipe OD, actual compressor flow at operating pressure, and hammer requirement. |
| Only one area of the face shows abnormal packing or wear | Local flushing restriction or asymmetric damage | Individual passages, face grooves, body damage, and button condition. |
A useful rule is to diagnose from upstream to downstream: compressor → hose and fittings → drill pipe → hammer → bit passages → bottom-hole face → annulus → formation. If the team jumps directly to the bit, it can replace a serviceable component while leaving the actual restriction untouched.
4. Two Flushing Holes or Three: Is More Always Better?
No. Flushing-hole count is not a universal performance ranking. Current Boart Longyear DTH bit tables show that designs within similar nominal hammer classes may use different flushing-hole counts. Its 4-inch listings commonly show two flushing holes, while 5-inch designs include both two- and three-hole configurations depending on exact diameter, face profile, and bit design. This is evidence that hole count is an engineered design variable, not a simple “more is better” specification.
Water Well Journal offers a practical, conditional point: when a system is on the higher end of available air supply, a three-hole design can help move cuttings from the bottom of the hole. The condition matters. Adding or enlarging ports changes how available air is distributed; if the compressor, hammer, pipe, and hole geometry are not matched, copying another bit's hole count does not guarantee better cleaning.
| Condition | What matters more than hole count alone | Buyer action |
|---|---|---|
| Existing system cleans well | Proven compatible face and flushing layout | Document the current successful bit specification before changing suppliers. |
| Larger hole diameter planned | Available air volume, annular area, hammer class, and face design | Recheck the complete system rather than copying the old flushing layout. |
| Deep-hole cleaning deteriorates | Delivered air, leakage/restriction, depth, hole condition, and wear | Diagnose the system before changing port count. |
| Hard, abrasive formation | Cleaning plus gauge/face wear and carbide selection | Balance flushing with wear life and penetration rather than optimizing one variable alone. |
| Fractured or unstable ground | Air loss to the formation and changing return path | Treat poor return as a possible formation/system issue, not automatically a bit defect. |
5. Why Hole Diameter, Drill-Pipe OD, and Air Volume Must Be Matched
The cuttings return through the annulus between the drilling assembly and the borehole wall. When the flow area becomes larger while delivered air volume stays the same, the upward carrying velocity can fall. This is one reason a rig that cleans a smaller hole effectively may struggle after moving to a larger bit even if compressor pressure appears unchanged.
Pressure and volume are different pieces of information. A DTH hammer needs the required pressure to operate, while effective hole cleaning also depends on enough air volume reaching the bottom of the hole. PerfoMax's current DTH Hammer Selection Guide therefore asks buyers for compressor free-air delivery and pressure at the rig, not pressure alone.
Before changing bit diameter, confirm:
- hammer make, model, and shank;
- target bit and hole diameter;
- drill-pipe outside diameter and connection;
- compressor free-air delivery at the intended operating pressure;
- hole depth and whether cleaning worsens with depth;
- formation, fracture pattern, moisture, and cuttings behavior; and
- current face design, flushing-hole count, and groove layout.
6. Seven-Step Troubleshooting Process for Poor DTH Hole Cleaning
- Define the change. Record whether poor return started suddenly, gradually, after a bit change, after increasing hole diameter, or only beyond a certain depth.
- Verify delivered air under drilling conditions. Check the compressor's operating pressure and air volume together. Inspect hoses, couplings, drill-pipe joints, and other points where leakage or restriction can reduce what reaches the hammer.
- Inspect the bit flushing passages. Stop and make the system safe according to the rig and hammer procedure. Confirm each flushing passage and face groove is open and free from packed material or damage.
- Inspect bit wear, not just blockage. Check gauge condition, body wash, damaged buttons, deformed face features, and groove condition. A worn bit can change the flow path even when every hole is technically open.
- Compare the symptom with formation changes. Fractures can create air-loss paths; wet or sticky cuttings can behave differently from dry chips. If return disappears at a geological transition, do not assume the bit alone caused it.
- Check the current hole/pipe/air match. If hole size or depth increased, confirm the system still has adequate cleaning capacity rather than relying on the previous setup.
- Change one variable at a time. When field-testing a new bit design, avoid simultaneously changing face profile, button shape, flushing layout, operating settings, and air supply. A controlled comparison makes the result diagnosable.
If poor cleaning is accompanied by abnormal hammer behavior, air leakage, severe vibration, overheating, or mechanical damage, stop using the equipment and follow the hammer/rig manufacturer's inspection procedure before continuing.
7. Common Procurement Mistakes When Specifying DTH Drill Bit Flushing Holes
- Ordering by outside diameter only. Similar diameter does not prove shank compatibility or equivalent flushing design.
- Specifying compressor pressure but not air volume. Pressure alone cannot describe cuttings-transport capacity.
- Copying a two-hole or three-hole layout from another hammer class. Port count has to be considered with face geometry, hammer exhaust design, available air, and hole size.
- Treating every loss of cuttings return as a bit problem. Leaks, restrictions, depth, fractures, and formation behavior can produce the same symptom.
- Ignoring the drill-pipe OD. Bit diameter and pipe diameter together influence the annular return path.
- Changing multiple design variables in one trial. If penetration changes, the team will not know whether face profile, button geometry, flushing, or operating practice caused the result.
8. What Should You Send Before Ordering a DTH Bit for Better Flushing?
A supplier can make a more reliable match when the inquiry describes the complete drilling system and the failure symptom. Send:
- hammer brand, exact model, and bit-shank standard;
- current bit diameter and target diameter;
- drill-pipe OD and top-sub/pipe connection;
- compressor pressure and free-air delivery at the working condition;
- typical and maximum hole depth;
- rock type, strength, abrasiveness, and fracture condition;
- dry drilling, water injection, foam, or other flushing condition;
- current bit face profile, button profile, flushing-hole count, and photos of the face;
- description of the problem: weak return, no return, clogging, regrinding, slow penetration, abnormal wear, or bit sticking;
- photos of worn bits and, where useful, representative cuttings.
PerfoMax's current DTH Drill Bits selection page is structured around this same matching logic: hammer shank, diameter, face profile, button geometry, flushing arrangement, rock condition, working pressure, hole depth, and cuttings volume should be considered before the final bit is confirmed. You can also review the DTH Hammer Selection Guide, browse the DTH Tools collection, or send the system data through Request a Quote.
FAQ
Are three flushing holes better than two on a DTH bit?
Not automatically. OEM product ranges use both two- and three-hole layouts depending on bit size, face design, and application. More holes are useful only when the complete air system and bit design support the intended flow pattern. Select the exact bit configuration for the hammer, hole size, air supply, and formation.
Can poor flushing slow penetration even if the DTH hammer is still striking?
Yes. If cuttings remain at the bottom of the hole, the bit can spend impact energy regrinding broken material rather than breaking fresh rock. This can reduce penetration and increase wear even though the hammer continues to cycle.
Why can cuttings return disappear suddenly in fractured rock?
A sudden formation change can open alternative air-loss paths, so less exhaust and fewer cuttings return to surface. First rule out mechanical leaks and blocked passages, then consider whether the change corresponds with fractures, voids, or unstable ground.
Should I enlarge DTH bit flushing holes when hole cleaning is poor?
Do not modify a bit's flushing geometry without approval from the bit or hammer supplier. A poor-cleaning problem may come from delivered air, leakage, blockage, annular geometry, wear, or the formation. Changing port geometry can alter the engineered flow distribution and does not address those root causes.
What information is most important for a DTH bit flushing recommendation?
Start with the exact hammer and shank, bit diameter, drill-pipe OD, compressor pressure and free-air delivery, hole depth, rock/fracture condition, current face and flushing layout, and the observed cuttings-return problem. Photos of the current bit face and wear pattern are particularly useful when replacing an existing system.
Technical References
- Epiroc — DTH Drill Bits
- Sandvik — Down-the-Hole Bits
- Boart Longyear — DTH Bits
- Water Well Journal — DTH Drill Bit Selection
Next Step: Diagnose the System Before You Change the Bit
A DTH bit cannot compensate for an air-delivery problem, and a larger compressor cannot correct an incompatible shank or damaged flushing passage. The lowest-risk procurement decision is to treat the hammer, bit, drill pipe, compressor, hole geometry, and formation as one system. If you are trying to solve poor cuttings return or select a new bit, send PerfoMax the operating data and current-bit photos above so compatibility and flushing requirements can be checked before quotation.
