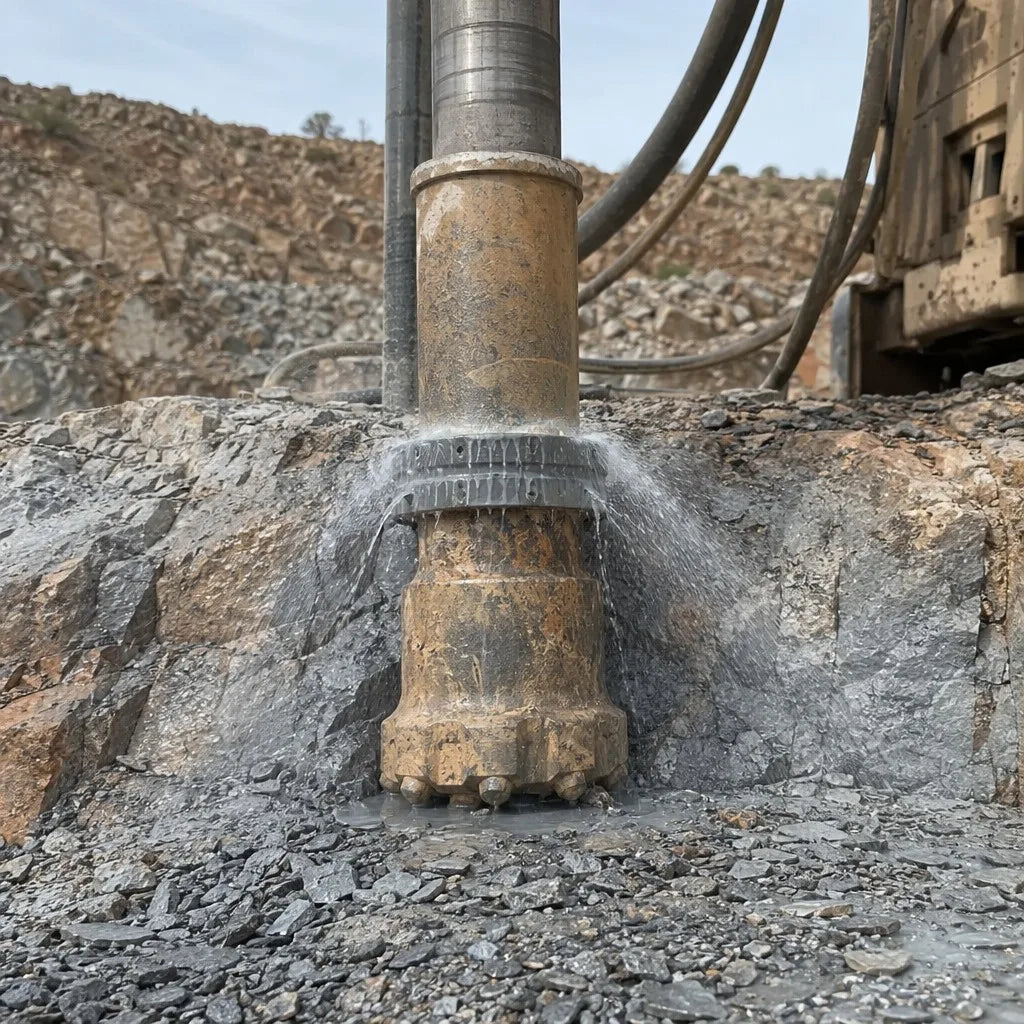

DTH Drilling in Hard Abrasive Rock: Rotation, Flushing, Bit Wear, and Setup

Quick answer: hard abrasive rock does not usually respond well to simply increasing every drilling parameter. The practical objective is to keep the DTH bit breaking fresh rock while limiting unnecessary sliding, re-crushing and heat. In the field, that means matching rotation to actual penetration, keeping enough feed to maintain stable bit contact without overloading the system, maintaining the hammer manufacturer’s required pressure and airflow, and making sure cuttings leave the bottom of the hole efficiently. Bit face, carbide shape and wear condition also become more important as abrasivity rises.

For quarry, mining and construction crews, the expensive failure mode is often not one dramatic breakdown. It is the combination of slower penetration, accelerated gauge wear, repeated sharpening, rising vibration and more frequent bit changes. This guide explains which variables to check first and what information should be confirmed before selecting or ordering DTH tools for hard abrasive formations.

Hardness and abrasivity are not the same drilling problem

Rock hardness describes resistance to indentation, crushing or fracture. Abrasivity describes how aggressively the rock wears the tool surfaces that contact it. A formation can be hard without being exceptionally abrasive, or abrasive without being the hardest rock on site. When both are high, penetration normally requires substantial impact energy while the bit face, gauge row and carbides are simultaneously exposed to severe mechanical wear.

This distinction matters because the corrective action is different. If the rock is mainly hard, the crew may focus on energy transfer, bit engagement and penetration efficiency. If the rock is highly abrasive, the crew must also control sliding distance, cuttings recirculation, gauge loss, carbide flats and skirt wear. Epiroc’s current DTH catalogue explicitly treats hard-and-abrasive formations as a separate bit-selection condition, while Mincon’s field guidance emphasizes rotation-to-penetration balance and frequent carbide inspection in abrasive ground.

1. Match rotation to penetration instead of using one fixed RPM

In DTH drilling, rotation indexes the carbide buttons so the next hammer blow acts on fresh rock. Rotation that is too slow can produce uneven cutting and poor indexing. Rotation that is too fast adds sliding distance without creating proportional penetration, which increases frictional wear on the carbides and bit face.

Mincon’s 2026 blast-hole guidance gives a useful field benchmark of approximately 15–20 mm of penetration per revolution. It also gives an example: at 1 m/min penetration, that relationship corresponds to roughly 50–65 RPM. Treat this as a benchmark for observation, not a universal machine setting. Actual RPM must still follow the hammer/bit manufacturer’s operating guidance and the specific rock, hole diameter, rig and air system.

A practical way to use the concept is to trend penetration and RPM together. If penetration falls substantially as the formation becomes harder but RPM stays unchanged, penetration per revolution also falls. The bit may then make many more rotations to drill the same metre. In abrasive rock, that extra sliding distance is a direct reason to re-check rotation rather than automatically holding the previous setting.

2. Use feed to maintain stable engagement, not to force penetration

Feed keeps the bit engaged with the bottom of the hole and lets impact energy transfer into the rock. Too little feed can allow unstable contact and vibration. Too much feed can overload the bit/hammer interface, increase mechanical stress and make the drilling action rougher.

The correct feed is therefore the value that produces stable, smooth drilling with consistent penetration under the current ground condition. Mincon’s hammer-life guidance specifically warns that excessive feed, incorrect rotation and poor airflow balance can raise stress and wear. For a crew moving from a less abrasive bench into hard abrasive ground, feed should be treated as a controlled variable and adjusted together with rotation and observed penetration—not as an independent lever that is simply increased when drilling slows.

3. Keep cuttings moving before they become grinding media

Compressed air has two jobs in a DTH system: it powers the hammer and it transports broken rock out of the hole. In hard abrasive formations, poor cuttings evacuation is especially costly because chips left at the bottom are struck again and again. That re-crushing consumes energy and creates additional abrasive contact around the bit face and skirt.

Do not use a universal air-pressure or airflow number from a generic guide. The required values depend on the exact hammer, bit diameter, hole diameter, pipe bore, depth, altitude, leakage and whether water injection is used. The correct starting point is the hammer manufacturer’s pressure-flow data and the compressor’s delivered flow at operating pressure.

When cuttings return deteriorates, check the whole path before assuming the rock alone is responsible:

1. Confirm the compressor can deliver the required flow at the actual operating pressure and site altitude.
2. Check hoses, joints, pipe threads and valves for leakage.
3. Inspect bit flushing holes and internal passages for restriction.
4. Check whether hole diameter, bit diameter and pipe OD leave a suitable return path.
5. Look for excessive water, broken ground or local cavities that change cuttings transport.
6. Compare penetration rate and cuttings return before and after any parameter change.

4. Bit face and carbide geometry matter more as abrasivity rises

There is no single DTH bit face or carbide shape that is best for every hard-rock application. OEM catalogues use different face designs and button geometries because penetration, stability, flushing and wear resistance trade off against one another.

Epiroc’s current DTH catalogue notes that flat-front designs with strong gauge rows and large spherical buttons are used where bit life is prioritized in hard abrasive formations. Mincon likewise describes dome/spherical carbide as a tougher option for hard abrasive rock, while more aggressive ballistic shapes are generally aimed at faster penetration in less severe conditions. These are OEM design examples, not a claim that every supplier uses identical rules.

For PerfoMax enquiries, the safe buying approach is to specify the exact hammer shank, target hole diameter, rock hardness, abrasivity, fracture condition, desired face profile, button preference and flushing requirement. PerfoMax’s current DTH Drill Bit Selection page also requires the exact hammer-shank drawing before final compatibility is confirmed.

5. Read the wear pattern before changing the tool

Mincon recommends frequent carbide inspection in abrasive ground and gives approximately one-third of the carbide face becoming flat as a practical sharpening point in its blast-hole guidance. Epiroc also emphasizes regular button-bit grinding to maintain penetration and tool economy. Always use the specific bit manufacturer’s service limits when they are available; do not substitute a generic wear threshold for a controlled maintenance specification.

6. A practical setup workflow for a new hard-abrasive bench

1. Characterize the ground: record rock type, hardness evidence if available, abrasivity/wear history, fracture condition and water.
2. Confirm the drilling system: exact hammer model, shank, bit diameter, pipe OD/bore, compressor pressure-flow capability and altitude.
3. Start from OEM operating guidance: do not invent pressure or airflow settings from nominal hammer size alone.
4. Establish a short baseline: record penetration rate, RPM, pressure, cuttings return, vibration and initial bit condition.
5. Balance rotation and penetration: if penetration drops, re-check penetration per revolution rather than maintaining an unnecessarily high RPM.
6. Inspect cuttings evacuation: poor return or excessive dust/recutting is a system problem to diagnose, not merely a reason to add pressure blindly.
7. Inspect the bit frequently: track carbide flats, gauge loss, face/skirt erosion and unusual chipping by drilled metres.
8. Change one variable at a time where practical: record the result so the site develops its own formation-specific operating window.

Common mistakes in hard abrasive DTH drilling

• Keeping the same RPM after penetration falls. This increases rotations per drilled metre and can accelerate wear.
• Using pressure as the only performance lever. Hammer energy, airflow, feed, rotation and bit condition interact.
• Ignoring cuttings return. Re-crushing consumes energy and increases abrasive contact.
• Running buttons too flat before maintenance. Late sharpening raises stress and makes recovery more difficult.
• Buying by nominal bit diameter alone. Shank geometry, face, buttons, flushing and the exact hammer interface must also match.
• Comparing bit life without normalizing the rock and operating parameters. Metres per bit are only meaningful when formation and drilling conditions are comparable.

What to include in an RFQ for hard abrasive rock

Send enough information for the supplier to distinguish a genuine hard-abrasive application from a generic DTH request:

• Rig make/model and rotary-head connection where relevant
• Exact DTH hammer make/model and bit-shank drawing
• Target hole diameter, depth and inclination
• Rock type plus hardness/abrasivity information or representative photos/logs
• Whether the formation is competent, fractured, wet or variable
• Current bit face/button configuration and the main wear pattern
• Typical penetration rate and rotation speed
• Compressor pressure-flow data at intended operating pressure and altitude
• Current sharpening/replacement interval and target performance
• Required inspection, packaging, documentation and commercial terms

For current PerfoMax options, review the DTH Hammer Selection Guide, DTH Drill Bit Selection, or the broader DTH Tools collection. Final compatibility and ordered configuration should be controlled by the quotation and approved drawing/data sheet.

Frequently asked questions

Should DTH rotation speed be lower in hard abrasive rock?

Often it needs to be re-evaluated because penetration may fall while an unchanged RPM increases rotations per metre. Do not reduce RPM blindly. Compare rotation with actual penetration and follow the hammer/bit manufacturer’s operating range. Mincon cites about 15–20 mm penetration per revolution as a useful blast-hole benchmark, not a universal setting.

Does more air pressure always improve drilling in hard rock?

No. The hammer needs the pressure and airflow specified for its design, but simply exceeding the required operating condition is not a substitute for correct rotation, feed, bit condition and cuttings transport. Confirm delivered compressor performance at operating pressure and altitude.

Why do DTH gauge buttons wear quickly in abrasive formations?

Gauge buttons maintain the hole diameter and contact the borehole perimeter. High abrasivity, excessive sliding, deviation, recutting and poor hole-wall conditions can all increase gauge wear. Trend gauge diameter and the wear pattern instead of looking only at total metres drilled.

Which DTH bit face is best for hard abrasive rock?

There is no universal answer. OEM catalogues commonly use stronger gauge structures, spherical/dome carbide and wear-oriented face designs for hard abrasive conditions, but the correct choice also depends on the hammer shank, hole diameter, flushing and the formation. Confirm the final configuration with the supplier.

What is the most useful field metric for controlling bit wear?

No single metric is sufficient. A practical minimum is to trend penetration rate, RPM, drilled metres, carbide/gauge wear and sharpening interval together. This makes it easier to distinguish normal formation wear from an operating-parameter problem.

Need a DTH configuration for hard abrasive rock?

Send PerfoMax your hammer/shank information, hole diameter and depth, rock condition, current wear pattern and compressor data. We can use those inputs to prepare a configuration for technical confirmation before quotation. Request a quote / technical review.
