Spherical vs Ballistic DTH Buttons: How to Choose the Right Carbide Shape

Short answer: choose DTH button shape by the rock and the failure mode you are trying to control, not by appearance alone. Spherical (dome) buttons are the conservative choice for hard, abrasive and demanding formations because their rounded geometry prioritizes toughness and wear life. Ballistic buttons use a more aggressive pointed profile and are better suited to less-abrasive formations where penetration speed is the priority. Semi-ballistic buttons sit between the two, trading some of the dome button's durability for a more aggressive cutting action.

For a purchase decision, button shape should be considered together with hammer shank, bit diameter, face profile, carbide grade, flushing layout, rock abrasiveness and drilling parameters. A ballistic button on the wrong formation can wear or fail before its penetration advantage pays back; a spherical button in an easy, non-abrasive formation may be durable but not the fastest option.

1. What Changes When the DTH Button Shape Changes?

The carbide buttons are the parts of a DTH bit that repeatedly contact and fracture the rock. Their geometry changes the contact area and how concentrated the impact is at the rock surface. A rounded button presents a broader, tougher working profile. A more pointed button concentrates contact into a smaller area and produces a more aggressive engagement.

That is why button shape is a performance trade-off rather than a simple ranking from “good” to “better.” Mincon's current DTH bit guidance describes dome buttons as a tough choice for hard, abrasive rock and deep-hole drilling; semi-ballistic buttons as a compromise that increases speed over a conventional dome while retaining more longevity than a fully ballistic profile; and ballistic buttons as a speed-oriented option for less-abrasive sedimentary formations, with explicit cautions for badly broken ground and extremely hard rock.

2. Spherical Buttons: When Durability Matters More Than Maximum Aggressiveness

Spherical buttons are often the safest baseline when the formation is hard, abrasive, fractured, variable, or not fully understood before the first order. The dome retains more carbide around the working end than a sharply pointed geometry, so the profile is inherently less aggressive but more tolerant of demanding contact.

Mincon calls the dome button a tough shape for hard, abrasive rock and deep-hole drilling and notes that it is suitable for nearly all rock-drilling applications. Epiroc also continues to offer spherical buttons across DTH and top-hammer ranges and lists spherical-profile products for hard-rock applications. These OEM ranges reinforce an important procurement point: spherical is not an “old” or low-performance geometry; it remains a core option because service life and predictable wear can be more valuable than peak penetration rate.

Start with spherical buttons when:

• rock is hard and highly abrasive;
• the formation is broken, jointed or variable;
• button chipping or carbide damage is already a field problem;
• long bit life and stable cost per meter matter more than maximum instantaneous penetration; or
• the buyer does not yet have enough field data to justify a more aggressive carbide profile.

3. Ballistic Buttons: When Penetration Speed Is the Priority

Ballistic buttons have a more pointed profile, so they engage the rock more aggressively. That can be useful in formations where the carbide can maintain its shape without excessive edge damage. Mincon positions ballistic buttons for less-abrasive sedimentary deposits where speed is important and specifically advises against using them in badly broken ground or extremely hard rock.

This means “ballistic is faster” is an incomplete purchasing rule. The correct question is whether the formation is suitable for the aggressive profile for enough meters to create a lower cost per drilled meter. If the tip chips, flattens or loses gauge prematurely, any early penetration advantage can disappear through bit changes, regrinding, downtime or unstable hole diameter.

Ballistic buttons deserve consideration when:

• the formation is competent and relatively non-abrasive;
• penetration rate is the main bottleneck;
• current spherical buttons show long life with substantial unused carbide at replacement;
• the drilling team can monitor wear during a controlled comparison; and
• the supplier can match the carbide profile to the exact DTH bit and hammer system.

4. Where Does Semi-Ballistic Fit?

Semi-ballistic—or parabolic, depending on the supplier's naming convention—sits between a dome and a fully ballistic button. It is useful when the operator wants more aggressive rock contact than a spherical profile but does not want to move all the way to a sharp ballistic geometry.

Mincon describes its semi-ballistic design as providing a speed increase over a conventional domed button while offering better longevity than its more-aggressive ballistic design. The same source cautions that semi-ballistic is less suited to broken ground. That makes it a practical trial option for competent medium-duty formations where the performance objective is a balance rather than an extreme.

Do not assume that “semi-ballistic” means identical geometry across every manufacturer. Ask for the actual carbide profile, bit drawing or OEM designation when comparing suppliers.

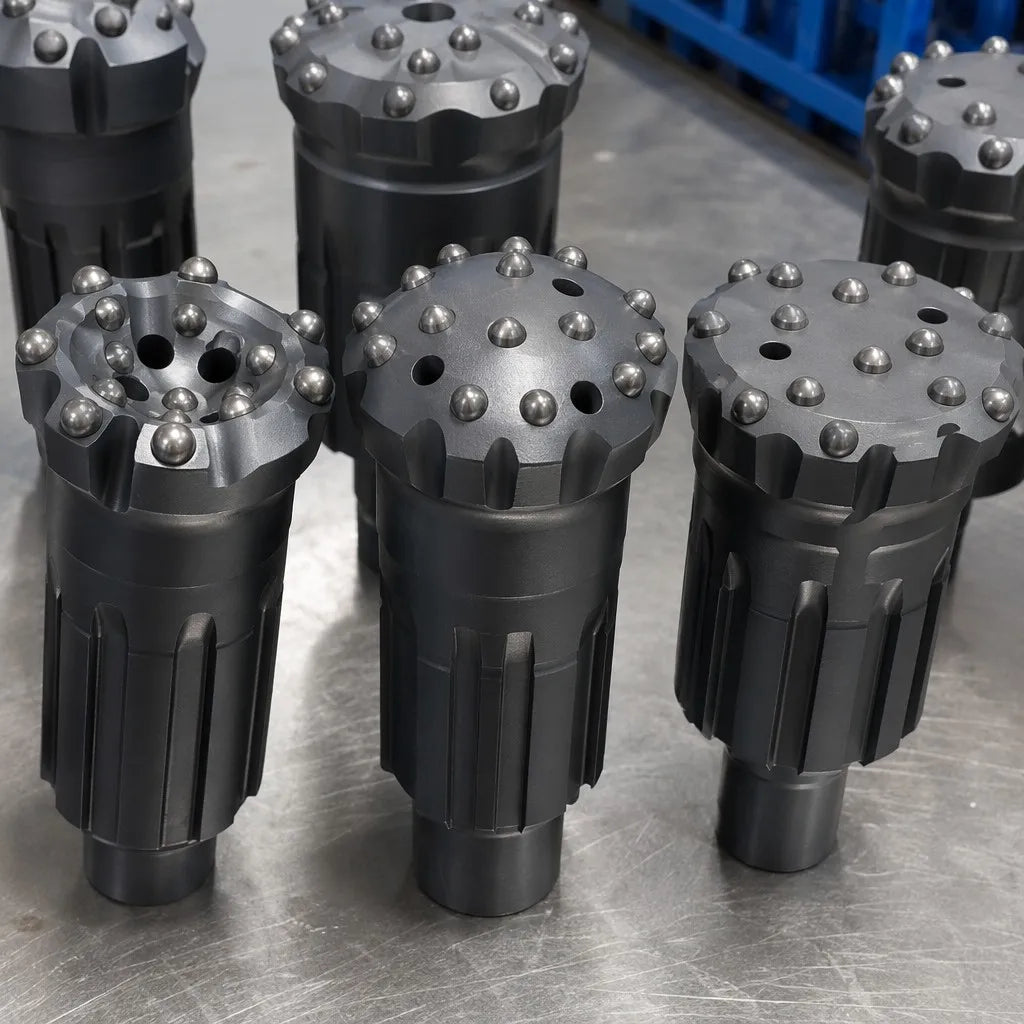

5. Button Shape and Bit Face Design Are Two Separate Decisions

Do not confuse button profile with bit face profile. Convex, concave and flat describe the overall geometry of the bit face. Spherical, semi-ballistic and ballistic describe the working geometry of the carbide inserts. They interact, but they are not interchangeable terms.

Boart Longyear's current DTH bit range illustrates this directly: its product tables list carbide profile and face profile as separate fields, with hemispherical or ballistic inserts available in different face configurations. PerfoMax likewise defines DTH bit selection by hammer shank, nominal diameter, face profile, button geometry, flushing arrangement and rock condition.

For a buyer, this prevents a common specification error. Writing only “115 mm convex DTH bit” does not fully define the cutting structure. Writing only “spherical button bit” does not define the face, shank or flushing system either.

6. Five Variables That Should Decide the Button Profile

7. A Practical Selection Workflow for Mines, Quarries and Drilling Contractors

1. Identify the hammer and shank first. Button shape cannot compensate for an incompatible bit shank. Record hammer make, model and shank standard.
2. Lock the required hole diameter. Include allowable diameter loss or final-hole tolerance if it affects blast design or casing.
3. Describe the formation in operational terms. Record hardness, abrasiveness, fracture pattern, water and any meaningful variation through the hole.
4. Review the current bit's wear. Photograph the face, gauge row and damaged buttons before discarding the bit.
5. Choose the performance objective. Decide whether the trial is intended to improve penetration, meters per bit, regrind interval, hole consistency or total cost per meter.
6. Change one major variable at a time. If possible, compare button geometry while keeping hammer, diameter, face family and operating conditions similar. This makes the field result easier to interpret.
7. Evaluate total drilling cost, not first-hour speed. Record penetration, meters drilled, button condition, gauge loss, regrinding or replacement events and downtime.

8. What Wear Patterns Can Tell You

Button wear is diagnostic, but it is not caused by button shape alone. Feed force, rotation, air pressure, flushing, bit face, carbide grade, rock variability and operator practice also matter. Use wear as a reason to investigate the system rather than as proof of a single cause.

9. Six Procurement Mistakes to Avoid

1. Ordering by diameter only. The hammer shank and retaining interface must match exactly.
2. Calling every rounded insert “spherical” without a drawing. Supplier naming can differ, especially around parabolic and semi-ballistic profiles.
3. Assuming ballistic is automatically the premium option. It is a formation-specific choice, not a quality grade.
4. Ignoring abrasiveness. Two rocks with similar apparent hardness can create very different carbide wear.
5. Changing face design, button shape and drilling parameters in the same trial. The result becomes difficult to diagnose.
6. Buying on penetration rate alone. The commercial result should include bit life, regrinding, downtime, gauge retention and total meters.

10. RFQ Checklist: What to Send Before Ordering DTH Bits

• hammer manufacturer and exact model;
• hammer shank standard or old-bit shank photos/drawing;
• target hole diameter and tolerance;
• hole depth and drilling application;
• rock hardness and abrasiveness;
• whether the formation is competent, fractured or highly variable;
• current bit face profile;
• current button geometry and observed wear pattern;
• working pressure and available air supply;
• water/foam injection if used;
• priority: penetration, bit life, hole quality or lowest total cost per meter;
• trial quantity, total quantity and destination.

PerfoMax supplies DTH drill bits selected by hammer shank, hole diameter and rock condition. The current selection scope includes spherical, ballistic and other button profiles subject to the formation and complete bit design. You can also review the DTH Hammer Selection Guide, browse the DTH Tools collection, or send operating details through the Request a Quote page.

FAQ

Are spherical DTH buttons better for hard rock?

They are a strong starting choice for hard and abrasive rock because the rounded dome prioritizes toughness and wear resistance. Mincon specifically recommends dome buttons for hard, abrasive rock and deep-hole drilling. Final selection still depends on the exact formation, bit design and drilling parameters.

Do ballistic buttons drill faster than spherical buttons?

They can provide more aggressive engagement in suitable formations, but the useful comparison is total performance over the bit's working life. Mincon positions ballistic buttons for less-abrasive sedimentary deposits where speed is important, while cautioning against extremely hard or badly broken ground.

What is a semi-ballistic DTH button?

It is an intermediate carbide geometry between a rounded dome and a fully aggressive ballistic profile. Mincon describes its semi-ballistic option as faster than a conventional dome while offering greater longevity than its ballistic design. Exact geometry and naming can vary by supplier.

Can a DTH bit use spherical and ballistic buttons together?

Yes, mixed cutting structures exist in the market, but the configuration must be engineered as a complete bit rather than improvised in the field. The supplier should define center and gauge button profiles together with face design, carbide grade and flushing.

Is button shape more important than DTH bit face design?

They solve different parts of the selection problem. Button geometry controls the carbide-rock contact profile; face geometry influences the overall bit-rock interface and flushing behavior. Treat both as separate specifications and match them together.

Technical References

• Mincon — DTH Drill Bits and Carbide Insert Selection
• Epiroc — DTH Drill Bits
• Boart Longyear — DTH Bits

Next Step: Match Carbide Geometry to Your Actual Formation

If you are replacing an existing DTH bit, do not send only the diameter. Send PerfoMax the hammer model, shank, required diameter, rock description and clear photos of the used bit face and button wear. Those details make it possible to decide whether the next trial should stay with spherical buttons, move toward semi-ballistic or ballistic geometry, or address another part of the drilling system first.
