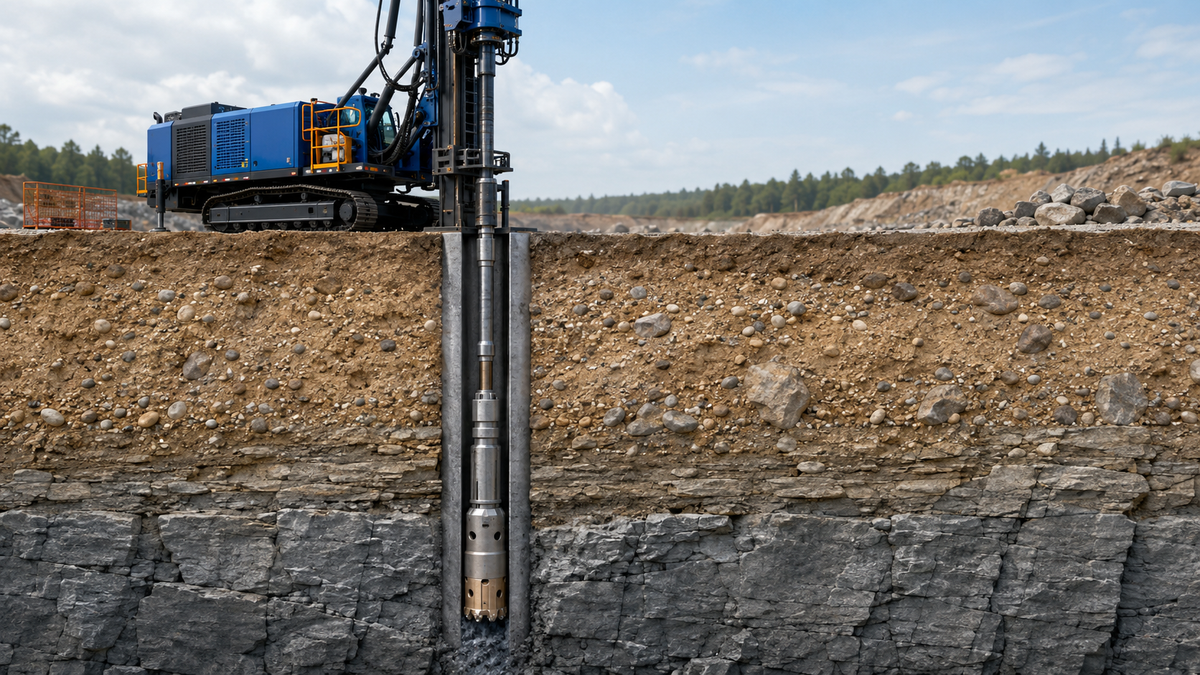

DTH Drilling Through Overburden: When Casing Is Required Before Bedrock

Quick answer: a conventional open-hole DTH setup is not automatically enough for loose overburden. Sand, gravel, cobbles, weathered seams, fill, and heavily broken ground may collapse into the bore, divert flushing air, bridge around the drill string, or leave an unreliable path for a later casing. When the upper formation cannot remain open long enough to drill, clean, and complete the hole safely, the project normally needs a planned ground-support method—often a casing-advancement system that drills and advances casing together—before the DTH assembly continues into competent bedrock.

This guide is for water-well, geothermal, foundation, quarry, mining, and specialist drilling buyers evaluating DTH drilling through overburden. It explains the decision boundary between open-hole drilling and casing-supported drilling. It does not provide a universal casing design: the exact system must be engineered around the ground profile, hole purpose, casing dimensions, rig, rotary head, hammer, compressor, flushing arrangement, and whether the casing stays in the ground or is recovered.

1. What “Overburden” Means for DTH Drilling

Overburden is the material above the competent rock interval that the project ultimately needs to drill. It can be thin and relatively stable, or it can include mixed layers of topsoil, fill, clay, silt, sand, gravel, cobbles, boulders, weathered rock, and highly fractured rock. Two sites with the same overburden depth can behave very differently.

The important question is not simply “How many metres of soil are above bedrock?” It is:

• Will the bore wall remain open without support?
• Can the drilling system return cuttings without packing or losing air into the formation?
• Can the drill string be rotated and retrieved without loose material bridging around it?
• Must casing be installed for the final well, pile, anchor, or project specification?
• Could uncontrolled compressed air disturb sensitive surrounding ground or structures?

DTH is a rotary-percussive rock-drilling method. The hammer operates near the bottom of the hole, while exhaust air powers flushing and cuttings transport. That is valuable in competent rock, but the hammer itself does not support an unstable bore wall.

2. Why Open-Hole DTH Can Fail in Loose Ground

In an open bore, the formation itself must provide the temporary wall. Loose granular material may fall inward as soon as the bit passes. Sticky or swelling material may squeeze or adhere around the string. Cobbles can rotate, wedge, or deflect the bit. A weathered layer can appear stable at first and then break down under air flow, vibration, or repeated tool movement.

These symptoms are not proof of one specific failure. They are evidence that bore stability and cuttings transport—not only hammer performance—must be reassessed.

3. When Is Casing Advancement the Better Boundary?

A casing-advancement system drills a bore slightly larger than the casing and advances the casing with the drilling process. The casing supports the hole as it is created. Epiroc describes casing advancers for shale, sand, crumbly ground, and overburden; TerraRoc and Robit likewise position DTH casing systems for formations where simultaneous drilling and casing reduce collapse and tool-loss risk.

Casing advancement should be evaluated early when one or more of the following conditions are expected:

• the overburden is loose, thick, mixed, or known to collapse;
• cobbles or boulders make a later casing installation unreliable;
• the project requires casing to reach bedrock or extend into a rock socket;
• an uncased pilot hole repeatedly collapses before completion;
• cuttings and loose material repeatedly pack around the drill string;
• the hole must remain open for grouting, pile installation, well completion, or instrumentation;
• the site is sensitive to uncontrolled air escaping into surrounding soil.

Do not wait for a stuck tool to become the “test” of whether casing was needed. Bore-support strategy is a planning decision based on the expected formation and project requirement.

4. Open-Hole DTH vs Casing-Supported DTH

This is a screening matrix, not an engineering approval. Geotechnical and drilling specialists must confirm the final method.

5. How the Transition to Bedrock Changes the Setup

Reaching “bedrock” is not enough by itself. The first rock encountered may be weathered, fractured, sloping, or separated by soft seams. The contractor must determine whether the casing can terminate at the contact, must seat into competent rock, or must continue to the project’s required depth.

The transition also affects tooling:

• Pilot and ring-bit geometry: the casing system determines the pilot, reamer or ring-bit arrangement and the hole cut for the casing OD.
• Hammer compatibility: the casing system must be approved for the exact DTH hammer size and bit interface; “4-inch hammer” alone is not a complete specification.
• Air and flushing: the compressor must support both hammer operation and reliable cuttings transport through the available annular path. Some systems deliberately control where exhaust air is directed.
• Casing shoe and casing string: OD, ID, wall, connections, shoe design, straightness, and whether the casing is permanent or recoverable are part of the system.
• Rock socket requirement: the finished depth below the casing shoe changes tool travel, cleaning, retrieval, and acceptance checks.

TerraRoc’s ODEX description is a useful example of the principle: a pilot bit and eccentric reamer open a hole larger than the casing so the casing can follow. Concentric systems use a centered pilot/ring arrangement. The choice is not safely reduced to “eccentric for one soil, concentric for another”; it depends on the exact ground, alignment requirement, casing plan, rig, recovery method, and supplier procedure.

6. A Seven-Step Planning Workflow

1. Define the finished hole. Record application, hole diameter, depth, inclination, tolerance, casing depth, rock socket, and whether casing remains or is recovered.
2. Describe the complete ground profile. Separate fill, clay, sand, gravel, cobbles, boulders, weathered rock, fractured rock, groundwater, and competent bedrock. Do not summarize all layers as “soft ground.”
3. Decide what must stay open. Identify which interval needs immediate support and for how long.
4. Select the drilling method before individual components. Compare open-hole DTH, casing advancement, mud/rotary options, and other specialist methods with the contractor and geotechnical team.
5. Lock the casing-system architecture. Confirm eccentric/concentric or other approved design, casing dimensions, shoe/ring arrangement, permanent vs retrievable casing, and bedrock termination procedure.
6. Match the DTH power and interface chain. Verify rig/rotary head, hammer, top sub, drill pipe, pilot/bit interface, pressure, airflow, hose/manifold losses, and planned depth.
7. Define acceptance and contingency checks. Establish what happens if returns fall, the casing stops advancing, the bit encounters boulders, bedrock is deeper than expected, or the string cannot be retrieved normally.

7. Do Not Confuse Bore Stability with Hammer Performance

A hammer can be mechanically healthy while the hole is failing around it. Conversely, a weak or irregular hammer can also reduce cleaning and make a marginal bore worse. Diagnose the system in layers:

1. Confirm compressor pressure and flow at the required operating condition.
2. Check hoses, manifolds, lubricator, leakage, and restrictions.
3. Verify hammer/bit compatibility and accessible tool condition.
4. Observe return air, cuttings volume, particle size, moisture, and any fall-back.
5. Compare torque, pullback, penetration, and vibration with the previous stable interval.
6. Relate the change to the logged formation depth.

If cuttings return collapses while torque and pullback rise, continuing to advance can convert a cleaning problem into a buried string. Follow the rig, hammer, and casing-system manufacturer’s stop/recovery procedure; do not improvise reverse rotation or hammering directions where the tool design does not permit them.

8. Common Procurement Mistakes

9. RFQ Checklist for DTH Overburden Drilling

Send the following information before requesting a hammer, bit, pipe, or casing-system match:

• project type: water well, geothermal, foundation, pile, anchor, exploration, quarry, or other;
• target hole diameter, total depth, inclination, and straightness/tolerance requirement;
• ground log by depth, including overburden thickness and bedrock confidence;
• sand, gravel, clay, cobbles, boulders, weathered rock, fractures, voids, and groundwater observations;
• required casing OD, ID, wall, connection, material/specification, and final depth;
• whether casing is permanent, sacrificial, or recoverable;
• required rock socket or drilling depth below the casing shoe;
• rig make/model, rotary-head connection, torque, pullback, feed, and available rotation range;
• DTH hammer brand/model, pressure class, top-sub thread, and bit-shank/interface drawing;
• drill-pipe OD, bore/wall, length, thread, and total planned string length;
• compressor model, working pressure, free-air delivery, altitude, temperature, and hose/manifold arrangement;
• flushing restrictions or sensitive-ground requirements;
• quantity, spare components, inspection documents, packing, destination, and required delivery date.

Clear photos of existing parts help with identification, but photos should not replace controlled dimensions and interface drawings.

Frequently Asked Questions

Can a conventional DTH hammer drill through sand and gravel?

It may penetrate some loose intervals, but penetration is not the same as creating a stable, clean, retrievable bore. If the hole collapses, cuttings cannot return, or casing cannot be installed reliably afterward, a casing-advancement or different drilling method should be evaluated.

Does every overburden interval require casing advancement?

No. Short, stable, predictable material may sometimes be drilled open under an approved site procedure. The need for casing depends on ground stability, completion requirement, hole geometry, flushing behavior, retrieval risk, and the consequences of collapse.

Should casing stop exactly at the first bedrock contact?

Not automatically. The first hard contact can be a boulder, hard lens, or weathered rock. The project specification and ground evidence must define whether the casing seats at competent bedrock or continues into a required rock socket.

Is an eccentric casing system always better than a concentric system?

No universal rule supports that conclusion. Each architecture has specific pilot/ring behavior, casing sizes, recovery procedures, alignment characteristics, and flushing controls. Selection must follow the ground profile, finished-hole requirement, rig, hammer, casing, and supplier procedure.

What is the minimum information needed to match DTH tools after casing is selected?

At minimum, provide the exact casing-system design, hammer model and shank/interface, pilot or bit reference, casing OD/ID, rock-hole diameter, compressor pressure and airflow, drill-pipe connection, bedrock drilling depth, and the supplier-approved component drawing.
