Direct answer: the Drilling Rate Index (DRI) is a laboratory index used to describe the relative drillability of intact rock. In the established NTNU/SINTEF method, it combines two different responses: the rock’s resistance to repeated impact crushing, measured as the Brittleness Value S20, and its resistance to surface indentation by a miniature drill, measured as the Sievers’ J-value (SJ).
A higher DRI generally indicates rock that is easier to penetrate under the reference test relationship. It is not a field penetration rate, not a bit-wear index, and not a complete description of a fractured rock mass. A buyer should use DRI to improve the rock description supplied with an RFQ, then combine it with abrasivity, strength, structure, hole geometry, drilling method, equipment, and operating conditions.
Buyer rule: never translate one DRI number directly into metres per hour or guaranteed bit life. First confirm the test method, sample domain, raw SJ and S20 results, and the field conditions the number is meant to represent.
Drilling Rate Index Terms in One Table
| Term | What it measures | How buyers should read it | What it does not prove |
|---|---|---|---|
| DRI | A combined laboratory index based on S20 and SJ. | A relative intact-rock drillability indicator under the referenced method. | Actual field ROP, bit life, hole straightness, or complete rock-mass behavior. |
| S20 | Resistance of prepared rock aggregate to repeated impact crushing. | How readily the test fraction breaks and produces finer material under controlled impacts. | Surface indentation resistance, in-situ jointing, or tool wear by itself. |
| SJ | Penetration of a miniature drill into a prepared rock surface under controlled conditions. | A measure related to surface hardness or resistance to indentation. | Percussive field performance by itself. |
| ROP | Actual advance rate while drilling, reported as length per unit time. | A field performance result for a stated rig, tool, hole, geology, and operating window. | An intrinsic rock property independent of equipment and conditions. |
| BWI or another abrasivity result | A separate indication of expected tool-wear tendency under its own test method. | Companion evidence when bit wear and cost per metre matter. | Drillability or penetration rate by itself. |
How S20 and Sievers’ J Build the DRI
The two input tests represent different parts of the rock-breaking problem. They should be reported separately because similar DRI results can arise from different combinations of impact-crushing response and indentation resistance.
Brittleness Value S20
In the traditional NTNU/SINTEF procedure, a prepared aggregate fraction is subjected to a specified sequence of impacts in a standard mortar. The S20 value is based on the percentage of material passing the specified sieve after the impact sequence. It is therefore a controlled comparative result, not a general-language claim that a rock is simply “brittle.” Sample preparation, particle-size fraction, mass or equivalent volume, number of impacts, sieve, and repetitions belong to the method and must remain controlled.
Sievers’ J-value

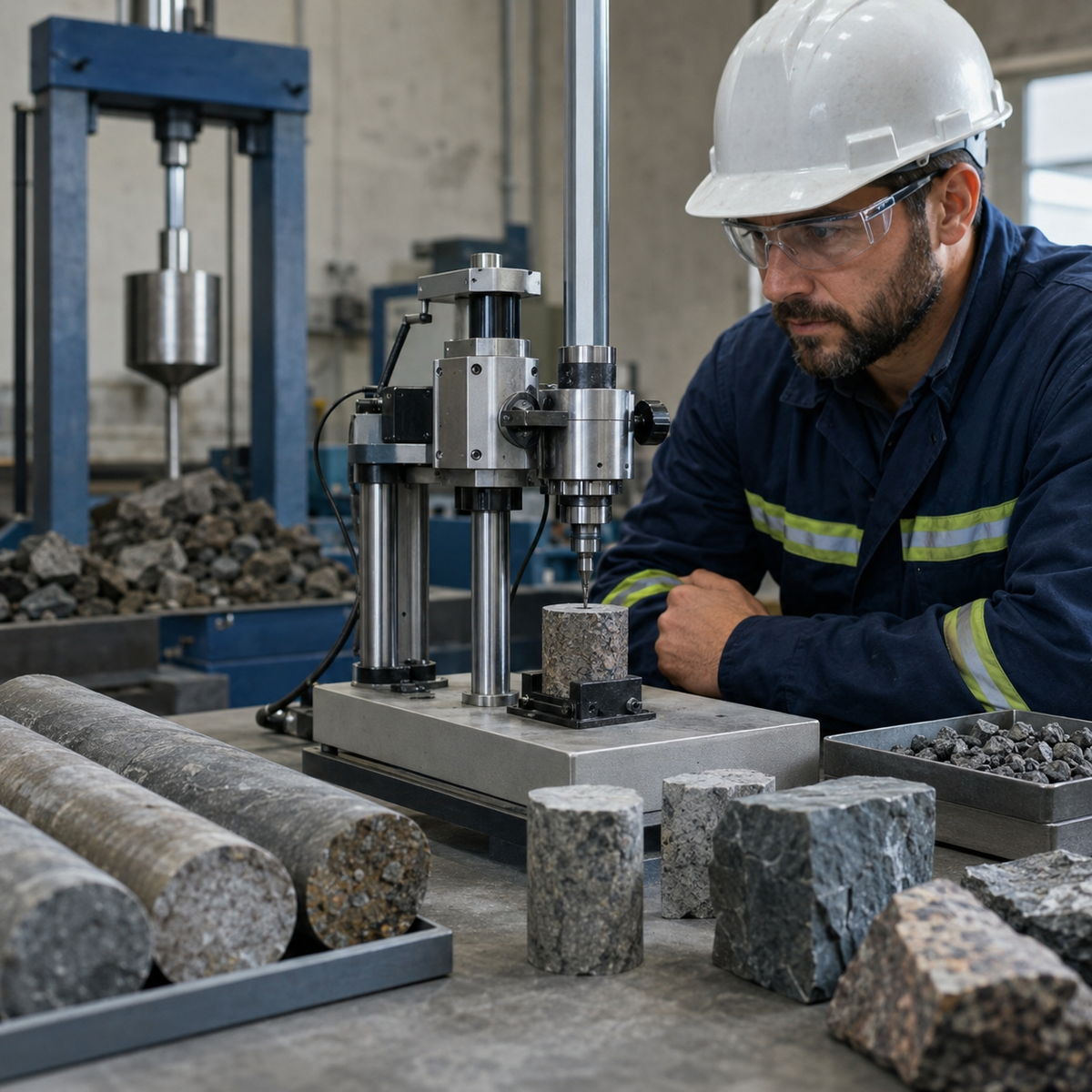

The Sievers’ J miniature drill test measures the depth made by a small carbide drill in a prepared rock surface after the prescribed number of revolutions and loading conditions. The established method reports the penetration in tenths of a millimetre and averages several test holes. Surface preparation and drilling orientation matter. Where foliation or another directional fabric exists, results can differ by orientation.
DRI is then assessed from the relationship between S20 and SJ. It is not obtained by casually adding the two numbers. The issuing laboratory should identify the procedure and assessment chart or method it used.
What Does a High or Low DRI Mean?
Within the same recognized method, sample condition, and laboratory practice, a higher DRI generally indicates greater relative drillability. A lower DRI indicates greater resistance to the combined reference actions. This direction is useful for comparing representative rock samples or geological domains.
The number should still be read with its classification from the issuing laboratory. Do not copy generic class boundaries from an unrelated report without confirming the method and edition. More importantly, do not treat the class as a tool-selection instruction. A “high” drillability result does not identify the required thread, rod, hammer, bit diameter, button geometry, compressor, or operating parameters.
DRI also does not mean “soft rock” in every engineering sense. Rock strength, surface hardness, brittleness, mineralogy, abrasiveness, fabric, and discontinuities describe different behaviors. Two rocks with similar strength can respond differently to indentation and impact; two samples with similar DRI can present different wear risks.
DRI vs Field Rate of Penetration
DRI is a laboratory index. Rate of penetration (ROP) is the actual speed at which the hole advances. Field ROP depends on far more than intact-rock response: drilling method, hammer or drifter condition, bit type and diameter, percussion power, rotation, feed, flushing, available pressure and flow, hole depth and direction, operator practice, and the condition of the complete drill string.
Rock-mass structure can be equally important. Joints, bedding, faults, weathered seams, voids, mixed bands, and changing confinement can alter penetration, hole deviation, vibration, jamming, and flushing. A small laboratory sample may not represent those features or their frequency along the hole.
| Question | DRI can help with | Field evidence still needed |
|---|---|---|
| Which rock domain is relatively easier to penetrate? | Comparison of representative intact samples tested by the same method. | Geological logging, domain boundaries, structure, weathering, and field trials. |
| How many metres per hour will a rig drill? | An input to a calibrated prediction model. | Rig and hammer data, bit, hole, operating window, flushing, and site-specific calibration. |
| Which domain will wear bits fastest? | DRI alone is insufficient. | Abrasivity or mineralogical evidence, quartz content where relevant, tool design, and wear records. |
| Will the hole remain straight? | DRI alone is insufficient. | Rock structure, collaring, alignment, rod stiffness, bit-to-rod relationship, feed, and survey data. |
DRI vs UCS, Abrasivity, and Rock-Mass Quality
Uniaxial compressive strength (UCS) measures the peak axial stress of an intact specimen under a defined compression test. Studies have found relationships between DRI and strength properties, but the equations vary with rock group and dataset. A UCS-to-DRI conversion from one project should not be presented as a measured DRI for another.
Abrasivity is a different question. Rock hardness and abrasivity are not interchangeable, and DRI is not a direct bit-wear measurement. SINTEF lists DRI and Bit Wear Index as separate drillability indices because penetration tendency and wear tendency require different evidence. Quartz-rich or otherwise abrasive rock may still be comparatively drillable while causing high wear.
Rock-mass classifications and discontinuity measures also answer different questions. DRI is based on prepared rock samples. It does not encode joint spacing, orientation, persistence, aperture, infill, water, or block size. These features can dominate hole behavior even when intact-rock DRI is well established.
What a Useful DRI Report Should Contain
A single number in a geotechnical summary is not enough for supplier discussion. Ask for the information needed to judge representativeness and compare results correctly.
- Laboratory name and the referenced NTNU/SINTEF or other stated test procedure
- Procedure revision, deviations, and any nonstandard sample preparation
- Project, borehole or face location, depth interval, geological unit, and sample ID
- Rock description, weathering state, moisture or conditioning state, and visible fabric
- Sampling direction and test orientation relative to foliation, bedding, or anisotropy where relevant
- Individual and average SJ results, not only the final DRI
- Individual or repeated S20 results and the reported average
- Final DRI value, laboratory classification, and any uncertainty or repeatability statement supplied
- Date, responsible laboratory approval, and traceability to the retained sample or core box
If several geological domains exist, request separate representative results. Averaging unlike domains into one convenient DRI can hide the hard band, abrasive interval, or fractured zone that controls actual drilling performance.
How Buyers Should Use DRI Before an RFQ
- Confirm the method. Determine whether the reported value is a measured DRI from the recognized test relationship or an estimate derived from UCS, mineralogy, or another model.
- Map the sample to the job. Link each result to location, depth, rock unit, weathering, and orientation. Identify which domains are frequent and which create the highest operational risk.
- Add the missing rock data. Include UCS or other strength evidence, abrasivity or mineralogy, quartz content where relevant, jointing, water, weathering, and any mixed-face condition.
- Define the drilling task. State hole diameter, depth, direction, straightness requirement, production target, bench or underground constraints, and flushing availability.
- Describe the existing system. Provide rig, rock drill, drifter, or DTH hammer model; current bit and drill-string configuration; available pressure and flow; and known interface details.
- Share field evidence. Attach ROP by domain, bit-life and wear records, failure photos, flushing problems, and representative used tools where available.
- Ask a bounded question. Request a compatible product and operating recommendation for the stated system and conditions, not a universal promise based only on DRI.
Common DRI Interpretation Mistakes
- Treating DRI as metres per hour. It is a relative laboratory index; field ROP requires a site- and system-specific relationship.
- Reporting only the combined number. Raw SJ and S20 results reveal how the combined value was formed and support better comparison.
- Using UCS as a universal substitute. Correlation can be useful for preliminary estimation, but it is not a measured DRI and may be rock-family dependent.
- Assuming easy drilling means low wear. Penetration tendency and abrasivity are separate purchasing risks.
- Ignoring sample orientation and weathering. Anisotropy and altered rock can change laboratory response and field behavior.
- Using one sample for a variable site. Mixed geology requires domain-based evidence, not a site-wide average without context.
- Selecting a bit from DRI alone. Method, hole diameter, drilling system, interfaces, flushing, abrasivity, and field constraints still control the decision.
Frequently Asked Questions
Is a higher Drilling Rate Index easier or harder to drill?
Under the same recognized test method, a higher DRI generally indicates higher relative intact-rock drillability. Use the issuing laboratory’s classification and do not convert the number directly to field ROP without calibration.
Is DRI the same as rate of penetration?
No. DRI is a laboratory index derived from controlled rock tests. ROP is actual drilling advance per unit time for a specific rig, tool, hole, operating window, and geology.
Can DRI be calculated from UCS?
Research models can estimate DRI from UCS and other strength properties for particular datasets, but the relationship is not universal. Label a predicted value as an estimate and preserve the model, rock population, and uncertainty.
Does DRI predict drill-bit wear?
Not by itself. Bit wear depends strongly on abrasivity, mineralogy, tool material and design, operating conditions, and flushing. Request separate abrasivity or wear evidence when cost per metre is important.
What should I send a drilling-tool supplier with a DRI report?
Send the report and sample locations together with rock type, UCS, abrasivity or mineralogy, jointing and water conditions, hole diameter and depth, drilling direction, existing rig or hammer, drill-string interfaces, compressor or hydraulic capacity, and field ROP and wear records.
Technical Basis
- SINTEF Engineering Geology Laboratory — drillability testing and DRI™, BWI™, CLI™ services
- SINTEF/NTNU — Trademarking the drillability test indices
- Yenice (2019) — relationships between DRI and rock strength properties
- Sustainability (2024) — Sievers’ J testing and DRI interpretation
