Rock Hardness vs Abrasivity in Drilling: What Each Means for Penetration and Bit Wear

Direct answer: rock hardness/strength and rock abrasivity are related to drilling performance, but they are not the same property. Strong or hard rock mainly changes how much energy is needed to fracture, indent, or remove material. Abrasive rock mainly changes how quickly tool surfaces, carbide buttons, and bit bodies wear during contact with the formation and cuttings. A formation can therefore be difficult to penetrate without being the most abrasive, or it can drill at an acceptable rate while consuming tools quickly.

For mines, quarries, contractors, and distributors, the practical lesson is simple: do not use one number—such as UCS, Mohs hardness, or a rock name—to predict both penetration rate and bit life. Treat strength/hardness, abrasivity, and drillability as separate inputs, then confirm them with controlled field data.

1. Four Terms Buyers Commonly Mix Up

This distinction is reflected in the NTNU/SINTEF engineering-geology test system, which treats Drilling Rate Index (DRI), Bit Wear Index (BWI) and Cutter Life Index (CLI) as separate drillability-related measures rather than reducing rock behavior to one universal hardness value.

2. Why High UCS Does Not Automatically Mean High Abrasivity

UCS measures compressive strength of an intact specimen under a specified test procedure. It is useful for understanding one part of the rock-breaking problem, but it does not directly measure how fast a drill tool will wear. Wear also depends on mineral composition, grain properties, texture, bonding, fracture behavior, the tool material, the contact conditions and the movement of cuttings around the bit.

That is why two formations with similar strength can produce very different tool-consumption patterns. Likewise, a formation with moderate strength can still be expensive to drill if abrasive particles continuously attack carbide and steel surfaces.

The safest buyer conclusion is therefore conditional: strength data helps explain resistance to breakage; abrasivity data helps explain wear potential; neither alone predicts total drilling cost.

3. What the Cerchar Abrasivity Index Actually Measures

The Cerchar Abrasivity Index (CAI) is a standardized laboratory indicator of rock abrasiveness. Under ASTM D7625, a steel stylus of controlled hardness is scratched across a rock surface over a defined 10 mm distance, and the resulting stylus wear is used to calculate the index.

Three details matter for buyers:

• CAI is an abrasivity test, not a UCS or “rock hardness” test.
• The test condition matters. ASTM specifically controls stylus hardness because stylus hardness affects the measured wear.
• CAI is an index, not a guaranteed bit-life number. Field life still depends on tool design, carbide grade, diameter, flushing, drilling parameters, hole condition and the actual rock mass.

ASTM also describes abrasiveness as a behavioral characteristic rather than a single fundamental rock property. That is an important boundary: a laboratory abrasivity result is evidence for tool-wear risk, but it should not be converted mechanically into a universal “meters per bit” promise.

4. Four Practical Rock-Behavior Patterns

These are directional field patterns, not universal classifications. Real formations are heterogeneous, and the same rock type can behave differently as mineralogy, weathering, fracture density and drilling conditions change.

5. What Bit Wear Can—and Cannot—Tell You

Worn tools are valuable evidence when they are documented consistently. A smooth loss of carbide height, gauge reduction or body erosion can support an abrasivity diagnosis. But a broken button, cracked steel or sudden loss of penetration does not automatically prove “abrasive rock.” Impact overload, incorrect feed or rotation, poor flushing, misalignment, delayed regrinding, incompatible components and other operating problems can create similar symptoms.

When comparing formations or suppliers, record at least:

• meters drilled per bit before regrinding or retirement;
• penetration rate under comparable drilling conditions;
• bit diameter and design;
• button/gauge/body wear photos at consistent intervals;
• breakage, button loss or abnormal failure separately from normal abrasive wear;
• air or water flushing condition;
• rig, hammer/rock drill, thread or shank system and operating parameters.

6. How Hardness and Abrasivity Change Tool Decisions

Neither “hard rock” nor “abrasive rock” is enough information to select a drill bit by itself. Current rock-tool systems use different combinations of carbide hardness, toughness, strength and wear resistance because the best balance changes with the application. Sandvik, for example, explicitly separates these material properties in its rock-tool carbide families and describes wear-resistant grades for hard or abrasive conditions.

In practice:

• When resistance to breakage is the main problem, focus on the complete energy-transfer system, bit condition and operating parameters rather than assuming faster wear is the root cause.
• When abrasive wear is the main problem, tool material/design, gauge protection, flushing, inspection and regrinding intervals become more important.
• When both are severe, a controlled field trial is more useful than choosing from a generic hardness chart.

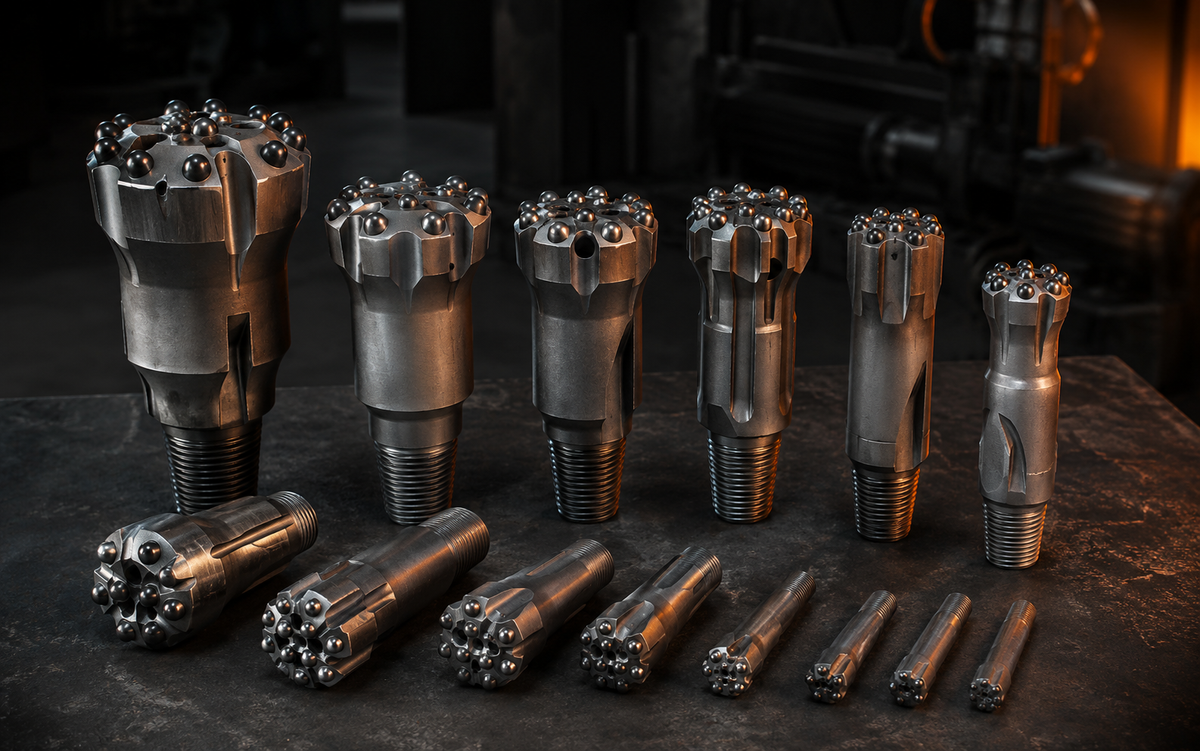

PerfoMax supplies multiple rock-drilling bit families, including tapered, threaded top-hammer and DTH configurations. The final bit specification should still be matched to the existing drill string, hole diameter, machine and formation rather than selected from rock hardness alone.

7. A 7-Step Workflow to Separate a Penetration Problem from a Wear Problem

1. Describe the formation. Record rock type, weathering, visible mineralogy, fractures and changes across the bench or hole.
2. Collect strength data if available. UCS is useful, but keep it separate from abrasivity evidence.
3. Collect abrasivity evidence. CAI, BWI or other documented test results are more relevant to wear potential than UCS alone.
4. Measure the current drilling result. Record penetration rate, meters per bit, regrinding interval and failure mode.
5. Inspect worn tools. Separate normal abrasive wear from breakage, chipping, button loss or thread/system failures.
6. Run a controlled comparison. Keep rig, hole diameter, drilling method, key settings and formation as comparable as possible when testing another tool.
7. Compare cost per meter. Unit price is only one variable. Include useful life, penetration, regrinding, change time and downtime. For the calculation framework, see the rock drilling tool cost-per-meter guide.

8. What to Send in an RFQ for Hard or Abrasive Rock

• rock type and application: quarry, mine, construction, tunneling or water well;
• UCS or other strength data, if available;
• CAI, BWI, mineralogy or other abrasivity information, if available;
• hole diameter, typical depth and drilling direction;
• drilling method: DTH, top hammer or pneumatic/tapered drilling;
• rig, hammer or rock-drill model;
• current thread, shank, taper and bit connection;
• current bit design and diameter;
• typical penetration rate and meters drilled per bit;
• photos of new and worn bits, including gauge and button condition;
• flushing medium and available air/water condition;
• normal wear versus abnormal failure symptoms;
• required quantity, destination and any inspection/documentation requirements.

If laboratory data is unavailable, consistent field records and clear worn-tool photos are still far more useful than a description such as “very hard granite.”

9. Common Mistakes When Interpreting Rock Conditions

• Calling every slow-drilling formation “abrasive.” Slow penetration and high wear are different problems.
• Assuming high UCS guarantees high bit wear. UCS does not directly measure abrasivity.
• Choosing a bit from rock name or Mohs hardness alone. Mineralogy, texture, drill system and field behavior matter.
• Comparing suppliers only by unit price. The lower-cost bit is the one that lowers controlled cost per meter, not necessarily purchase price.
• Changing several variables in one field trial. If the bit, diameter, settings and rock zone all change at once, the result is difficult to interpret.

FAQ

Is harder rock always more abrasive?

No. Hardness/strength and abrasivity describe different aspects of rock behavior. They can be correlated in some formations, but there is no universal one-to-one rule.

Does high UCS mean high drill-bit wear?

Not by itself. UCS measures compressive strength. Tool wear also depends on abrasivity, mineralogy, texture, tool material and drilling conditions.

What is the Cerchar Abrasivity Index?

CAI is a laboratory abrasivity index. ASTM D7625 determines it from wear produced on a controlled steel stylus during a defined scratch test on rock.

Is quartz content enough to predict bit life?

No. Mineral composition can be useful evidence, but bit life also depends on grain size and texture, rock mass condition, tool design, carbide/steel properties, flushing and operating parameters. Use mineralogy with abrasivity tests and field data rather than as a single predictor.

What should I do if I have no laboratory rock data?

Start with a repeatable field baseline: rock description, hole diameter/depth, machine and tool system, penetration rate, meters per bit, regrinding interval, flushing condition and clear photos of wear. That gives a supplier enough evidence to ask better questions and propose a controlled trial.

PerfoMax Support for Rock-Condition Matching

PerfoMax supplies drill bits and DTH tools for mining, quarrying, construction and drilling applications. For a new formation or a recurring wear problem, send your rock data, current tooling, drilling parameters and worn-tool photos for an RFQ review.

Technical Sources

• ASTM D7625-22 — Laboratory Determination of Abrasiveness of Rock Using the CERCHAR Abrasiveness Index Method
• NTNU Engineering Geology Laboratory — Drillability and abrasivity testing
• SINTEF Engineering Geology Laboratory — DRI, BWI and CLI testing
• Sandvik Rock Tools — carbide properties for drilling applications
