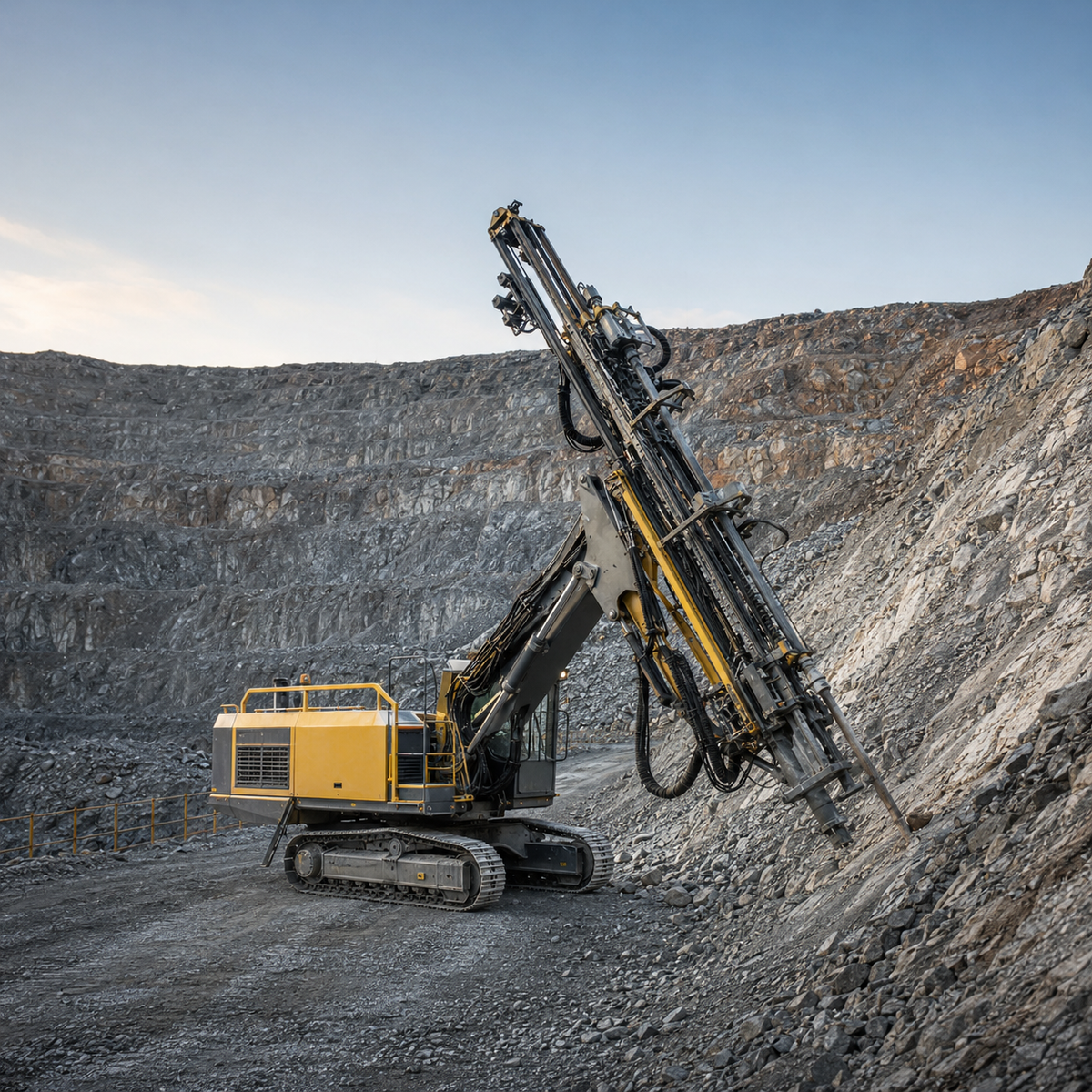

Top-hammer drilling on steep slopes succeeds only when the drill rig, feed beam, collar point, and intended hole line can all be controlled as one setup. Before drilling, the contractor must confirm ground bearing and edge conditions, the rig maker’s permitted drilling and tramming inclinations, track contact, feed support, access for rod handling, and a safe escape route. If any of those conditions cannot be maintained, the answer is not “more feed force”; the bench or drilling method must be changed.
The slope itself is only one variable. A rig may be standing on a prepared pad while its feed drills into an inclined face, or the entire machine may be working on sloping ground. Those situations create different stability, alignment, and hole-cleaning problems. This guide focuses on surface top-hammer bench drilling for quarry, road-cut, and mine work. It does not replace the rig manufacturer’s operating manual, the site geotechnical assessment, the blast design, or local safety rules.
Why steep-slope top-hammer drilling is difficult
On level ground, operators can usually separate machine positioning from hole alignment. On a slope, they interact. Moving the boom or feed changes the rig’s load distribution; an uneven track contact can change feed orientation; and a poor collar can send a shallow alignment error toward the toe of the bench. The operator also has less room to correct a bad start without approaching an edge or unstable face.
| Condition | What changes | Primary control |
|---|---|---|
| Rig standing on sloping ground | Stability margin and track loading | Use only the model-specific permitted inclination and approved stabilization method |
| Feed drilling into an inclined face | Collar contact and bit-skating risk | Square the feed to the planned hole line and support the feed before percussion |
| Narrow or irregular bench | Setback, access, rod handling, and escape space | Prepare the work platform and edge protection before tracking in |
| Fractured or weathered collar rock | Collar breakout and early deviation | Clean to competent rock, collar gently, and reassess if the surface will not hold |
| Long inclined hole | Small angular errors create larger toe offsets | Verify collar location, initial angle, depth, and—where required—the borehole path |
Start with the work platform, not the drill controls
A steep-slope drilling plan should begin with the ground under and around the rig. Inspect the approach, bench width, edge, loose rock, drainage, cracks, soft fill, previous blast damage, and material that could move under track load. Heavy rain, freeze-thaw cycles, and newly exposed seams can change a platform that was acceptable on the previous shift.
Regulatory quarry guidance emphasizes examining the face and the ground at the top before drilling, including loose rock, cracking, shear planes, and other signs of instability. It also requires machinery and working faces to be inspected within the site’s competent-person system. The practical buyer lesson is simple: rig capability does not make poor ground acceptable.
Model limits are not interchangeable
Do not copy an inclination limit from another rig, even if both machines are crawler-mounted and use the same drilling method. Permitted angles can differ between tramming and drilling and between longitudinal, lateral, and extreme boom positions. Requirements for a winch, anchoring, feed support, or particular rig orientation are also model-specific. Use the current manual for the exact serial-number configuration and follow the site’s approved procedure.
- Confirm maximum drilling and tramming inclinations in every relevant direction.
- Check whether the stated limit assumes a winch or other approved assistance.
- Confirm the permitted boom and feed envelope at the intended machine attitude.
- Verify that all tracks remain fully supported; never bridge voids with loose rock.
- Keep safe separation from faces, drop-offs, overhead hazards, and blast remnants.
- Provide controlled access for fuel, servicing, drill steel, and emergency recovery.
Translate the blast design into a physical setup
For an inclined blast hole, the driller needs more than a collar mark. The setup information should include collar coordinates or field marks, hole azimuth, inclination, design depth, hole diameter, row identity, and any required check points. A movable stone or paint dot without a direction reference is not enough on irregular ground.
The hole line must also be understood relative to the face. Quarry guidance notes that inclined holes should follow a consistent direction so adjacent holes do not diverge or converge. A directional error can change burden at depth even when the collar spacing looks correct from above. That can affect fragmentation, toe, flyrock risk, and charge distribution.
A practical alignment sequence
- Confirm the design reference. Locate the collar and a second point, line, survey bearing, or onboard navigation reference that defines direction.
- Position the rig within its stable working envelope. Do not use boom reach to compensate for an unsafe track position.
- Set the feed to the planned azimuth and inclination. Check the actual feed, not only the cab or chassis attitude.
- Place the feed support. The support should contact competent ground without sliding, crushing the collar area, or forcing the feed off-line.
- Recheck after loading the support. Ground compression and machine movement can change the angle established before contact.
- Record the setup. Capture planned versus actual collar, angle, and depth according to the site QA procedure.
How to collar an inclined hole without building in deviation
Collaring is the short phase with the largest influence on the initial hole line. The bit is least confined at the surface, and an oblique or broken face can make it skate toward the low side. Start with the manufacturer’s collaring settings: typically controlled feed, rotation, flushing, and percussion rather than immediate full-power drilling. The exact values belong to the rock drill and rig manual, not a universal percentage.
Watch the interface, not only the control display. The bit should rotate concentrically, cut across the face, and establish a stable socket without side loading. Cuttings should leave the collar rather than packing beneath the bit. If the feed support moves, the bit skates, the collar lip breaks away, or the rod visibly bows, stop and reset.
When the collar surface is unsuitable
Loose blocks, soil-covered rock, severely weathered material, and open fractures can prevent a repeatable collar. Clearing to competent rock may be enough. In other cases the collar location, bench preparation, hole angle, casing or guide arrangement, or even drilling method must be reviewed by the responsible site team. Repeatedly forcing the same unstable collar wastes steel and hides a design problem.
Control hole direction while drilling
Once the collar is established, straightness depends on both the drill string and the rock mass. Top-hammer energy travels through the shank adapter, rods, couplings, and bit. Bent rods, worn threads, mismatched components, excessive clearance, poor support, or aggressive feed can increase bending and energy reflection. Bedding, foliation, joints, and alternating hard-soft bands can steer the bit even when the surface setup is accurate.
Use stable parameters and trend changes rather than chasing momentary penetration rate. A sudden rise in feed pressure, irregular rotation, poor flushing, vibration, or asymmetric bit wear can signal binding or changing ground. Increasing feed to maintain speed may worsen deviation or rod stress. Follow the rig and rock-drill instructions, reduce energy when needed, restore flushing, and inspect the string if behavior changes.
For a focused discussion of geology-driven steering, see Top Hammer Drilling in Foliated Rock: Hole Deviation, Collaring, and Survey Checks.
Keep the drill string commercially and mechanically consistent
Replacement rods must match the complete installed system. Thread designation alone does not define rod length, body section, flushing passage, end configuration, coupling outside diameter, or compatibility with the shank and bit. For example, a T45 male-male extension rod uses a separate compatible coupling, while an MF speed-rod configuration is different. Confirm the current string and the approved quotation drawing before mixing components.
PerfoMax lists active T45 extension drill rods in 3,050–4,880 mm inquiry lengths for compatible top-hammer bench and production strings. The final choice still requires the rig and rock-drill model, shank and bit threads, rod end type, body and flushing dimensions, hole diameter, depth, and rock condition.
Diagnostic table: what a steep-slope setup is telling you
| Observed symptom | Possible cause | Safe next check |
|---|---|---|
| Feed angle changes after support contact | Support sinking, sliding, or loading uneven ground | Stop, unload, inspect the pad and support point, then reset within the manual |
| Bit skates downhill at the collar | Oblique surface, loose collar rock, excessive starting energy, or misalignment | Stop and restore a competent, square starting condition |
| Rod bows near the feed | Excessive feed, poor support, incorrect alignment, or binding | Remove load and inspect setup and string; do not continue with visible bending |
| Cuttings accumulate at the low side | Poor collar discharge, blocked flushing, water, or geometry trapping cuttings | Check flushing path and collar clearance using approved controls |
| Angle differs between adjacent holes | Inconsistent reference, chassis attitude mistaken for feed angle, or setup movement | Re-survey the reference and verify the feed for every hole |
| Unexpected toe position or burden | Collar error, initial alignment error, or in-hole geological deviation | Survey representative holes and review the drilling record before charging |
| Threads loosen or show asymmetric wear | Mismatch, bent steel, side loading, poor lubrication, or unstable drilling parameters | Quarantine suspect components and verify the complete string specification |
Pre-start and shift checklist
- Approved drilling plan, collar references, azimuth, inclination, depth, and diameter available.
- Face, edge, platform, access route, drainage, and loose-ground inspection completed.
- Rig-specific drilling and tramming limits confirmed for the intended orientation.
- Required winch, anchoring, edge protection, exclusion zone, and communications in place.
- Tracks fully supported; no unapproved packing or voids beneath the undercarriage.
- Feed support, boom pins, guides, hoses, guards, dust controls, and emergency systems inspected.
- Rod straightness, threads, coupling condition, bit gauge, and flushing passages checked.
- Collar point and direction reference clearly marked and protected from traffic.
- Actual feed angle rechecked after support contact and before percussion.
- Method for recording depth, alignment, abnormal ground, and hole condition agreed.
What to include in an RFQ for steep-slope top-hammer tools
A useful RFQ lets the supplier evaluate the string as a system rather than guess from a thread name. Send:
- Rig and rock-drill make/model, shank adapter, and existing thread system.
- Current rod drawing or clear photos of both ends, coupling, body, and flushing hole.
- Male-male extension rod or MF speed rod requirement and the length basis used.
- Bit thread, diameter, face design if known, and target hole diameter.
- Hole inclination range, depth, bench or slope geometry, and typical rod changes per hole.
- Rock type, fractures, bedding or foliation, abrasiveness, water, and flushing medium.
- Observed failure mode: bending, thread wear, coupling wear, deviation, sticking, or poor flushing.
- Inspection, traceability, thread protection, packing, quantity, and delivery destination.
Frequently asked questions
Can any crawler drill rig work on a steep slope?
No. Crawler undercarriage alone does not define an acceptable slope. The exact rig manual specifies drilling and tramming limits, directional differences, extreme boom positions, and any winch or stabilization requirements. Ground bearing and edge conditions must also be acceptable.
Should the rig be leveled before setting the hole angle?
Follow the rig’s approved setup method. The important drilling reference is the actual feed and planned hole line, while the machine attitude must remain inside its stability envelope. Do not assume a chassis display substitutes for checking feed orientation.
Why does an inclined top-hammer hole drift from the design line?
Common contributors include collar location error, incorrect initial azimuth or inclination, bit skating, feed movement, bent or mismatched steel, excessive feed, worn guides, and geological steering from joints, bedding, or hard-soft contacts. Separate surface setup error from in-hole deviation before changing tools.
Does a larger rod automatically make the hole straighter?
No. String stiffness matters, but the rod must match the rock drill, shank, coupling, bit, hole diameter, flushing path, and energy level. An oversized or mismatched component can create new energy-transfer, clearance, or handling problems.
When should the drilled hole be surveyed?
Survey requirements come from the blast design, risk assessment, site procedure, and consequence of deviation. Use downhole measurement or another approved method when collar and depth records cannot demonstrate that the actual hole path meets the required burden, spacing, or final-wall control.
Plan the setup and the drill string together
Steep-slope drilling is not solved by one rod or one control setting. The safe and productive result comes from suitable ground preparation, a rig operated within its model-specific limits, accurate collar and feed alignment, controlled collaring, consistent hole records, and a fully compatible top-hammer string.
If you are preparing a replacement or project RFQ, send PerfoMax the rig and rock-drill model, current shank–rod–coupling–bit configuration, hole diameter and depth, planned inclinations, rock condition, and clear photos or drawings. That information supports a technically grounded quotation without guessing at compatibility.
