Tapered vs Threaded Top Hammer Drilling Tools: Compatibility & Selection

For quarry operators, contractors and distributors, the practical question is rarely “Which system is better?” The better question is: Which system is compatible with the installed rock drill, required rod handling, hole plan and existing consumables? Tapered and threaded top-hammer tools can both be productive when the interfaces are correct. Most expensive mistakes happen when buyers compare only diameter, length or appearance and miss the connection architecture.

1. What “tapered” and “threaded” mean in a top-hammer drill string

Top-hammer drilling transfers percussion and rotation from the rock drill through the drill string to the bit. Epiroc describes the shank adapter, drill rods and bit as a matched drill string and lists tapered drill strings separately from its R, T and other threaded systems. That distinction is the starting point for compatibility.

Important: these are system-level distinctions, not universal rules about drilling depth or rig size. OEMs offer multiple tapered and threaded families for different duties. Always use the rock-drill and tool manufacturer’s approved interface data for the actual machine.

2. Equipment comes first: identify the installed interface before choosing tools

The first purchasing question should be the rock drill model and the interface already fitted to it. If the installed system is built around an H22 rod with a defined striking end and taper, an R32 threaded rod is not a drop-in replacement. Likewise, changing from one threaded family to another may require a different shank adapter, rods, couplings and bits.

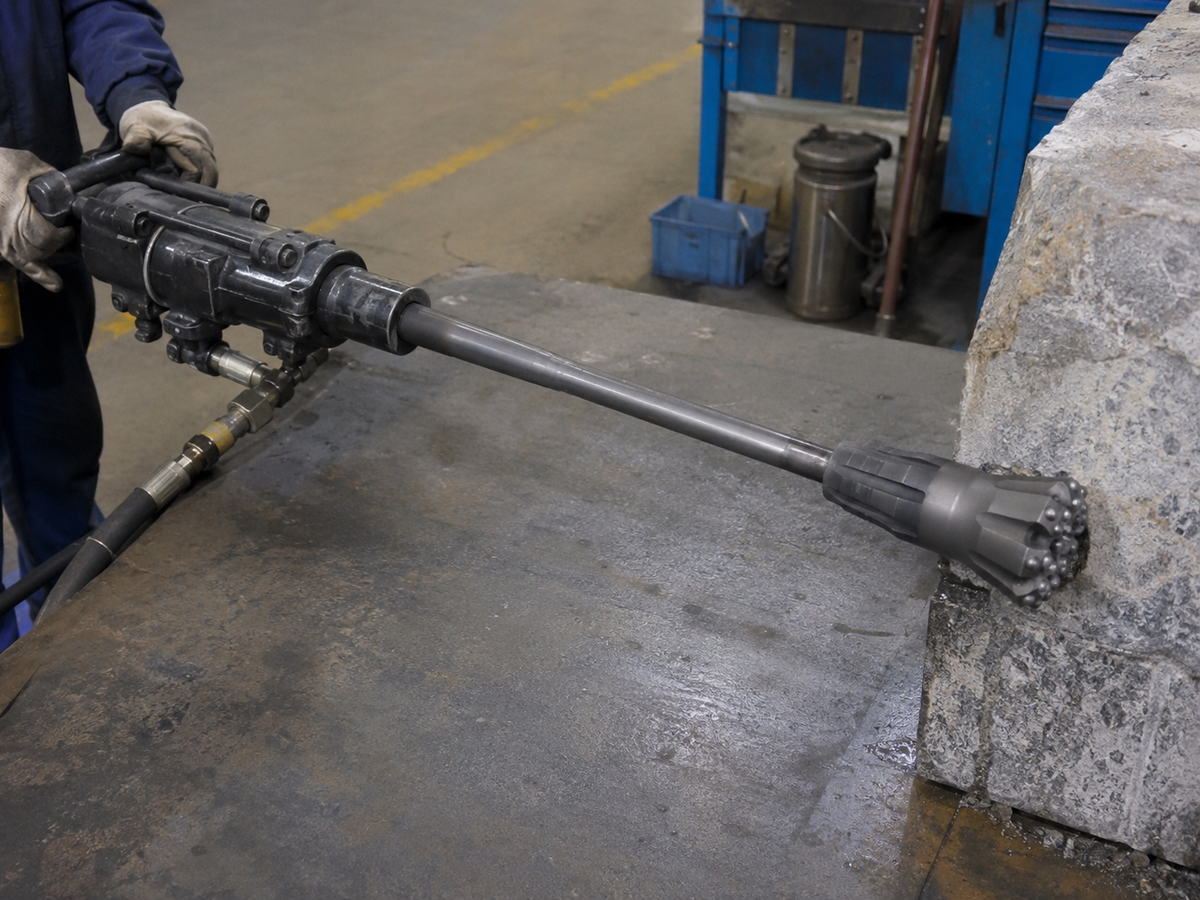

On the current PerfoMax range, the H22 × 108 mm tapered drill rod is specified as an H22 rod with a 108 mm-class striking interface and an 11° bit connection. The current R32 drill rod selection page is a different architecture: the thread family is R32, and the final rod must be specified by length, body and end type.

That is why a supplier should not answer a compatibility question from “I need a 40 mm bit” or “I need a 1.2 m rod” alone. Those dimensions do not define the connection.

3. Tapered systems: the taper angle is a compatibility dimension, not a preference

A taper-fit bit locks onto the matching tapered end of the rod. The nominal rod section alone does not guarantee fit. For example, an H22 rod still needs the correct taper angle and the correct rock-drill striking interface. Mixing a 7°, 11° or 12° bit with a different rod taper can lead to poor seating, difficult removal, premature wear or loss of impact transfer.

Epiroc’s current tapered drill-string range illustrates why the buyer must treat the angle as a controlled interface: the OEM lists several taper angles and assigns different application ranges to them. Those ranges are Epiroc-specific examples, not universal specifications that should be copied onto another supplier’s product. For PerfoMax orders, the written quotation and controlled drawing should define the supplied interface.

Before buying a tapered rod or bit, confirm:

• rock-drill model and striking-end dimensions;
• rod section, such as H22 where applicable;
• exact taper angle;
• rod length and length basis;
• bit socket/taper and target hole diameter;
• flushing passage and any collar/end details controlled by the drawing.

4. Threaded systems: thread family is only the first layer

Threaded top-hammer systems make extension of the drill string practical, but “R32” or “T38” still does not fully define the rod. Rockmore’s current extension-tool documentation separates bits, rods, couplings and shank adapters and offers both male/male and male/female rod configurations. Epiroc’s T system likewise includes extension rods and speed rods across several T thread sizes.

For a threaded purchase, control at least five interfaces:

1. Rock drill to shank adapter: the shank must match the rock drill.
2. Shank adapter to rod: the thread family and connection geometry must match.
3. Rod end configuration: a male/male extension rod normally requires the matching coupling; a male/female speed rod has a different joining architecture.
4. Rod to bit: the bit thread must match the rod system.
5. Flushing path: the rod, coupling and bit must maintain the required flushing passage.

Do not assume that two products carrying similar nominal diameters or visually similar rope-style threads are interchangeable. Thread families are engineered systems. Sandvik’s Alpha range, for example, uses its own defined thread concepts, reinforcing why the exact interface—not the visual appearance—must control substitution.

5. When does a tapered system make sense, and when does a threaded system make sense?

The table below is a practical decision framework rather than a universal operating limit.

Epiroc’s current T38/T45/T51 documentation is a useful example of threaded systems used for bench and production drilling, while its tapered range includes both handheld and mechanized applications. That is an important correction to a common oversimplification: equipment type alone does not decide the connection system.

6. Why changing systems is not the same as changing a bit

A system conversion can affect far more than the bit. Depending on the equipment, it may change the shank adapter, rod inventory, coupling inventory, bit stock, flushing arrangement, rod handling procedure and spare-parts plan. It can also change how operators make and break joints.

Therefore, compare a conversion on the basis of the complete drilling system and cost per acceptable drilled meter—not on the price of one bit or rod. If the existing system is compatible, safe and productive, a lower-priced component from another architecture is not automatically a saving.

7. Seven common compatibility mistakes

1. Treating H22 as a thread family. H22 describes a hex rod/shank dimension in tapered-tool contexts; it does not mean R32, T38 or another threaded connection.
2. Buying by bit diameter only. Two 40 mm-class bits can use completely different sockets or threads.
3. Mixing taper angles. A rod and bit must have the specified matching taper.
4. Assuming all threaded tools are interchangeable. R32, T38, T45 and proprietary thread systems are different interfaces.
5. Forgetting the rod end type. Male/male extension rods and male/female speed rods do not use the same connection sequence.
6. Ignoring the rock-drill side. The bit may match the rod while the rod/shank adapter does not match the rock drill.
7. Copying one OEM’s application table into another purchase specification. Use OEM ranges to understand the decision variables, then confirm the actual supplier drawing and approved configuration.

8. RFQ checklist: what to send before asking for a substitute

• Rock drill make and exact model
• Current shank adapter or striking-end identification
• Current system: tapered or threaded
• For tapered tools: rod section and exact taper angle
• For threaded tools: exact thread family and rod end configuration
• Existing rod and bit part numbers, if available
• Clear photos of the current connection ends and markings
• Target hole diameter and typical hole depth
• Rod length and whether extension is required
• Rock type, abrasiveness/fracturing and drilling application
• Air/water flushing arrangement where relevant
• Required inspection, packing and documentation scope

For uncertain substitutions, ask the supplier to state the proposed interface and configuration in writing and attach the controlling drawing or data sheet. This reduces the risk of receiving a tool that is dimensionally similar but mechanically incompatible.

9. FAQs

Can an H22 tapered bit fit an R32 drill rod?

Not directly. An H22 taper system and an R32 threaded system use different connection architectures. A valid conversion would require the equipment-side interfaces and the complete drill-string configuration to be reviewed, not just the bit.

Is a threaded system always better than a tapered system?

No. The correct system depends on the installed rock drill, approved interfaces, hole plan, rod handling and application. Both tapered and threaded systems are used commercially in top-hammer drilling.

If two bits have the same diameter, are they compatible?

No. Hole or bit diameter does not define the connection. Confirm taper angle or thread family, plus the rod and equipment-side interfaces.

When is a coupling sleeve required?

In a threaded extension string, a male/male rod normally joins through the matching coupling sleeve. Male/female speed rods use an integrated female end and therefore have a different joint arrangement. Follow the selected drill-string design.

What is the safest way to order a substitute tool?

Send the rock drill model, current tool identification, connection type, target hole information and photos, then require the proposed configuration to be confirmed on the quotation or controlled drawing before bulk order.

Sources & Further Reading

• Epiroc — Tophammer drilling tools and drill-string families
• Epiroc — Tapered drill strings
• Epiroc — T drill strings
• Rockmore — Extension drilling tools
• Sandvik — Alpha 340 threaded top-hammer system example

Decision Summary

Choose the drill-string architecture first, then choose the individual tool. For tapered tools, control the rock-drill interface, rod section, taper angle and bit socket. For threaded tools, control the shank adapter, thread family, rod end type, coupling and bit thread. If the current interface is uncertain, identify it before asking for a price.
