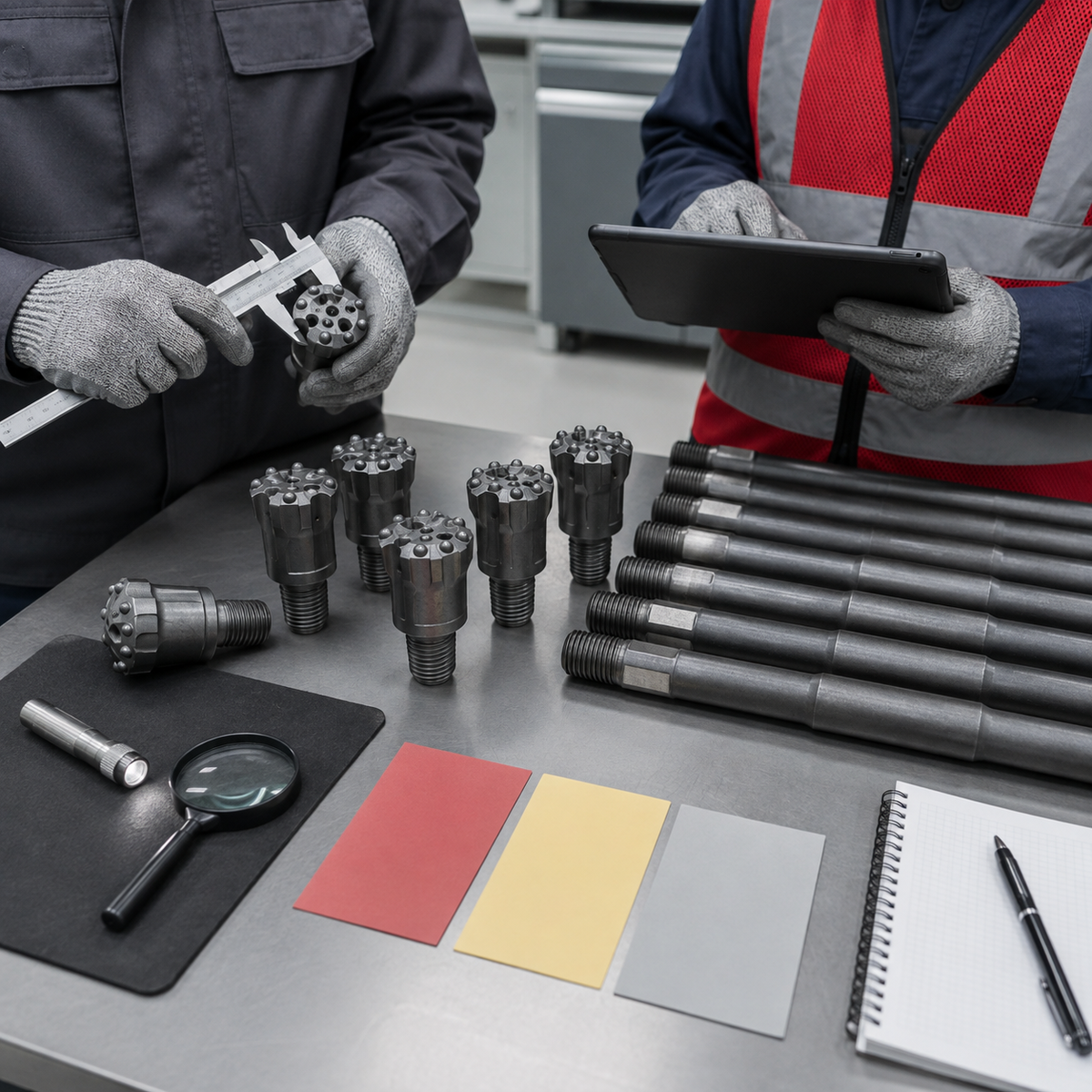

When rock drilling tools arrive with a suspected defect, control the product first and investigate the system second. Open a nonconformance record (NCR), identify the exact requirement that was not met, isolate the affected and suspect stock, preserve evidence, and decide the immediate disposition through authorized personnel. Issue a supplier corrective action request (SCAR)—often answered with an 8D report—when the buyer needs the supplier to contain the wider risk, prove root cause, implement a permanent action, and verify that the problem will not recur.
An NCR, a replacement shipment, and an 8D report are not interchangeable. The NCR records and controls the nonconforming product. Replacement, rework, or credit addresses the immediate commercial and material disposition. Corrective action addresses the cause of recurrence. Buyers should keep those decisions connected, but should not close one merely because another has progressed.
NCR vs SCAR vs 8D: the practical difference
| Record or method | Primary purpose | Typical owner | What “closed” should mean |
|---|---|---|---|
| NCR: nonconformance report | Record the unmet requirement, affected scope, evidence, containment, and product disposition | Buyer quality or receiving function, with authorized disposition | Affected product is identified, controlled, and dispositioned with traceable evidence |
| SCAR: supplier corrective action request | Require the supplier to investigate and eliminate a supplier-related recurrence risk | Buyer supplier-quality or procurement owner | Permanent action is implemented and effectiveness is verified against agreed criteria |
| 8D report | Provide a disciplined problem-solving structure from team formation and problem definition through containment, root cause, action, verification, and prevention | Cross-functional supplier team, reviewed by the buyer | The logic and evidence pass each discipline; closure is not just a completed form |
| Warranty or commercial claim | Resolve replacement, repair, credit, freight, or other contractual consequences | Buyer and supplier commercial contacts | The agreed commercial disposition is completed |
ASQ describes 8D as a structured method for identifying, correcting, and eliminating problems, with permanent corrective action tied to root cause and later effectiveness validation. That structure is useful beyond automotive supply chains, including industrial drilling consumables, provided the evidence and approval requirements are scaled to the actual risk.
When should a buyer escalate an NCR to a SCAR?
Not every isolated cosmetic observation needs a full 8D. Escalation should be based on consequence, uncertainty, recurrence, and spread—not on frustration or order value alone.
| Situation | Likely response | Reason |
|---|---|---|
| One clearly identified, low-risk item; scope contained; cause already known | NCR plus authorized correction or disposition may be enough | A formal system investigation may add little value |
| Repeated defect from the same item, lot, or process | SCAR or structured corrective action | Recurrence suggests the earlier correction did not remove the cause |
| Functional failure, safety consequence, serious downtime, or field escape | Immediate containment plus formal supplier response | The buyer must protect other sites, stocks, and future shipments |
| Cause is disputed or cannot be established from receiving evidence | Joint investigation with controlled samples and an agreed test plan | Photos alone rarely distinguish manufacturing, compatibility, transport, and operating causes |
| Detection should have prevented shipment but did not | Investigate both occurrence and escape causes | Fixing production without fixing detection leaves the customer exposed |
Response times should come from the purchase agreement, supplier-quality manual, issue severity, and operational risk. Do not copy a universal “24-hour” or “30-day” rule into a contract without confirming that both parties can meet and govern it.
First response: contain the risk without destroying the evidence
- Stop uncontrolled use or release. Apply the buyer’s hold procedure to the confirmed and suspect scope. Do not assume only the visibly failed item is affected.
- Identify the requirement. Link the observation to the approved drawing, purchase order, specification, sample, inspection plan, or agreed performance condition.
- Define the scope. Record product, size, interface, supplier item code, PO, shipment, quantity, lot or heat reference where available, receiving date, storage location, and field locations.
- Segregate and identify stock. Separate affected, suspect, inspected-conforming, and released material. Preserve traceability during any sort.
- Preserve samples. Do not grind, clean aggressively, weld, disassemble, or discard the failed part before the investigation plan is agreed. Record any necessary alteration.
- Notify the right owners. Connect receiving, operations, procurement, engineering, and supplier quality. If a field safety risk exists, use the site’s formal incident and stop-work procedures.
- Define temporary protection. Sorting, additional incoming inspection, restricted use, or certified shipment controls are containment—not proof of root-cause removal.
Build an evidence pack for rock drilling tools
A supplier cannot test a vague statement such as “the bits are bad” or “the rods broke too early.” A useful evidence pack separates product identity, requirement, observed condition, exposure, and chronology.
- product type, nominal size, thread or shank, and supplier code;
- purchase order, shipment, carton or bundle identity, and lot/heat references where supplied;
- approved drawing revision, specification, acceptance sample, or contractual requirement;
- affected quantity, inspected quantity, defect count, and locations of all suspect stock;
- measurement results with units, method, instrument ID, calibration status, and inspection date;
- clear overview and close-up photos with scale and sample identification;
- unmodified failed samples plus conforming comparison samples where practical;
- field history: machine, adapter, mating thread or shank, hole diameter, rock and ground condition, operating hours or meters, and observed sequence;
- packaging and transport condition when damage, corrosion, bending, or mixing may be involved;
- a dated timeline from receipt or installation to detection, containment, and notification.
For a field failure, the buyer should provide operating context without pre-judging the cause. For a receiving defect, the buyer should record what was measured and how. The supplier should then propose any destructive examination, metallography, hardness testing, dimensional recheck, or process-record review needed to test competing explanations.
Write a testable problem statement
A strong problem statement describes the gap without embedding an unproven explanation. Use facts that allow both buyer and supplier to test the boundaries:
| Question | Rock-drilling-tool example |
|---|---|
| What failed to meet which requirement? | Measured thread feature, straightness, button retention, body condition, marking, packing, or agreed service outcome |
| Where was it found? | Incoming inspection, distributor warehouse, assembly check, collaring, drilling, rod change, or post-use inspection |
| When did it occur? | Shipment date, inspection stage, installation point, operating interval, or event sequence |
| How many are confirmed and suspect? | Defect count, sample size, lot quantity, open inventory, in-transit quantity, and field exposure |
| What is not affected? | Other sizes, lots, dates, processes, machines, or applications supported by evidence |
| What is the consequence? | Cannot assemble, fails inspection, abnormal wear, downtime, rework, sorting, or safety escalation |
A statement such as “three rods from shipment X did not make full shoulder contact with the approved mating component during receiving verification” is testable. “Poor machining caused bad threads” is a conclusion and should wait for evidence.
Require both occurrence cause and escape cause
The occurrence cause explains why the nonconforming condition was created. The escape cause explains why the supplier’s controls did not detect or prevent shipment. Effective corrective action normally needs both.
For example, a thread problem might involve the drawing used, tool wear, setup, heat-treatment distortion, gauging method, or an incompatible mating component. The escape investigation might separately examine gauge selection, sampling, calibration, inspection frequency, reaction plans, mixed lots, or release authorization. The final causes must be demonstrated, not selected from this list by assumption.
The same discipline applies to button loss, body cracking, rod bending, corrosion, weld concerns, or packing damage. A photo may establish the symptom and urgency; it rarely proves material, process, transport, compatibility, or operating cause by itself.
Use the 8D sequence as a review gate
| Discipline | Buyer review question | Minimum useful output |
|---|---|---|
| D1: Team | Does the team include product, process, quality, and application knowledge? | Named owners and decision authority |
| D2: Problem | Is the gap measurable and bounded by product, lot, place, time, and quantity? | Evidence-based problem statement |
| D3: Containment | Are customers, sites, warehouse stock, production, and in-transit material protected? | Scope, sort method, results, identification, and release control |
| D4: Root cause | Are occurrence and escape causes supported by tests or records? | Cause-and-evidence chain; rejected alternative causes where relevant |
| D5: Permanent action | Does each proposed action remove or control a verified cause? | Action, owner, due date, risk review, and validation plan |
| D6: Implement and validate | Was the action implemented as designed, and did it correct the targeted mechanism? | Implementation records and validation result |
| D7: Prevent recurrence | Were related products, processes, drawings, controls, and training reviewed? | Controlled-document and horizontal-deployment evidence |
| D8: Close | Are containment exit and effectiveness criteria satisfied? | Buyer approval, closure date, retained evidence, and lessons learned |
Do not accept “operator retrained” as a complete answer unless the investigation proves a knowledge or execution gap and also explains why the process allowed the error and the escape. Training can support an action; it does not automatically establish root cause.
Separate correction, corrective action, and effectiveness
| Type | Example | What it does not prove |
|---|---|---|
| Correction | Sort, rework, replace, repair, or credit the affected shipment | That the producing cause has been removed |
| Containment | Add temporary inspection and identify controlled shipments | That future production is intrinsically conforming |
| Permanent corrective action | Change and control the verified process, tooling, specification, or detection mechanism | That implementation will remain effective without verification |
| Effectiveness verification | Review later production or shipments against defined acceptance and recurrence criteria | That every unrelated failure mode is eliminated |
Define closure criteria before the supplier submits the final report
Closure should be predictable. Agree on:
- which affected and suspect lots are accounted for;
- how temporary containment is identified and when it may end;
- what evidence proves the occurrence and escape causes;
- which documents, process settings, gauges, inspection plans, or training records must change;
- how implementation will be verified;
- the later shipment, production quantity, sample plan, field interval, or monitoring window used for effectiveness;
- the acceptance criteria and recurrence trigger;
- who may approve containment exit, commercial resolution, and SCAR closure.
Sample size and monitoring duration should be risk-based and agreed. One conforming replacement part may prove immediate usability, but it seldom proves that a systemic corrective action is effective.
Common reasons supplier corrective actions fail
- The requirement is missing. The report describes damage but never identifies the agreed specification or acceptance condition.
- The lot scope is guessed. The team isolates only returned items while identical stock remains in transit or at other sites.
- Sorting is presented as root cause removal. Temporary inspection becomes permanent without correcting the producing process.
- The analysis stops at “operator error.” It does not test controls, standard work, equipment, detection, authorization, or system conditions.
- Occurrence and escape causes are mixed. Production is adjusted, but the detection weakness remains unchanged.
- Actions cannot be traced to causes. A list of improvements looks active but does not break the verified causal chain.
- The report closes on implementation date. No later output is checked for effectiveness.
- Commercial settlement closes the technical issue. Credit or replacement resolves cost but not recurrence risk.
Buyer checklist for issuing the SCAR
- NCR number and issue owner;
- supplier, product, PO, shipment, lot/heat references, and affected locations;
- exact requirement and observed nonconformance;
- confirmed quantity, suspect quantity, and exposure status;
- photos, measurements, samples, field data, and comparison evidence;
- required immediate containment and identification of controlled shipments;
- required response format: short corrective action, full 8D, or joint investigation;
- contract-based deadlines and escalation contacts;
- required occurrence-cause and escape-cause evidence;
- approval gates for disposition, containment exit, permanent action, and effectiveness closure.
For a new supplier or a recurring issue, connect corrective-action performance to future sourcing decisions. Review the published guides on rock drilling tool supplier qualification, incoming inspection before stock release, and warranty-claim evidence for premature failures.
Frequently asked questions
Is an NCR the same as an 8D report?
No. An NCR records and controls a nonconformance. An 8D is a structured problem-solving response used when containment, root-cause analysis, permanent corrective action, prevention, and effectiveness verification are needed.
Should every defective drill bit trigger a supplier 8D?
No. Use severity, recurrence, field consequence, uncertainty, scope, and contractual requirements. A contained low-risk issue with a known cause may need only an NCR and disposition; a repeated or serious escape usually needs deeper corrective action.
Can photos prove a manufacturing defect?
Photos can document symptoms, identification, and urgency, but usually cannot separate manufacturing, material, compatibility, transport, and operating causes. Preserve samples and agree on the needed measurements and tests.
When can temporary sorting be removed?
Only after the authorized parties confirm that agreed containment-exit criteria are met. That normally requires implemented permanent action plus evidence that subsequent controlled output meets the acceptance criteria.
Who should close a supplier corrective action?
The buyer’s authorized quality or supplier-management owner should approve technical closure after reviewing the evidence. Commercial settlement, inventory release, and SCAR closure may require different approvers.
Technical references
- ASQ — Eight Disciplines (8D) problem-solving process.
- Veoneer Supplier Manual — Complaint reporting and 8D resolution requirements.
- ISO — ISO 9001 quality management systems requirements and revision status.
