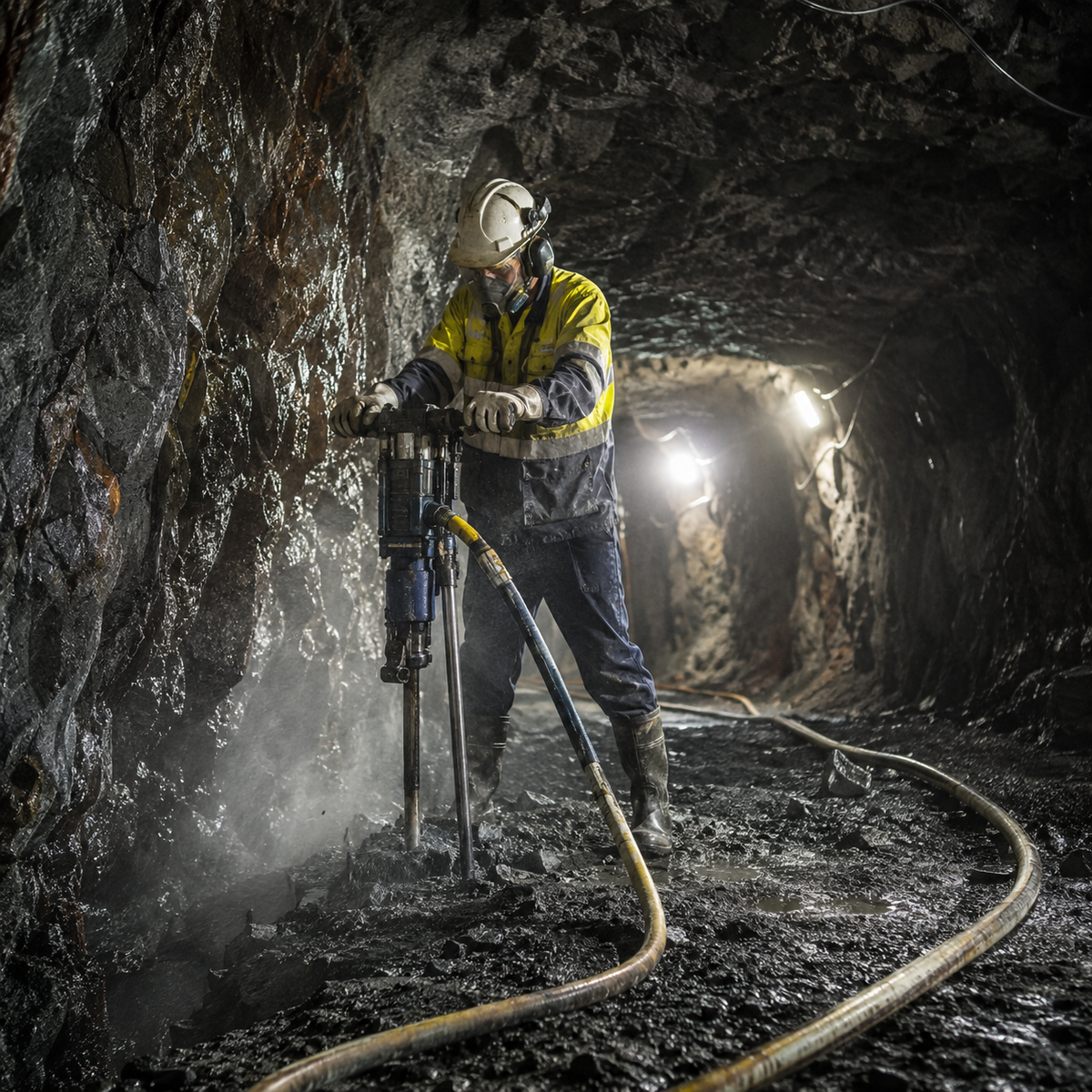

Pneumatic Rock Drilling in Hot, Humid Conditions: Condensate, Corrosion, and Air-Line Controls

Direct answer: hot, humid conditions increase the moisture load entering a compressor. When that compressed air cools in an aftercooler, receiver, pipe or hose, water vapor can condense into liquid. If drains, separators and drying are inadequate, condensate reaches the pneumatic rock drill, disturbs lubrication, carries rust and debris, and increases the risk of sticking, corrosion and unreliable impact.

The correction is not simply “add more oil” or “increase compressor pressure.” First separate a moisture problem from low airflow, leakage, worn tool parts and water-flushing faults. Then manage the complete air path: compressor cooling, receiver and low-point drains, correctly sized treatment equipment, safe distribution, point-of-use separation where appropriate, and the rock-drill manufacturer’s lubrication requirements.

Why Humid Weather Changes a Pneumatic Rock-Drilling System

Ambient air always contains some water vapor. A compressor draws that vapor in with the air. Compression raises the air temperature; as the air later cools, its capacity to retain water vapor falls. Liquid forms when the air reaches its pressure dew point.

Hot, humid sites are demanding because the intake air can carry much more water than cooler or drier air. The final amount arriving at the drill is also affected by:

• ambient temperature and relative humidity at the compressor intake;
• compressor load, aftercooler performance and discharge temperature;
• receiver size, drain function and maintenance;
• air-dryer type, capacity and actual operating condition;
• pipe and hose temperature, length, slope and low points;
• the temperature difference between a surface compressor and an underground heading;
• air demand, pressure loss and expansion at the tool;
• rainwater or mine water entering damaged connections or open hoses.

A dry-looking compressor outlet does not prove the air will remain dry at the drill. More water can condense downstream as the air continues to cool.

Condensate, Water Flushing and Oil Mist Are Different

Before changing equipment, identify the fluid. A wet exhaust may be air-line condensate, normal water-flushing discharge, excess lubricator oil, or a mixture. The location and timing provide useful evidence.

Do not taste, touch or casually discharge condensate. Compressor condensate can contain oil, rust and other contaminants and must be collected and disposed of under site and environmental rules.

Separator, Filter and Dryer: What Each One Does

Air-treatment components solve different problems. Treating them as interchangeable is a common reason a site still sends wet air to the tool.

Atlas Copco’s condensate-treatment guidance notes that remaining humidity can turn into water as compressed air cools through the network. CAGI’s compressed-air treatment handbook likewise treats moisture separation, filtration and drying as distinct engineering stages. Select equipment from measured flow, pressure, temperature and required pressure dew point—not from port size alone.

Where Should Water Separators and Drains Be Placed?

Liquid separation works best after the air has cooled enough for water to condense and where the piping can deliver that liquid to a drain. Atlas Copco’s handheld-tool guidance recommends locating a separator far enough from the compressor for cooling to occur, while also draining the receiver and clearing residual water from hoses.

The exact layout must follow the compressor, dryer and mine-air system design, but a review should cover:

• the compressor aftercooler and its separator/drain;
• the air receiver drain and any automatic-drain test function;
• the dryer’s inlet limits, bypass position, alarms and condensate discharge;
• distribution mains sloped and drained according to the engineered layout;
• low points created by dips, hose loops and temporary extensions;
• branch takeoffs and point-of-use separators sized for full drill flow;
• couplings, valves and filters that may restrict flow when contaminated;
• a line oiler installed in the correct orientation and distance from the drill.

Do not add a small workshop filter-regulator-lubricator assembly to a high-demand rock drill without checking its rated flow and allowable pressure drop. A component can look correctly connected while starving the drill under load.

A Safe Field Check for Wet Compressed Air

1. Record the condition. Note ambient temperature, humidity or weather, compressor status, number of operating tools, hose route, shift time and when water first appeared.
2. Isolate and depressurize. Follow the site lockout, bleed-down and hose-restraint procedure before opening a drain, filter bowl, coupling or tool inlet.
3. Inspect upstream drains. Confirm that the aftercooler separator, receiver, dryer and distribution drains operate as designed. A closed bypass or failed drain should be verified, not assumed.
4. Collect evidence by location. Under the approved procedure, compare condensate at the receiver, downstream treatment point, branch and final hose. This helps identify where water is forming or accumulating.
5. Measure pressure under flow. Static pressure can look normal while an undersized, wet or blocked component creates excessive loss when the drill consumes air.
6. Inspect the final hose and couplings. Look for low loops, crushed sections, contamination, damaged seals, mismatched bores and unprotected open ends.
7. Check the line oiler. Confirm the approved oil, level, orientation and delivery using the rock-drill manufacturer’s procedure.
8. Inspect the drill only when authorized. Look for water, rust, sludge or unusual oil at the inlet and accessible service points. Internal disassembly belongs to trained personnel.
9. Run one controlled test. After correcting confirmed faults, use one drill and a known serviceable hose while logging pressure, impact behavior, drain volume and exhaust condition.

If several tools on one branch become wet or weak at the same time, investigate the shared air system before replacing individual drills. If one tool alone shows symptoms, compare its hose, coupling, oiler and condition with a known-good station.

Protect Lubrication Without Hiding the Moisture Problem

Pneumatic percussion tools depend on an oil film delivered in the air stream. Free water can disturb that film, carry contamination and promote corrosion. Increasing oil feed without confirming the cause may produce heavy exhaust mist while liquid water remains in the system.

Use the tool maker’s approved rock-drill oil and seasonal viscosity guidance. Verify that the lubricator meters oil at actual operating flow, not only during a no-load check. The related pneumatic rock drill lubrication guide explains line-oiler placement, oil selection and daily confirmation in more detail.

When to Stop Drilling and Escalate

• rust-colored water, metal particles or sludge repeatedly leave the hose or drill;
• the drill sticks, loses impact, starts erratically or heats abnormally after wet-air exposure;
• a receiver, separator, filter bowl or drain is damaged, overfilled or cannot be isolated safely;
• the dryer is in alarm, bypassed or operating outside its rated inlet conditions;
• hose restraint, coupling integrity or pressure rating is uncertain;
• the source of water cannot be separated from a flushing-system fault;
• condensate cannot be collected or disposed of under the approved site procedure.

Do not disconnect a pressurized hose to “blow the water out.” Stored pneumatic energy and hose whip can cause serious injury. CAGI’s air-tool safety handbook should be used with the compressor, hose, coupling and rock-drill instructions and the mine’s own procedures.

Build a Humid-Weather Control Plan

Trend data is more useful than a one-time visual check. Rising drain volume can be normal during more humid weather, but water appearing farther downstream, higher pressure loss or increased tool sticking shows that treatment or maintenance may no longer be adequate.

Common Mistakes in Hot, Humid Conditions

• Blaming the rock drill immediately. Shared wet-air symptoms usually begin upstream.
• Checking only static pressure. Restriction becomes visible when air is flowing.
• Calling every treatment device a filter. Liquid separation and vapor drying are different functions.
• Installing the separator where air is still too hot. More water can condense after that point.
• Ignoring hose loops and temporary extensions. They become unplanned condensate traps.
• Using a small-bore point-of-use unit. It can protect from droplets yet starve the tool.
• Increasing oil to mask wet air. This can add mist without controlling corrosion.
• Leaving hose ends open on wet ground. External mine water and grit can enter directly.
• Draining to the floor. Condensate may be contaminated and can create slip and environmental hazards.

RFQ and Site-Data Checklist

For a pneumatic rock-drill and air-system review, provide:

• mine, tunnel, quarry or construction application;
• rock-drill and air-leg model, complete suffix and current condition;
• required hole diameter, depth, direction and drilling duty cycle;
• compressor model, rated free-air delivery and working-pressure basis;
• number of tools that can operate simultaneously;
• ambient temperature and humidity range at the compressor and drill;
• aftercooler, receiver, separator, filter and dryer types and service status;
• main, branch and final-hose inside diameters and lengths;
• coupling, valve, lubricator and point-of-use separator details;
• pressure measured at the compressor and tool while drilling;
• condensate locations, volume trend, color and timing;
• photos of routing, low points, drains, inlet condition and exhaust symptoms;
• required documents, spare parts and maintenance support.

Frequently Asked Questions

Why does water appear at the pneumatic drill exhaust?

Compressed air can cool and expand through the distribution system and tool, causing remaining water vapor to condense. Water can also come from the flushing circuit. Isolate the systems and compare evidence by location before deciding.

Will a water separator make compressed air dry?

It removes liquid water or aerosols within its design, but it does not necessarily remove water vapor. A dryer is needed when the required pressure dew point is lower than the separator-only system can provide.

Should the separator be installed beside the compressor or beside the drill?

The main separator is normally placed where sufficient cooling has created liquid and where drainage is engineered. A correctly sized point-of-use separator can catch downstream liquid. The final arrangement must follow the compressor and treatment design.

Can extra rock-drill oil prevent corrosion from wet air?

No. Correct lubrication is essential, but it does not replace condensate removal and vapor control. Excess oil can also obscure diagnosis and increase exhaust mist.

What information should be measured before buying a dryer or separator?

Confirm actual airflow, pressure, inlet temperature, ambient range, pressure dew-point requirement, condensate load, pressure-loss allowance, connection size and simultaneous tool demand. Select from the manufacturer’s rated conditions.

Match the Drill and Air System as One Package

Reliable humid-weather drilling depends on the compressor, treatment train, distribution, hose, lubricator and tool working together. For an active commercial reference, review the YT28 air-leg pneumatic rock drill. Final air, hose, air-leg, drill-steel and operating compatibility must be confirmed for the specific configuration.

Send PerfoMax your drilling conditions and air-system data for a focused configuration review. Include the moisture observations and under-load measurements above so the discussion addresses the real restriction or condensate source.
