Direct answer: a pneumatic rock drill air-inlet connection is compatible only when the tool inlet, adapter thread, coupling profile, hose bore, pressure rating, sealing method, and anti-disconnection controls all match. A fitting that starts into the port is not proof of compatibility. Similar nominal sizes can use different thread forms, and similar-looking quick couplers can have different plug or claw geometry.
Before ordering a drill or connection kit, identify the exact rock-drill model and inlet specification from the current manual, supplier drawing, or a verified sample. Record the thread standard, nominal size, male/female form, sealing method, coupling series, hose inside diameter, required airflow, working pressure, and site safety requirement. If any one of those inputs is unknown, treat the connection as unconfirmed rather than forcing an adapter.
Buyer rule: select the connection as a flow-and-safety assembly, not as a single fitting. A correct thread with an undersized bore can starve the drill; a high-flow coupling without positive retention can create a hose-whip hazard.
What Has to Match at a Pneumatic Rock Drill Air Inlet?
| Interface | What to confirm | Failure if wrong |
|---|---|---|
| Rock-drill inlet | Model, port gender, nominal size, thread family, taper or parallel form, and seal location. | Cross-threading, cracked housing, leakage, restricted bore, or an adapter that cannot seat. |
| Threaded adapter | Both end specifications, flow bore, pressure rating, material, wrench flats, and approved sealant or gasket. | A mechanically attached part that still leaks, loosens, or reduces airflow. |
| Quick or claw coupling | Coupling family/profile, mating dimensions, gasket, locking method, rated pressure, and flow capacity. | Incomplete engagement, leakage, separation, or excessive pressure loss. |
| Hose tail and clamp | Tail outside diameter, hose inside diameter and construction, clamp or crimp method, and pressure rating. | Hose blow-off, internal damage, a leak path, or local flow restriction. |
| Supply hose | Inside diameter, length, condition, service rating, airflow demand, and site routing. | Low pressure at the tool, heat, poor penetration, unstable performance, or rupture. |
| Safety controls | Positive retention, safety pin where designed, hose restraint, isolation valve, and supply-side safety device where required. | Accidental disconnection, uncontrolled hose movement, or unsafe depressurization. |
The connection must also suit the operating environment. Underground headings, quarry benches, and construction sites may use different hose fleets, coupling conventions, inspection rules, and legal requirements. Do not assume the connection fitted to another brand or another branch line is interchangeable.
Why BSP and NPT Threads Should Not Be Selected by Eye
BSP and NPT are pipe-thread families, not loose synonyms for an inch-sized air fitting. Within the BSP family, BSPT is tapered and BSPP is parallel. NPT is tapered. The thread angle, pitch, diameter relationship, taper, and sealing arrangement differ by standard and size.
A nominal size is not a complete specification. BSP and NPT families can differ in pitch, flank form, taper and sealing method even when their labels look similar. A few turns of apparent engagement do not make the pair correct. Record the controlled thread designation and verify it with the appropriate gauge or model-specific drawing.

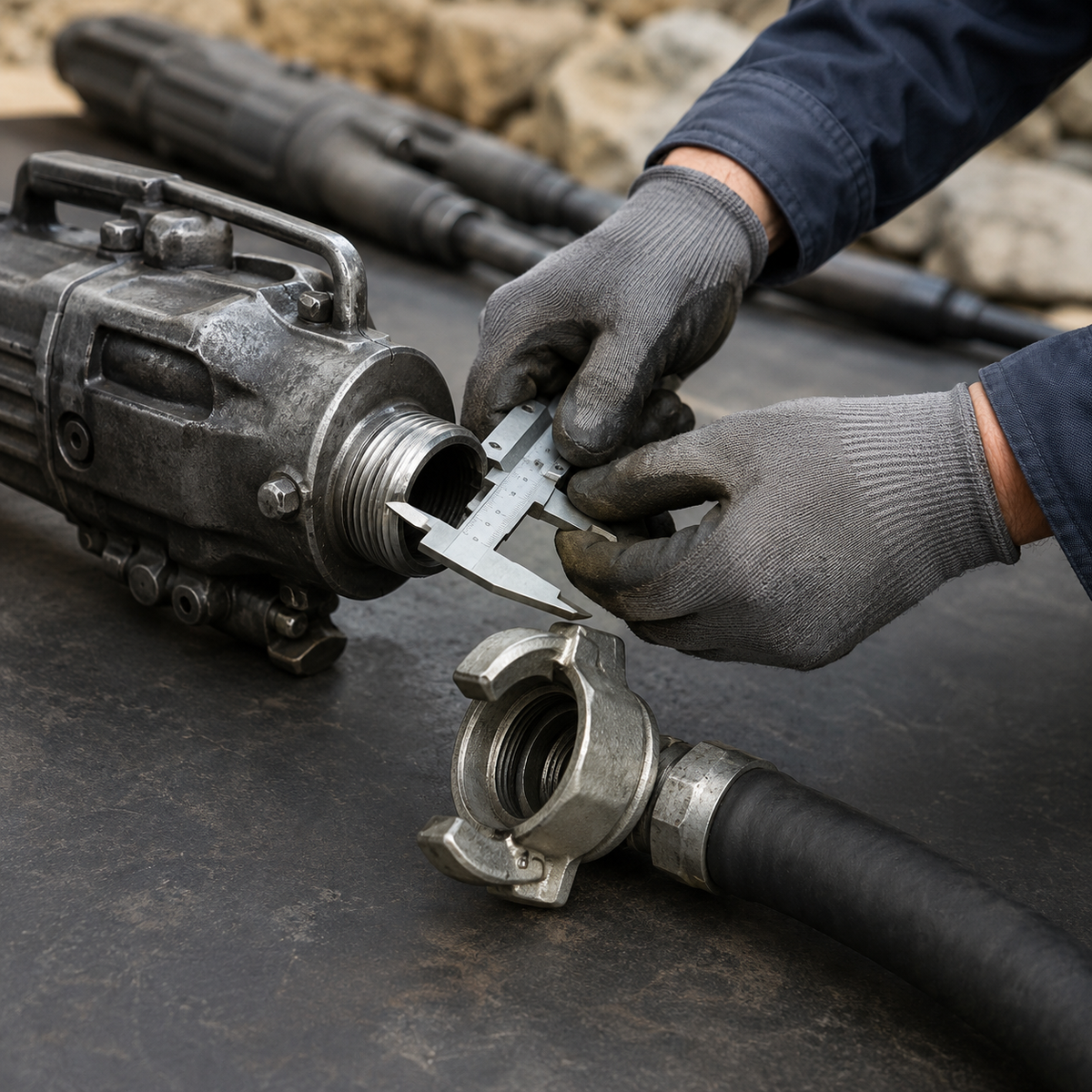

Use this identification sequence on a clean, depressurized component:
- Find the controlled reference. Check the current manual, drawing, parts list, purchase record, or supplier confirmation for the exact model.
- Confirm male or female form. Record which component carries the external thread and which carries the internal thread.
- Check taper. Measure the outside diameter at more than one position on a male thread, or use the specified taper gauge. Do not infer taper from wear or plating alone.
- Measure pitch. Use a suitable thread-pitch gauge. Counted threads over a short, damaged section can mislead.
- Measure the reference diameter. Use the correct standard’s measuring location; the measured outside diameter is not the nominal pipe size.
- Confirm flank form and sealing method. Establish whether sealing occurs on tapered threads, a bonded washer, an O-ring, a face gasket, or another controlled seat.
- Verify with a known gauge or approved mating part. Hand engagement can support identification, but it must not replace the specification or gauge.
Stop if the fitting binds early, wobbles, reaches an abnormal depth, or needs unusual torque. Do not “correct” uncertainty with extra tape, sealant, or force. Thread sealant cannot convert one thread standard into another.
Parallel and Tapered Threads Use Different Sealing Logic
A tapered pipe-thread joint generally develops interference as the parts engage and uses the specified sealant where permitted. A parallel-thread connection generally needs a controlled sealing feature such as a washer, O-ring, or face seal; the parallel threads primarily provide retention. The exact arrangement belongs to the component design.
This distinction affects the adapter stack. An adapter may be dimensionally correct at the tool but wrong at the coupling, or it may have the correct thread on both ends and still lack the required seal seat. Specify both ends completely. For example: “tool end: verified standard, size, gender, and seal; hose end: verified claw-coupling or quick-coupler series, bore, and retention.”
Avoid long chains of reducers and converters. Every extra joint adds leak paths, wrench loads, unsupported mass, and a possible restriction. If conversion is unavoidable, use one documented, pressure-rated adapter with adequate bore and support it according to the tool and fitting supplier’s instructions.
Quick Couplers and Claw Couplings Are Not Automatically Universal
Quick-action coupling plugs are defined by profile and series, not merely by nominal thread size. ISO 6150:2018 specifies plug dimensions and tolerances for defined pneumatic quick-action coupling series and pressure classes, while leaving socket construction to the manufacturer. The purchasing implication is simple: identify the coupling standard or manufacturer series and verify the actual mating pair.
Large pneumatic tools often use two-claw couplings. A sales description such as “universal” is not acceptance evidence: buyers should verify claw spacing, seal diameter, face condition, locking-pin provision, thread or hose-tail end, and pressure/flow rating. Treat the claw end and threaded end as separate compatibility decisions.
For any coupling type, confirm:
- the male plug and female socket—or both claw halves—belong to a compatible profile;
- the effective flow bore supports the drill’s demand;
- the gasket or valve is compatible with compressed-air service and the operating environment;
- the maximum working pressure is not exceeded anywhere in the assembly;
- the coupling fully seats without grinding, hammering, or improvised reshaping;
- the designed locking sleeve, pin, clip, or latch operates correctly;
- disconnection follows the site’s isolation and depressurization procedure.
Do Not Let the Adapter Become the Flow Bottleneck
Hose inside diameter matters, but the smallest effective passage in the full connection can control the result. A nominally large hose connected through a narrow nipple, reducing bushing, small quick-coupler bore, partially closed valve, or damaged gasket can create avoidable pressure drop.
Check the path from header to drill:
- compressor and receiver capacity under simultaneous demand;
- main line and branch-line bore;
- regulator, lubricator, valves, and water separator;
- hose inside diameter and total length;
- each coupling, adapter, and hose tail;
- the pressure measured at the tool while the drill is operating under load.
Static gauge pressure with the tool stopped does not reveal dynamic pressure loss. Use the rock-drill manufacturer’s required pressure and airflow at the specified measurement point, then verify the delivered condition while operating. For a deeper sizing method, use the published pneumatic rock drill air-hose sizing guide and the YT28 compressor sizing guide.
Do not copy a hose or coupling size from an unrelated pneumatic tool. Tool-specific air demand, minimum bore and inlet details must come from the controlled data for the actual rock drill. The engineering principle is transferable; model-level values are not.
Positive Retention Is a Compatibility Requirement
A connection is not acceptable merely because it does not leak during a bench test. It must resist accidental separation under vibration, hose movement, and the site’s expected handling. In the United States, OSHA construction rule 29 CFR 1926.302(b)(1) requires pneumatic power tools to be secured to the hose or whip by a positive means. The same rule says manufacturer safe operating pressures for hoses, pipes, valves, filters, and fittings must not be exceeded. For hoses exceeding 1/2-inch inside diameter, it also requires a safety device at the supply source or branch line to reduce pressure if the hose fails.
Those requirements do not replace the governing rules in the buyer’s country, mine, or project. The responsible site must define the approved control. Depending on the system, controls may include a locking quick-disconnect, a claw-coupling safety pin, a restraint cable across the joint, an excess-flow device, or a combination. A restraint is secondary containment; it does not make a mismatched or worn coupling serviceable.
Before pressurizing:
- isolate and depressurize the line according to the site procedure;
- inspect the hose, tail, clamps/crimps, coupling body, claws or sleeve, gasket, and thread joint;
- replace cracked, deformed, heavily corroded, loose, or unidentifiable parts;
- confirm the positive locking device and required restraint are installed correctly;
- position people clear of the potential hose path;
- open the supply in the controlled manner required by the equipment procedure;
- check leakage and dynamic pressure without placing hands on a pressurized joint.
A Practical Compatibility Check Before Ordering
| Step | Evidence to collect | Acceptance question |
|---|---|---|
| 1. Identify the drill | Model plate, manual revision, supplier drawing, and inlet photographs. | Is the exact model and port specification controlled? |
| 2. Identify the site hose fleet | Hose ID/length, working-pressure marking, hose-end photos, coupling series, and branch layout. | Can the existing fleet deliver flow and connect safely? |
| 3. Define conversion | Adapter drawing with both end standards, bore, material, seal, and rating. | Is one documented adapter sufficient without an unsafe stack? |
| 4. Confirm retention | Locking feature, safety pin/clip, restraint, and supply-side device requirements. | Does the complete assembly meet site and legal controls? |
| 5. Trial one controlled set | Inspection record, leak check, dynamic tool pressure, and operating observation. | Does the assembly seat, seal, stay secure, and supply the drill under load? |
| 6. Freeze the BOM | Approved part numbers, drawings, photos, ratings, and replacement sources. | Can future crews reproduce the accepted connection without guesswork? |
Release the Complete Inlet Assembly with an Evidence Gate
The six-step check above identifies the parts, but procurement still needs one documented disposition for the complete assembly. Do not release a hose, adapter or coupling as an isolated item. The accepted object is the ordered connection from the drill port through every seal, adapter, coupling half and hose end, with its restraint and loaded-pressure evidence.
| Release input | Minimum evidence | Hold condition |
|---|---|---|
| Tool identity | Model, suffix/revision, nameplate and applicable drawing | The port cannot be tied to the exact drill configuration |
| Port and seal | Thread standard/designation, gender, taper or parallel form and seal location | Identification relies only on appearance or trial engagement |
| Adapter stack | Part number, both end interfaces, material, rating and minimum bore for each component | An unidentified reducer or improvised fitting remains |
| Coupling pair | Matched plug/socket or claw profile, gasket and locking method | Partial engagement, profile uncertainty or damaged locking parts |
| Hose assembly | ID, length, rating, tail/crimp or clamp method, routing and condition | Rating, end attachment or condition is unverified |
| Flow proof | Loaded pressure at the agreed drill-side point with the test state recorded | Only compressor or static pressure is available |
| Safety controls | Isolation, positive retention, restraint and required supply-side device | A restraint is being used to compensate for a wrong or worn coupling |
| Post-test condition | Leak, movement, seal extrusion, thread and coupling re-inspection after depressurization | Any movement, damage or unresolved leakage remains |
Use a Four-Way Disposition
- READY TO SPECIFY: every interface and rating is traceable, the assembly fits by the approved method, the loaded-pressure test passes and post-test inspection finds no unresolved condition. Freeze the exact BOM and drawing revision.
- CONDITIONAL CONTROLLED TRIAL: component identity and ratings are verified, but the actual site routing or loaded result remains to be proven. Limit quantity and prohibit fleet release until the recorded trial passes.
- HOLD FOR DRAWING: the fitting appears to engage, but thread form, pitch, seal, bore, model revision or coupling profile is not controlled. Preserve samples and obtain the model-correct drawing or written supplier confirmation.
- REJECT / CORRECT: an interface conflicts, a part is damaged or underrated, locking is incomplete, the bore is restrictive, or the controlled test fails. Isolate the assembly and source the correct components.
Copy-Ready Air-Inlet Approval Record
- Drill: model, suffix/revision, serial or fleet ID, nameplate photo and drawing/manual revision.
- Port: thread standard and designation, gender, taper/parallel form, seal feature and condition.
- Connection BOM: fitting, every adapter, coupling pair, gasket or seal, hose tail and restraint, each with part number and rating.
- Flow path: minimum bore through each component, hose ID/length and upstream supply arrangement.
- Installation: approved sealant or gasket, tightening method, routing, bend allowance, isolation and retention controls.
- Test: static inspection, loaded pressure and measurement point, simultaneous users, leak result and post-test inspection.
- Disposition: ready, controlled trial, hold or reject; approved quantity, approver, date and restrictions.
Attach the record to the purchase order or submit it through the PerfoMax RFQ page. This makes the connection reproducible for receiving inspection and later replacement instead of leaving crews to identify it again from an old hose.
Common Selection Mistakes
- Ordering by nominal inch size alone. The thread family, pitch, taper, gender, and seal still need confirmation.
- Using appearance as a gauge. Worn, plated, dirty, or damaged threads can hide the geometry.
- Assuming every claw coupling is interchangeable. Confirm the mating dimensions, seal, and locking arrangement.
- Matching only the tool-end thread. The hose end, bore, rating, and restraint are equally important.
- Adding several reducers. Adapter stacks increase restriction, leverage, and leak points.
- Using sealant to overcome a mismatch. Sealant is applied only to the correct joint in the approved manner.
- Checking pressure only at idle. Compatibility includes adequate flow and dynamic pressure at the working tool.
- Reusing a damaged gasket or coupling. A familiar part is not an acceptable part when it cannot lock or seal correctly.
RFQ Checklist for the Drill and Air-Connection Kit
Send the following with a pneumatic rock drill inquiry:
- exact drill model, application, hole diameter range, and drilling direction;
- photo and drawing of the air inlet, including thread gender and measured features;
- required thread standard and nominal size, if already verified;
- existing hose inside diameter, length, working-pressure rating, and construction;
- compressor pressure/flow data and the number of tools operating simultaneously;
- existing quick-coupler or claw-coupling manufacturer, series, dimensions, and photographs;
- required hose tail, clamp/crimp method, gasket, safety pin, and restraint;
- applicable mine, contractor, or legal safety requirements;
- quantity, spare connection kits, destination, and requested documentation;
- whether a sample assembly must be approved before the production order.
PerfoMax’s active YT28 air-leg pneumatic rock drill is a relevant commercial starting point for buyers evaluating an air-leg drill system. The final quotation should still confirm the actual inlet and connection configuration against the buyer’s hose fleet rather than inferring it from this guide.
Frequently Asked Questions
Can a BSP fitting screw into an NPT port?
It may start in some nominal sizes, but that does not establish a correct or pressure-tight joint. The thread angle, pitch, taper, diameter relationship, and sealing method differ. Identify both standards and use an approved conversion fitting when conversion is required.
Are all two-claw air couplings interchangeable?
No. Similar appearance and a “universal” sales description do not replace dimensional, seal, pressure, flow, and locking verification. Match the defined coupling system and inspect the actual pair.
Does the air-inlet size determine the correct hose diameter?
No. Inlet size is one interface. Hose diameter must support the drill’s airflow over the actual length and system layout without unacceptable dynamic pressure loss. The smallest bore in valves, couplings, nipples, or adapters also matters.
Should the male quick-coupler plug be installed on the tool?
Many pneumatic-tool systems are arranged that way, but the correct orientation depends on the selected coupling system, shut-off behavior, operating procedure, and site standard. Follow the coupling and tool manufacturer’s controlled instructions.
Can a leak-free shop test prove the connection is safe?
No. It does not by itself prove thread integrity, rated pressure, flow capacity, positive retention, vibration resistance, hose condition, or compliance with the site’s safety controls. Complete the documented inspection and operating trial.
Confirm the Interface Before the Drill Ships
Air-inlet compatibility is cheapest to solve before procurement. Send PerfoMax the rock-drill model, inlet evidence, hose and coupling data, compressor conditions, and required safety controls. The team can review the requested drill and connection pathway against the available product configuration before quotation. Do not energize any assembly until the responsible site has verified installation, ratings, retention, and operating procedure.
