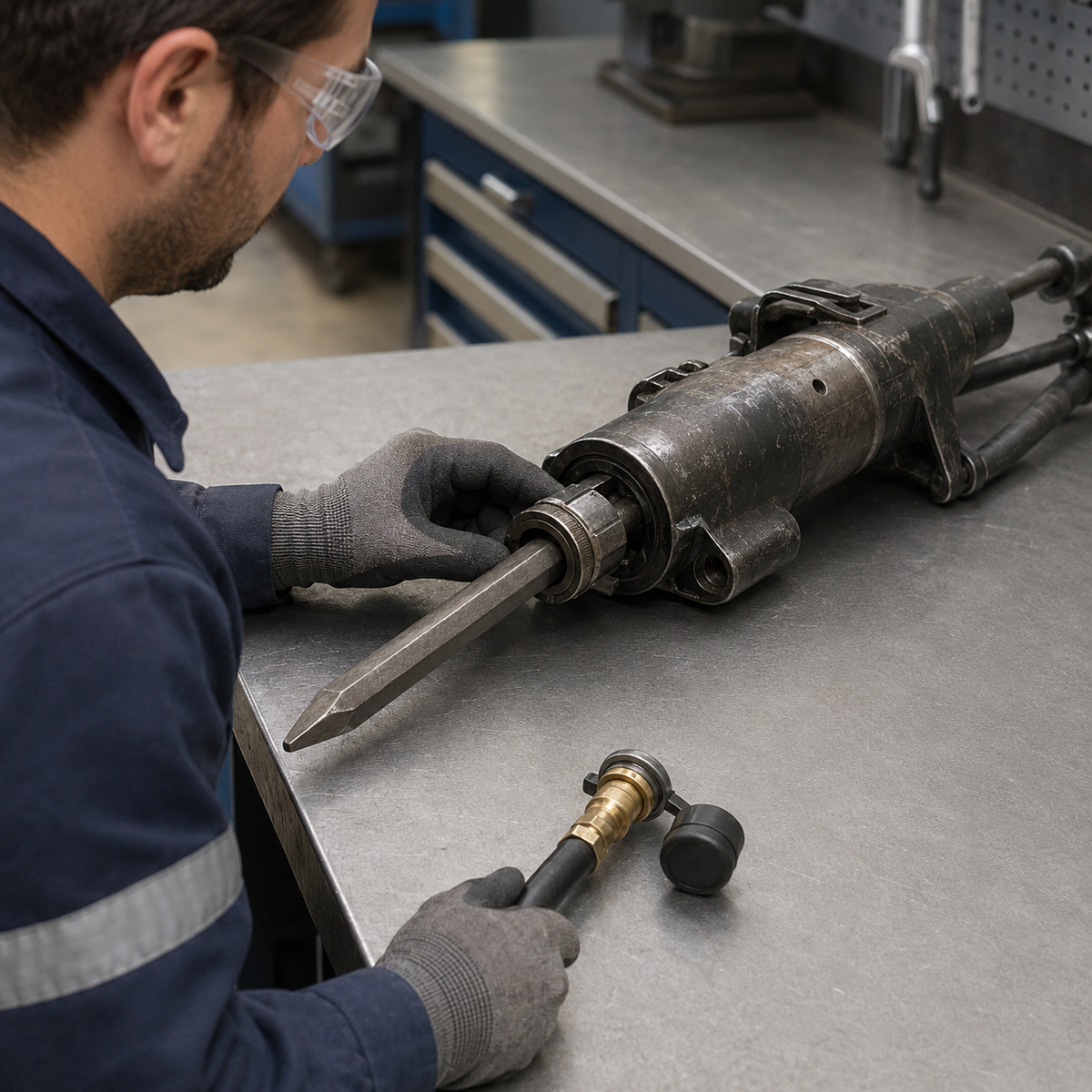

Short answer: when a pneumatic breaker chisel is stuck in the chuck, stop operating the tool, isolate and bleed the compressed-air supply, open the retainer exactly as the model instructions require, and try only a straight, controlled hand removal after the exposed chuck area has been cleaned. If the chisel will not move with normal hand force—or if the shank, collar, retainer or chuck is visibly deformed—stop. The breaker should be secured and inspected by trained service personnel. Do not run the breaker to “shake it loose,” strike the chisel sideways, heat the chuck or pull with a vehicle or chain.
A stuck chisel is usually a symptom rather than the whole fault. Common causes include compacted debris, corrosion, an incorrect shank, a burred or upset striking end, a damaged retention collar, a bent tool, a seized retainer, an over-worn chuck or side loading from prying. The repair decision must address that root cause before the breaker returns to work.
First identify where the chisel is stuck
Two different problems are often described with the same words:
- Stuck in the work: the chisel is trapped by fractured concrete, asphalt or rock, but it can still move normally in the breaker chuck.
- Stuck in the chuck: the chisel cannot slide out of the tool after the retainer is correctly released.
If the chisel is trapped in the work, follow the site’s approved recovery method and avoid using the breaker as a lever. This guide focuses on a chisel jammed inside the breaker front end. That condition requires an inspection of the shank, chuck and retention system—not more impact energy.
Stop-work conditions before any removal attempt
| Observation | What it may indicate | Correct boundary |
|---|---|---|
| Air hose is still connected or the line may contain pressure | Stored-energy and unplanned-start risk | Close the supply, bleed the line and disconnect according to site procedure |
| Retainer will not reach its fully released position | Damaged, dirty or seized retainer components | Do not force the chisel past it; move to service inspection |
| Chisel is bent, cracked, heavily burred or mushroomed | Deformation may be mechanically locked inside the chuck | Do not hammer, heat or pry; use the model-specific service procedure |
| Chuck or front housing is cracked, loose or distorted | Structural or wear-part failure | Quarantine the breaker for trained repair |
| Tool remains unusually hot | Recent operation, friction or poor lubrication | Let it cool naturally before handling or measuring |
| Removal requires high force or an improvised pulling device | Cause is beyond first-line maintenance | Stop before additional damage or stored tension is created |
Eye protection, gloves and stable support are essential, but PPE does not make an uncontrolled removal method safe. Follow the exact breaker manual, site lockout procedure and service limits.
Why breaker chisels jam in the chuck
Compacted grit, concrete fines or rust
Dust and broken material can enter the front end, especially when the chisel is changed on the ground or stored dirty. Moisture then turns contamination into an abrasive or corrosive layer. The chisel may still move during operation but bind when the retainer is opened.
Burred or upset striking end
The piston repeatedly contacts the chisel’s striking end. Wrong shank geometry, poor material condition, inadequate lubrication or continued use after damage can raise and spread metal at that end. Even a small ridge can act like a mechanical shoulder inside the chuck. This is different from normal polish on the guide surfaces.
Damaged collar or retainer
The collar and retainer control how far the working tool can move and prevent release during operation. A peened collar, bent retainer, worn latch or trapped debris may block the removal path. Atlas Copco’s pneumatic-tool maintenance guidance treats retainer function as a routine safety check: with the retainer closed, the working tool should not release.
Bent chisel or side-loaded shank
Prying, working at an excessive angle, using the wrong chisel for the material or allowing the tool to run without firm contact can impose side loads. A chisel that is no longer straight can wedge against the chuck. The same misuse can accelerate chuck wear and vibration.
Wrong shank profile or insertion length
A chisel that “goes in” is not necessarily compatible. Hex or round profile, across-flat or diameter dimension, guide diameter, insertion length and collar position must all match the exact breaker and retainer. See the published guide to pneumatic breaker chisel shank compatibility before approving a substitute.
Chuck wear or internal damage
An over-worn chuck normally creates excessive play, but irregular wear, scoring, foreign material or broken fragments can also create local interference. Atlas Copco recommends checking chuck wear with the specified chuck gauge and replacing an over-worn chuck. A general caliper reading is not a substitute for the manufacturer’s gauge location and limit.
Safe first-line inspection and removal sequence
- Stop and stabilize the area. Release the trigger, place the breaker so it cannot fall or roll, and keep others clear of the chisel’s possible travel path.
- Isolate compressed air. Close the supply, bleed trapped pressure and disconnect the hose using the site procedure. Verify that the tool cannot start.
- Allow natural cooling. A hot front end can burn the technician and distort the judgment of fit. Do not accelerate cooling with water and do not apply external heat.
- Record the condition. Photograph the model identification, retainer position, exposed shank, collar and chuck before disturbing evidence. This is useful if service parts or supplier review are required.
- Clean the exposed interface. Use the method approved in the manual to remove loose contamination around the chuck and retainer. Do not direct compressed debris toward people or force grit deeper into the tool.
- Release the retainer completely. Confirm the actual mechanism—latch, spring, collar or other design—rather than assuming it operates like another breaker.
- Check alignment. Support the chisel in line with the chuck. If it is visibly bent or the retainer is obstructed, stop.
- Try normal straight removal only. Use controlled hand force while keeping the shank aligned. A small permitted rotational movement may help only when the manufacturer’s procedure allows it. Do not pry against the housing.
- Escalate if it remains stuck. Secure and label the breaker, then use trained service personnel with the correct manual, fixture and disassembly tools. Internal striker, bushing or fragment damage may not be visible from outside.
Removal methods that create additional risk
- Running the breaker while pulling the chisel. This exposes hands and bystanders to impact energy and uncontrolled release.
- Hammering the shank sideways. Side impact can bend the chisel, fracture hardened steel, distort the chuck or load the technician with stored spring force.
- Heating the chuck with a torch. Heat can affect seals, lubricant and heat-treated parts, while concealed oil or pressure creates further uncertainty.
- Using a chain, vehicle, excavator or uncontrolled jack. The chisel can release as a projectile, and the pulling load is neither aligned nor measured.
- Grinding the exposed shank while it is installed. This can send abrasive debris into the breaker and hides the original failure evidence.
- Forcing the retainer beyond its designed travel. A damaged retaining system can later release a chisel during operation.
If a service manual specifies a press, puller or controlled disassembly method, it belongs in a trained workshop with the breaker secured and the correct protective setup. It should not be improvised at the work face.
Inspection after the chisel is removed
| Part or zone | Inspect for | Decision |
|---|---|---|
| Striking end | Burrs, mushrooming, chips, cracks, asymmetric contact or discoloration | Remove from service when damage exceeds the maker’s reconditioning allowance; never guess a grinding limit |
| Guide surfaces | Scoring, galling, corrosion, embedded grit or tapering wear | Compare with a known correct chisel and the specified dimensions |
| Retention collar or groove | Peening, deformation, uneven wear or cracks | Replace if secure retention cannot be assured |
| Chisel straightness | Visible bend or runout | Do not reinstall a bent working tool |
| Chuck or bushing | Local scoring, fragments, cracks, excessive or irregular clearance | Clean and gauge at the manufacturer’s stated locations; repair as required |
| Retainer assembly | Free movement, correct engagement, wear, bent parts and contamination | Replace damaged components and verify closed-position retention |
| Lubrication evidence | Dryness, wrong lubricant, water contamination or abnormal residue | Correct the air-line or built-in lubrication arrangement before restart |
Root-cause table: what the evidence means
- Heavy dirt but little metal damage: improve cleaning, storage and changeover practices; confirm the front-end seals or wipers used by the model.
- Repeated burrs on several chisels: check actual shank compatibility, piston contact, lubrication and chuck condition rather than blaming one chisel.
- One bent chisel with polished side contact: review work angle, prying, material trapping and operator technique.
- Damaged collar and retainer together: verify the chisel profile and investigate dry firing or excessive free movement.
- Rust on shank and inside front end: review water separation, end-of-shift oiling, storage and exposure to wash water or rain.
- Excessive chuck play before the jam: gauge the chuck and inspect mating parts; replacing only the chisel may not solve the system fault.
How to prevent another stuck breaker chisel
- Match every replacement chisel by the exact breaker model and full shank/collar drawing.
- Clean and inspect the shank before installation; do not install a burred, bent, cracked or corroded tool.
- Verify retainer engagement by the manufacturer’s pull check before reconnecting air.
- Use the specified pneumatic-tool lubrication system and lubricant; maintain water separation and hose condition.
- Keep the chisel aligned with the work and avoid prying. Reposition the breaker instead of bending the working tool.
- Avoid dry firing and do not operate with an insecure or excessively loose chisel.
- Inspect chuck clearance with the correct gauge and replace wear parts at the stated limit.
- Store breakers and chisels clean, dry and protected from ground contamination.
For selecting the correct working end after the interface is confirmed, see Pneumatic Breaker Chisel Types.
RFQ and service-parts checklist
- Breaker make, full model, serial or configuration identifier and clear nameplate photo
- Photo of the retainer closed, fully released and removed where the manual permits
- Chisel shank profile, across-flat or diameter, insertion length, guide diameter and collar position
- Chisel type, overall length, working material and operating direction
- Description of when the jam occurred: changeover, operation, cooling or storage
- Photos of the striking end, guide surfaces, collar and chuck mouth after removal
- Current chuck/bushing, retainer, latch or spring part numbers where available
- Lubricator type, oil used, water-separator condition, hose arrangement and recent moisture history
- Whether the same symptom occurred with more than one chisel
PerfoMax’s current breaker product records require configuration confirmation before a specific model can be recommended. Send the model, shank drawing and failure evidence through the Request a Quote page so the inquiry can be reviewed without linking to an unverified or draft product.
Frequently asked questions
Can I run the breaker briefly to loosen the chisel?
No. Energizing a breaker while someone restrains or pulls the chisel creates an uncontrolled release hazard. Isolate and depressurize the tool before inspection.
Should I use penetrating oil in the chuck?
Only if the exact breaker manual or approved service procedure permits that product and application point. A general penetrating fluid may contaminate the pneumatic lubricant, affect seals or carry debris farther inside. The specified breaker oil and service method take priority.
Can a mushroomed chisel be ground until it comes out?
Do not grind an installed chisel as a field workaround. The correct response is controlled service removal, followed by inspection against the manufacturer’s reconditioning and discard limits. Grinding heat and removed material can create additional hazards.
Why does the replacement chisel also stick?
Repeated jamming points to a system problem: wrong shank geometry, damaged retainer, irregular chuck wear, contamination, corrosion, poor lubrication or side loading. Compare the complete interface instead of replacing another chisel blindly.
When must the breaker go to a workshop?
Escalate when normal straight hand removal fails, the retainer cannot fully release, the chisel or housing is deformed or cracked, internal fragments are suspected, or model-specific disassembly is required.
Technical references
- Atlas Copco: Maintenance checklist for pneumatic hammers and breakers — retainer-function, chuck-wear and lubrication checks.
- Atlas Copco: Tips for longer pneumatic handheld-tool life — air-line lubrication, water separation and trained servicing.
- Honsa Ergonomic Tools: Power tool and chisel do’s and don’ts — practical inspection warnings for worn, chipped, mushroomed or misshapen chisels.
This guide defines a safe diagnostic boundary; it does not replace the safety, operation or overhaul instructions for the exact breaker. Site energy-isolation rules and manufacturer procedures always control the work.
