Direct answer: pneumatic breaker chisel compatibility cannot be confirmed from “hex,” “round,” or one nominal shank size alone. A replacement must match the exact breaker model and its controlled working-tool specification, including shank shape, size across flats or diameter, shank length, guide diameter, collar geometry, retainer interface and working-end requirement.
Two chisels described with the same nominal hex size can still differ enough to bind, leak air, strike at the wrong position, wear the nozzle or fail to engage the retainer. Do not grind, weld, sleeve or otherwise modify a chisel to make it fit. Isolate the breaker, measure the original and the receiving tool, obtain the manufacturer or supplier drawing, and confirm the complete interface before pressurizing the tool.
Why a Nominal Shank Description Is Not Enough
A pneumatic breaker transfers repeated piston impacts through the inserted working tool. The shank must locate correctly in the nozzle or bushing, present the correct striking position to the piston, move only as intended, and remain captured by the retainer. Compatibility therefore depends on a group of related dimensions—not one catalog label.
Atlas Copco’s published chipping-hammer guidance identifies three especially important fit dimensions: shank length, shank size and guide diameter. Its examples show that small differences can prevent insertion, create leakage, reduce performance or accelerate nozzle wear. For larger breakers, collar and retainer geometry add another essential control because the working tool must remain positively retained.
| Interface feature | What to verify | Why it matters |
|---|---|---|
| Shank shape | Hex, round, square, spline or another controlled profile. | Determines how the tool is guided and whether rotation is constrained. |
| Shank size | Width across flats for a hex; diameter for a round; full profile for a spline. | Too large may not enter; too small can create play, leakage or rapid bushing wear. |
| Shank length | Controlled insertion length from the striking end to the specified shoulder or collar reference. | Changes where the piston meets the chisel and where the tool sits in the nose. |
| Guide diameter | Diameter and length of any guided cylindrical portion. | Controls guidance and air sealing in designs that use this feature. |
| Collar geometry | Shape, diameter, thickness and location from the striking end. | Must clear the nose and engage the intended retaining system. |
| Retainer interface | Spring, latch, ring, clip or other manufacturer-defined retention method. | Prevents the working tool from being ejected or separating during handling and use. |
| Working end | Moil point, narrow or wide chisel, asphalt cutter, clay spade, tamper or other approved form. | The application end must suit the material and loading without changing the shank interface. |
Use the Breaker Model as the Primary Reference
Start with the identification plate, parts manual or manufacturer-controlled documentation for the exact pneumatic breaker. Similar-looking tools and adjacent model suffixes may use different noses, retainers or shank standards. A previous chisel is useful evidence only when its origin and fit are known; a worn or modified tool should not become the master specification.
Record:
- manufacturer, complete model and suffix;
- serial number or production revision where relevant;
- parts-manual or drawing revision;
- approved working-tool part number or shank designation;
- retainer and nozzle or bushing part numbers;
- current wear condition of the nose, bushing and retainer;
- application and required working-end geometry.
Chicago Pneumatic’s current product data illustrates why exact identification matters: models within the same chipping-hammer series can be offered with different shank shapes and dimensions. Treat every model and suffix as a controlled configuration until equivalence is documented.

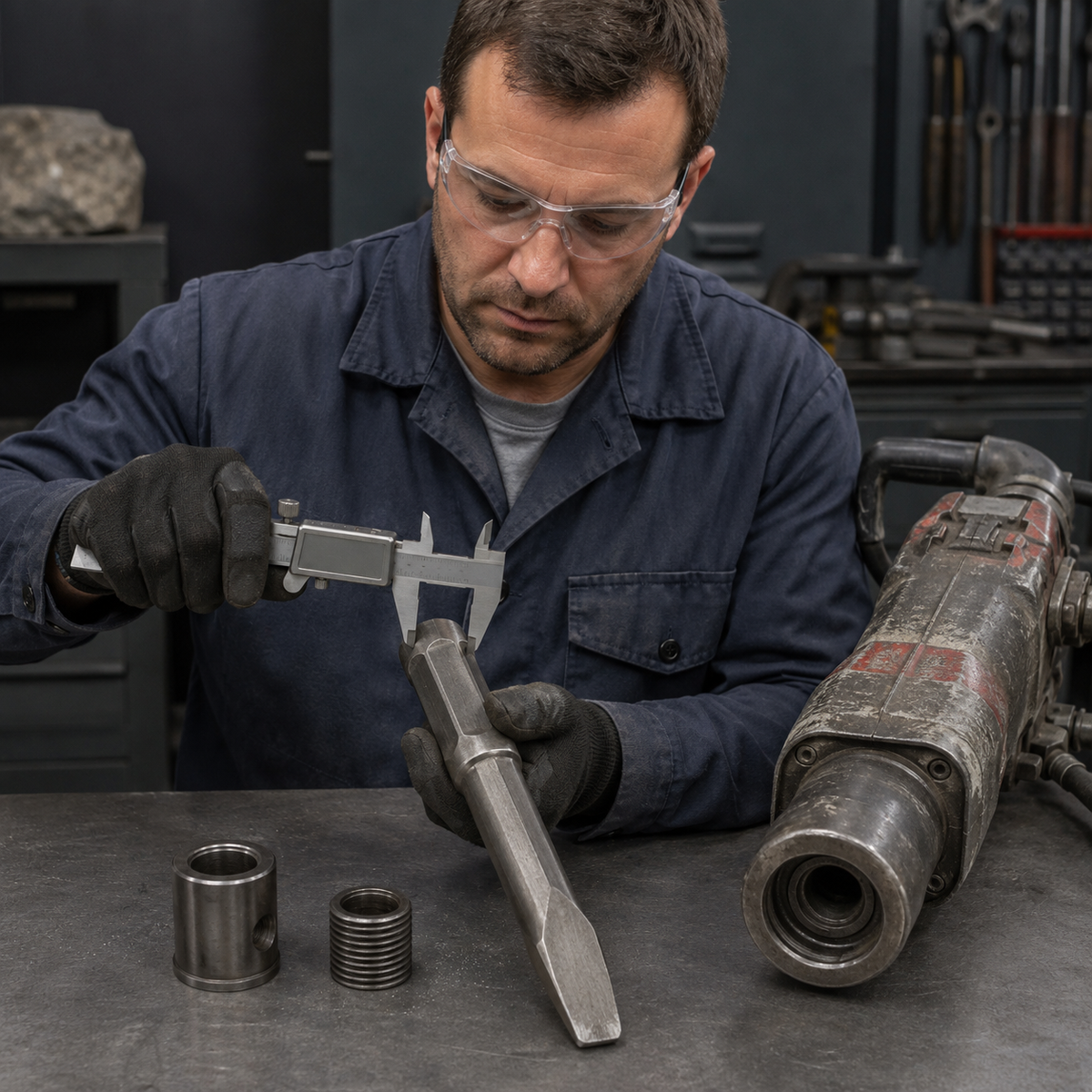

How to Measure a Breaker Chisel Shank
Measurement is a verification step, not a substitute for the breaker manufacturer’s specification. Use calibrated tools, clean reference surfaces and a consistent drawing basis. Never measure or test-fit while the breaker is connected to an air supply.
- Depressurize and isolate the tool. Disconnect the air hose and follow the site’s lockout, inspection and hose-safety procedure.
- Clean the interface. Remove loose dirt and oil without grinding away wear marks or changing edges.
- Identify the reference points. Use the supplier drawing to locate the striking end, guide section, collar and specified measuring planes.
- Measure the profile. For a hex, measure width across flats at several positions and check for twist or rounding. For a round shank, measure diameter in more than one orientation.
- Measure shank length. Use the specified datum rather than assuming that total inserted length and under-collar length are the same.
- Measure the guide feature. Record guide diameter, guide length and any transition or shoulder required by the drawing.
- Measure the collar. Record its shape, outside dimensions, thickness and position relative to the striking end.
- Inspect the retainer contact. Check that the intended retainer can close, latch or seat without interference.
- Photograph and label the sample. Include the breaker model, chisel source and measurement date so the record cannot be separated from the tool.
For worn tools, record both the measured condition and the nominal drawing value. A used shank may be smaller, rounded, burred or mushroomed; copying those measurements into a purchase order can reproduce the wear rather than the correct fit.
Understand the Piston, Nozzle and Retainer Relationship
The breaker nose has three different jobs. The piston transfers impact to the striking end. The nozzle or bushing guides the working tool and controls clearance. The retainer captures the collar or other retaining feature while still allowing the motion intended by the design.
A successful hand insertion proves only that the tool can enter. It does not prove correct piston contact, air sealing, running clearance, collar engagement or retained travel. Conversely, a chisel that feels loose may reflect either the wrong shank or a worn breaker bushing. Diagnose both parts before ordering replacements.
Fit Symptoms and Their Likely Causes
| Fit or operating symptom | Possible compatibility cause | Required response |
|---|---|---|
| Shank will not fully enter | Profile or guide diameter too large; burrs; wrong collar location; damaged or dirty bushing. | Stop. Compare both parts with controlled dimensions; do not force or grind the shank. |
| Retainer will not close | Collar shape, thickness or position is wrong; retainer is incorrect or damaged. | Do not operate. Verify the complete retention system and part numbers. |
| Visible side play | Shank undersize, rounded wear, bushing wear or incorrect profile. | Measure the new and old chisel plus the bushing; replace only to approved limits. |
| Air leakage at the nose | Guide diameter or sealing relationship is incorrect, or guide/bushing wear is excessive. | Isolate the tool and verify the specified guide and bushing dimensions. |
| Unusual vibration or weak impact | Incorrect shank length, wrong striking position, excessive clearance, wear or unrelated air/lubrication problem. | Stop the trial and separate compatibility checks from pneumatic-system diagnosis. |
| Retainer or collar marks develop rapidly | Incorrect retained travel, collar geometry, side loading or worn retention hardware. | Inspect against the manual before further use; do not treat the marks as normal break-in. |
| Chisel ejects or separates | Missing, open, damaged or incompatible retainer; incorrect collar or unsafe assembly. | Remove the tool from service immediately and investigate under the site safety procedure. |
Hex, Round and Spline Are Families, Not Complete Specifications
A hex shank is normally described by its width across flats, but that value does not define its length, corner radius, guide section or collar. A round shank still requires diameter, length and retention details. A spline description requires the exact spline profile and mating tool—not merely the word “spline.”
Do not convert between shapes with sleeves or workshop-made adapters unless the breaker manufacturer explicitly approves the complete assembly. Additional joints can alter guidance, impact transfer, retained travel and ejection risk. The correct commercial solution is a working tool manufactured for the receiving breaker or an engineered, approved adapter system with controlled drawings.
Collar and Retainer Checks Before Operation
The retainer is a safety-critical part of the interface. OSHA guidance for pneumatic tools emphasizes secure attachments, the safe condition of tools and approved pressure and hose practices. Site rules and the breaker manufacturer’s instructions may impose additional requirements.
Before every controlled fit check:
- confirm the breaker is isolated and depressurized;
- inspect the retainer, latch, spring or ring for wear, deformation and correct assembly;
- insert the approved chisel without striking or forcing it;
- close and secure the retainer exactly as instructed;
- confirm the collar is captured and the intended axial movement is present;
- check that the chisel cannot leave the tool during normal handling;
- remove the assembly from service if the retaining action is uncertain.
Receiving Inspection for Replacement Chisels
For bulk or repeat orders, check the interface before distributing tools to crews. A practical receiving plan includes:
- purchase-order part number and drawing revision;
- supplier lot or heat identification where specified;
- shank shape and controlled dimensions;
- collar and retainer-contact geometry;
- straightness and obvious bending;
- burrs, cracks, laps, heavy scale or machining defects at the shank;
- working-end type and length;
- sample fit in a verified breaker or inspection fixture;
- inspection sample size and acceptance criteria;
- quarantine process for mixed or nonconforming lots.
A sample fit should use a breaker or gauge known to be within its service limits. Testing a new chisel in a badly worn bushing can falsely approve an oversize clearance; testing against a damaged nose can falsely reject a correct tool.
Common Ordering Mistakes
- Ordering from a verbal nickname. “Jackhammer bit” or “22 mm hex” is not a complete interface definition.
- Copying a worn sample. Wear, rounding and prior workshop modification can corrupt the reference.
- Ignoring model suffixes. Adjacent variants may use different shanks or retainers.
- Measuring overall length only. Shank length and under-collar working length are different fields.
- Checking insertion but not retention. A chisel that enters can still fail the collar or retainer check.
- Forcing a tight fit. Hammering or grinding hides the incompatibility and can damage the breaker.
- Blaming the replacement before measuring the bushing. Existing nozzle wear can create the apparent mismatch.
- Mixing units or rounding conversions. Preserve the controlled metric or imperial dimension and tolerance from the drawing.
RFQ Checklist for Breaker Chisel Compatibility
Send the supplier:
- breaker manufacturer, complete model and suffix;
- serial number or production revision when available;
- manufacturer working-tool part number;
- shank drawing with datums, dimensions and tolerances;
- profile type and size across flats or diameter;
- shank length and guide diameter/length;
- collar shape, position and dimensions;
- retainer type and current retainer part number;
- required working end and under-collar or overall length basis;
- application, material and work orientation;
- photos of the original tool, breaker nose and retainer;
- measured bushing condition or service-limit evidence;
- trial quantity, inspection plan and packaging/marking needs.
For broader equipment selection, see How to Choose a Pneumatic Breaker for Concrete and Rock. When the immediate task is matching a replacement chisel or working tool, send PerfoMax the breaker model, shank drawing, retainer details and application with your inquiry. Compatibility and availability must be confirmed for the exact configuration.
Frequently Asked Questions
Is the hex size enough to order a pneumatic breaker chisel?
No. Also confirm the exact breaker model, shank length, guide diameter, collar geometry, retainer interface and approved working end. Nominally similar hex shanks can still be incompatible.
Can I grind a chisel shank so it fits the breaker?
No. Uncontrolled grinding changes dimensions, surface condition and potentially the heat-treated region. It can also conceal an incorrect striking or retention geometry. Obtain the correct working tool or an approved engineered solution.
Why does a new chisel feel loose?
The chisel may be undersize or the breaker nozzle/bushing may be worn. Measure both against their controlled specifications before deciding which part is incorrect.
Does the collar only stop the chisel from falling out?
Its exact function depends on the design, but collar geometry commonly interacts with the retainer and retained travel. The collar must match the breaker’s approved retention system, not merely look similar.
Can one chisel fit several breaker brands?
Only when the complete controlled interface is documented as equivalent for the specified models. Brand-independent labels or one nominal dimension are not sufficient proof.
Match the Drawing, the Breaker and the Retainer
A compatible pneumatic breaker chisel is a controlled interface: the piston must strike at the correct position, the shank must be guided with the intended clearance, and the retainer must capture the tool safely. Confirm all three before operation.
